A CNC tapping machine improves thread accuracy, production efficiency, and machining consistency. It has become essential equipment for manufacturers producing threaded holes in steel, aluminum, cast iron, and other metal components. Compared with manual tapping, automated equipment delivers higher precision, lower rejection rates, and shorter production cycles.
YG Machinery supplies professional tapping equipment for workshops, fabrication plants, and industrial manufacturers worldwide. Every machine combines rigid construction, stable spindle performance, and user-friendly controls. Whether you produce automotive parts, machinery components, valves, or metal fittings, our equipment helps increase productivity while maintaining excellent thread quality.
Boost Productivity—Get a Free Quote
Technical Specifications of YG CNC Tapping Machine
| Specification | YG-20/40 | YG-25/50 | YG-30/60 |
|---|---|---|---|
| Tapping Capacity In Steel | 6–20mm Coarse, 6–40mm Fine | 6–25mm Coarse, 6–50mm Fine | 10–30mm Coarse, 10–60mm Fine |
| Spindle Diameter | 30mm | 35mm | 40mm |
| Maximum Spindle Travel | 110mm | 110mm | 125mm |
| Column Diameter | 100mm | 100mm | 110mm |
| Spindle Center To Column | 216mm | 216mm | 250mm |
| Table Shape | Rectangular | Rectangular | Square |
| Table Size | 405 × 225mm | 405 × 225mm | 760 × 590mm |
| Working Area | 330 × 150mm | 330 × 150mm | 620 × 260mm |
| Floor Area | 1220 × 760mm | 1220 × 760mm | 1400 × 620mm |
| Number Of Speeds | 2 AC Drive Optional | 2 AC Drive Optional | AC Driver |
| Motor | 2HP / 1440rpm | 2HP / 1440rpm Or 900rpm | 3HP / 1440rpm |
| Total Height | 1900mm | 1900mm | 2100mm |
| Total Weight | Approx. 350kg | Approx. 400kg | Approx. 550kg |
| Maximum Tap Shank | 20mm | 30mm | 40mm |
| Complete Belt Cover | Yes | Yes | Yes |
| Motor Cover | Yes | Yes | Yes |
| Coolant System | Yes | Yes | Yes |
| Counter Meter | Yes | Yes | Yes |
| Safety Cut-Off Limit Switches | Yes | Yes | Yes |
| Phase Preventer | Yes | Yes | Yes |
| Coolant Tank Capacity | 40 Liters | 40 Liters | 40 Liters |
| Metric Pitch | 0.8–2.5 | 1.0–3.5 | 1.0–4.0 |
| Unified Pitch (TPI) | 26–12 | 24–11 | 24–8 |
| Standard Equipment | Floating Tap Holders, Tap Collets, Lead Screws, Spanners, Allen Keys | Same | Same |
The three models cover a wide tapping range for different production needs. The rigid frame minimizes vibration during machining. The coolant system improves thread quality and extends tool life. Standard accessories allow customers to begin production immediately after installation. The multiple pitch options also increase machining flexibility for different industries.
Compare Models and Get a Quote
6 Reasons A CNC Tapping Machine Improves Threading Efficiency
Modern manufacturing demands fast production and reliable machining quality. Stable threading performance directly affects assembly accuracy and product reliability.
This equipment offers several important advantages:
- High spindle rigidity for accurate tapping.
- Smooth feeding improves thread consistency.
- Multiple tapping capacities support different workpieces.
- Coolant circulation extends tap life.
- Compact design saves valuable workshop space.
- Safety protection improves daily operation.
These features help manufacturers reduce production costs and improve machining efficiency.
YG Machinery also provides professional technical support and machine selection guidance for every customer.
CNC Tapping Machine Applications Across Multiple Industries
A CNC Tapping Machine serves many industries that require precise internal threads. It supports both batch production and customized machining projects.
Typical applications include:
- Automotive component manufacturing
- Construction hardware production
- Agricultural machinery
- Valve manufacturing
- Pump components
- Metal furniture production
- Electrical equipment
- Pipe fittings
- Mechanical spare parts
- General metal fabrication
The equipment handles different materials while maintaining excellent thread quality. Manufacturers can complete more work with fewer interruptions.

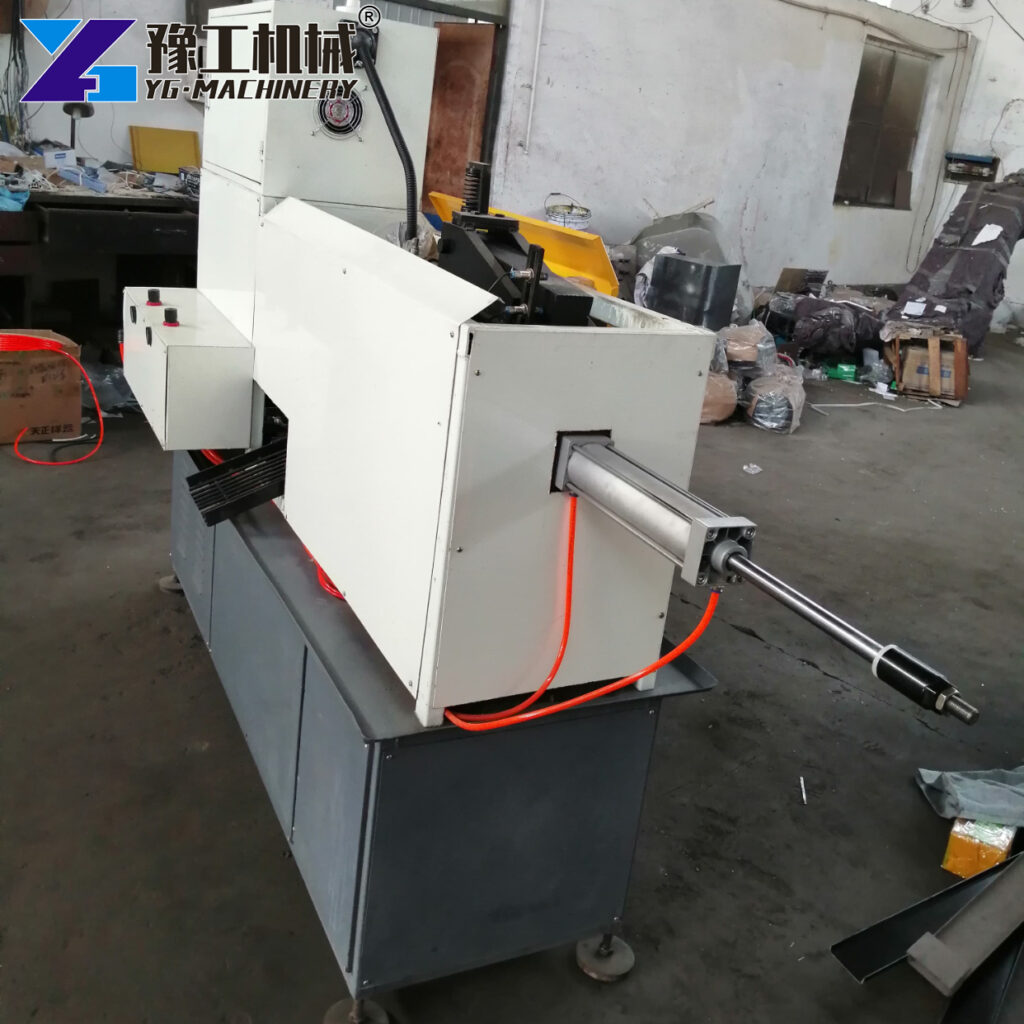

Auto Tapping Machine Creates Faster Production Cycles
Production speed matters in every manufacturing plant. Faster threading reduces delivery time and increases equipment utilization.
Important performance benefits include:
- Stable spindle movement
- Accurate thread positioning
- Lower tool wear
- Reduced operator workload
- Consistent thread depth
- Easy machine adjustment
The intelligent structure keeps production running smoothly throughout long working shifts.
5 Engineering Features That Reduce Operating Costs With CNC Tapping Machine
Operating cost affects long-term profitability. Reliable equipment helps manufacturers reduce maintenance expenses and maximize production time.
Key engineering advantages include:
- Heavy-duty machine frame improves stability.
- AC drive provides smooth power output.
- Safety switches protect operators.
- The counter meter monitors production quantity.
- A complete belt cover improves workplace safety.
- The coolant system reduces cutting temperature.
These practical designs help increase equipment life while reducing unexpected downtime.
How To Choose The Right CNC Tapping Machine
Selecting the right CNC Tapping Machine depends on your products, production volume, and threading requirements. A suitable machine improves efficiency and reduces long-term operating costs.
Consider these factors before purchasing:
- Tapping Capacity
Select a model that matches your maximum thread diameter. Oversized equipment increases costs unnecessarily. - Workpiece Material
Steel, stainless steel, aluminum, and cast iron require different spindle torque and speed settings. - Production Volume
Small workshops benefit from flexible models. High-volume factories should choose larger machines for continuous production. - Available Workshop Space
Check the machine footprint before installation. Leave enough room for operators and material handling. - Future Expansion
Choose equipment with a wider tapping range if production plans may grow.
YG Machinery helps customers compare models according to real production needs. Our engineers provide technical recommendations before purchase. We also offer installation guidance and after-sales support to ensure smooth operation.
Need help selecting the right model? Contact YG Machinery today for expert advice, factory pricing, and a customized tapping solution.
Start Your Project with the Right Equipment

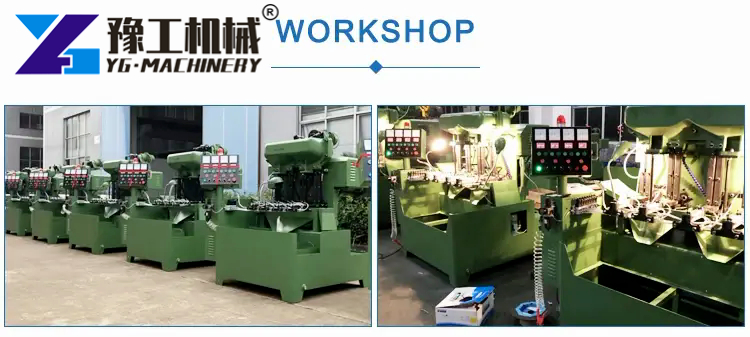

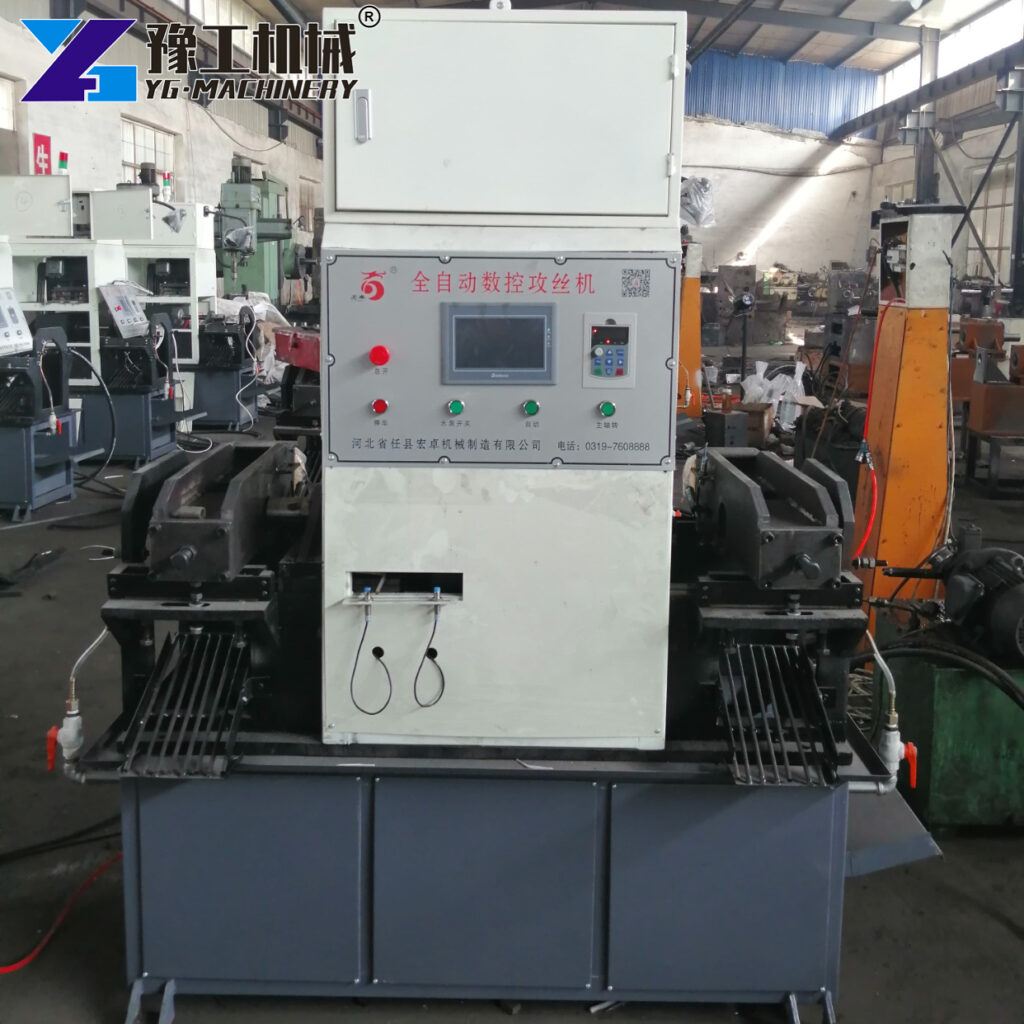

Tapping Machine Manufacturer With Complete Production Support
Choosing a reliable supplier is as important as choosing the machine itself. A professional manufacturer provides stable quality, technical support, and long-term service.
YG Machinery follows strict production standards throughout manufacturing. Every machine undergoes inspection before delivery.
Customers benefit from:
- Professional machine selection
- Factory-direct pricing
- Stable spare parts supply
- Online technical support
- Installation guidance
- Operator training
- Fast global shipping
These services help customers reduce installation risks and improve production efficiency from the first day.

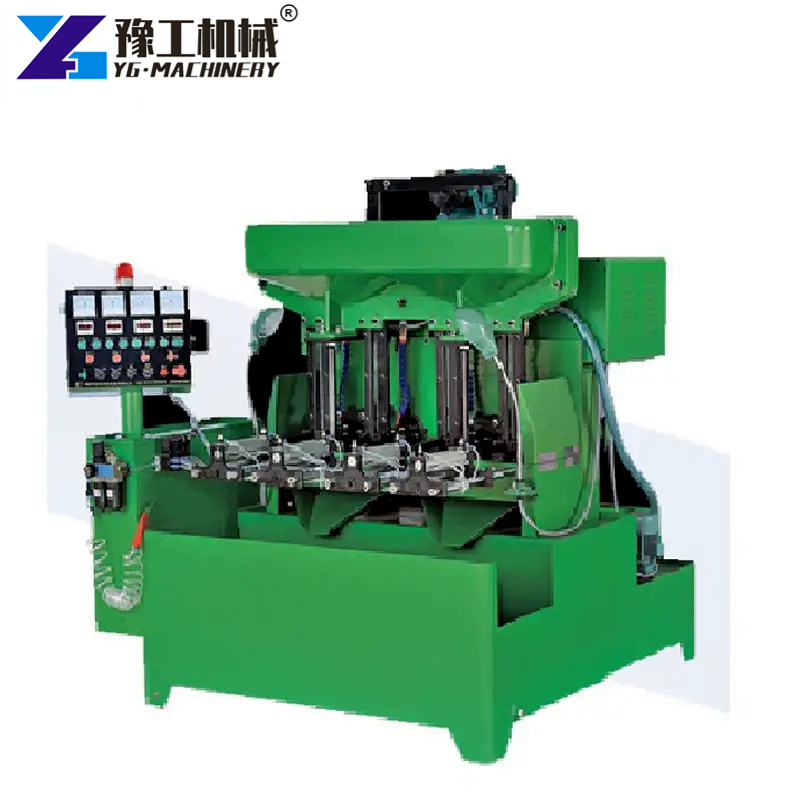

5 Factors That Influence Automatic Tapping Machine Price
Machine price depends on more than basic specifications. Buyers should evaluate the total value instead of focusing only on the initial investment.
Important pricing factors include:
- Maximum tapping capacity
- Machine rigidity and frame design
- Motor power and drive system
- Standard accessories included
- After-sales service and warranty
- Manufacturing quality
- Available customization options
A high-quality machine often lowers maintenance costs over many years. Better stability also reduces tool wear and rejected parts. This creates higher overall returns for manufacturers.
Real Project Case: Auto Tapping Machine Upgrades a Türkiye Auto Parts Factory
A precision machining company in Türkiye supplied threaded components for automotive suspension systems. Rising order volumes created bottlenecks during manual tapping operations. Production delays also increased labor costs and reduced delivery efficiency.
After comparing several suppliers, the customer selected the YG-25/50 CNC Tapping Machine from YG Machinery. The machine provided the tapping range required for multiple component sizes while maintaining high thread accuracy.
YG Machinery offered online installation support and machining parameter recommendations before production began.
Within three months, the factory reported significant improvements:
- Daily threaded part output increased by approximately 38%.
- Average tapping time per component decreased by 30%.
- Tool replacement frequency dropped because of the coolant system.
- Thread consistency improved, reducing quality inspection failures.
- One operator managed multiple production stations more efficiently.
The customer later purchased additional units to expand production capacity for new export orders across Europe. The investment shortened delivery cycles and strengthened competitiveness in the automotive supply chain.
Why Choose YG Machinery
YG Machinery supplies industrial equipment to customers across more than 120 countries. We focus on reliable quality, practical engineering, and responsive service.
Our advantages include:
- Professional manufacturing experience
- Strict quality inspection
- Factory-direct pricing
- Customized machine solutions
- Global shipping support
- Technical training
- Long-term spare parts service
Our engineering team works closely with every customer. We help optimize production efficiency before and after installation.
