Spider crane price has become one of the most searched topics among contractors, glass installers, steel fabricators, and equipment rental companies. Compact mini cranes solve lifting challenges where conventional truck cranes cannot operate. They fit through narrow doors, work inside buildings, and deliver excellent lifting performance with minimal ground pressure. YG Machinery designs and manufactures professional spider cranes for customers in more than 60 countries. Every machine undergoes strict quality inspection before shipment and supports customized configurations for different project requirements.
Start Your Project with the Right Spider Crane
Technical Specifications of YG Spider Cranes
YG Machinery offers three standard models covering most lifting applications.
| Technical Parameter | YG-3 | YG-5 | YG-8 |
|---|---|---|---|
| Maximum Capacity | 3 Ton | 5 Ton | 8 Ton |
| Maximum Working Radius | 8.83 m × 0.15 t | 14 m × 0.5 t | 16.5 m |
| Maximum Lifting Height | 9.9 m × 0.7 t | 16.8 m | 18 m |
| Hook Winch Speed | 0–8 m/min (4 Rope) | 12 m/min (4 Rope) | 12 m/min (4 Rope) |
| Wire Rope | Φ8 mm × 45 m | Φ11 mm × 80 m | Φ11 mm × 80 m |
| Boom Type | 5-Section Pentagonal | 5-Section Pentagonal | 5-Section Pentagonal |
| Boom Angle | 0°–78° | 0°–78° | 0°–78° |
| Boom Raising Time | 13 Seconds | 13 Seconds | 13 Seconds |
| Slewing Angle | 360° Continuous | 360° Continuous | 360° Continuous |
| Slewing Time | 60 Seconds | 38 Seconds | 38 Seconds |
| Travel Drive | Hydraulic | Hydraulic | Hydraulic |
| Travel Speed | 2.5 km/h | 2.5 km/h | 2.5 km/h |
| Gradeability | 25° (36%) | 25° (36%) | 25° (36%) |
| Transport Size | 2950 × 980 × 1560 mm | 5000 × 1500 × 1900 mm | 5000 × 1600 × 2180 mm |
| Total Weight | 2700 kg | 6200 kg | 7200 kg |
| Power Source | Diesel / Electric Optional | Diesel / Electric Optional | Diesel / Electric Optional |
| Remote Control | Optional | Standard Optional | Standard Optional |
| Applications | Glass, Steel, Indoor Construction | Heavy Installation | Industrial Projects |
More Capacity Options Available
The models above cover the most popular lifting capacities for construction, glass installation, industrial maintenance, and equipment positioning. However, YG Machinery also provides larger spider cranes for heavy-duty lifting projects.
If your application requires greater lifting capacity, we can also supply:
- 10 Ton Spider Crane
- 12 Ton Spider Crane
- 16 Ton Spider Crane
Our engineering team will recommend the most suitable model based on your required lifting capacity, working radius, lifting height, jobsite conditions, and transportation requirements. Customized configurations, including diesel, electric, hybrid power systems, remote control, non-marking tracks, and special lifting attachments, are also available to meet different project needs.
This flexible product range allows contractors, rental companies, steel structure installers, and glass installation specialists to source all their compact lifting equipment from one reliable supplier. Contact YG Machinery today for professional model selection and a customized quotation.
Compare Models and Get a Quote
7 Reasons Spider Crane Price Offers Better Long-Term Value
Many buyers compare purchase prices first. Smart contractors compare lifetime operating costs instead.
A compact mini crane creates value by reducing labor requirements and improving productivity.
Major advantages include:
- Compact body for confined spaces
- Low transportation cost
- Fast deployment
- Hydraulic outriggers for stability
- Precise lifting control
- 360° continuous rotation
- Low maintenance requirements
- Suitable for indoor and outdoor work
- Easy transportation between job sites
- High resale value
YG Machinery helps customers select the correct model according to lifting capacity, boom length, and working environment instead of simply recommending the largest machine.
Spider Crane Cost: 8 Factors That Affect Your Budget
The final quotation depends on much more than lifting capacity.
Several important factors influence purchasing cost.
- Maximum lifting capacity
- Working radius
- Boom length
- Diesel or electric power
- Remote control system
- Safety devices
- Optional accessories
- Shipping destination
Customers should also consider future operating expenses.
A slightly higher investment often delivers much lower maintenance costs.
Rental companies usually recover their investment quickly because compact cranes serve many industries.
Providing the following information helps engineers prepare an accurate quotation:
- Application
- Maximum lifting weight
- Required lifting height
- Indoor or outdoor operation
- Local regulations
- Delivery location
Find the Right Model for Your Project
Why An Indoor Spider Crane Solves Difficult Lifting Problems
Many construction projects happen inside completed buildings.
Traditional cranes cannot enter elevators, shopping malls, factories, or underground facilities.
Compact mini cranes solve these challenges.
Typical applications include:
- Glass curtain wall installation
- Steel structure assembly
- Factory equipment installation
- Shopping mall renovation
- Museum construction
- Hospital projects
- Airport terminals
- Subway stations
- Mechanical maintenance
- Stone installation
The compact body passes through narrow entrances.
Hydraulic outriggers provide excellent stability after positioning.
The machine also minimizes floor damage because of its relatively low ground pressure.
Many contractors choose this solution when working inside high-value buildings.

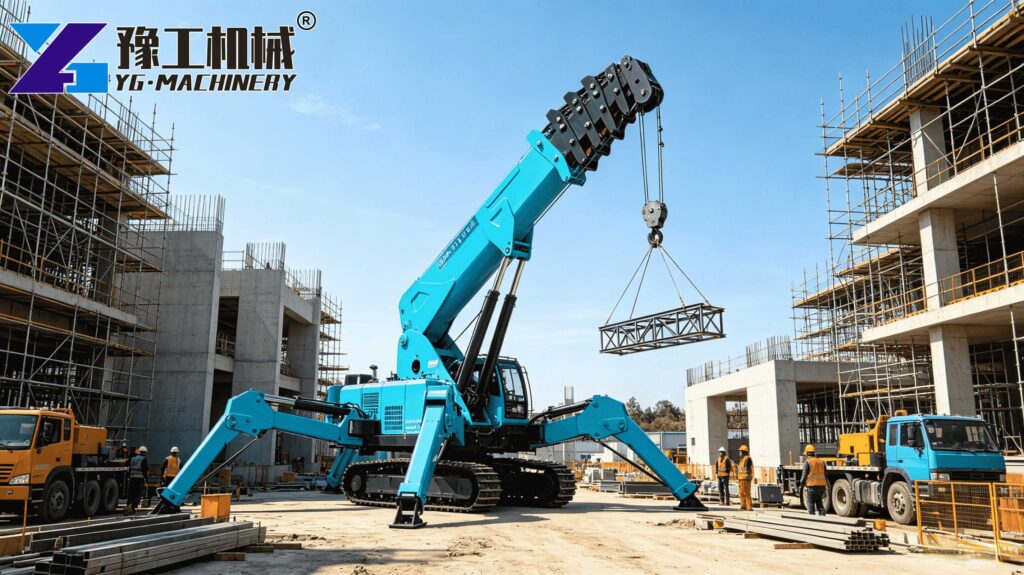

Electric Spider Crane Creates Cleaner And Quieter Job Sites
More contractors now require environmentally friendly lifting equipment.
Electric power offers several practical advantages.
Key benefits include:
- Zero local emissions
- Lower operating noise
- Reduced maintenance
- Suitable for enclosed spaces
- Lower energy consumption
- Stable operating performance
These advantages make it ideal for hospitals, shopping centers, laboratories, food factories, office buildings, and public facilities.
Many customers also select hybrid configurations to maximize flexibility between indoor and outdoor projects.

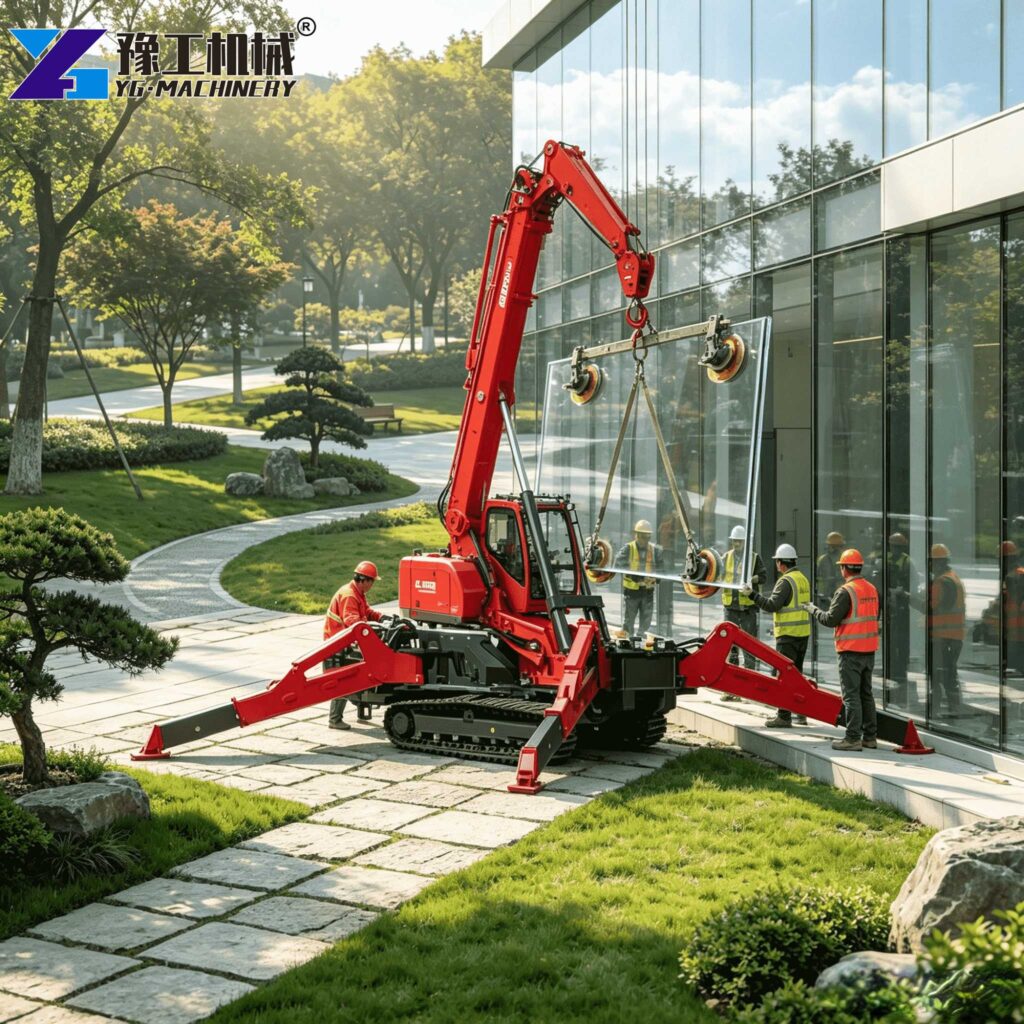

Real Project Case: Shopping Mall Glass Installation In Australia
A glass installation contractor from Melbourne contacted YG Machinery during a commercial renovation project. The customer needed to install more than 600 glass panels inside a newly constructed shopping mall. The working space was extremely limited. Large truck cranes could not enter the building, while forklifts lacked sufficient lifting height and precision.
After reviewing the project drawings, YG Machinery recommended the YG-5 spider crane with electric power. The machine entered through standard access doors and moved easily between installation areas. Hydraulic outriggers ensured stable lifting while protecting the finished flooring. The precise boom control allowed workers to position heavy glass panels safely without repeated adjustments.
The customer completed the installation ahead of schedule. Labor costs dropped significantly because fewer workers were required for each lifting operation. Equipment downtime remained minimal throughout the project. After completion, the contractor purchased another unit for future curtain wall projects and expanded its rental business with the same equipment.
Why Contractors Worldwide Choose YG Machinery
YG Machinery supplies lifting equipment to customers across Europe, Australia, Southeast Asia, the Middle East, Africa, and South America.
Our complete service includes:
- Factory-direct pricing
- Professional model selection
- Customized configurations
- Strict quality inspection
- CE-compliant manufacturing
- Worldwide shipping
- Installation guidance
- Spare parts support
- Technical training
- Long-term after-sales service
Our engineering team recommends practical solutions based on your actual lifting requirements.
Request Your Free Spider Crane Quote Today
Choosing the right mini crane improves safety, productivity, and profitability.
YG Machinery helps customers find the best lifting solution for every project.
Simply send us:
- Maximum lifting weight
- Working height
- Working radius
- Indoor or outdoor application
- Destination country
Our engineers will recommend the most suitable model and provide a detailed quotation within 8 hours.
