Modern drainage systems require faster and safer maintenance. A pipe cleaning robot offers an efficient alternative to manual dredging. It removes sludge, sediment, stones, and waste with high hydraulic power. Operators remain outside hazardous environments throughout the process.
YG Machinery develops intelligent cleaning equipment for municipal and industrial customers worldwide. Our systems combine stable performance, durable construction, and easy operation. They help contractors reduce labor costs while increasing daily productivity.
Find the Right Model for Your Project
Technical Specifications of YG Pipe Cleaning Robots
YG Machinery offers six models for different drainage conditions. Each model balances cleaning width, hydraulic power, and mobility.
| Model | YG-500 | YG-600 | YG-700 | YG-800 | YG-900 | YG-1200 |
|---|---|---|---|---|---|---|
| Robot Dimensions | 1500×500×650 mm | 1500×600×650 mm | 1600×700×650 mm | 1600×850×700 mm | 1650×960×750 mm | 1900×1200×750 mm |
| Dredging Width | 500 mm | 600 mm | 700 mm | 800 mm | 900 mm | 1200 mm |
| Travel Speed | 3–15 m/s | 3–15 m/s | 3–15 m/s | 3–15 m/s | 3–15 m/s | 3–15 m/s |
| Robot Weight | 320 kg | 350 kg | 380 kg | 400 kg | 420 kg | 500 kg |
| Pump Outlet | 3 inch | 3 inch | 4 inch | 4 inch | 4 inch | 4 inch |
| Pump Flow Rate | 100 m³/h | 100 m³/h | 200 m³/h | 200 m³/h | 200 m³/h | 200 m³/h |
| Hydraulic Station Size | 2200×1200×1700 mm | 2200×1200×1700 mm | 2200×1200×1700 mm | 2200×1200×1700 mm | 2200×1200×1700 mm | 2120×1240×1200 mm |
| Main Motor Power | 22 kW | 22 kW | 30 kW | 30 kW | 30 kW | 45 kW |
| Hydraulic Pressure | 0–16 MPa | 0–16 MPa | 0–16 MPa | 0–16 MPa | 0–16 MPa | 0–16 MPa |
| Particle Size | 15 mm | 15 mm | 38 mm | 38 mm | 38 mm | 60 mm |
| Reeling Speed | 0–10 r/min | 0–10 r/min | 0–10 r/min | 0–10 r/min | 0–10 r/min | 0–10 r/min |
| Hydraulic Hose | 50 m Standard | 50 m Standard | 50 m Standard | 50 m Standard | 50 m Standard | 50 m Standard |
| Control System | Wireless Remote Control | Wireless Remote Control | Wireless Remote Control | Wireless Remote Control | Wireless Remote Control | Wireless Remote Control |
| Lighting | Two Underwater LED Lights | Two Underwater LED Lights | Two Underwater LED Lights | Two Underwater LED Lights | Two Underwater LED Lights | Two Underwater LED Lights |
YG Machinery also provides customized configurations for special drainage environments. Our engineers can recommend the best model according to channel width, sludge type, and working conditions.
Compare Models and Get a Quote
6 Reasons A Pipe Cleaning Robot Delivers Better Results
Traditional dredging methods require many workers. Cleaning efficiency often depends on site conditions. Modern intelligent equipment changes this situation completely.
Key benefits include:
- Remote operation improves worker safety.
- Hydraulic drive provides stable power.
- High pumping capacity increases productivity.
- Compact design enters narrow drainage channels.
- Steel tracks improve movement on muddy surfaces.
- LED lighting supports underwater operation.
- Wireless control simplifies daily work.
- Low maintenance reduces operating costs.
- Heavy-duty construction extends service life.
- Multiple models fit different projects.
These advantages help contractors complete projects faster. Equipment investment also delivers long-term operational savings.
Why A Pipe Cleaning Robot Performs Better Than Manual Cleaning
Cleaning drainage channels manually creates several challenges. Workers face dangerous environments every day. Productivity also remains limited.
The robotic solution offers clear improvements.
| Traditional Cleaning | Intelligent Cleaning |
|---|---|
| Heavy manual labor | Remote operation |
| Slow cleaning speed | Continuous hydraulic cleaning |
| High labor cost | Lower operating cost |
| Safety risks | Operators remain outside pipelines |
| Difficult sludge removal | High-flow pumping system |
| Limited visibility | Underwater LED lighting |
These differences become more important during large municipal projects. Faster cleaning also reduces equipment downtime.
Drain Cleaning Robot Applications Across Multiple Industries
This equipment supports many industries beyond municipal engineering.
Typical applications include:
- Municipal drainage systems
- Urban stormwater pipelines
- Irrigation canals
- Agricultural waterways
- Hydropower stations
- Sewage treatment plants
- Industrial wastewater channels
- Mining drainage tunnels
- Port maintenance projects
- Flood control channels
- Chemical plants
- Steel factories
- Paper mills
- Food processing plants
- Underground utility corridors
Different projects require different cleaning widths and pumping capacities. Multiple YG models provide flexible solutions.
How A Dredging Robot Solves Heavy Sludge Problems
Thick sludge often settles after years of operation. Traditional pumps struggle with compact deposits. Manual excavation requires significant labor.
This equipment combines hydraulic power with strong pumping performance. It breaks compact sediment before removal. Continuous pumping keeps material flowing efficiently.

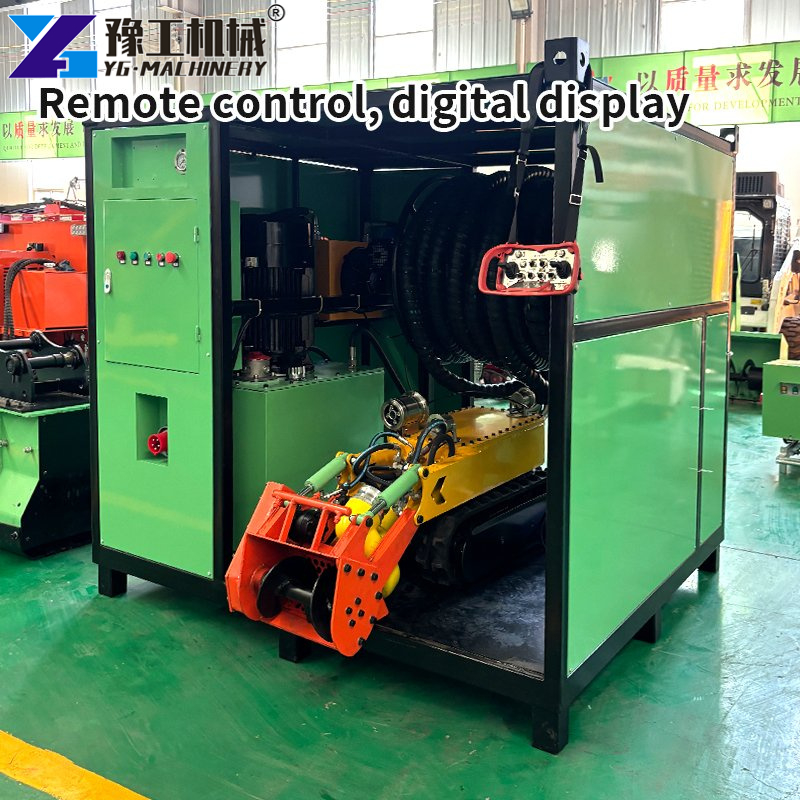

The standard wireless controller improves operating precision. Operators can adjust movement instantly. Two underwater LED lights provide excellent visibility during cleaning. Heavy steel tracks maintain traction on slippery surfaces. Hydraulic pressure remains stable throughout continuous operation.
The machine also handles sand, gravel, leaves, organic waste, and industrial sludge. Different models support particle sizes from 15 mm to 60 mm. Larger models provide 200 m³/h pumping capacity. This performance greatly shortens project schedules.
If your project includes heavy sediment accumulation, our engineers can recommend the most suitable configuration before purchase.
4 Key Advantages of A Pipe Cleaning Robot For Municipal Maintenance
Manual cleaning creates safety risks and inconsistent results. Intelligent equipment solves these challenges through automation and hydraulic power.
Major advantages include:
- Remote operation keeps workers away from hazardous environments.
- High-flow pumping removes sludge quickly.
- Strong tracks maintain traction on slippery surfaces.
- Hydraulic power delivers stable performance.
- Compact dimensions fit narrow drainage channels.
- Underwater LED lights improve visibility.
- Wireless control simplifies operation.
- Low maintenance reduces operating costs.
- Durable steel construction extends service life.
- Multiple models match different project scales.
YG Machinery designs every machine for demanding environments. Each system undergoes strict quality inspection before shipment. Spare parts and technical support remain available throughout its service life.
How A Dredging Robot Improves Cleaning Efficiency
The working process is simple but highly effective. Operators control every movement from a safe location.
Typical workflow includes:
- Transport the machine to the cleaning site.
- Lower it into the drainage channel.
- Connect hydraulic hoses and the pump system.
- Start wireless remote control.
- Drive toward accumulated sludge.
- Break compact deposits with hydraulic force.
- Pump slurry continuously.
- Move forward until cleaning finishes.
- Remove remaining sediment if necessary.
- Lift the machine for routine inspection.
This process minimizes manual labor. It also shortens project duration significantly.
Real Project Case: Urban Stormwater Canal Cleaning In Malaysia
A municipal contractor in Kuala Lumpur needed faster canal maintenance before the rainy season. Heavy sediment reduced water flow throughout several drainage sections. Manual excavation required many workers and frequent traffic control. The contractor selected the YG-900 model because its 900 mm cleaning width matched the canal dimensions. The 30 kW motor provided stable hydraulic power during continuous operation. The 200 m³/h pumping capacity quickly removed wet sludge and floating debris. Wireless remote control allowed operators to remain safely outside the channel. Underwater LED lights improved visibility during cloudy weather and evening work.
After twelve working days, more than 4,800 meters of drainage channels were cleaned successfully. Daily productivity increased by approximately 2.5 times compared with manual methods. Labor requirements dropped by over 60 percent. Water flow recovered before seasonal rainfall, reducing flood risks in nearby residential areas. Following this project, the contractor purchased another unit for future municipal maintenance projects.
Need a solution for drainage cleaning? Contact YG Machinery today. Our engineers can recommend the most suitable model according to your channel size, sludge conditions, and project requirements.
Get The Right Pipe Cleaning Solution Today
Choosing the correct equipment improves efficiency and lowers maintenance costs. YG Machinery supplies reliable machines with professional technical support and global delivery.
Whether you manage municipal drainage, industrial wastewater, or irrigation canals, our engineers can recommend the ideal solution.
Contact YG Machinery today to receive product specifications, videos, pricing, and a customized cleaning solution for your project.
