When evaluating spider crane cost, it’s important to look beyond just the price tag. Factors such as lifting capacity, build quality, and application scenarios all play a crucial role in determining the real value of your investment. Whether you need a small spider crane for indoor lifting or a larger model for construction projects, choosing the right machine can significantly improve efficiency and reduce long-term costs.
YG Machinery, a professional manufacturer of lifting equipment, provides high-performance spider cranes designed for durability, flexibility, and global project requirements.
Average Spider Crane Cost by Capacity
The cost of a spider crane varies depending on its specifications and performance level:
- 3 Ton: $6,000 – $10,000
- 5 Ton: $10,000 – $18,000
- 8 Ton: $18,000 – $30,000

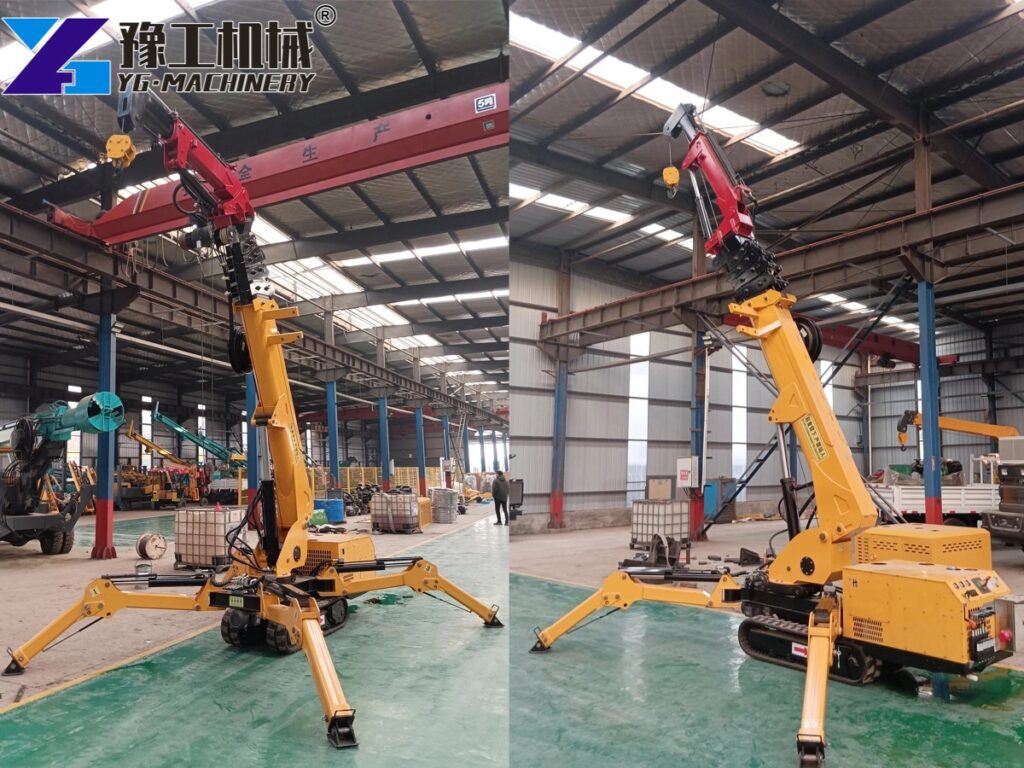

A mini spider crane is typically the most cost-effective option for projects involving tight spaces, indoor environments, or light-duty lifting tasks. It offers excellent flexibility while keeping costs under control.
YG Machinery Small Spider Crane Specifications
| Slewing angle/time | Parameter | YG-3 | YG-5 | YG-8 |
| Specification | Rated lifting capacity | 3 t | 5 t | 8 t |
| Working Range | Max. working radius | 8.83 m @ 0.15 t | 14 m @ 0.5 t | 16.5 m |
| Max. above-ground height | 9.9 m @ 0.7 t | 16.8 m | 18 m | |
| Winch | Hook speed | 0–8 m/min (4 falls) | 12 m/min (4 falls) | 12 m/min (4 falls) |
| Rope dia. × length | φ8 mm × 45 m | φ11 mm × 80 m | φ11 mm × 80 m | |
| Telescopic System | Boom type | 5-section, pentagonal | 5-section, pentagonal | 5-section, pentagonal |
| Boom length / extension time | 3.1 m → 9.2 m / 20 sec | 12.3 m / 54 sec | 12.3 m / 54 sec | |
| Luffing System | Boom angle / time | 0°–78° / 13 sec | 0°–78° / 13 sec | 0°–78° / 13 sec |
| Slew System | Slewing angle / time | 0–360° continuous / 60 sec | 0–360° continuous / 38 sec | 0–360° continuous / 38 sec |
| Travel System | Drive type | Hydraulic motor | Hydraulic motor | Hydraulic motor |
| Travel speed | 0–2.5 km/h | 0–2.5 km/h | 0–2.5 km/h | |
| Gradeability | 25° / 36° | 25° / 36° | 25° / 36° | |
| Control System | Operation mode | Manual + manual travel (remote control optional) | Manual + manual travel (remote control optional) | Manual + manual travel (remote control optional) |
| Control features | Manual / Remote | Manual / Remote | Manual / Remote | |
| Transport | L×W×H (mm) | 2950 × 980 × 1560 | 5000 × 1500 × 1900 | 5000 × 1600 × 2180 |
| Total weight (kg) | 2700 | 6200 | 7200 |
Understanding product specifications is essential when comparing prices. Below are typical models offered by YG Machinery:

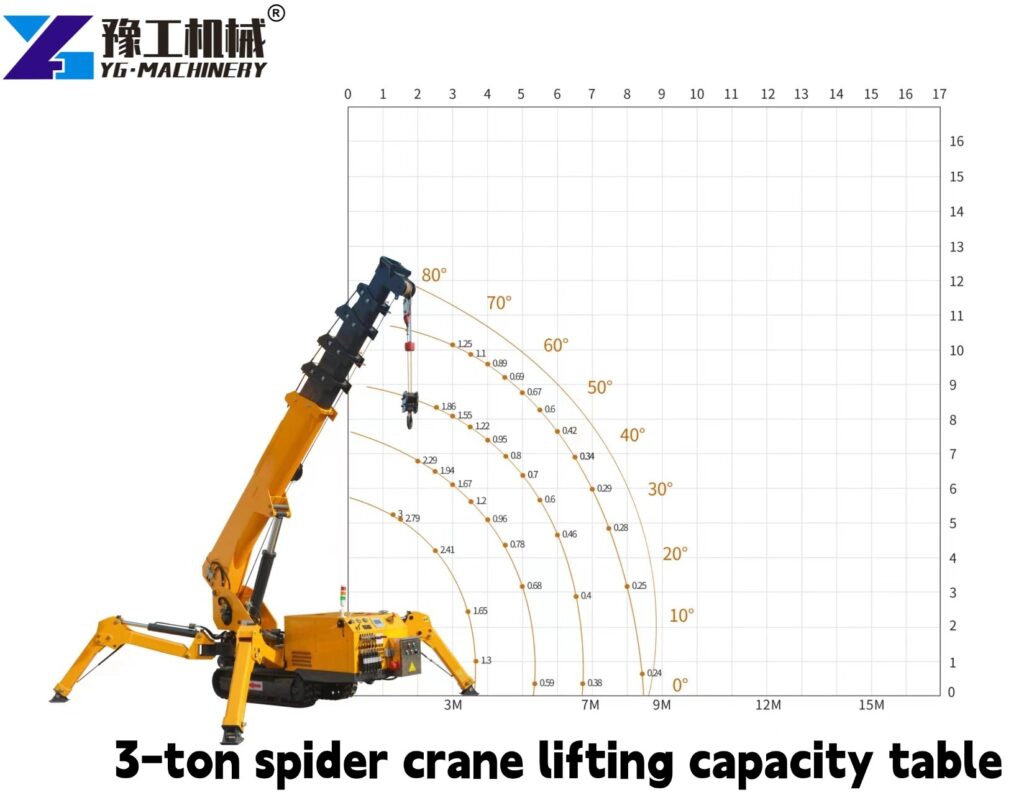

3 Ton Spider Crane
- Max lifting height: 9.9 m
- Max working radius: 8.83 m
- Machine size: 2950 × 980 × 1560 mm
- Weight: 2700 kg
5 Ton Spider Crane
- Max lifting height: 16.8 m
- Max working radius: 14 m
- Boom length: 12.3 m
- Weight: 6200 kg
8 Ton Spider Crane
- Max lifting height: 18 m
- Max working radius: 16.5 m
- Weight: 7200 kg
- Enhanced lifting performance for heavy-duty applications
Core Features:
- 5-section telescopic boom
- 360° continuous rotation
- Hydraulic control system
- Optional wireless remote control
- Compact crawler chassis
These technical specifications directly influence the overall mini crawler crane price, especially when higher performance and durability are required.
Key Factors That Affect Spider Crane Cost
Several factors determine the final price of a spider crane:
1. Lifting Capacity
Higher capacity cranes require stronger materials and more advanced engineering, which increases cost.
2. Hydraulic System Quality
A reliable hydraulic system ensures smoother operation, better control, and longer lifespan.
3. Boom Design and Reach
Longer working radius and lifting height add to manufacturing complexity.
4. Material and Build Quality
High-grade steel structures improve durability but also raise production costs.
5. Manufacturer and Brand
Working with experienced manufacturers like YG Machinery ensures better quality control, stable performance, and long-term reliability.

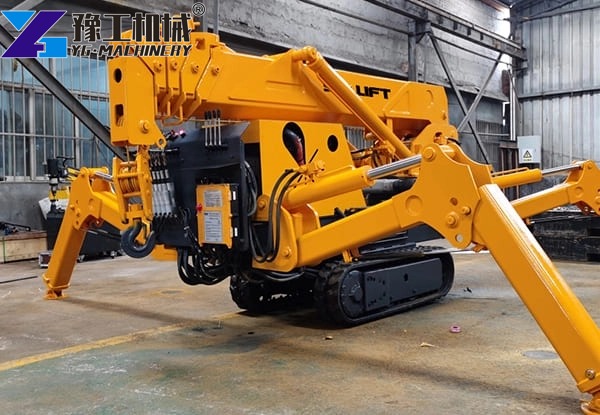

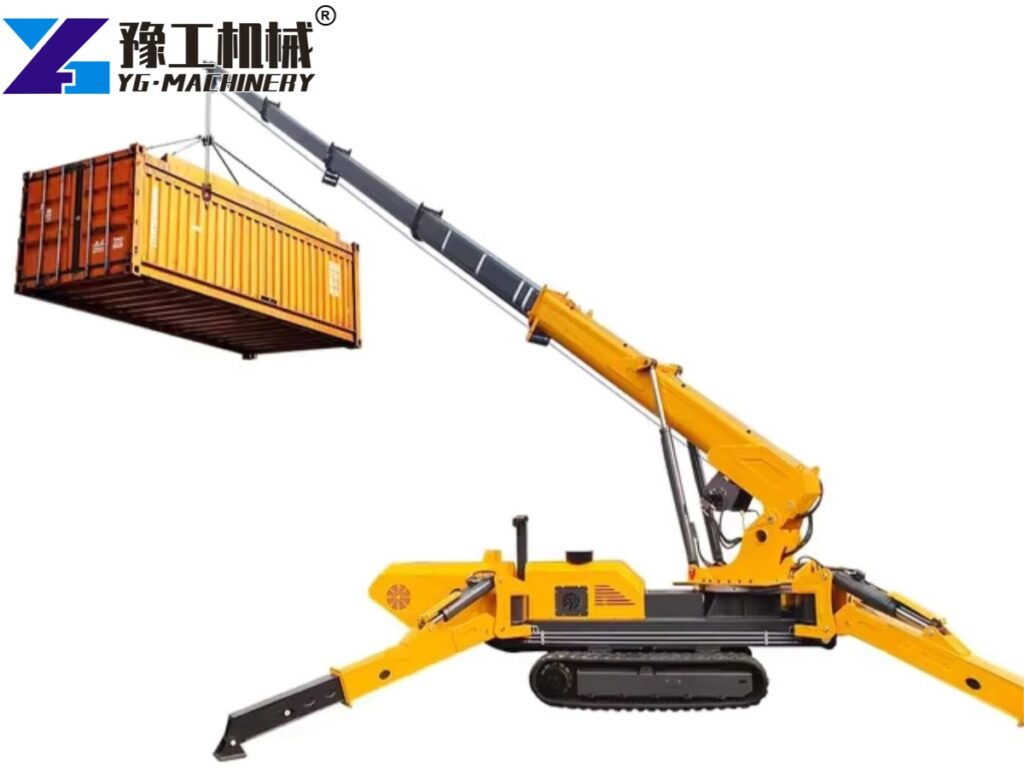

Spider Crawler Crane: Cost vs Performance

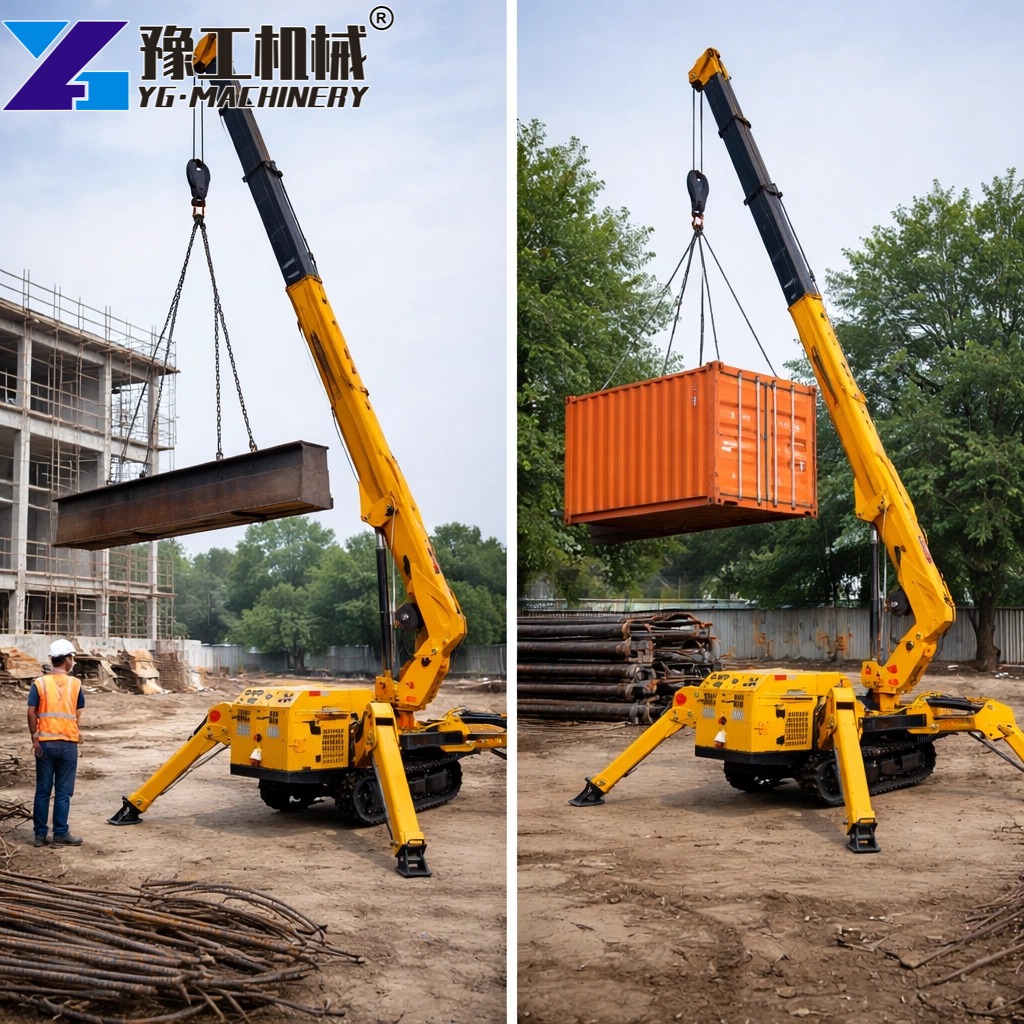

A mini crawler crane is designed to provide superior stability and mobility, especially in challenging environments.
Key Benefits:
- Excellent stability on uneven terrain
- Safe lifting operations with outriggers
- Reduced labor requirements
- Faster setup and operation
Although the initial spider crane cost may be higher compared to basic lifting equipment, the long-term savings in labor and efficiency make it a smart investment.

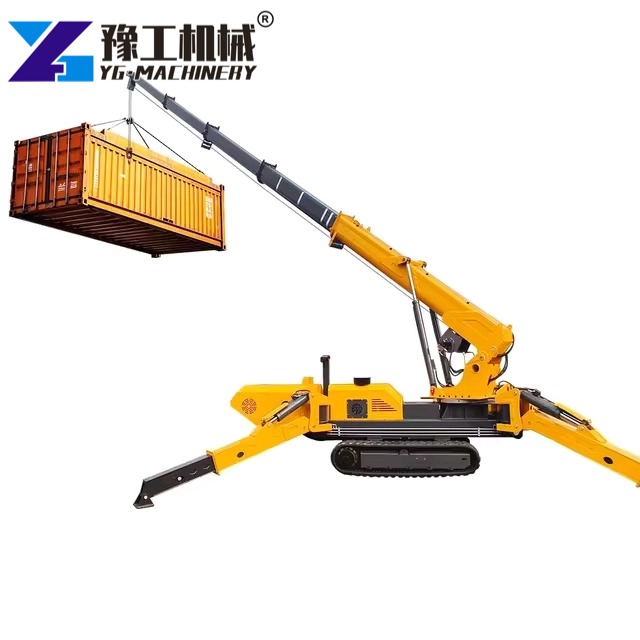

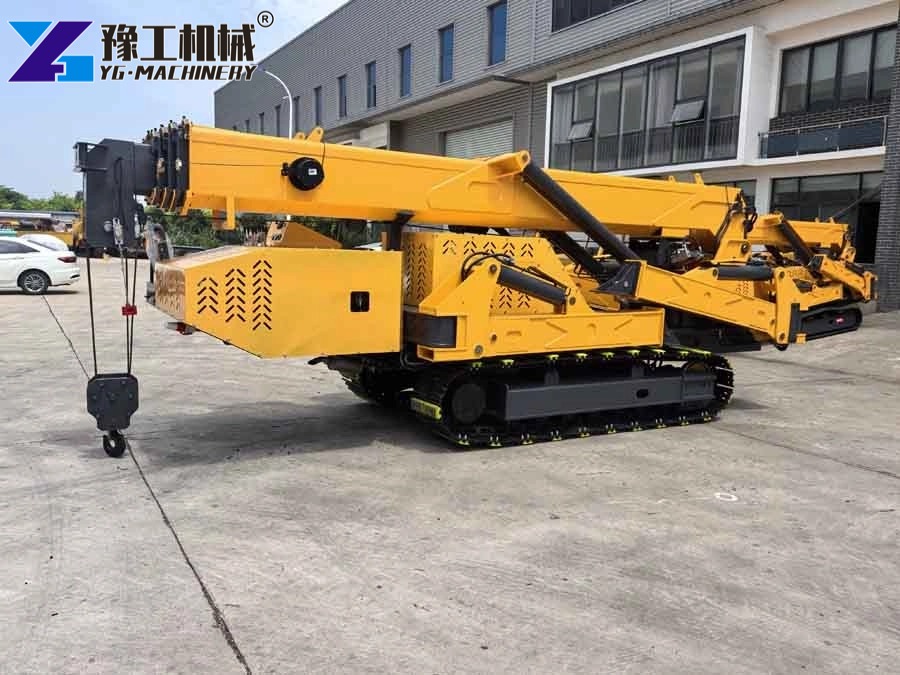

Mini Spider Crane for Sale: How to Get the Best Value
When searching for a mini spider crane, buyers should focus on value rather than just the lowest price.
Practical Buying Tips:
- Purchase directly from manufacturers to avoid middleman costs
- Choose the right capacity based on your project
- Compare specifications instead of price alone
- Ask about customization options

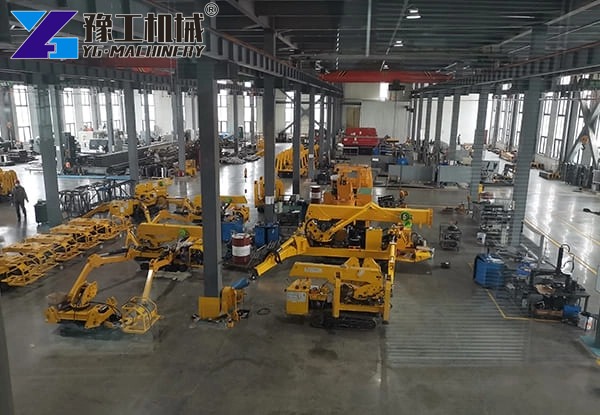

YG Machinery offers factory-direct solutions, helping customers reduce procurement costs while maintaining high product quality.
Hidden Spider Crane Costs You Should Consider
Many buyers overlook additional expenses when calculating the total cost:
- International shipping and logistics
- Import duties and taxes
- Maintenance and spare parts
- Operator training
Including these factors in your budget helps avoid unexpected costs and ensures better financial planning
Why Small Spider Crane Offers the Best ROI
It’s widely recognized for its excellent return on investment:
- Lower initial purchase cost
- Easy transportation and reduced logistics expenses
- Quick setup and operation
- Versatile applications across multiple industries
It is particularly suitable for indoor lifting, glass installation, equipment maintenance, and urban construction projects.
FAQ: Spider Crane Cost & Buying Guide
1. What is the average mini crawler crane price?
The average mini crawler crane price ranges from $6,000 to $30,000, depending on capacity, features, and configuration.
2. What affects the price of a spider crawler crane?
Its price depends on lifting capacity, hydraulic system, build quality, and additional features.
3. Where can I find a reliable mini spider crane for sale?
You can purchase it directly from manufacturers like YG Machinery for better pricing and quality assurance.
4. How long does a spider crane last?
With proper maintenance, a spider crane can last more than 10 years.
5. Are spider cranes easy to transport?
Yes, their compact design allows easy transport using trucks or containers.
6. Do spider cranes support remote control?
Yes, many models include an optional remote control for safer and more precise operation.
7. What industries use spider cranes?
They are widely used in construction, glass installation, industrial maintenance, and infrastructure projects.
Conclusion on Spider Crane Cost
Understanding the spider crane price is essential for making the right purchasing decision. By evaluating specifications, performance, and long-term value, buyers can choose the most suitable solution for their needs.
If you’re looking for a reliable mini crawler crane, YG Machinery offers high-quality equipment at competitive prices with professional support—ensuring dependable performance, strong cost efficiency, and long-term service.
Contact YG Machinery today to get the latest price and customized solution.
