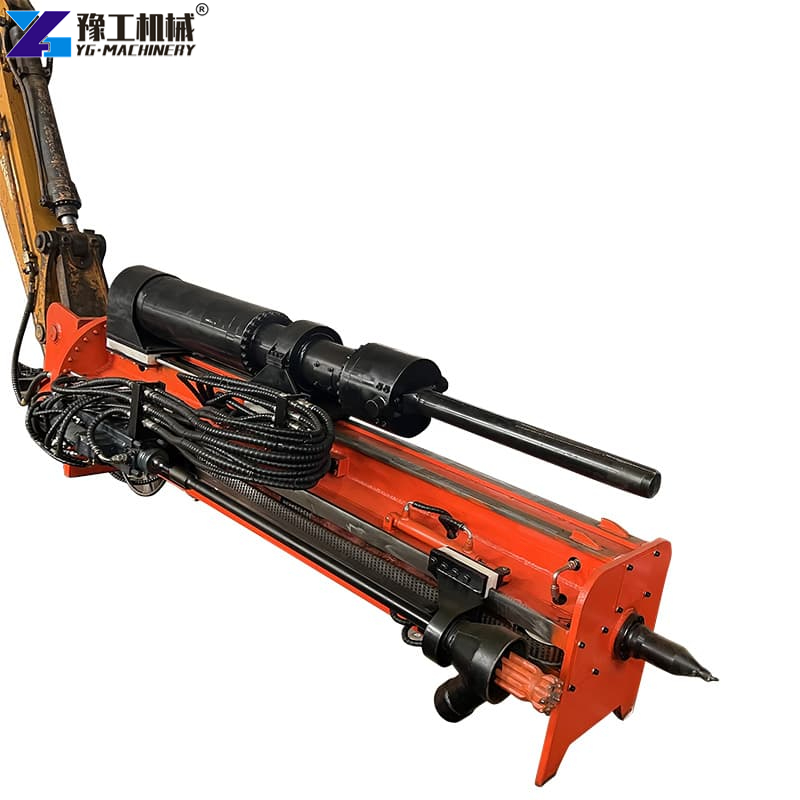

A rock splitter for an excavator is a hydraulic attachment designed to break hard rock, reinforced stone, and dense concrete structures without using explosives. It converts an excavator into a high-efficiency rock-breaking machine, widely used in mining, tunnel construction, foundation excavation, and road building.
Compared with traditional blasting methods, modern excavator hydraulic rock splitter systems provide safer operation, better control, and lower environmental impact. They are especially suitable for urban construction sites where vibration and noise must be controlled.
YG Machinery provides reliable hydraulic splitting systems designed for demanding geological conditions and continuous heavy-duty operation.
What is a Rock Splitter for an Excavator?
It is a hydraulic device that uses extreme pressure to create controlled cracks inside rock formations. The force expands the rock internally until it splits into manageable pieces.
The system eliminates the need for explosives or large impact hammers, making it safer and more precise.
It is commonly used in:
- Hard rock excavation
- Tunnel and subway projects
- Mining operations
- Road cutting and widening
- Foundation rock breaking

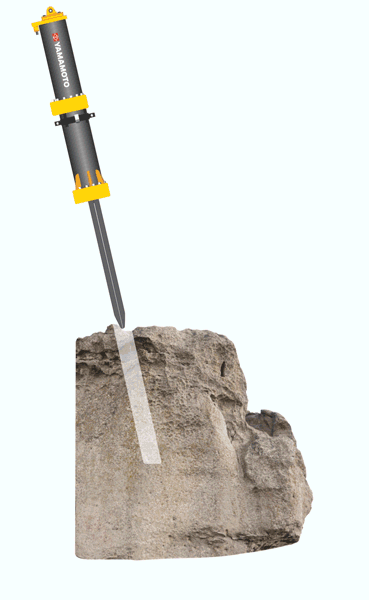

How the Excavator Hydraulic Rock Splitter Works

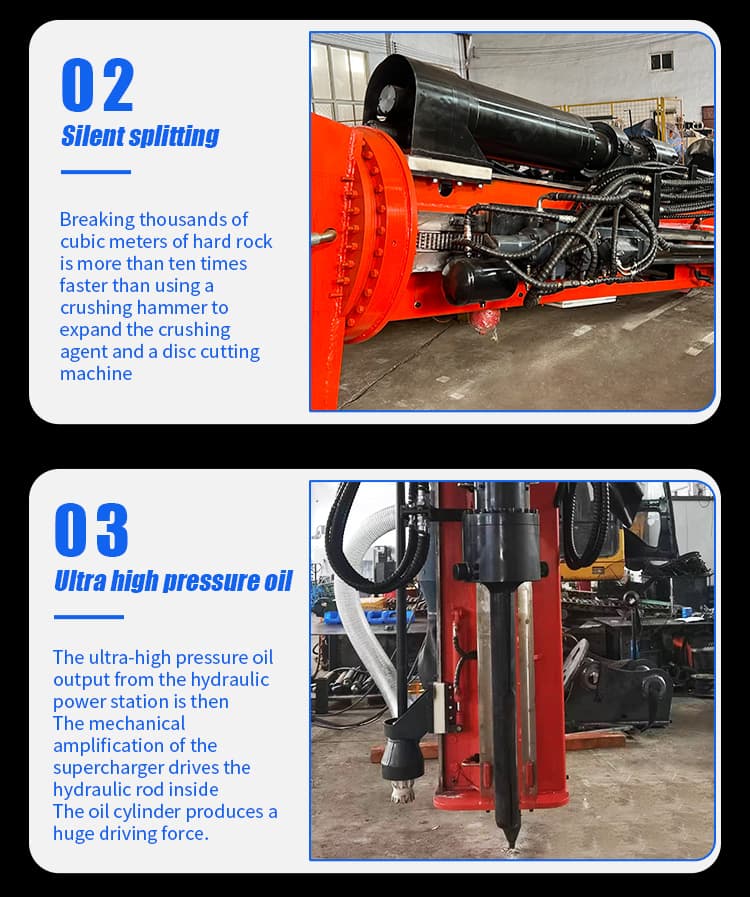

It operates using hydraulic pressure generated by the excavator system.
The working process includes:
- A drilling hole is created in the rock
- The splitting wedge is inserted into the hole
- Hydraulic pressure is applied
- Internal force expands the rock
- Controlled cracking occurs without explosion
This method ensures precise rock breaking with minimal vibration and no flying debris.

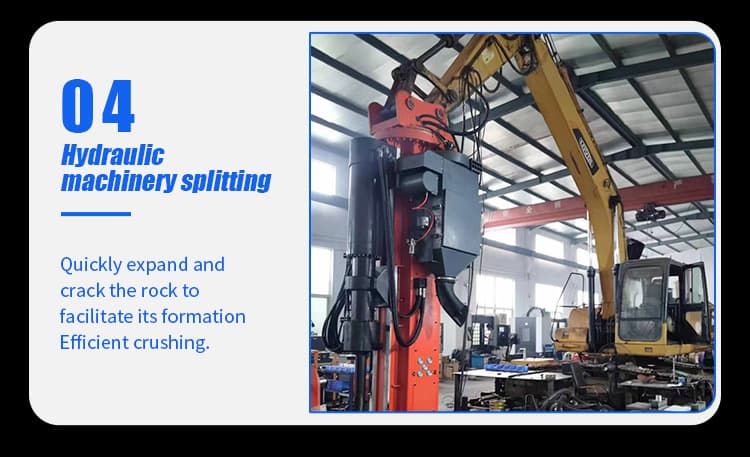

Excavator Drill and Splitting Machine Working Principle
An excavator drill and splitting machine combines drilling and splitting functions in one system. It first drills precise holes into hard rock and then applies hydraulic force to split it apart.
This integrated process improves efficiency by reducing equipment changes on-site.
The system is especially useful in projects where speed and precision are critical, such as tunnel expansion or urban foundation work.
Key Features of the Rock Splitter for the Excavator
The rock splitter for the excavator offers several important advantages:

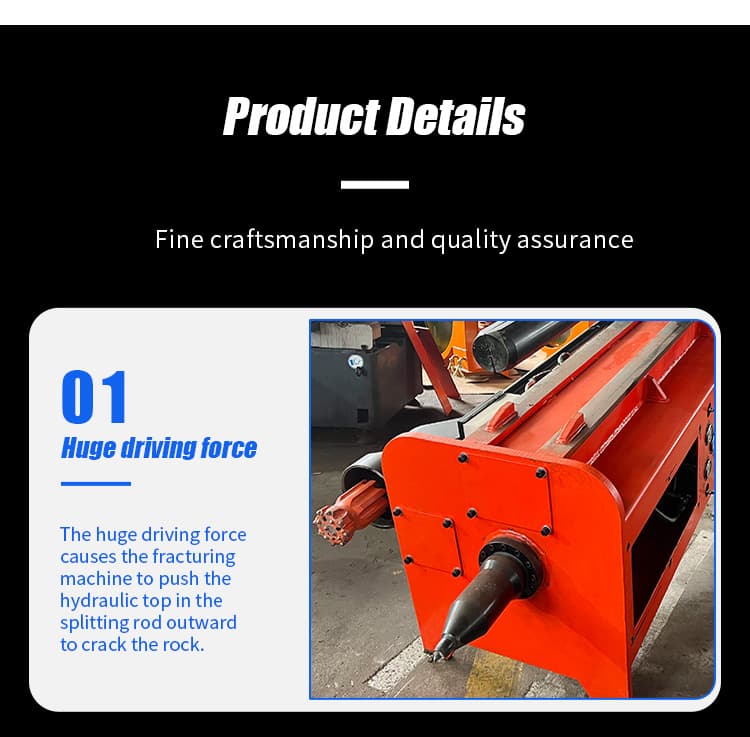

1. High Splitting Force
Hydraulic pressure generates a strong internal force to break even extremely hard rock.
2. Safe Operation
No explosives are required, reducing risk and improving job site safety.
3. Precise Control
Operators can control the splitting direction and force accurately.
4. Low Vibration
Minimal ground disturbance makes it suitable for urban environments.
5. Flexible Application
Compatible with different excavator sizes and working conditions.

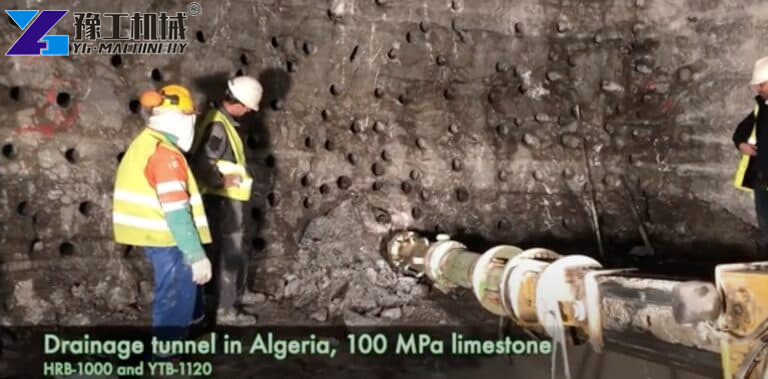

Applications of Hydraulic Rock Splitting Equipment
An excavator hydraulic rock splitter is widely used in:
- Mining excavation
- Tunnel construction
- Road widening projects
- Urban foundation demolition
- Bridge foundation rock breaking
- Quarry stone processing
Its controlled breaking method makes it ideal for projects requiring precision and safety.
👉 Explore real project photos and customer feedback.
Excavator Drill and Splitting Machine vs Traditional Methods
Compared with blasting or impact hammers, an excavator drill and splitting machine offers clear advantages:
| Feature | Hydraulic Splitting | Blasting Method |
| Safety | High | Low |
| Noise | Low | High |
| Vibration | Minimal | Strong |
| Precision | High | Low |
| Environmental Impact | Low | High |
This makes hydraulic splitting the preferred choice for modern engineering projects.

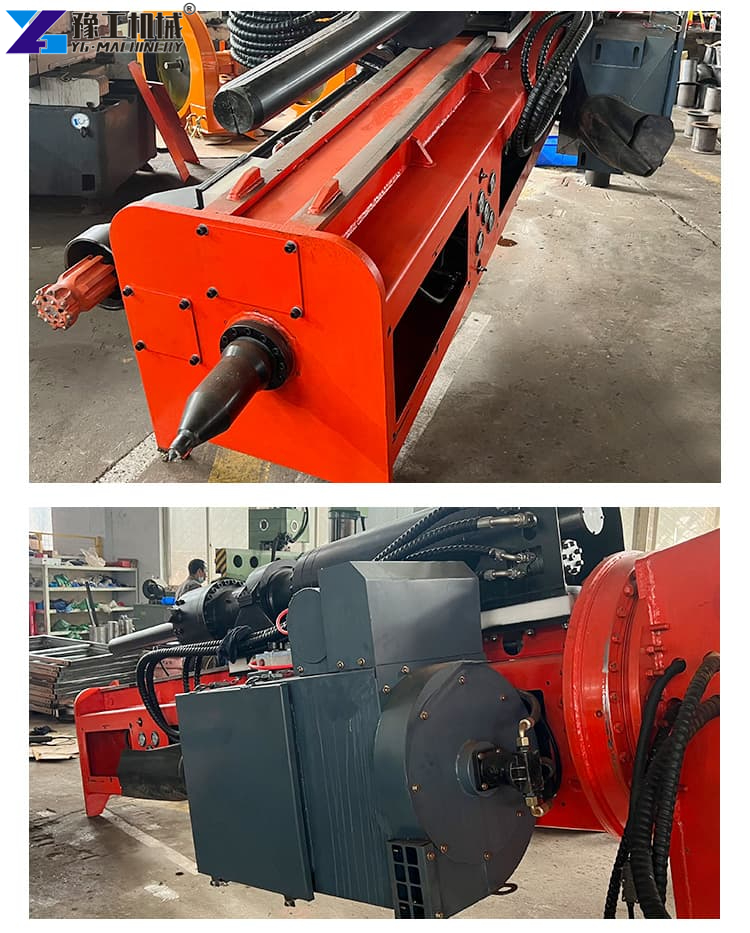

Drilling and Splitting Machine for Sale: Why Choose Hydraulic Systems
When selecting a drilling and splitting machine for sale, hydraulic systems are widely preferred due to their efficiency and adaptability.
Key benefits include:
- No explosive requirements
- Reduced environmental restrictions
- Easy integration with excavators
- Lower operational cost
- Suitable for complex job sites
These advantages make hydraulic systems a practical solution for contractors working in challenging environments.
Rock Splitter for Excavator Technical Parameters Overview
| Parameter | YGM-S200 | YGM-S280 |
| Splitting Force (ton) | 3800 | 5700 |
| Piston Diameter (mm) | 200 | 250 |
| Required Drilling Diameter (mm) | 90–110 | 110–130 |
| Required Drilling Depth (mm) | 1600 | 1700 |
| Crack Width (mm) | 32 | 35 |
| Drilling Gap Distance (mm) | 1000–1500 | 2000–2500 |
| Splitting Speed (s) | 40–50 | 40–50 |
| Required Pressure (MPa) | 60–80 | 80 |
| Splitting Gun Length (mm) | 2700 | 2800 |
| Weight (kg) | 900 | 1000 |
How to Choose the Right Rock Splitter for an Excavator with YG Machinery Engineering Strength
When selecting equipment, consider:
- Rock hardness level
- Excavator tonnage
- Project scale
- Required splitting speed
- Working environment restrictions
Proper selection ensures higher efficiency and longer equipment lifespan.
YG Machinery designs durable hydraulic systems built for real construction conditions. Each rock splitter for an excavator is tested for pressure stability, structural strength, and long-term reliability.
The company focuses on:
- High-strength hydraulic components
- Stable pressure output systems
- Wear-resistant structural design
- Easy maintenance solutions
These features ensure consistent performance in heavy-duty projects.
Future Trends of Hydraulic Rock Splitting Technology
Modern excavator hydraulic rock splitter systems are evolving toward:
- Higher hydraulic efficiency
- Smarter pressure control systems
- Reduced energy consumption
- Compact modular design
- Safer urban construction applications
These improvements make hydraulic rock splitting more efficient and environmentally friendly.
Conclusion
A rock splitter for an excavator provides a safe, efficient, and precise solution for hard rock excavation. Compared with traditional blasting methods, it offers better control, lower environmental impact, and higher safety.
As a reliable supplier of hydraulic solutions, YG Machinery provides advanced drilling and splitting machines for sale options designed for global construction and mining projects.
Get a Free Quote: Contact YG Machinery for technical consultation, pricing, and customised hydraulic rock splitting solutions for your project.
Yes, hydraulic force is strong enough to split granite, limestone, and other hard rock types.
No, the system works without explosives, making it safer and more controlled.
FAQs
Yes, hydraulic force is strong enough to split granite, limestone, and other hard rock types.
No, the system works without explosives, making it safer and more controlled.
Yes, it produces low vibration and noise, ideal for city projects.
Speed depends on rock hardness and drilling depth, but it is generally faster than manual breaking.
Different models are available for excavators from 8 tons to 50+ tons.
