A crawler spider crane serves as an indispensable compact lifting solution engineered to access extremely tight spaces, delicate interior floors, and rugged unpaved job sites where conventional cranes cannot operate. Featuring multi-position outriggers and rubber crawler tracks, this versatile machine distributes weight evenly to protect ground surfaces while delivering heavy lifting capacity. Construction contractors and industrial maintenance teams rely on this technology to maneuver through narrow doorways and position heavy materials with millimeter precision. YG Machinery engineered this compact crawler series to deliver maximum stability, 360-degree continuous rotation, and superior hydraulic power for demanding global projects.
Every unit features a five-section pentagonal boom, high-tensile steel winches, and an optional wireless remote control system for total operator safety. The rubber tracks climb 25-degree slopes effortlessly and travel up to 2.5 km/h between lifting positions on active construction sites. Deploying this heavy-duty, compact equipment reduces site labor demands, eliminates heavy crane setup overhead, and keeps project timelines on schedule. Investing in a factory-direct mobile platform upgrades your fleet capabilities and guarantees reliable performance across challenging indoor and outdoor environments.
Start Your Project with the Right Equipment

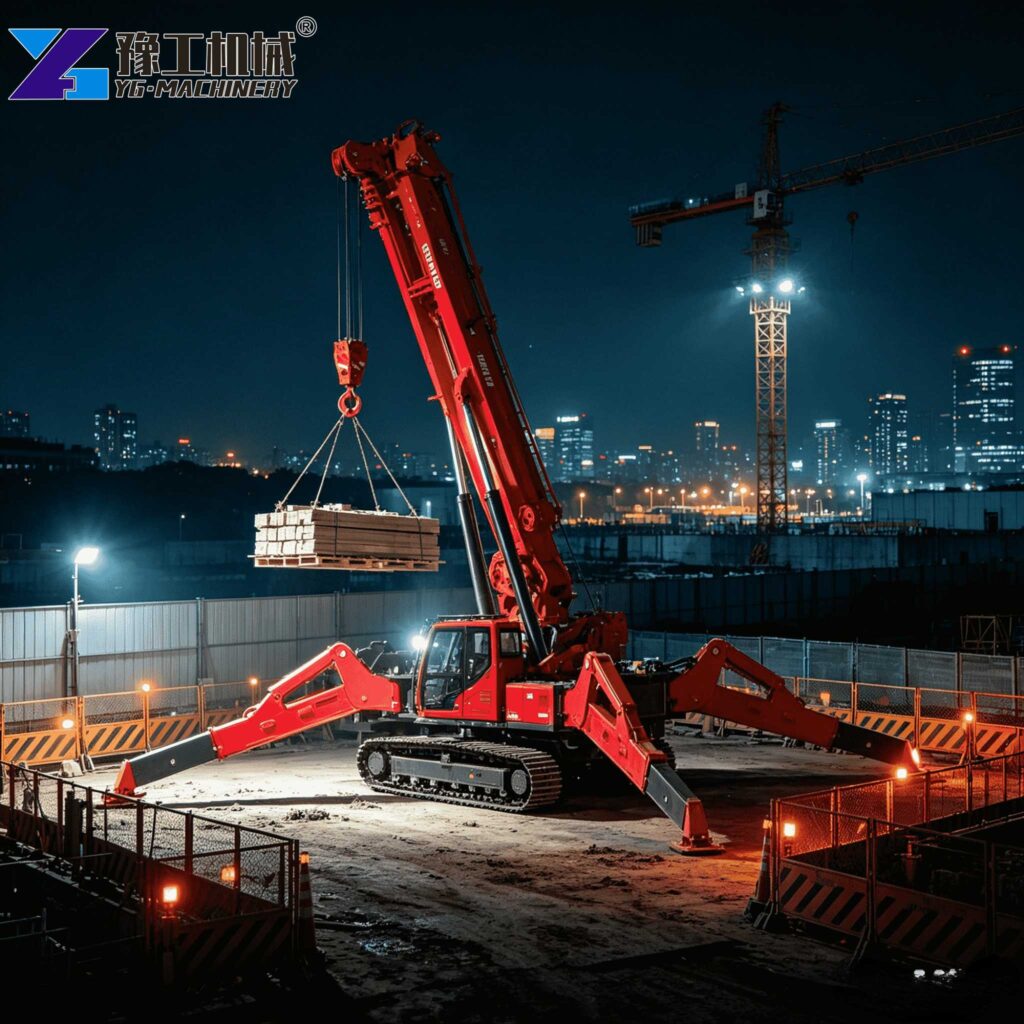

5 Engineering Features That Make a Crawler Spider Crane Essential for Tight Spaces
- Ultra-Compact Transport Dimensions: Measures as narrow as 980 mm in width to pass through standard single doors and freight elevators easily.
- Flexible 5-Section Pentagonal Boom: Extends smoothly to achieve maximum lifting heights up to 18 meters with exceptional structural rigidity.
- Continuous 360-Degree Slewing System: Rotates completely in 38 to 60 seconds to position loads precisely without moving the main base.
- Low Ground Pressure Crawler Tracks: Protect sensitive tile floors and mud sites while ascending steep 360-percent (25-degree) inclines safely.
- Dual Operating Control Modes: Combines intuitive manual levers with optional long-range remote controls for safe single-person operation.
Selecting compact hydraulic lifting equipment eliminates the spatial limitations that usually halt indoor expansion projects. The hydraulic outriggers expand outwards in multiple angle configurations, creating a rock-solid footprint on uneven concrete or rough soil. Operators control boom extension speed directly via responsive hydraulic valves, ensuring smooth horizontal positioning without sudden load sway. This controlled movement prevents accidental collisions with surrounding building structures during critical lifts.
Additionally, the narrow chassis design allows work crews to transport the machine inside standard utility trailers between job locations. Fast set-up procedures mean your team spends less time adjusting outrigger pads and more time completing profitable lifting contracts.

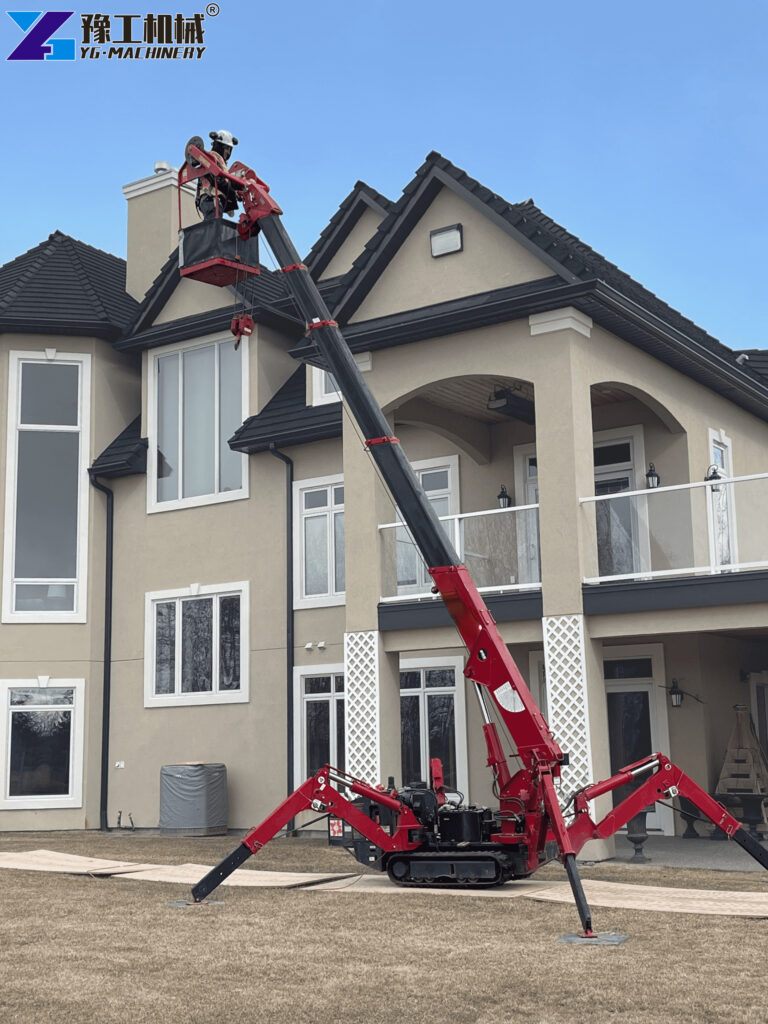

What Factors Determine the Overall Spider Crane Cost and Performance Value?
Equipment cost depends primarily on maximum tonnage rating, maximum lifting height, travel system features, and optional remote control accessories. Evaluating long-term operational efficiency against initial purchase price shows that factory-direct compact cranes offer significantly higher return on investment than renting large conventional cranes.
| Technical Parameter | Model YG-3 | Model YG-5 | Model YG-8 |
| Max Capacity Specification | 3 Ton | 5 Ton | 8 Ton |
| Max Working Radius | 8.83 m × 0.15 t | 14 m × 0.5 t | 16.5 m |
| Max Above-Ground Head | 9.9 m × 0.7 t | 16.8 m | 18 m |
| Hook Winch Speed | 0-8 m/min (4 rope) | 12 m/min (4 rope) | 12 m/min (4 rope) |
| Steel Wire Rope Size | Φ8 mm × 45 m | Φ11 mm × 80 m | Φ11 mm × 80 m |
| Telescopic Boom Type | 5-Section Pentagonal | 5-Section Pentagonal | 5-Section Pentagonal |
| Boom Angle / Time | 0° – 78° / 13 sec | 0° – 78° / 13 sec | 0° – 78° / 13 sec |
| Slew Angle / Speed | 0-360° / 60 sec | 0-360° / 38 sec | 0-360° / 38 sec |
| Travel Drive / Speed | Hydraulic / 2.5 km/h | Hydraulic / 2.5 km/h | Hydraulic / 2.5 km/h |
| Gradeability Angle | 25° (36%) | 25° (36%) | 25° (36%) |
| Transport Size (LWH) | 2950 × 980 × 1560 mm | 5000 × 1500 × 1900 mm | 5000 × 1600 × 2180 mm |
| Total Unit Weight | 2700 kg | 6200 kg | 7200 kg |
Heavy-duty hydraulic motors and alloy steel winches prevent mechanical wear during continuous daily lifting cycles. Purchasing directly from YG Machinery eliminates distributor price inflation while granting full access to original replacement parts packages and factory engineering assistance.
Compare Models and Get a Quote

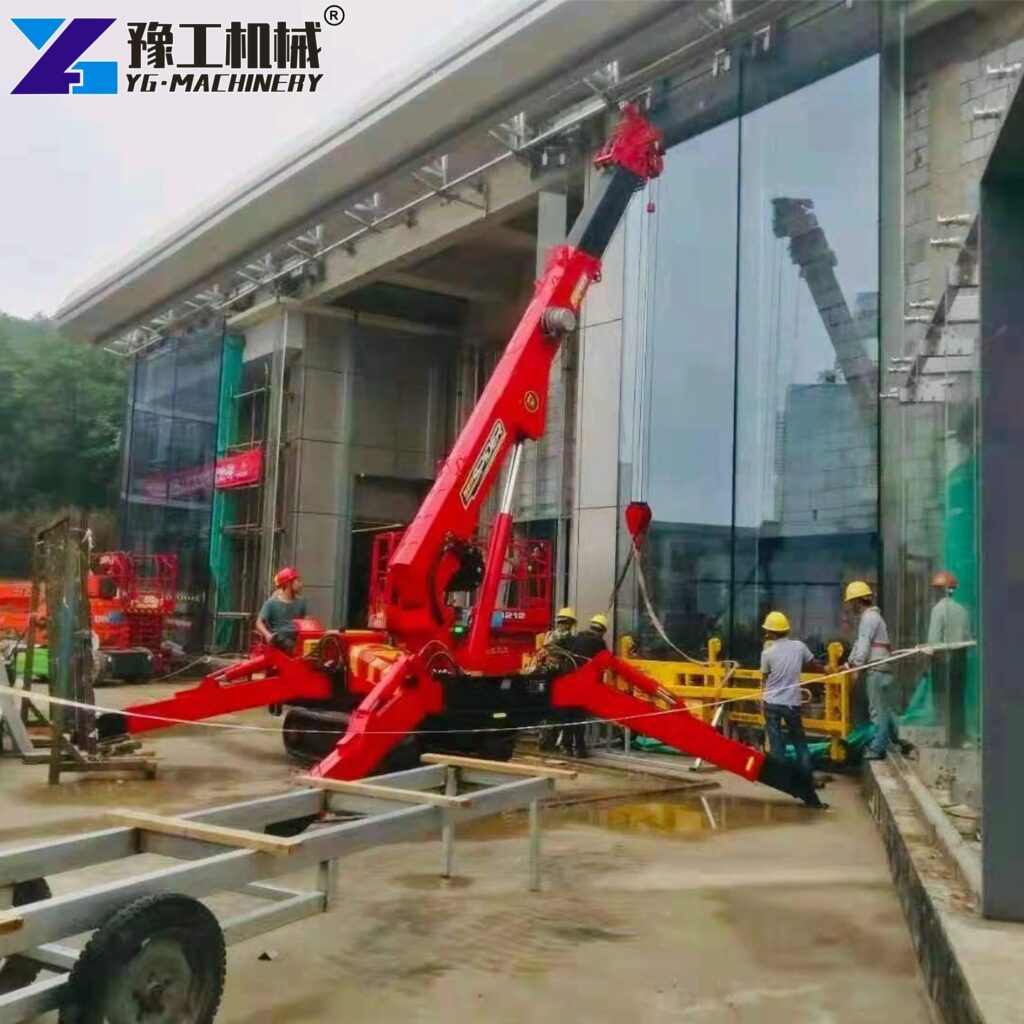

Why Choose a Spider Crane for Glass Installation on Modern High-Rise Facades?
It combines high vertical reach up to 18 meters with delicate millimeter-level hydraulic control that prevents curtain wall glass panel breakage during high-rise facade mounting. Curtain wall contractors often struggle when maneuvering fragile, heavy glass sheets under narrow overhangs or behind existing structural scaffolding. Automated suction lifters attach directly to the five-section pentagonal boom, allowing a single operator to align large double-glazed panels against building frames smoothly.
- Lower Glass Breakage Risks: Precise hydraulic winches lower panels at smooth speeds from 0 to 12 meters per minute without sudden stopping jolts.
- Superior Overhang Reach: The 16.5-meter maximum working radius places heavy glass units deep into recessed architectural facades effortlessly.
- Reduced Ground Site Footprint: Fits directly onto finished sidewalks or floor slabs without blocking busy urban traffic lanes below.
- Simple Remote Panel Positioning: Wireless remote controls allow operators to stand directly next to the installation seam for flawless alignment checks.
Equipping your glazing crew with specialized compact lifting machinery gives your enterprise a major competitive edge when bidding on modern commercial tower projects. Sourcing directly from an established machinery manufacturer like YG Machinery ensures your equipment meets rigorous international safety standards while maintaining long-term mechanical reliability.
Find the Right Model for Your Project

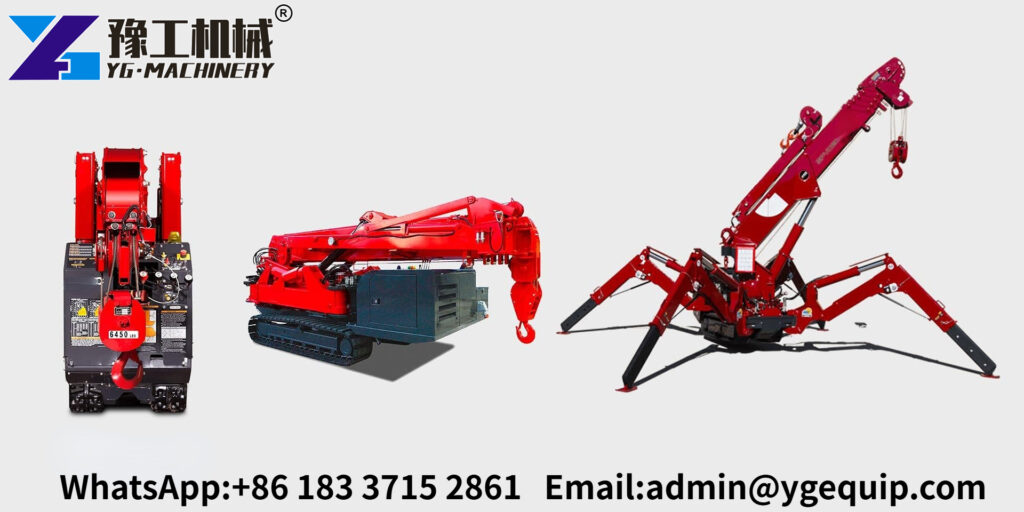

How Does an Indoor Spider Crane Protect Finished Floor Surfaces?
It utilizes non-marking rubber crawler tracks and wide hydraulic outrigger pads to distribute heavy machine mass evenly across low-load concrete slabs and decorative indoor flooring. Traditional mobile cranes weigh too much for interior raised floors, while manual lifting teams require excessive labor hours and carry high injury risks.
- Ultra-Low Ground Load Impact: Rubber tracks disperse weight across a broad surface area to prevent tile cracking and slab damage.
- Compact Doorway Clearance: Folds down to 1560 mm to 2180 mm in height to traverse low hallways and parking structures cleanly.
- Quiet Electric Drive Options: Operates smoothly inside closed shopping malls, historical buildings, and active industrial plants without fumes.
- Multi-Angle Outrigger Spreading: Adjusts individual outrigger legs independently around structural building columns and indoor obstacles.
This spatial adaptability allows facility managers to execute internal machinery replacements, HVAC installations, and structural steel maintenance without disrupting ongoing business operations. The intuitive steering drive allows operators to pivot the unit around tight hallway corners without touching adjacent interior walls.
USA Field Case Study: Renovating a Multi-Story Shopping Atrium in Chicago
- The Challenge: A commercial construction manager in Chicago, USA, needed to install heavy structural steel beams and thick glass panels inside a multi-story shopping mall atrium. The access path required passing through narrow service corridors, and the decorative marble flooring had strict load limits that prohibited heavy standard cranes.
- The Solution: The site manager deployed a YG-3 compact unit featuring non-marking tracks and a remote control package. The machine passed through a 1-meter-wide side entrance and traversed the atrium floor without causing surface stress cracks.
- The Result: The Chicago crew lifted and secured over forty structural beams and glass sections in three days. Using the compact remote unit saved the contractor over $35,000 in crane rental fees and labor expenses while completing the atrium renovation two weeks ahead of schedule.
Request Your Direct Factory Price Quote Today
Ready to upgrade your jobsite capabilities with versatile, high-capacity compact lifting equipment? Do not let tight indoor access or high rental costs delay your project timelines any longer. YG Machinery offers factory-direct pricing, flexible model options, and worldwide direct shipping.
Getting a personalized quote is simple—just send us your required lifting capacity, working height, and project location. Our engineering sales team will respond within 24 hours with an itemized price quotation, complete technical datasheets, and delivery lead times.
Contact our technical sales team today via email or message to claim your wholesale direct quote!
FAQs About Compact Crawler Lifting Equipment
It navigates narrow doorways, operates on delicate indoor floors, and sets up in tight spaces where standard cranes cannot fit.
Fine-tuned hydraulic winch controls and smooth 360-degree slewing prevent sudden swinging movements during glass pane alignment.
Yes, compact 3-ton models feature a transport width of just 980 mm, allowing them to pass through standard single doors easily.
Pricing depends on maximum lifting capacity (3t, 5t, or 8t), maximum boom length, drive engine options, and remote control systems.
No, experienced equipment operators can master manual lever handling, outrigger leveling, and remote control functions within a few hours.
