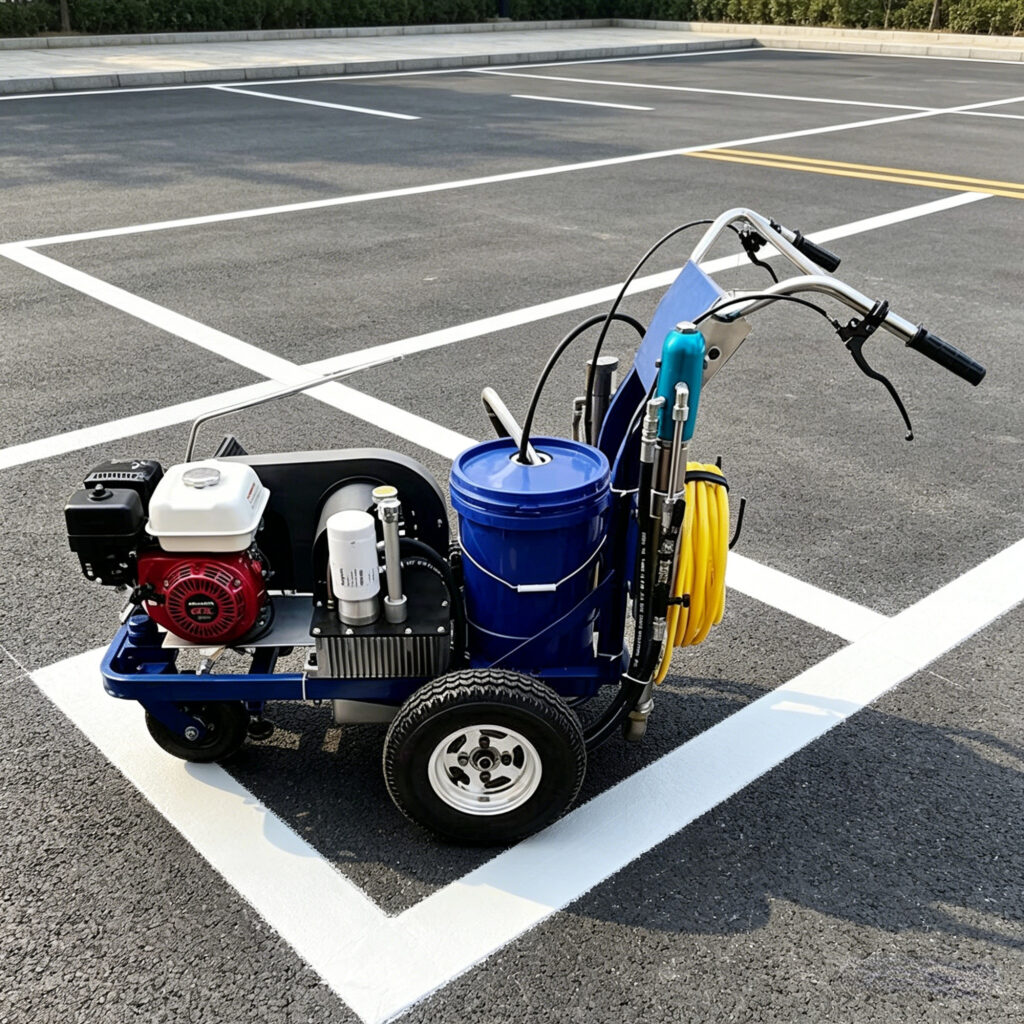

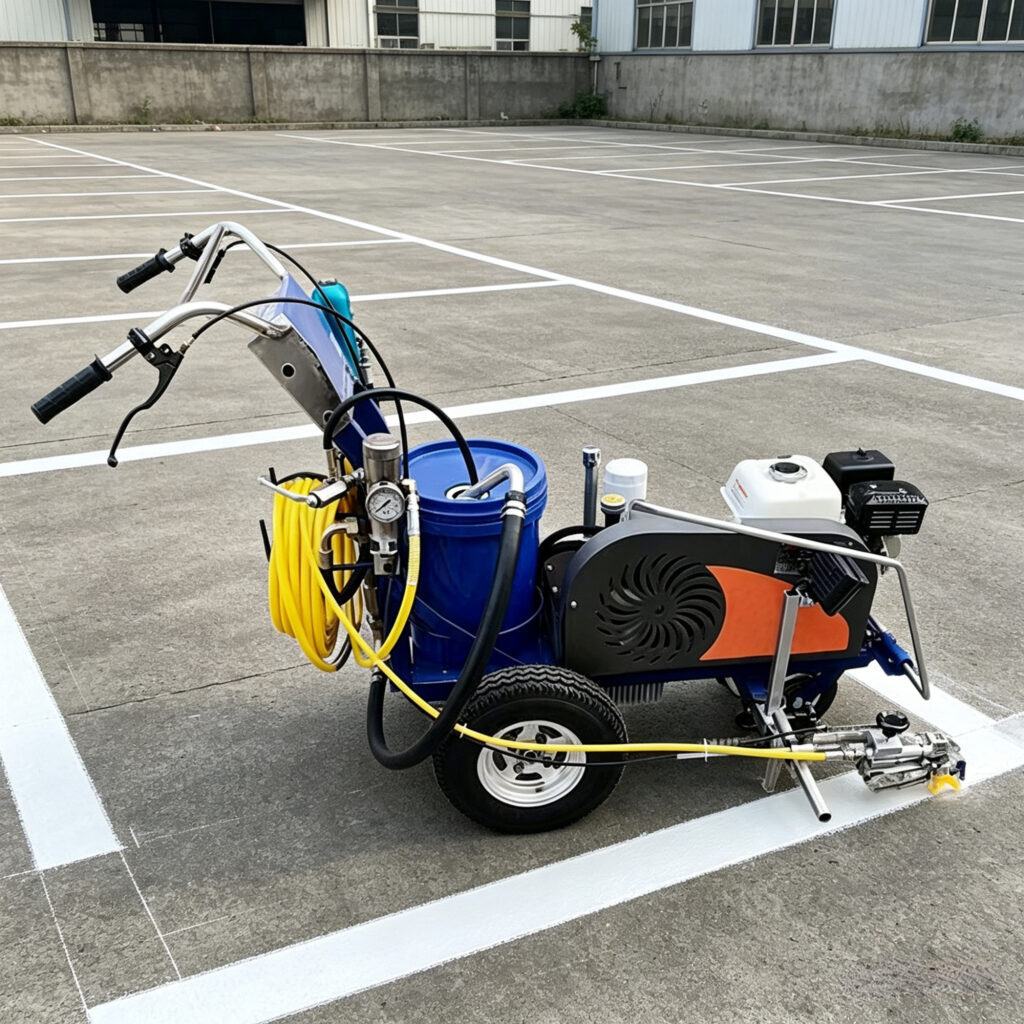

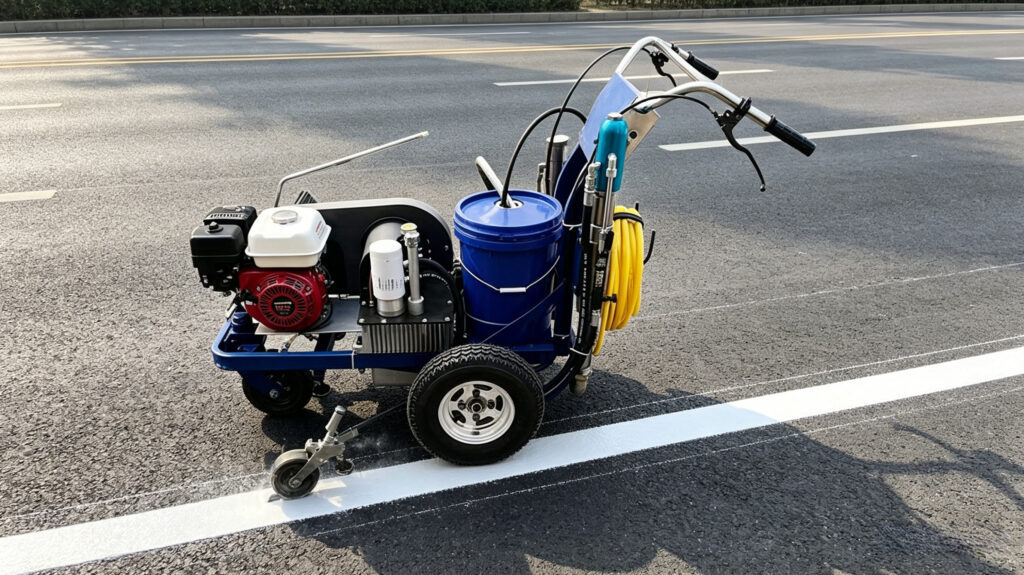

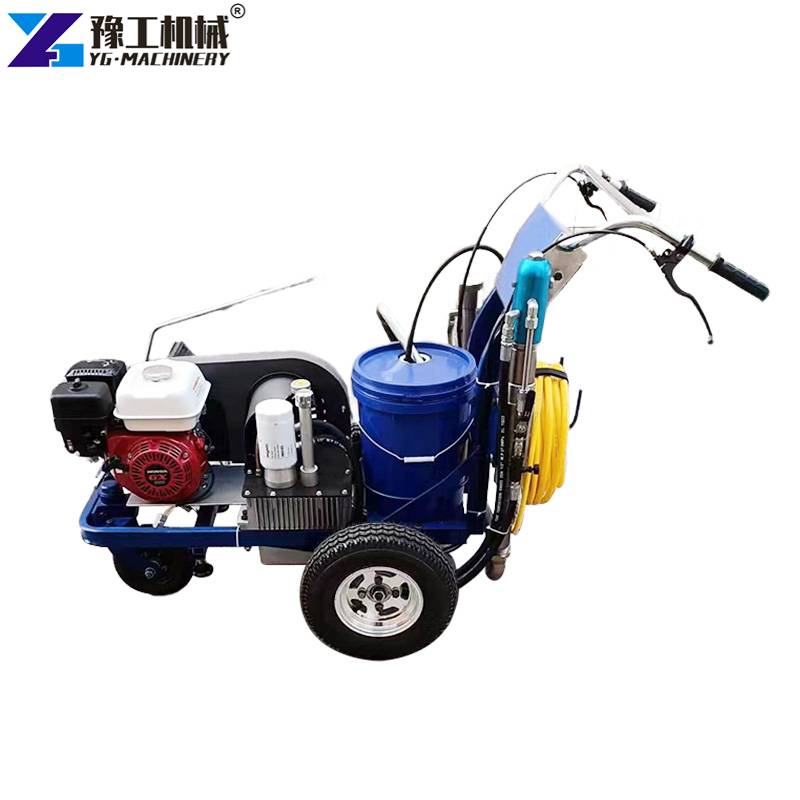

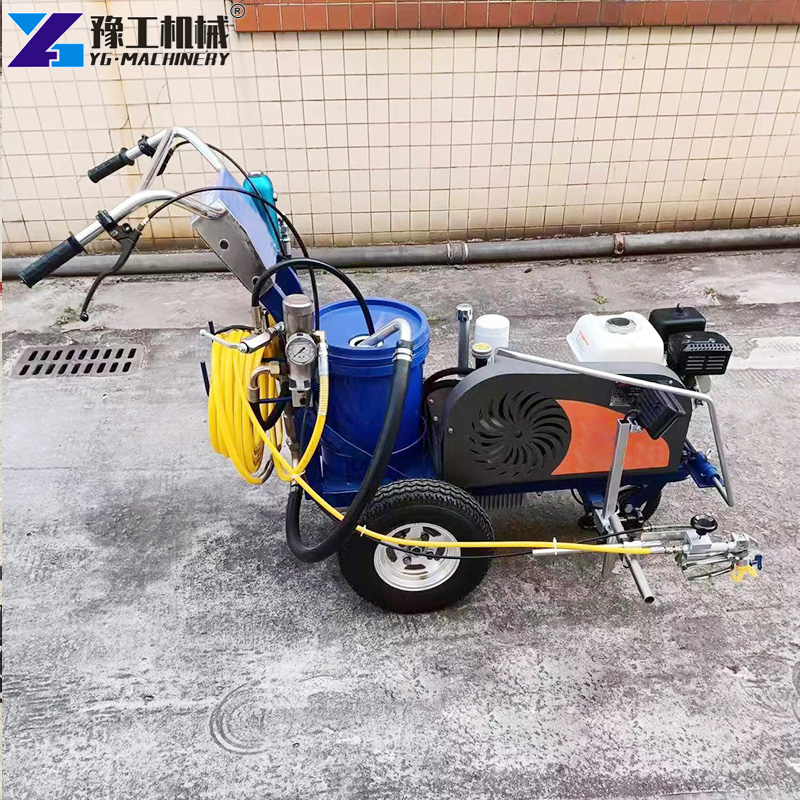

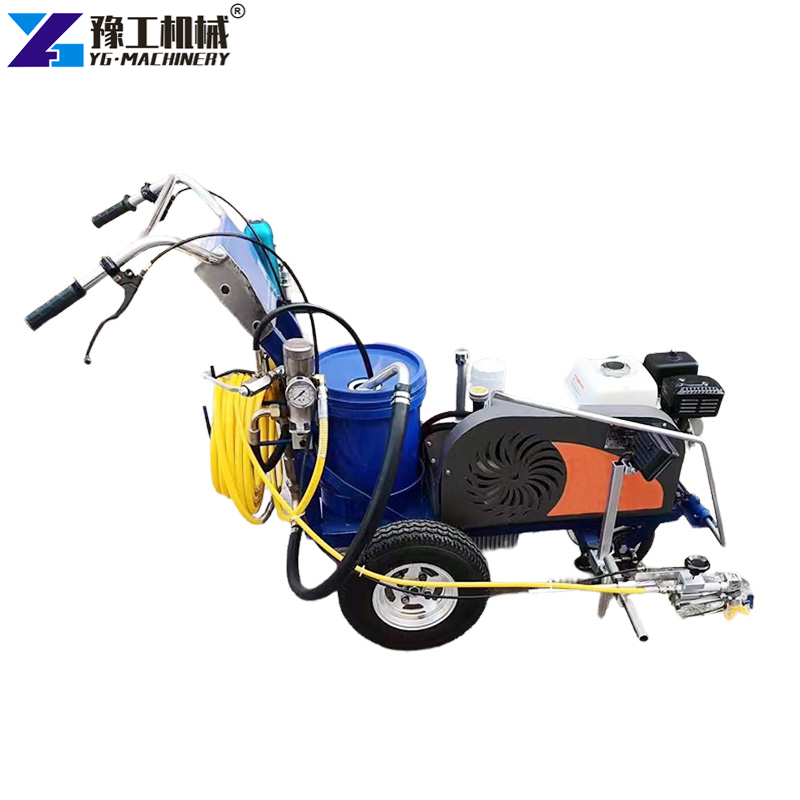

A cold paint road marking machine is widely used for applying normal road paint on highways, parking lots, and urban roads. It does not require heating like thermoplastic machines, which makes it easier to operate and more cost-effective. It uses air pressure or spraying systems to apply paint evenly on surfaces, creating clear and visible lines. Because of its simple structure and low investment, it is a popular choice for contractors and small to medium projects.
Compared with thermoplastic equipment, it is lighter, easier to move, and requires less maintenance. This makes it ideal for projects that need flexibility, fast setup, and lower costs.
Cold Paint Spray Road Marking Machine Specifications
It comes in different models to meet various project needs. Below are typical specifications:
1. Model: YG-8S (Single Gun)
| Parameter | Specification |
| Model | YG-8S |
| Motor Power | 5.5 hp Honda gasoline engine |
| Plunger Pump | Electronic reversing |
| Spray Gun | Single gun |
| Work Mode | Hydraulic |
| Pressure | 8–12 MPa |
| Unloading Flow | 4.8 L/min |
| Spray Width | 100–300 mm |
| Spray Thickness | 0.2–0.4 mm |
| Dimensions (L×W×H) | 1600 × 800 × 1200 mm |
| Weight | 120 kg |

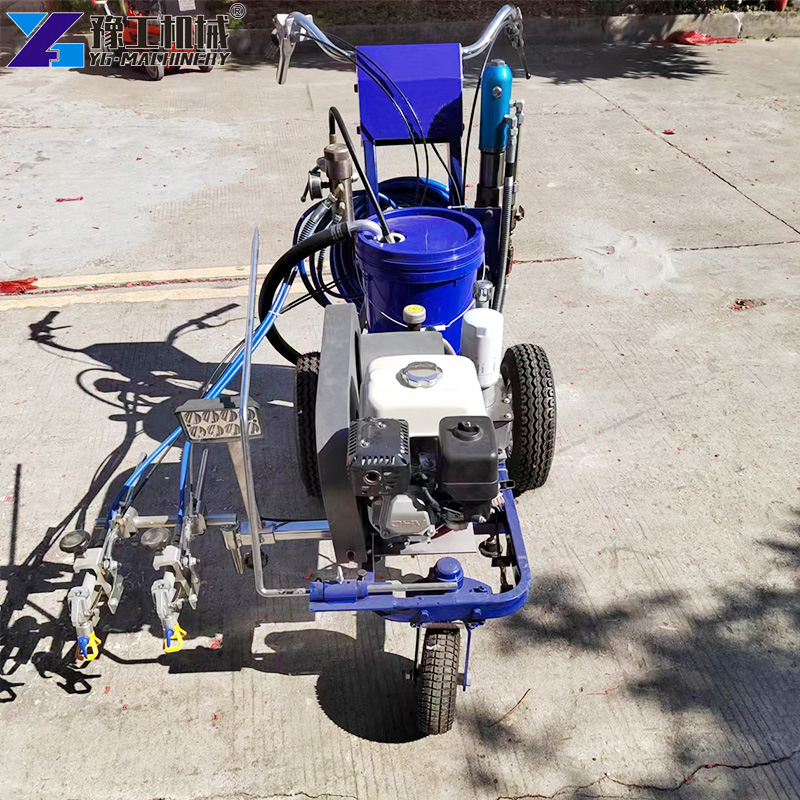

2. Model: YG-8D (Double Gun)
| Parameter | Specification |
| Model | YG-8D |
| Motor Power | 5.5 hp Honda gasoline engine |
| Plunger Pump | Automatic reciprocating commutation |
| Spray Gun | Double gun |
| Work Mode | Hydraulic |
| Pressure | 8–12 MPa |
| Unloading Flow | 8 L/min |
| Spray Width | 100–450 mm |
| Spray Thickness | 0.2–0.4 mm |
| Dimensions (L×W×H) | 1600 × 800 × 1200 mm |
| Weight | 120 kg |
Compare Models and Get a Quote
3. Single vs Double Nozzle Comparison
| Parameter | Single Nozzle | Double Nozzles |
| Engine Power | 4.3 hp | 7 hp |
| Discharge | 6 L/min | 8 L/min |
| Max Output | 25 MPa | 30 MPa |
| Nozzle Model | 517 (<15 cm) | 517 (<15 cm) |
| High-pressure Tube Strength | 35 MPa | 35 MPa |
| High-pressure Tube Length | Diameter 6 × 10 m | Diameter 6 × 10 m |
| Net Weight | 72 kg | 130 kg |
| Max Working Width | 20 cm | 45 cm |
- If you need higher efficiency, we recommend the double gun model (YG-8D).
- If your project is smaller, the single gun model (YG-8S) is more cost-effective.
- If you need thermoplastic marking equipment, we can also provide it for you.
These specifications affect the performance and working efficiency. Choosing the right model helps ensure better results and smoother operation.
Working Principle & Operational Advantages of Cold Paint Spray Road Marking Machine

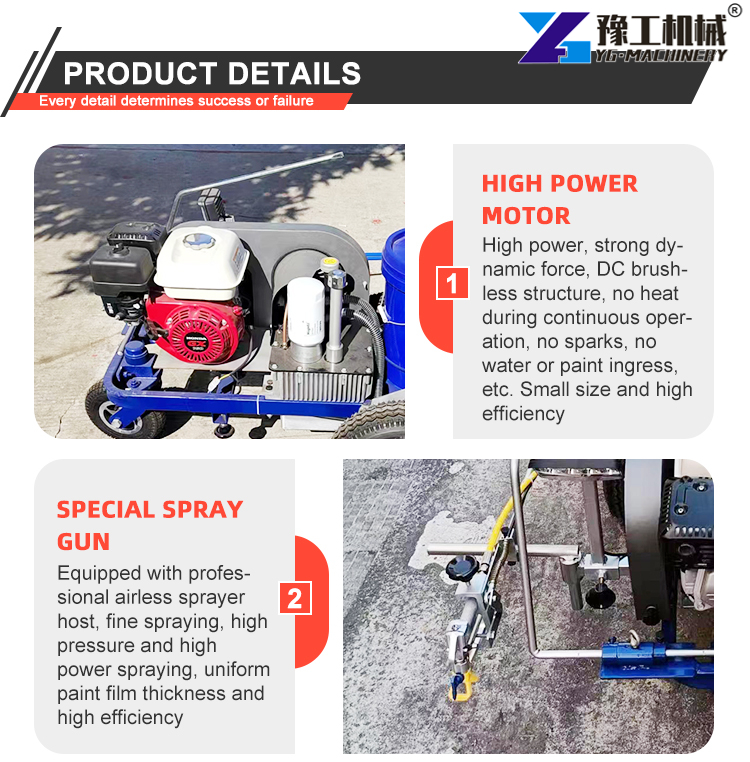

The cold paint spray road marking machine operates using high-pressure airless spraying technology to push liquid paint directly onto the road surface without preheating. Powered by a robust engine and hydraulic plunger pump, the system draws cold road paint from the tank, pressurizes it to 8–12 MPa, and atomizes it through precision spray guns. This produces crisp, uniform, and sharp-edged lines with superior coverage and fast drying times.
Key Technical & Operational Advantages:
- Broad Paint Compatibility: Works seamlessly with standard water-borne, solvent-based, and acrylic road marking paints across various asphalt and concrete surfaces.
- Immediate Operations & Zero Warm-Up: Eliminates the need for thermal kettles or heating burners, allowing teams to start marking instantly and lower overall energy consumption.
- Exceptional Operational Flexibility: Lightweight frame design enables smooth maneuverability, making it effortless to transport between job sites and handle tight city corners.
- Precision Spray & Thickness Control: Adjusting the spray gun height and nozzle angle allows operator control over line width (50–450 mm) and paint thickness (0.2–0.4 mm).
- Cost-Effective & Easy Maintenance: Features a simple, durable mechanical structure that minimizes setup costs, reduces equipment wear, and keeps daily maintenance straightforward.

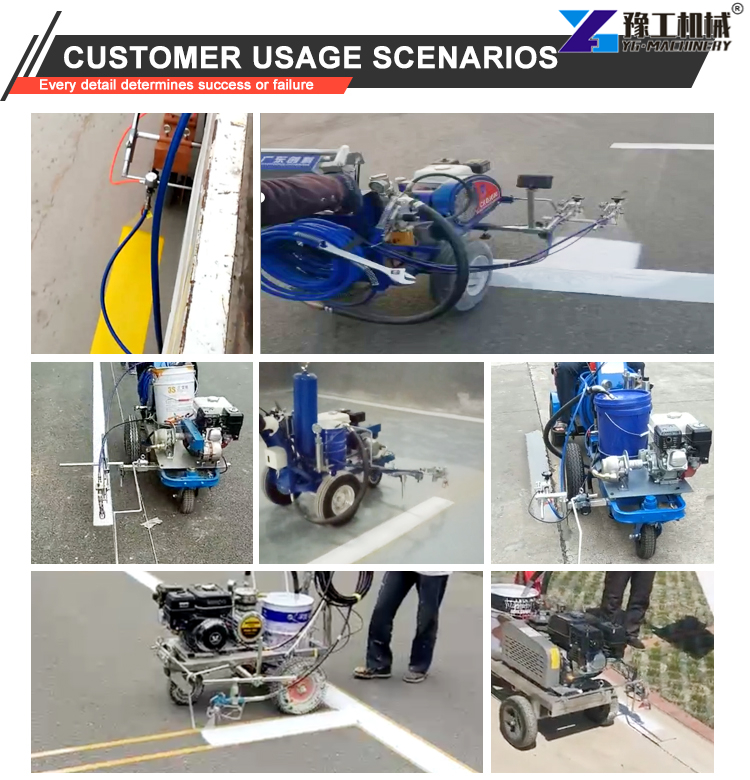

Applications of the Cold Paint Road Marking Machine
The cold paint road marking machine is a highly versatile and cost-effective solution designed for a wide range of surface marking projects. Because it requires no heating or pre-melting, it allows for quick setup, rapid application, and convenient operation across various environments:
- Safety-Sensitive Environments: Since it operates without open flames or high-temperature heating kettles, it is the safest choice for fuel stations, chemical plants, and areas with strict fire-safety regulations.
- Urban Roads & Traffic Infrastructure: Ideal for painting city street lanes, crosswalks, bicycle paths, bus lanes, and traffic turn arrows where fast application is needed to minimize traffic disruption.

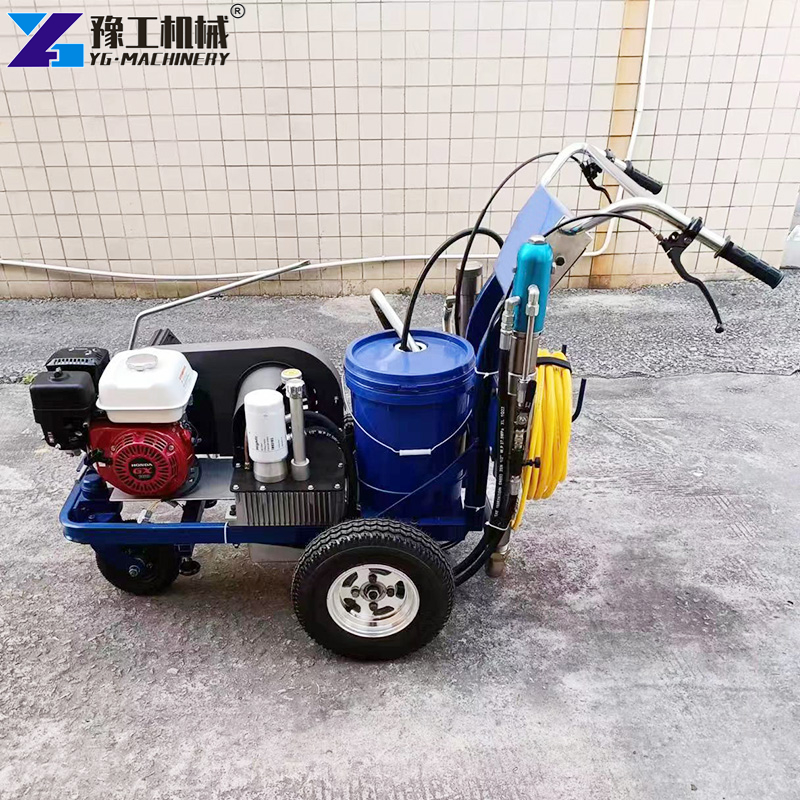

- Parking Lots & Commercial Areas: Perfect for marking parking stall lines, directional arrows, handicap symbols, and loading zone boundaries in shopping centers, office parks, and residential communities.
- Industrial Facilities & Warehouses: Widely used inside and outside factories, logistics hubs, and warehouses to delineate safety walkways, hazard zones, forklift lanes, and storage bays.
- Airports, Schools & Public Grounds: Suitable for marking low-speed zones, school playgrounds, sports courts, park pathways, and airport apron ground signs.
- Temporary & Construction Zone Markings: Excellent for short-term traffic diversions, temporary lane shifts, and event space setups due to its quick deployment and easy maneuverability.
Cold Paint Road Marking Machine Price and Buying Guide
The machine price depends on model type, spray system, and capacity:
- Regular models: $1,600 – $3,500
- Advanced models: $3,500 – $6,000+
For buyers, it is important to choose the right machine based on project size and frequency of use. A low-cost model may work for occasional jobs, but for regular use, a more durable and efficient machine is a better investment.
YG Machinery offers a wide range of options, helping customers choose the best solution for their needs and budget.
FAQs About Road Marking Machine
1. Which road marking machine works best for small parking lots or small projects?
For small-scale projects like residential parking lots, you can choose a cold spray road marking machine. It offers simple operation, lower cost, and works well for light-duty applications.
2. For highways or large-scale projects, what type of road marking machine should be used?
For highways and large-scale construction, choose a thermoplastic road marking machine. It delivers higher efficiency, stronger durability, and handles long-distance marking with ease.
3. What is the difference between cold spray and thermoplastic road marking machines?
The main difference comes down to durability:
- Thermoplastic markings last about 1–2 years
- Cold spray markings typically last 3–6 months
If you need longer-lasting results, thermoplastic marking offers a better solution.
4. Which machine should I choose for high-quality projects?
If your project demands higher quality and longer service life, go with a thermoplastic road marking machine. It provides better performance and more durable results than cold spray machines.
5. What marking thickness can I achieve, and how do I adjust it?
For thermoplastic machines:
- Typical thickness: 1.5–1.8 mm
- You can adjust the thickness by changing the hopper hanger position:
- Raise it → thinner lines
- Lower it → thicker lines
For cold spray machines:
- Thickness range: 0.3–1.2 mm
- Adjust it by changing the spray gun height
6. What marking width can these machines handle?
Thermoplastic machines support multiple bucket widths:
5, 10, 12, 15, 20, 30, 40, and 45 cm
Cold spray machines allow flexible width control:
5–45 cm, depending on spray gun height and setup.
Contact YG Machinery Today to Learn More About Cold Paint Road Marking Machines
When your project demands a reliable cold paint road marking, YG Machinery delivers. With strong manufacturing capabilities and extensive global experience, we provide high-quality equipment at competitive factory prices.
Why Choose YG Machinery?
| Competitive Factory Pricing | Direct from the manufacturer—no middlemen, better value |
| Stable & Durable Machines | Built with robust components for long-term performance |
| Wide Product Selection | Multiple models available to match your specific application |
| Fast Worldwide Delivery | Efficient logistics to minimize your project downtime |
| Professional Technical Support | Expert guidance from selection to operation |
How to Buy a Cold Paint Road Marking from YG Machinery
Buying from YG Machinery is easy and efficient:
- Send Inquiry: Tell us your project needs and requirements
- Model Recommendation: Our team suggests suitable machines
- Quotation: Get detailed pricing and specifications
- Production & Testing: Machines are tested before delivery
- Shipping: Fast global delivery to your location
- After-Sales Support: Technical guidance and spare parts support
YG Machinery is a professional manufacturer with rich export experience. Their machines are widely used in global markets and trusted by many contractors.
Complete Road Construction Solutions
While the road line marking machine is your primary focus, YG Machinery offers a full range of complementary equipment to support your projects:
- Thermoplastic Road Marking Machines – for durable, long-lasting markings
- Road Marking Removal Machines – for surface preparation and maintenance

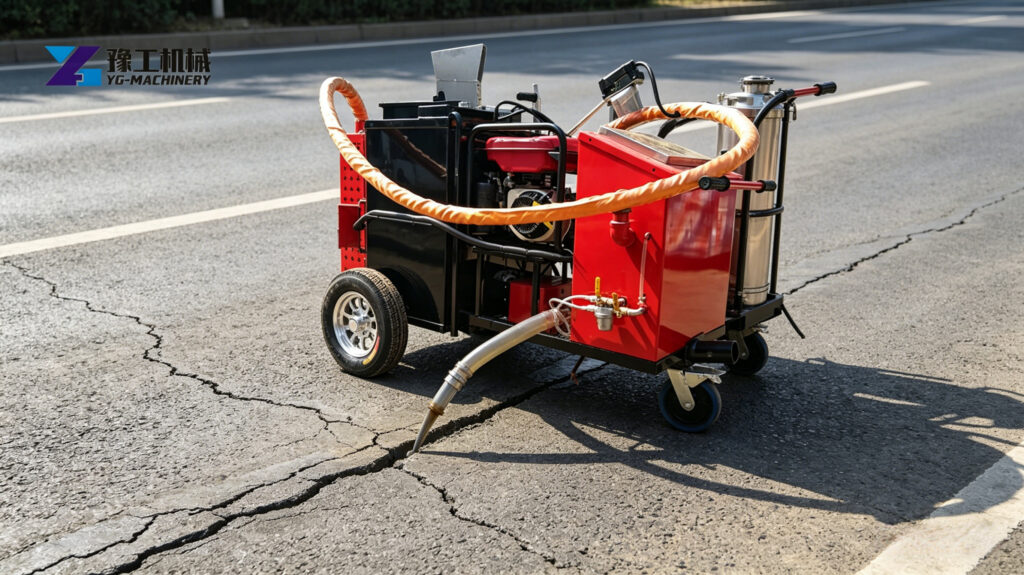

- Crack Sealing Machines – to extend pavement life
