The inquiry arrived on a Wednesday morning in early May with the subject line: “Water drilling machine needed – Sonora, Mexico.” Carlos, a ranch owner in northern Mexico, managed a 120-hectare property that relied on a single shallow well. As groundwater levels dropped by 4 meters over two years, his cattle herd shrank from 80 to 52. He needed a small water drilling machine to drill new wells and secure a reliable water supply.
That email marked the start of a three-month journey. A YG small water drilling machine traveled over 2,000 kilometers from our factory to his remote ranch. With agricultural demand driving steady growth in Mexico’s drilling market and millions of people still lacking reliable access to water, compact drilling solutions are becoming increasingly important. Carlos’s project reflects how small, portable drilling machines are helping rural communities achieve greater water independence.
Product Parameter Table:
| Parameter | YG-240-22P | YG-240-30P |
|---|---|---|
| Dimension (mm) | 1450*1550*1970 | 2000*1230*2090 |
| Weight (kg) | 200 | 200 |
| Drill rod diameter (mm) | 42 | 51 |
| Drill rod length | 1.5m/unit | 1.5m/unit |
| Rod change method | Full automatic screw thread | Full automatic screw thread |
| Max drilling depth (m) | 200 | 200 |
| Diesel engine power | 22HP | 30HP |
| Drilling hole diameter | Within 280mm | 100mm-240mm |
| Lifting height | 2.5m | Max 2.5m |
| Lifting force (kg) | 1000 | 2000 |
Find the Right Model for Your Project
Inquiry & Consultation: Finding the Right Solution for Tough Soil
Carlos found YG Machinery while searching online for a portable well drilling machine. He had previously evaluated local Mexican suppliers (too expensive), U.S. brands (beyond budget), and low-cost Asian alternatives (lacking durability). Chinese machinery offered the ideal balance of affordability and reliability.
His requirements were strict: the machine needed to drill at least 150 meters, run on diesel, fit into a standard pickup truck, and be simple enough to maintain 150 kilometers away from the nearest mechanic. Most importantly, his ranch needed 15,000 liters of water per day for cattle and crops, but his existing well produced a mere 3,000 liters.
Our engineering team responded within five hours to gather details about his local soil structure and water table depth. After Carlos shared property photos and ground samples indicating hard desert soil, we arranged a video conference and recommended the YG-240-30P mini water borewell machine as the perfect fit for his project.
Start Your Project with the Right Equipment
Quotation and Order: Customizing the YG-240-30P Small Water Drilling Machine
To handle Sonora’s tough ground conditions, Carlos customized his order with an extra set of 51 mm drill rods (extending drilling depth to 200m) and a dust-proof engine cover.
Before dispatch, the unit underwent rigorous factory testing, completing 50 meters in 45 minutes. The full package—including the 30 HP diesel engine and automatic rod-threading system—was packed into a reinforced wooden crate for ocean freight to the Port of Guaymas.
Shipping and Delivery: Transporting a Portable Borehole Drilling Machine to Sonora
Shipping took 22 days from the Port of Ningbo to the Port of Guaymas. The vessel crossed the Pacific Ocean to the Gulf of California. We tracked the container daily and updated Carlos on its position. The machine arrived at Guaymas on a Tuesday morning. Customs clearance took three days. Mexico applies import duties on drilling equipment based on the tariff classification. Carlos’s customs broker handled all the paperwork: the commercial invoice, packing list, and bill of lading. The container cleared customs on a Friday.
Carlos hired a local trucking company to transport it from Guaymas to his ranch. The journey was 380 kilometers north. The truck arrived at Carlos’s ranch on a Saturday afternoon. Carlos sent photos of the crate being unloaded. His ranch hands gathered around. They had never seen a drilling machine so compact.

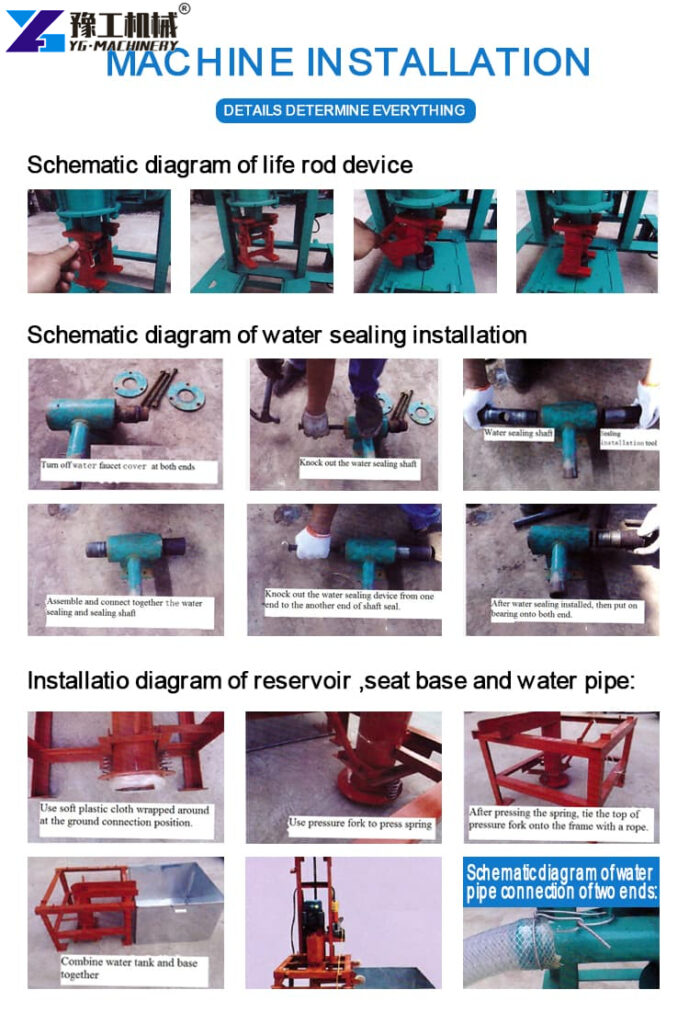

Installation and Training: Setting Up the Water Well Drilling Rig
Before delivery, Carlos had already prepared a 10 × 10 meter drilling site beside his old well. With our installation guide and WhatsApp support, he and two ranch workers assembled the small water drilling machine in just three hours, completing the engine, hydraulic, and drill rod installation without difficulty.
We then provided two days of remote training, covering machine operation, drilling techniques, and routine maintenance. Thanks to the automatic rod connection system, rod changes were completed in seconds. On the first drilling day, the mini water borewell machine reached groundwater at 35 meters and finished the well at 60 meters in only 2.5 hours, impressing Carlos with its speed and ease of operation.
Operational Results: A Portable Well Drilling Machine for Sale Transforms the Ranch
After 60 days of operation, Carlos shared impressive results. The YG-240-30P small water drilling machine drilled three wells at depths of 60–80 meters, producing a combined 27,000 liters of water per day—nine times the output of his old well.
📊 Performance & ROI Comparison
| Key Performance Metrics | Before (Old Well / Third-Party Contractor) | After (YG-240-30P Drilling Rig) | Business Impact & ROI |
|---|---|---|---|
| Daily Water Output | 3,000 L / day | 27,000 L / day | 900% Yield Increase (Secured water for cattle & crops) |
| Drilling Cost per Meter | $15 – $25 / meter (Contractor rate) | < $3 / meter | 80%+ Cost Reduction per drilled meter |
| Initial Project Savings | $0 | $4,000+ Saved | Direct savings across the first 3 wells |
| Equipment Reliability | N/A (Frequent shortages) | 180 Operating Hours | Zero breakdowns in tough desert soil |
| Return on Investment | Pure Expense | Full Payback in 60 Days | Created a secondary revenue stream via neighbor services |
The machine operated for 180 hours without a single breakdown, with drilling costs below $3 per meter, saving him more than $4,000 compared with hiring a commercial drilling contractor…
Quantifiable ROI & Economic Efficiency
- Massive Yield Growth: By upgrading to the YG-240-30P small water drilling machine, the ranch’s daily water capacity shot up from a struggling 3,000 liters to 27,000 liters per day.
- Unmatched Cost Control: Commercial contractors in Sonora charge high hourly rates. With the YG-240-30P, operational costs dropped below $3 per meter, yielding over $4,000 in immediate savings across the first three wells.
- Reliable Zero-Downtime Operation: Driven by a robust 30 HP diesel engine, the machine logged 180 continuous operating hours with zero breakdowns, guaranteeing a fast payback period within 60 days.
Technical Standards: API and EPA Compliance for the Water Well Drilling Machine
The YG-240-30P meets international standards for water well drilling equipment. The machine uses hardened drill rods with API-standard threaded connections. The automatic screw thread system ensures secure connections and prevents rod loss at depth. The hydraulic lifting system provides 2000kg of lifting force. This is sufficient to extract 51mm rods from depths up to 200 meters. The 30HP diesel engine meets EPA Tier 4 emission standards for non-road equipment. Fuel consumption is optimized for continuous operation. The machine’s 200kg weight allows transport by standard pickup truck. This portability is critical for rural applications.
The drilling head rotation speed is adjustable from 0 to 80 RPM, allowing operators to adapt to different soil conditions. The machine can drill through sandy soil, clay, gravel, and caliche layers. Water well drilling standards vary by region. Mexican regulations require wells to be registered with CONAGUA, the National Water Commission. The wells drilled by Carlos on his property are considered domestic use wells and require simple registration. The machine produces clean boreholes with consistent diameters. The drill rods are made from high-grade alloy steel with a tensile strength of 850 MPa. This ensures durability and safety during deep drilling operations.
A Small Water Drilling Machine That Changed a Ranch
Carlos’s story proves what a small water drilling machine can achieve. The YG-240-30P traveled over 2,000 kilometers, cleared customs in three days, and was assembled in just three hours. Within two months, it drilled three wells, producing 27,000 liters of water per day, saving thousands of dollars, and turning a simple investment into a profitable business.
If you need a reliable portable borehole drilling machine, the YG-240-30P delivers. It drills up to 200 meters, uses 51 mm drill rods, features a 30 HP engine, weighs only 200 kg, and fits easily in a pickup truck for convenient transport.
Ready to solve your water challenges? Contact YG Machinery today for a customized quote. Our team will respond within 5 hours and recommend the best drilling solution for your project.
