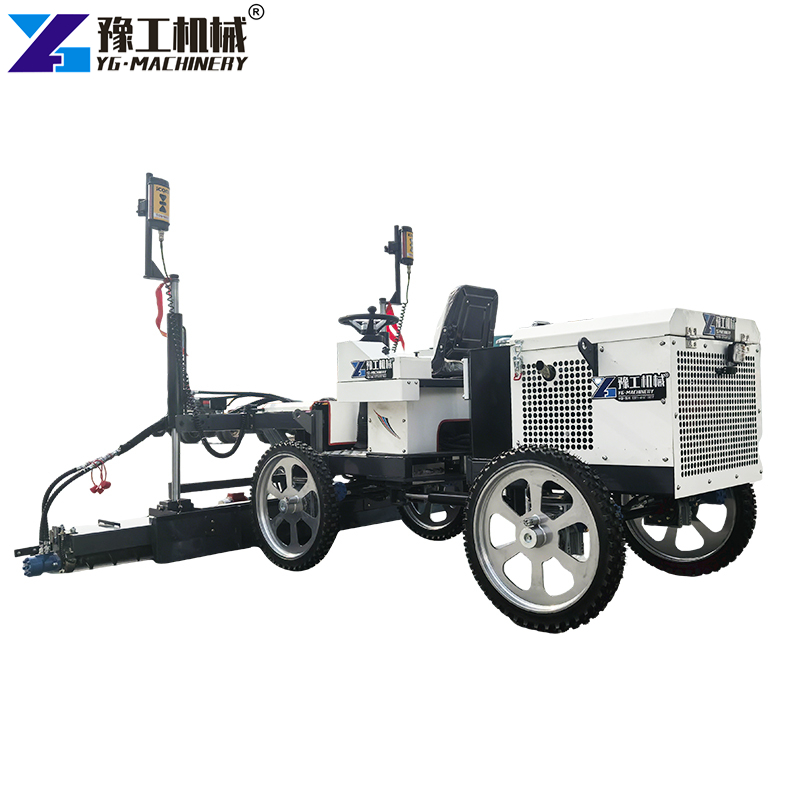

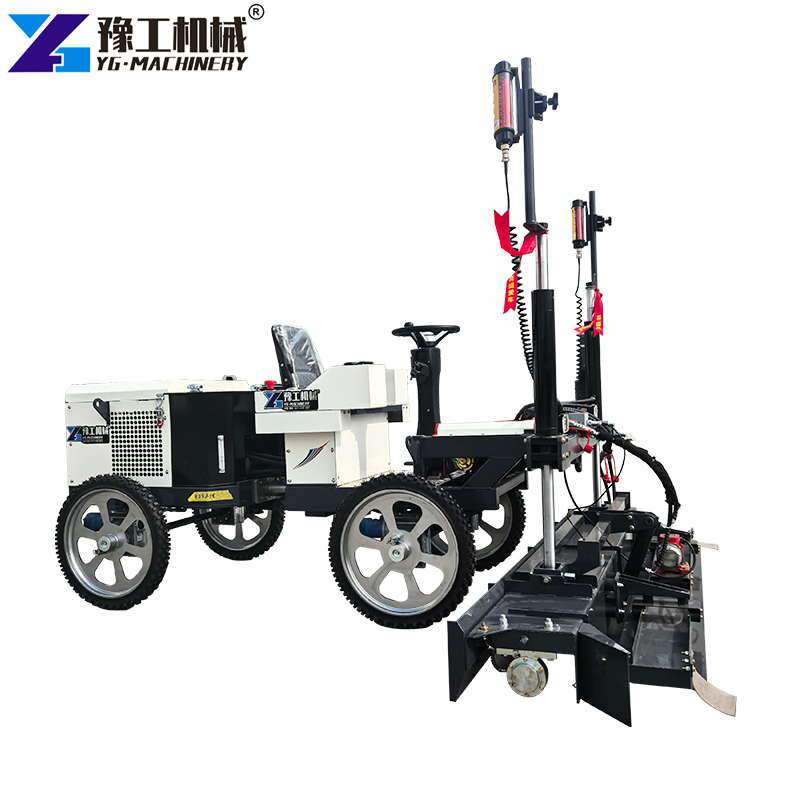

A laser screed for floor is an advanced construction machine designed to level and vibrate fresh concrete surfaces. It relies on highly precise transmitters to emit a continuous horizontal light beam across the entire active work zone. Onboard receivers capture this signal thousands of times per minute to guide the hydraulic leveling head automatically. YG Machinery engineered this intelligent system to replace traditional, low-efficiency manual screeding methods in modern commercial building projects.
This automated tracking ensures the equipment maintains an incredibly flat surface profile regardless of subsurface concrete volume changes. It consolidates the concrete mix thoroughly in a single pass to eliminate structural honeycombing or hidden air pockets. By utilizing this self-correcting mechanical process, engineering teams prevent common placement defects and complete large-scale foundation pours much faster. Incorporating this automated machinery expands your workshop fleet capacity and helps your business secure lucrative high-tier concrete flooring contracts.
5 Financial Metrics to Balance Against Your Automatic Laser Screed Investment
- Lower Labor Insurance Overhead: Only one remote operator manages the entire leveling process, saving thousands in workplace hazard insurance fees.
- Minimized Subgrade Patching Expenses: The high-accuracy microcomputer laser system prevents concrete over-pouring by maintaining perfect depth consistency throughout.
- Faster Project Handover Completion: High-frequency vibration plates compact large sections quickly to help teams beat tight deadline penalties.
- Reduced Secondary Grinding Costs: Flawless initial surface flatness eliminates the need for expensive post-cure diamond grinding treatments.
- Extended Equipment Service Lifespan: The corrosion-resistant steel frame protects vital internal electronics to lower yearly part replacement frequencies.
Modern contractor networks must evaluate total operational costs before expanding their structural fleet. Investing in advanced technology minimizes material waste significantly. Field managers reduce their reliance on large, low-efficiency manual paving crews. This shifts daily budgets toward highly profitable raw material acquisition and business scaling.
Additionally, reduced repair cycles ensure excellent long-term budget predictability for growing engineering firms. This hardware retains high physical asset value over years of hard field service. It allows owners to maximize their total commercial return on equity. It speeds up standard company scaling metrics across competitive concrete flooring markets.
Technical Parameters: Comparing Our 2 Ultimate Paving Models
| Engineering Specification | YG-CL300 Small Laser Screed | YG-ZP40 Ride-on Laser Screed |
| Engine Brand Type | Honda / Loncin / Briggs (Gasoline) | Yanmar 4TNV98L (Diesel) |
| Engine Power Capacity | 22KW / 30ps | 63.9KW / 86hp |
| Fuel Tank Capacity | 20 Liters (8 Hour Runtime) | 140 Liters |
| Hydraulic System Components | Air-cooled 4-stroke system | Premium Danfoss System |
| Laser Signal Receiver | Swiss Leica / Tower Option | German Mopar System |
| Control System Effect | Plane, slope, double slope (3D) | Flat, inclined, or 3D double slope |
| Paving Material Method | Hydraulic stirring cage paving | Hydraulic Cage Paving |
| Vibrating Plate Width | 2500mm | 4000mm |
| Leveling Thickness Range | 50-300mm | 100-500mm |
| Working Travel Speed | 0-4 Km/h (Speed Adjustable) | 4-8 Km/h (24m²/min Output) |
| Body Weight Metrics | 900 Kg | 8500 Kg |
| Body Dimensions Sizing | 3250x2850x1320mm | 5495x4555x2630mm |

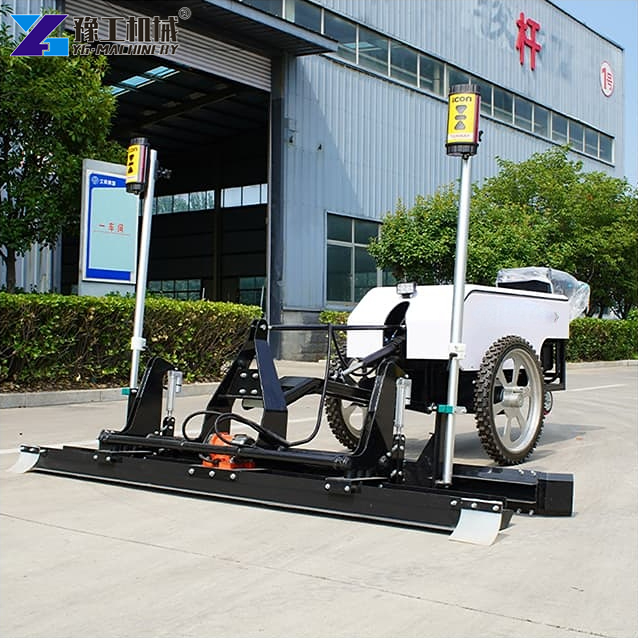

How a High-Performance Concrete Laser Screed Machine Slashes Job Costs
- Massive Four-Meter Vibrating Width: The wide strike-off plate levels huge surface sections in a single pass.
- Rapid Multi-Mode Steering Travel: Front wheel steering combines with four-wheel drive and crab walk maneuvers for tight spaces.
- Convenient Flip-Up Auger Systems: The mechanical cage flips up smoothly to allow fast, easy washdowns after work.
- Integrated Cleaning Spray Outflow: An onboard cleaning water pump delivers fifteen liters per minute to remove wet cement.

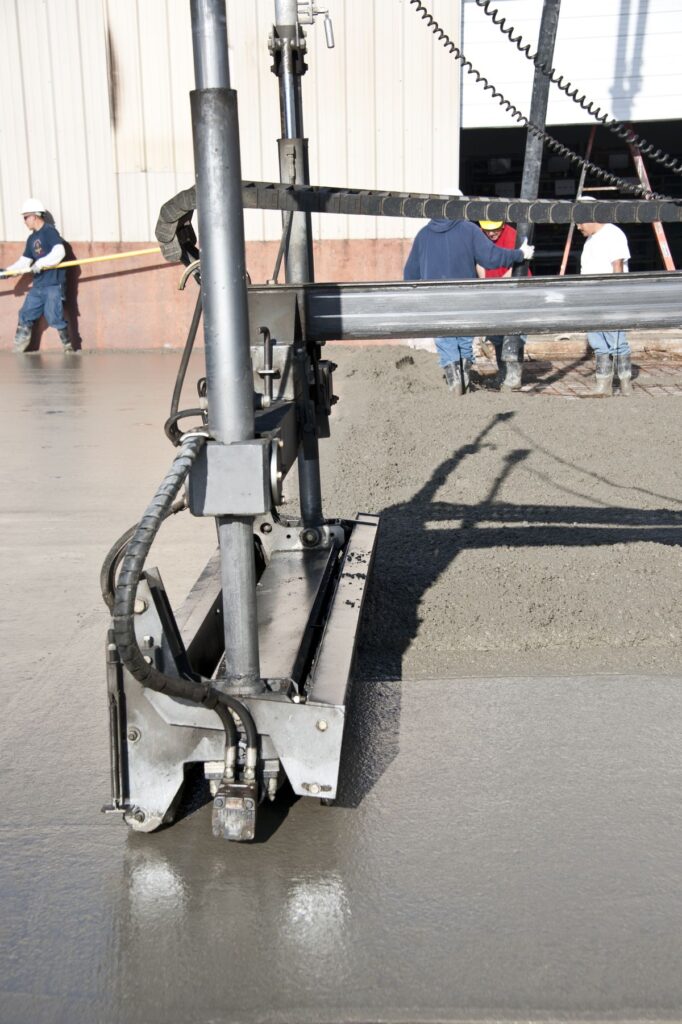

The physical layout optimizes workflow speed by integrating multiple critical concrete finishing operations into one automated process. It cuts, levels, and compacts the fresh mix simultaneously during a single continuous track pass. This mechanical synchronization eliminates the need for separate manual raking crews working ahead of the finisher.
Furthermore, the advanced hydraulic cage system switches directions instantly to distribute heavy concrete surges evenly. This prevents uneven aggregate settlement across variable slab depths. It keeps the surface profile completely uniform before the final curing process begins. Field technicians achieve excellent production milestones without experiencing typical physical fatigue.
4 Clear Differences Between Automated Leveling and Manual Work
- Flawless Flatness Precision: The automated receiver scans elevations continuously, whereas human workers struggle to maintain consistency.
- Massive Labor Cost Reductions: A single operator handles large concrete pours easily, while manual work requires large field crews.
- Superior Floor Structural Density: High-frequency vibration plates compact the mix thoroughly, eliminating weak interior air pockets.
- Unmatched Daily Production Speed: The mechanism finishes up to twenty-four square meters per minute, beating manual velocities.
Manual leveling methods depend heavily on individual physical endurance and subjective visual assessments. Human crews tire rapidly during long summer concrete pours. This fatigue leads directly to surface waves and uneven slab transitions. These imperfections cause serious disputes with structural engineers during floor flatness testing.
In contrast, automated tracking systems run consistently regardless of ambient workplace temperatures or extended shift durations. They maintain identical strike-off pressure across thousands of square meters of fresh concrete. This structural consistency satisfies strict commercial building codes effortlessly. It protects your contracting brand reputation among major industrial developers.

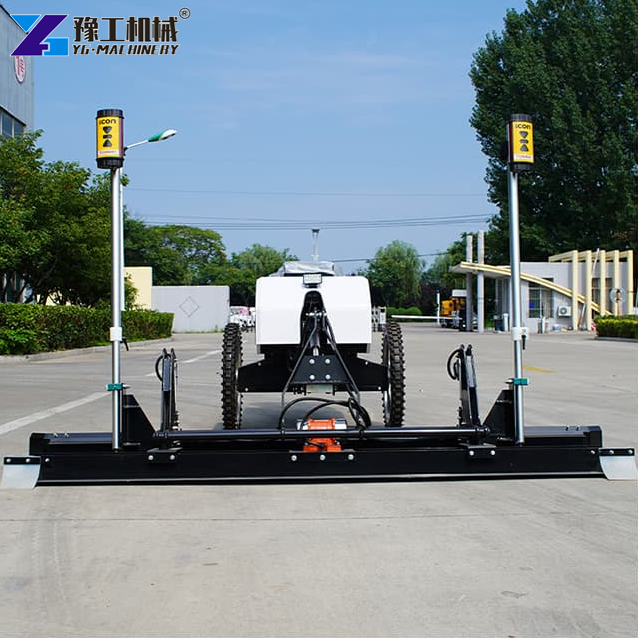

Maximizing Project Uptime with a Premium Laser Screed Supplier Selection
Partnering with an established global manufacturer ensures long-term operational success for your commercial engineering enterprise. Every chassis features thick steel reinforcement. Top-tier hydraulic pumps endure punishing concrete environments easily. Manufacturing facilities utilize strict quality control protocols over every circuit module. This dedicated focus on component reliability means your field crew experiences fewer unexpected job site delays. It minimizes field repair overhead over years of hard, active use.
Additionally, an extensive global spare parts network guarantees rapid components fulfillment whenever required. Large inventories of high-wear auger blades and fluid filters remain ready for immediate dispatch. This proactive support system keeps your construction machinery operating during tight seasonal schedules. Procurement managers can confidently bid on high-volume infrastructure tenders. The direct-factory engineering support division stands ready to assist around the clock.

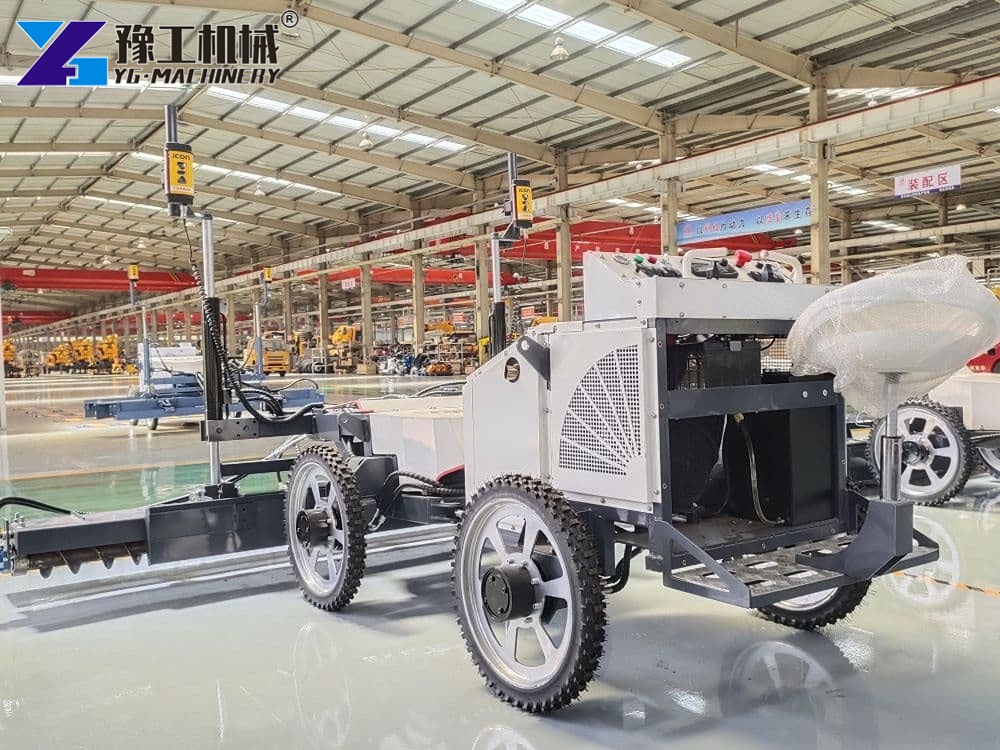

Our manufacturing plants integrate advanced laser-cutting machinery to build perfectly balanced structural outriggers. These components resist twisting under severe torque loads. They maintain precise sensor calibration across challenging, uncompacted subgrades. This engineering excellence guarantees highly predictable machine performance during critical foundation pours. It delivers peace of mind to project managers worldwide.

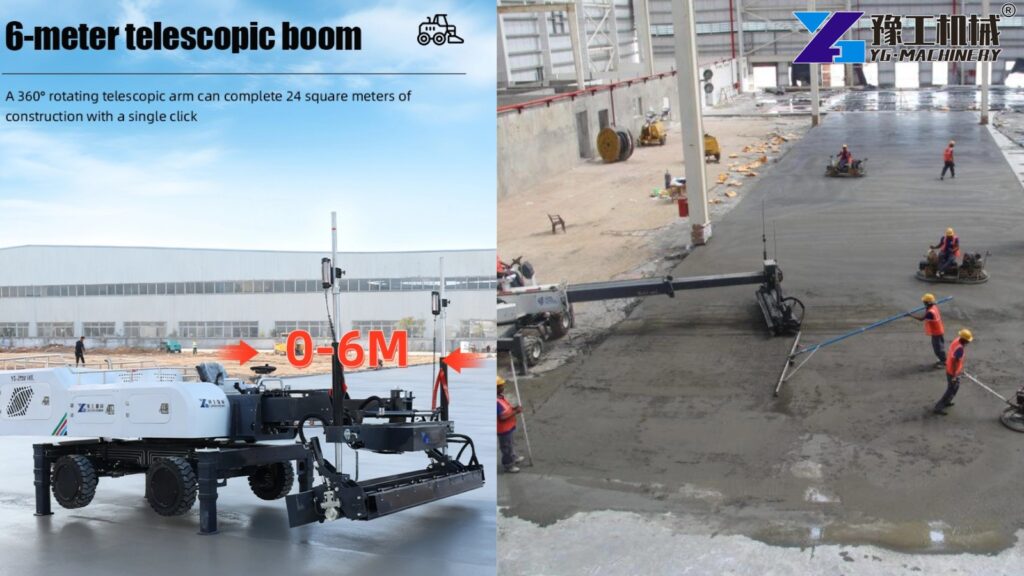

Proven Field Success: Shaving Weeks Off an Industrial Warehouse Project
- The Challenge: A prominent industrial flooring contractor in Southeast Asia secured a contract for a forty-thousand-square-meter logistics hub. The developer demanded strict compliance with international flatness metrics. They also imposed heavy financial penalties for every day the project ran past the deadline.
- The Solution: The team deployed our flagship heavy-duty model to handle the high-volume pour schedules. It operated continuously for ten-hour shifts across a thick rebar grid, maintaining perfect leveling precision without experiencing structural drift.
- The Result: The contractor finished the entire concrete floor footprint a full eight days ahead of schedule. They cut the traditional finishing crew size by sixty percent, eliminated manual raking errors, and achieved an exceptional flatness rating on the first inspection.
Integrating this high-efficiency mechanical setup allows companies to deliver verified, premium-grade surfaces that pass strict engineering checks instantly. Owners rapidly recover their initial capital outlay by eliminating post-pour grinding corrections and heavy crew overhead. This real-world field result demonstrates how automated technology secures a powerful competitive advantage for growing concrete contractors worldwide.
Secure Your Wholesale Direct Factory Quote for a Laser Screed for Floor Today
Buying equipment directly from an established global heavy machinery manufacturer eliminates expensive third-party broker markups. YG Machinery provides worldwide industrial buyers with comprehensive international equipment warranties. We ensure rapid spare parts fulfillment. We offer lifetime technical engineering support. Our application engineering division is ready to review your project requirements. We calculate the ideal model choices. We configure custom wheel tracks for your specific regional project conditions.
- Step 1: Submit your average daily pour area and target slab thickness measurements through our online form.
- Step 2: Review an itemized, transparent PDF quotation and exact machinery weights within 8 hours.
- Step 3: Confirm your customized mechanical specifications and monitor your shipment from our manufacturing floor directly to your port.
Our logistics experts manage all international maritime customs documentation smoothly to prevent transit delays. Every shipment includes heavy-duty export crates to protect critical laser scanning transmitters during travel. We coordinate directly with your regional freight forwarders to organize seamless job site delivery. Contact our technical sales division today to optimize your construction fleet asset procurement strategy.
