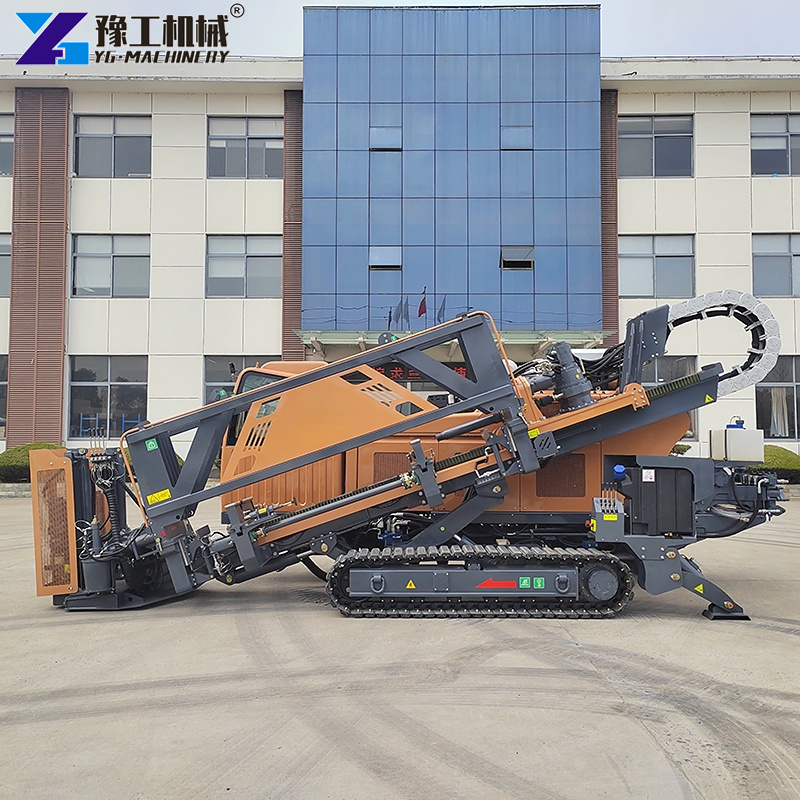

A Trenchless HDD Boring Machine is a high-performance underground construction system designed for modern pipeline installation without open excavation. It is widely used in road crossings, river crossings, municipal utility networks, and communication pipeline projects where surface disruption must be avoided.
YG Machinery designs HDD systems based on real engineering conditions, focusing on torque stability, drilling accuracy, and long-distance underground performance. With advanced hydraulic control technology and strong power systems, the equipment ensures stable operation in complex geological environments.
Start Your Project with the Right Equipment
7 Core Engineering Features That Improve Trenchless HDD Boring Machine Performance
This system integrates advanced mechanical and hydraulic technologies to ensure high efficiency and stable underground drilling performance in different soil conditions.
Key engineering features include:
- Cummins Engine for strong and stable power output
- Eaton High-Torque Rotation Motor for consistent drilling force
- Eaton Push & Pull Motor with Three-Speed Gearbox for flexible operation
- Steel Track Walking System with Double-Speed Wire-Control Driving
- Panoramic Open-Air Operating Platform for improved visibility
- Φ73×3000 mm or Φ76×3000 mm Drill Rod Compatibility
- Independent Cooling System for Hydraulic Component Stability

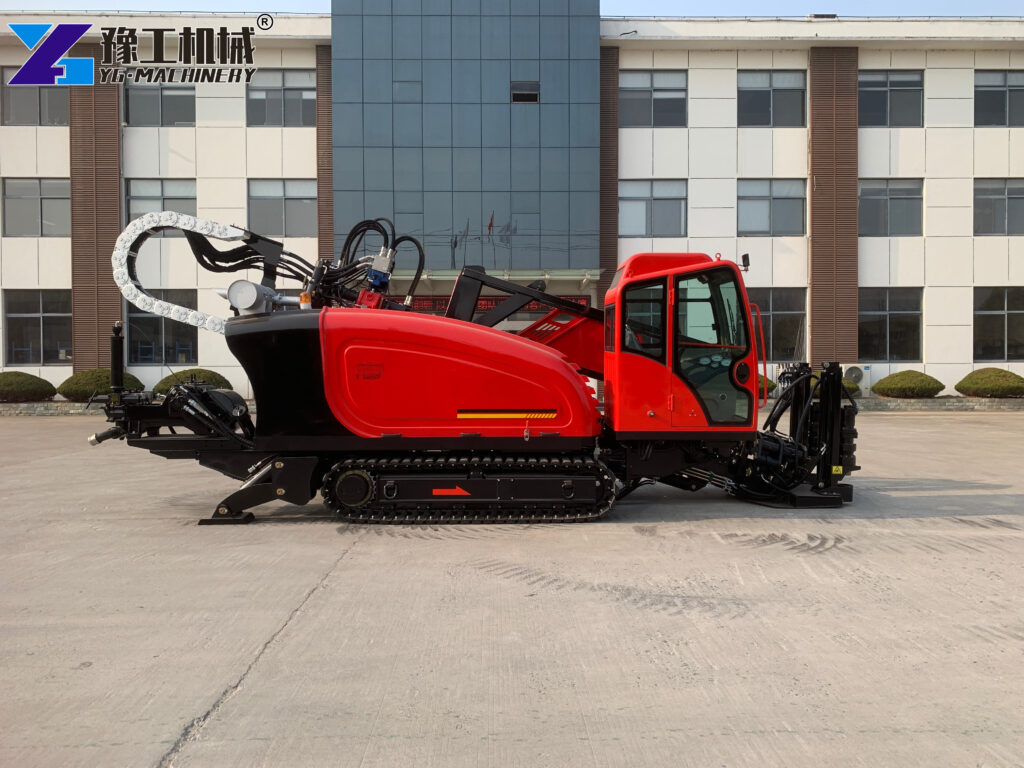

YG Trenchless HDD Boring Machine | Powerful Hydraulic & Steering System
Trenchless Boring Machine | High-Torque System For Underground Pipeline Installation
Trenchless Boring Machine is designed for contractors who require stable and efficient underground pipeline installation without surface excavation.
The system uses a high-torque hydraulic structure combined with advanced rotation control technology to ensure precise directional drilling. It is widely applied in municipal infrastructure and utility installation projects.
Typical applications include:
- Urban Municipal Infrastructure: Underground installation and upgrading of city water supply, drainage, and sewage pipelines without destroying road surfaces or disrupting urban life.
- Oil & Gas Transport Networks: Safe, precise directional drilling for natural gas pipelines and petroleum distribution systems, minimizing environmental risks.
- Telecom & Power Grid Expansion: Trenchless laying of high-voltage power cables, fiber optic networks, and communication ducts across dense urban or rural areas.
- Highway & Railway Crossing Projects: Seamless underground pipe-jacking beneath busy highways, expressways, and railway tracks with zero traffic interruption.
- River, Lake & Environmental Crossings: Long-distance horizontal boring under rivers, canals, lakes, and environmentally sensitive natural reserves without surface ecological damage.
- Industrial & Commercial Utility Links: Connecting power, water, and waste utilities for industrial parks, commercial complexes, and modern residential developments.

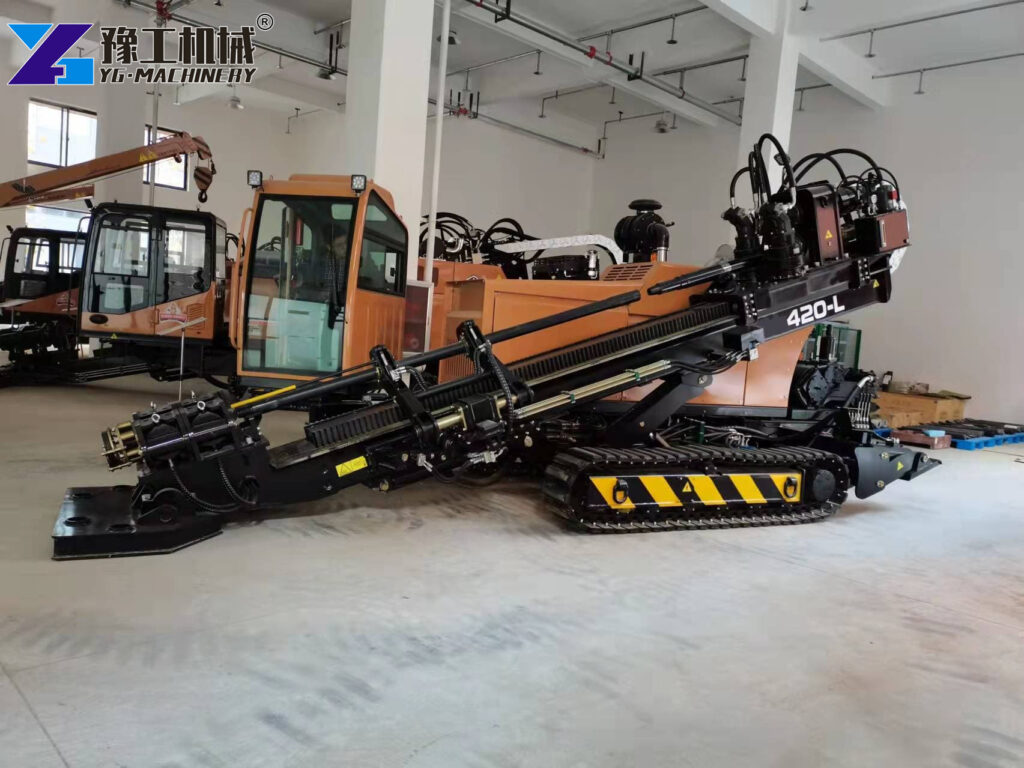

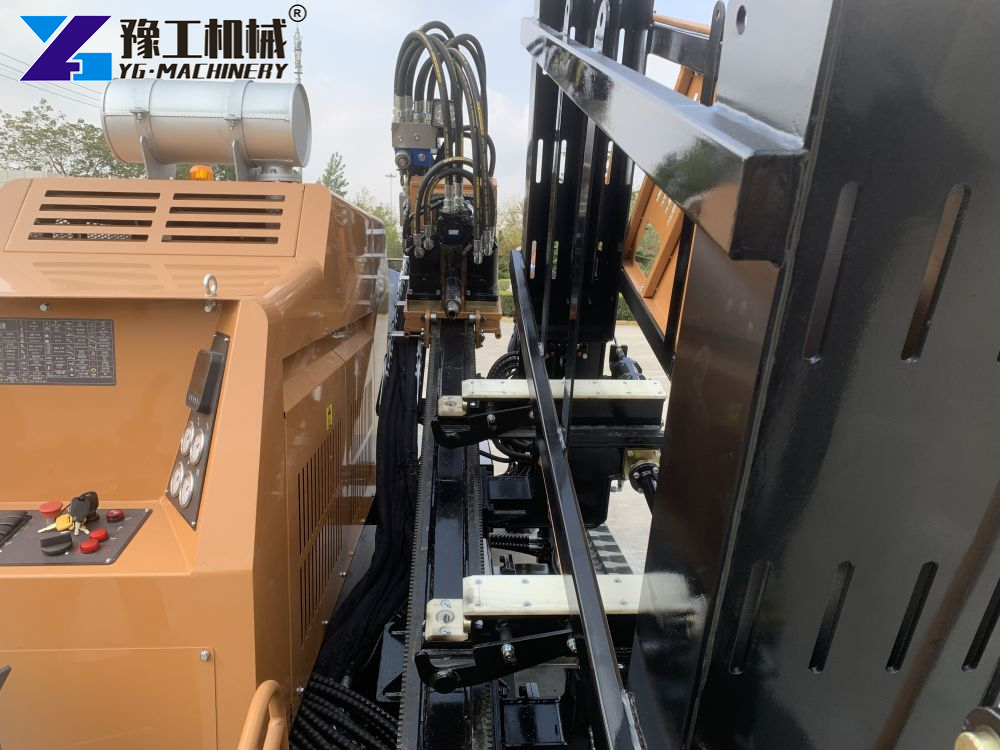

Directional Drill Rig | High-Precision Control For Underground Navigation
YG Directional Drill Rigs are built for high-precision underground navigation, giving contractors complete control over drilling trajectories in demanding soil conditions and tight urban spaces.
By integrating multi-stage hydraulic parallel control with real-time trajectory tracking, the system synchronizes rotation torque and push-pull force seamlessly. This guarantees minimal deviation, smooth boreholes, and safe clearance around existing underground utilities.
Primary Application Environments:
- Urban Infrastructure Development: Safe underground pipe-jacking in high-density residential and commercial sectors without disturbing surface structures.
- Long-Distance Utility Installations: Precise cross-country directional drilling for major gas, water, electric, and telecommunications networks.
- High-Traffic Road & Rail Crossings: Continuous subterranean boring beneath busy highways, expressways, and railways without disrupting traffic.
- Environmentally Sensitive Waterways: Deep horizontal drilling beneath rivers, canals, and eco-protected zones without ecological disruption.
- Complex & Mixed Geological Formations: Dependable steering and torque output when drilling through challenging clay, cobble, sand, and gravel layers.
Boost Productivity—Get a Free Quote
Underground Horizontal Boring | Efficient Trenchless Construction Technology
Underground Horizontal Boring enables pipeline installation without open trench excavation, significantly reducing surface disruption and environmental impact.
Step-by-Step Underground Boring Process:
- Pilot Hole Drilling: A high-precision transmitter-guided drill bit penetrates the ground to establish the precise underground path along the pre-designed trajectory.
- Real-Time Path Tracking & Steering: The onboard monitoring system tracks bit pitch and azimuth, making immediate directional adjustments to bypass existing underground obstacles and utilities safely.
- Multi-Stage Hole Enlargement (Back Reaming): Reaming heads expand the borehole incrementally—matching soil conditions—to create adequate clearance for the target pipeline.
- Pipeline Pullback: The pre-assembled pipeline string is attached to the reaming assembly and pulled smoothly through the slurry-stabilized borehole into place.
- Surface Integrity Preservation: The entire subterranean operation leaves roads, structures, and green spaces intact, ensuring minimal environmental disruption and continuous surface activity.
6 Key Advantages That Improve Construction Efficiency And Stability

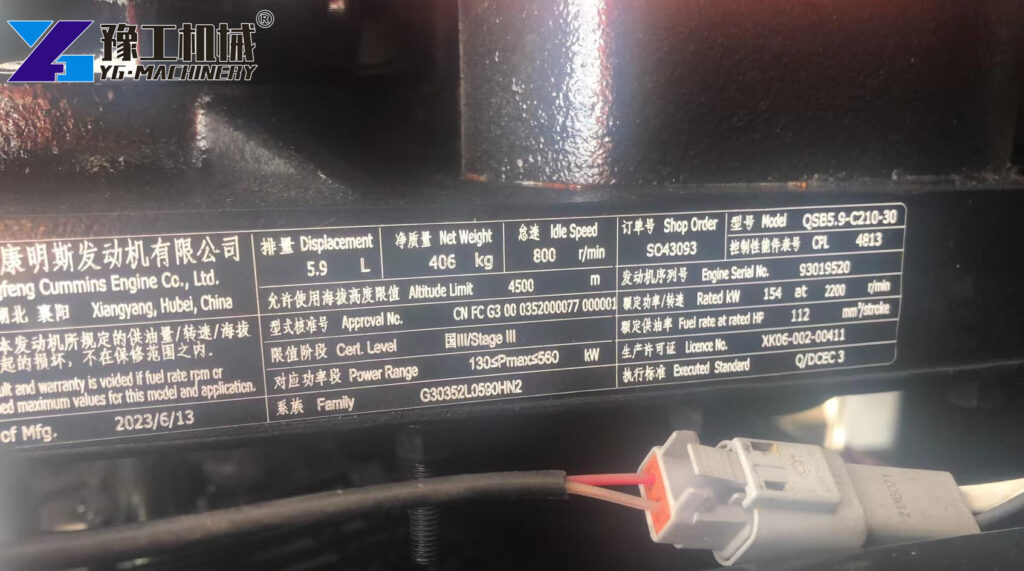

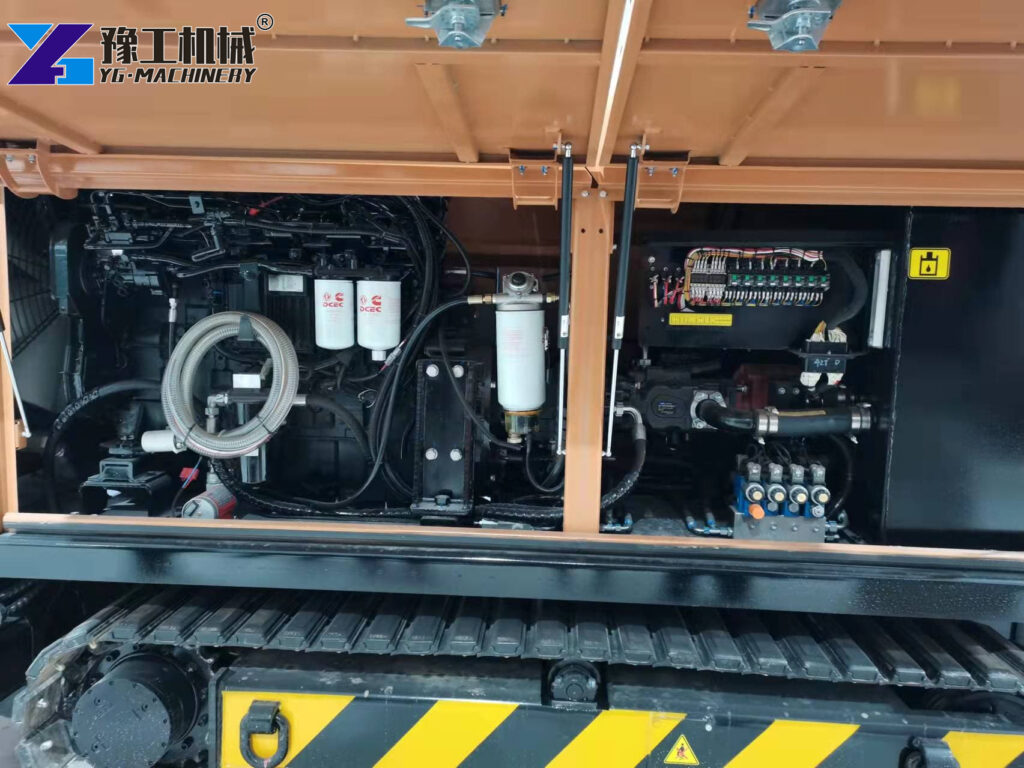

Cummins Engine Power System
Provides reliable and stable energy output for long-distance drilling operations.

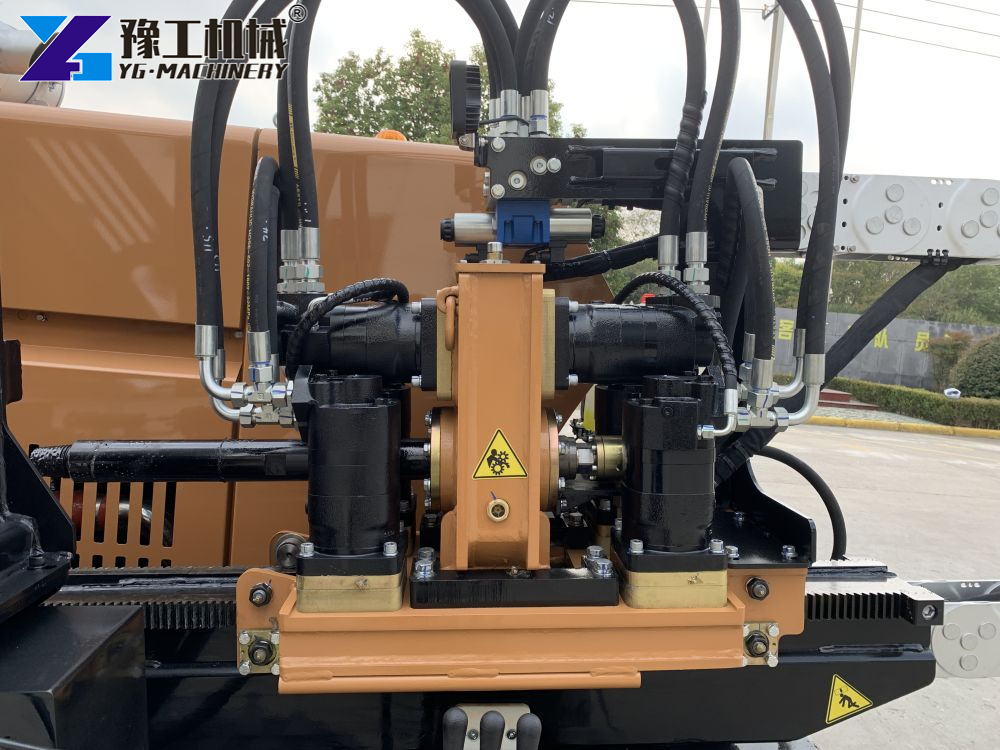

Eaton High-Torque Rotation System
Ensures strong and consistent drilling force in complex soil conditions.
Three-Speed Push & Pull Gear System
Allows flexible operation according to different geological resistance levels.
Steel Track Double-Speed Walking System
Improves mobility and stability on uneven construction sites.
Independent Hydraulic Cooling System
Maintains stable temperature and extends system service life.
Panoramic Open Operating Platform
Provides better visibility and control during drilling operations.

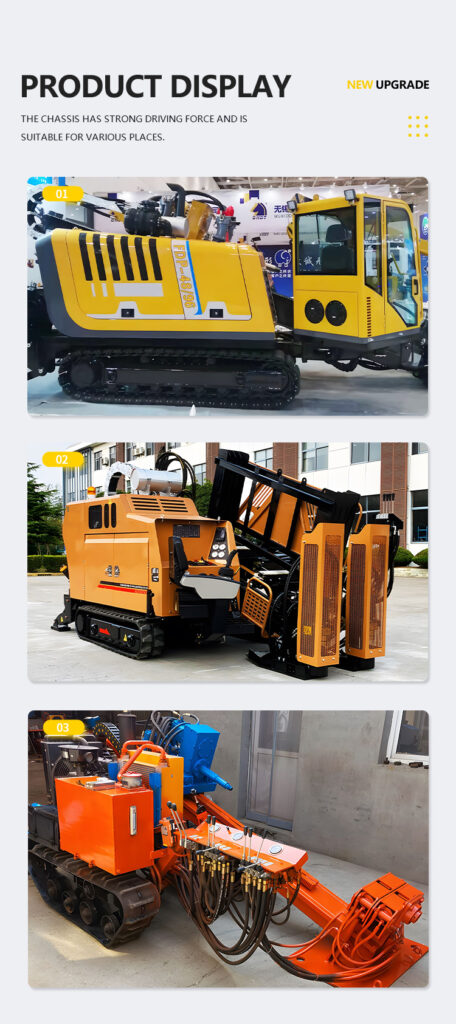

Technical Specifications Of YG Trenchless HDD Boring Machine Series
| Model | YG-160A | YG-180 | YG-280 | YG-320 | YG-320A |
|---|---|---|---|---|---|
| Engine Rated Power | 100 kW | 97 kW | 160 kW | 140–160 kW | 160 kW |
| Push & Pull System | Cylinder | Motor | Motor | Cylinder | Motor |
| Max Drag / Feed Force | 160 / 100 kN | 180 / 180 kN | 280 / 280 kN | 320 / 320 kN | 320 / 320 kN |
| Powerhead Max Torque | 5000 N·m | 6000 N·m | 10000 N·m | 12000 N·m | 12000 N·m |
| Powerhead Speed | 0–180 rpm | 0–140 rpm | 0–120 rpm | 0–140 rpm | 0–140 rpm |
| Powerhead Travel Speed | 30 m/min | 20 m/min | 20 m/min | 20 m/min | 20 m/min |
| Max Reaming Diameter | Φ600 mm | Φ600 mm | Φ750 mm | Φ800 mm | Φ800 mm |
| Drill Rod Length (Single) | 3 m | 3 m | 3 m | 3 m | 3 m |
| Drill Pipe Diameter | Φ60 mm | Φ60 mm | Φ73 mm | Φ73 mm | Φ73 mm |
| Drill Angle Range | 10°–23° | 10°–22° | 10°–23° | 10°–20° | 10°–20° |

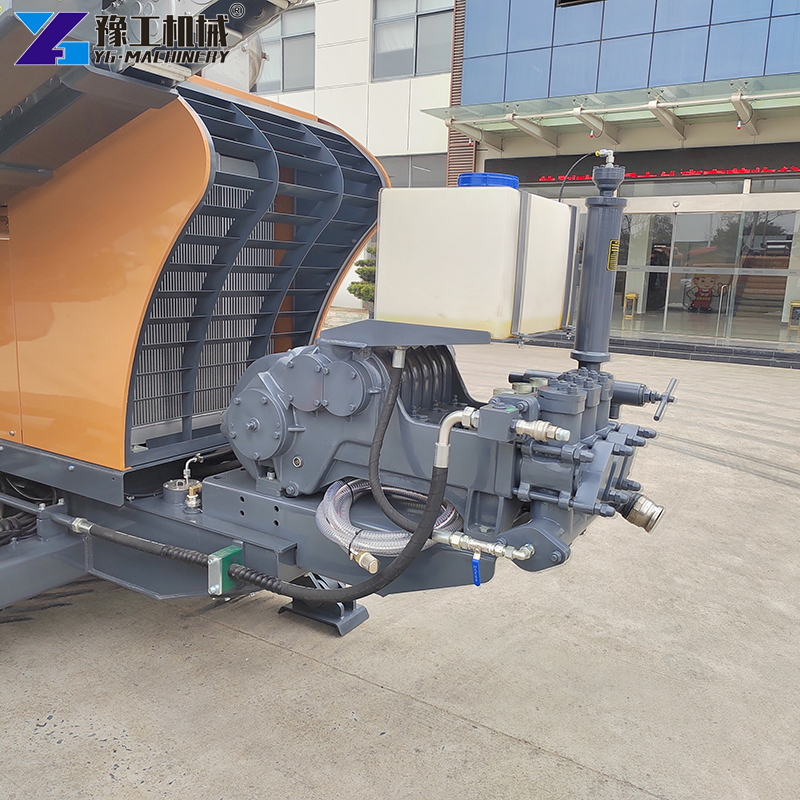

| Max Mud Flow | 160 L/min | 250 L/min | 320 L/min | 320 L/min | 320 L/min |
| Max Mud Pressure | 100 bar | 80 bar | 80 bar | 80 bar | 80 bar |
| Total Weight | 6700 kg | 8500 kg | 12500 kg | 11500 kg | 11200 kg |
| Dimension (L×W×H) | 5700×1820×2400 mm | 6400×2270×2340 mm | 7100×2260×2450 mm | 7100×2250×2450 mm | 7662×2162×2450 mm |
Discover more drilling rig options. Visit our drilling rig collection to explore water well drilling rigs, DTH drilling rigs, core drilling rigs, rotary drilling rigs, and more.
Compare Models and Get a Quote
How To Choose The Right Trenchless HDD Boring Machine
Pipeline Diameter Requirement
Larger pipelines require higher torque and pullback force.
Soil Conditions
Hard rock or mixed soil requires a stronger drilling capacity.
Project Distance
Long-distance crossings need stable mud flow systems.
Construction Environment
Urban or rural environments require different mobility configurations.
Budget And Efficiency
Choosing the correct model improves ROI and reduces downtime.
Find the Right Model for Your Project
Real Project Case: Urban Pipeline Crossing Project In The Middle East
Project Overview & Operational Challenges
A major municipal infrastructure development in Riyadh, Saudi Arabia, required the installation of a 420-meter water supply pipeline across a high-density commercial district and beneath a busy 8-lane urban highway.
- Strict Non-Excavation Zone: Surface trenching was strictly prohibited by local transport authorities to avoid major traffic congestion and surface road damage.
- Challenging Geology: The underground path consisted of unstable sandy clay interspersed with highly compact gravel layers, demanding high rotation torque and precise directional stability.
The Engineering Solution
The contractor selected the YG-280 Trenchless HDD Boring Machine, equipped with a high-torque Eaton hydraulic system and real-time wireline tracking, to maintain continuous boring accuracy over the 420-meter length.
Proven Project Outcomes:
- Zero Traffic Interruption: Completed the full 420-meter underground crossing without closing surface lanes or disturbing local business operations.
- 55% Cost Savings in Surface Restoration: Completely eliminated the need for asphalt repaving, road rebuilding, and major traffic redirection infrastructure.
- 12 Days Ahead of Schedule: Exceptional drilling torque and reliable mud circulation enabled rapid reaming and smooth pipeline pullback, finishing well ahead of deadline.
- High-Precision Accuracy: Achieved sub-degree steering precision, successfully steering clear of dense underground telecom cables and existing utility networks.
Why Choose YG Machinery
YG Machinery is a professional manufacturer specializing in drilling and construction equipment. The company provides:
- Factory-Direct Supply
- Global Technical Support
- Custom Engineering Solutions
- Spare Parts Availability
- Proven Trenchless Drilling Performance
Contact YG Machinery today via WhatsApp, email, or the website form. Every machine includes a warranty and remote support.【WhatsApp/WeChat/Phone】+86 183 3715 2861
FAQs About HDD Boring Machine
It is used for underground pipeline installation without excavation.
Yes, it performs well in clay, sand, and mixed formations.
It uses a Cummins Engine for stable power output.
Yes, it is designed for long-distance underground boring.
Up to Φ800 mm, depending on the model.
Yes, it has an independent cooling system.
