An excavator rock saw attachment provides a professional solution for contractors who need accurate rock, concrete, and asphalt cutting performance. Traditional breaking methods often create excessive vibration, noise, and uncontrolled damage around the working area. Modern cutting technology allows operators to complete difficult projects with higher precision and better efficiency.
This attachment connects directly with excavators and transforms them into powerful cutting machines. It is widely used for rock excavation, trench preparation, quarry work, road construction, concrete removal, and infrastructure projects. YG Machinery provides reliable excavator attachments designed for different excavator sizes and job requirements, helping customers reduce equipment investment and improve project productivity.
Start Your Project with the Right Equipment
Technical Specifications Of Excavator Rock Saw Attachment
| Model | YSJ04 | YGJ06 | YSJ08 | YSJ10 |
|---|---|---|---|---|
| Rotation Mode | Fixed Type / 360° Rotation | Fixed Type / 360° Rotation | Fixed Type / 360° Rotation | Fixed Type / 360° Rotation |
| Applicable Excavators (T) | 6-12 | 12-20 | 20-30 | 30-40 |
| Machine Weight (KG) | 200 / 260 | 350 / 450 | 500 / 600 | 500 / 700 |
| Saw Blade Size (mm) | 800 | 1200 | 1600 | 1800 |
| Theoretical Displacement (ml/r) | 154 | 154 | 493 | 792 |
| Torque (N.m) | 600 | 600 | 1923 | 3100 |
| Peak Pressure (MPa) | 40 | 40 | 40 | 40 |
| Unit Torque (N.m/MPa) | 24 | 24 | 76.9 | 124 |
| Continuous Speed (r/min) | 1-650 | 1-650 | 1-550 | 1-500 |
| Maximum Speed (r/min) | 1100 | 1100 | 800 | 600 |
How To Select The Right Model
Choosing the correct configuration directly affects cutting efficiency.
Consider these points before purchasing:
- Excavator Size: Match the attachment with the excavator operating weight.
- Material Type: Hard rock requires higher torque performance.
- Blade Diameter: Larger blades provide deeper cutting capability.
- Hydraulic Flow: Confirm that excavator flow matches equipment requirements.
- Project Frequency: Heavy workloads require stronger configurations.
YG Machinery provides technical recommendations based on actual project requirements. Customers can share excavator information and application details to receive a suitable solution.
Compare Models and Get a Quote
Why Choose An Excavator Rock Saw Attachment For Modern Construction Projects
Construction companies increasingly require cleaner and more controlled cutting solutions. Compared with traditional hydraulic breakers, cutting equipment delivers smoother surfaces and better control during operation.
The rotating saw blade removes material through continuous cutting instead of impact force. This reduces vibration and helps protect nearby structures, underground facilities, and sensitive construction areas.
Main advantages include:
- Precise rock and concrete cutting
- Lower vibration during operation
- Reduced material damage
- Better cutting surface quality
- Faster project completion
- Lower labor requirements
- Flexible excavator installation
- Improved equipment utilization
For contractors, one excavator can perform multiple tasks after installing different attachments. This improves machine efficiency and reduces the need for additional specialized equipment.
YG Machinery focuses on providing practical engineering solutions for global customers. The company supports attachment selection according to excavator weight, hydraulic performance, and project conditions.
Rock Saw Attachment For Excavator Delivers Accurate Cutting Performance
Different projects require different cutting depths, materials, and working environments. A suitable attachment helps operators achieve better results with less adjustment time.
The design combines a hydraulic motor, high-strength saw blade, and durable supporting structure. Hydraulic power drives the blade rotation and maintains stable cutting performance even under demanding conditions.
Key performance benefits include:
- Strong cutting torque for hard materials
- Stable rotation speed
- Long-service-life components
- Easy installation on excavators
- Flexible blade size options
- Efficient material removal
It can process various materials such as:
- Natural rock
- Reinforced concrete
- Asphalt pavement
- Stone blocks
- Underground structures
The cutting method is especially useful where controlled removal is required. Projects near buildings, roads, pipelines, and existing structures can benefit from improved accuracy.
For buyers selecting equipment, the most important factors include excavator capacity, required cutting depth, material hardness, and working frequency.
Boost Productivity—Get a Free Quote

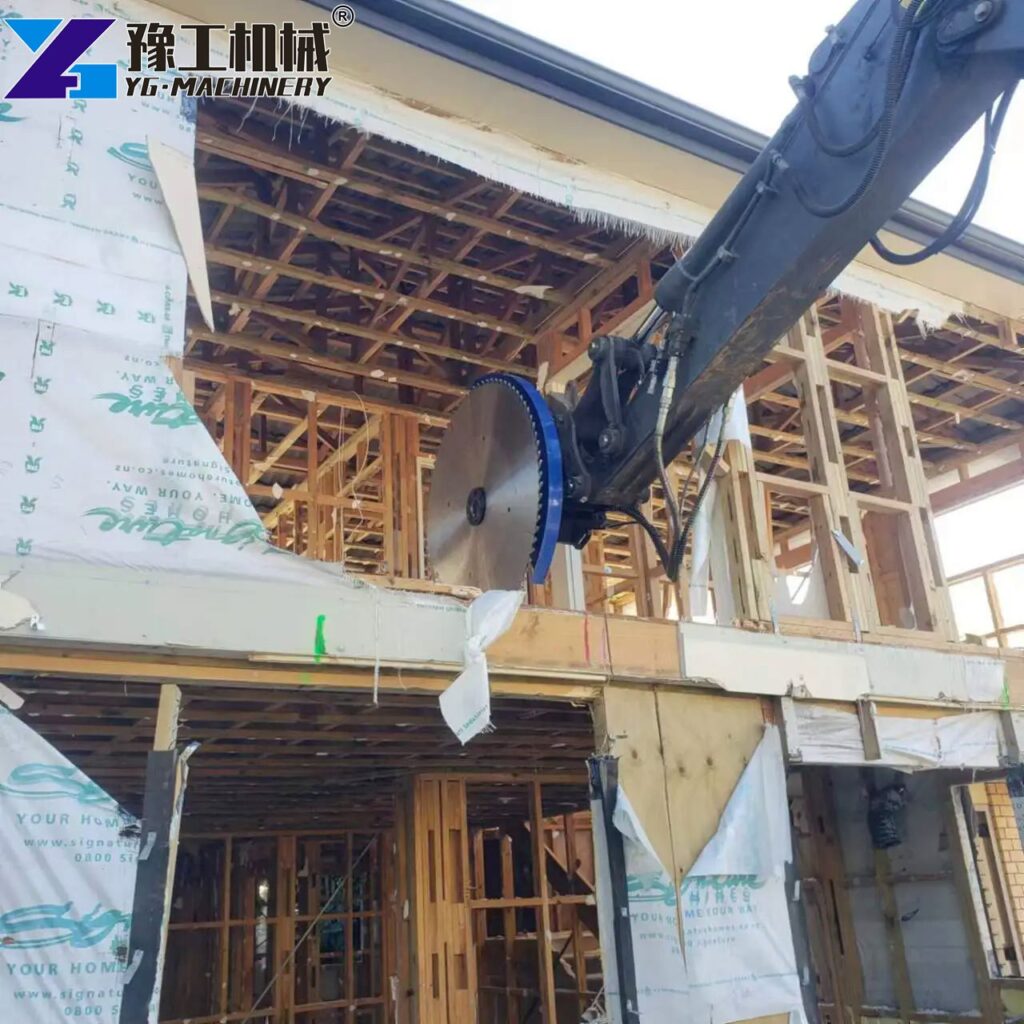

Excavator Mounted Rock Saw Improves Jobsite Flexibility
Modern contractors often face complex working conditions. Large cutting machines may have transportation limitations, while manual cutting methods require more labor and time.
An excavator-mounted solution solves these problems by using existing equipment already available on the jobsite. Operators can quickly connect the attachment and begin cutting operations without preparing additional machinery.
Typical application areas include:
Road Construction
Used for pavement cutting, expansion joint preparation, and damaged concrete removal.

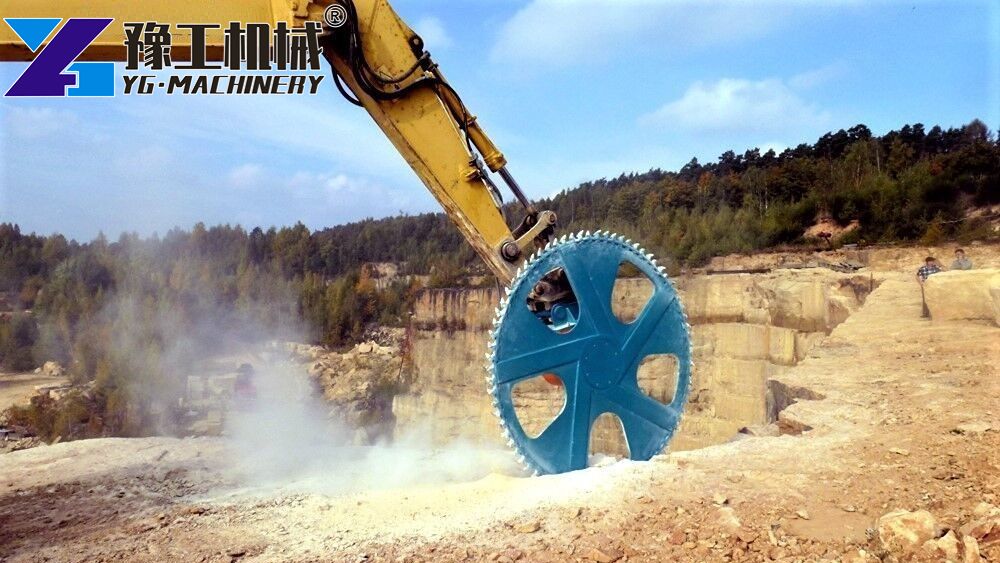

Quarry Operations
Helps cut stone materials with controlled depth and improved production efficiency.
Tunnel And Underground Projects
Provides accurate excavation support where vibration control is important.
Municipal Engineering
Suitable for drainage channels, utility installation, and infrastructure maintenance.
Building Renovation
Allows controlled removal of concrete sections without affecting surrounding structures.
This flexibility makes the equipment valuable for contractors handling different types of projects.
Find the Right Model for Your Project
How The Rock Cutting System Works In Real Applications
Understanding the working process helps buyers evaluate whether this solution matches their project needs.
The operation mainly depends on hydraulic power from the excavator. The hydraulic system transfers energy to the motor, which drives the blade at a controlled speed.
The working process includes:
- The excavator supplies hydraulic oil flow to the attachment.
- The hydraulic motor converts pressure into rotational power.
- The saw blade rotates at high speed and contacts the material surface.
- Cutting teeth gradually remove rock or concrete layers.
- The operator controls cutting direction, depth, and movement through excavator controls.
Compared with impact-based methods, continuous cutting provides smoother operation. It also reduces secondary processing after excavation.
The system is suitable for contractors who need predictable cutting performance and cleaner project results.
5 Key Advantages That Increase Project Profitability
The value of cutting equipment is not only measured by purchase cost. Contractors should consider long-term productivity and operating savings.
The main economic advantages include:
Reduced Equipment Investment
One excavator can complete cutting tasks without purchasing additional machines.
Lower Labor Costs
Controlled operation reduces manual cutting work and improves workforce efficiency.
Faster Construction Speed
Continuous cutting helps maintain stable production schedules.
Better Surface Quality
Cleaner cuts reduce additional finishing processes.
Wider Project Capability
Contractors can accept more projects involving rock and concrete cutting.
These benefits help companies improve competitiveness and achieve better project returns.
How YG Machinery Supports Global Attachment Buyers
Selecting the right attachment requires professional understanding of excavator specifications and working conditions.
YG Machinery supplies excavator attachments for customers worldwide and provides support throughout the purchasing process.
The service includes:
- Product recommendation
- Technical consultation
- Model matching
- Export support
- Operation guidance
- After-sales assistance
Before ordering, customers can provide:
- Excavator brand and model
- Hydraulic flow information
- Target material
- Cutting requirements
- Project environment
The engineering team can then recommend a suitable configuration.
FAQ About Excavator Rock Saw Attachment
It can cut rock, concrete, asphalt, stone blocks, and other hard construction materials.
For precision cutting projects, it can provide cleaner results and lower vibration compared with impact methods.
Available models support excavators from 6 tons to 40 tons.
Yes. The compact design allows flexible operation in many restricted areas.
Selection depends on excavator size, hydraulic parameters, cutting material, and project requirements.
Yes, both.
Yes, we have a rotary type with 360 degrees.
Request A Customized Quote From YG Machinery
If your project requires accurate rock cutting, concrete removal, or infrastructure preparation, choosing the right attachment can significantly improve efficiency.
YG Machinery provides customized recommendations, competitive factory pricing, and technical support for global contractors.
Contact our team today to receive:
- Model recommendations
- Technical specifications
- Factory quotation
- Shipping solutions
- Project support
Build a more efficient cutting solution with professional excavator attachments from YG Machinery.
