Are you losing profits due to slow hydraulic breakers and expensive blasting permits on tough rock projects? Conventional excavation tools often create excessive vibration, fracture surrounding structures, and slow down your daily project timelines. Your field operators deserve an advanced, high-yield system that carves through hard rock, concrete, and permafrost smoothly and continuously. Purchasing a premium excavator milling attachment from YG Machinery gives your construction crew the ultimate solution for precise cutting, profiling, and trenching. It helps you secure lucrative tunneling contracts, slash your daily machine maintenance costs, and maximize your contract profit margins. Contact our expert technical team today for a fast, direct-factory quotation to upgrade your fleet!
This highly robust tool integrates immense rotational power with low-vibration engineering to handle the most punishing job site conditions. By choosing this advanced milling technology, you gain the ability to work in sound-sensitive urban neighborhoods and underwater zones where traditional blasting methods face complete legal bans. Whether you manage a large mining enterprise or an urban utility contracting business, adding this clean-cutting machinery to your inventory will immediately lift your production capacity and workplace safety metrics.
4 Massive Structural Advantages of Deploying a Heavy-Duty Excavator Milling Attachment
Upgrading your existing construction fleet with this specialized gear delivers immediate competitive edges on complex civil engineering tasks. These advanced rotational systems provide immense commercial value by eliminating the structural micro-fractures and high sound levels associated with old-fashioned impact hammers.
- Low-Vibration Operation: It operates with minimal acoustic and seismic disturbance, allowing operators to work safely near historic structures, sensitive pipelines, and busy residential zones.
- Exceptional Profiling Precision: The machine cuts clean, vertical walls and flat surfaces instantly, which eliminates over-excavation errors and saves massive amounts of concrete backfill material.
- Underwater Engineering Capability: This robust configuration works perfectly submerged in rivers, harbors, and canals without requiring any specialized underwater modifications or auxiliary air lines.
- Crushed Material Reuse: It processes excavated rock into fine, uniform gravel directly on-site, allowing you to use the material immediately as backfill and save haulage fees.
Boost Productivity—Get a Free Quote
3 High-Performance Workspaces Where an Excavator Drum Cutter Speeds Up Delivery
Tough infrastructural challenges demand adaptable tools that can maintain high cutting rates across changing geological strata. Our factory designs these machines with premium tungsten carbide picks to ensure continuous performance throughout long shifts.
Complex Tunneling and Underground Cavern Excavation
Carving out underground transport paths requires precise geometric control and reliable overhead safety. The attachment trims tunnel roofs and walls with extreme accuracy, reducing the danger of rock falls while preparing smooth profiles for shotcrete application.

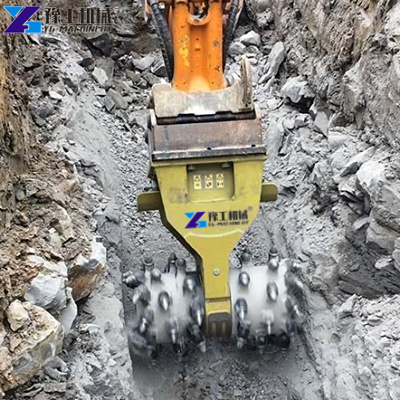

Urban Utility Trenching and Concrete Demolition
Opening up utility trenches along busy streets requires tools that do not crack nearby asphalt or damage parallel gas pipelines. The attachment cuts straight, narrow paths through reinforced concrete and hard soil, speeding up pipe installation.

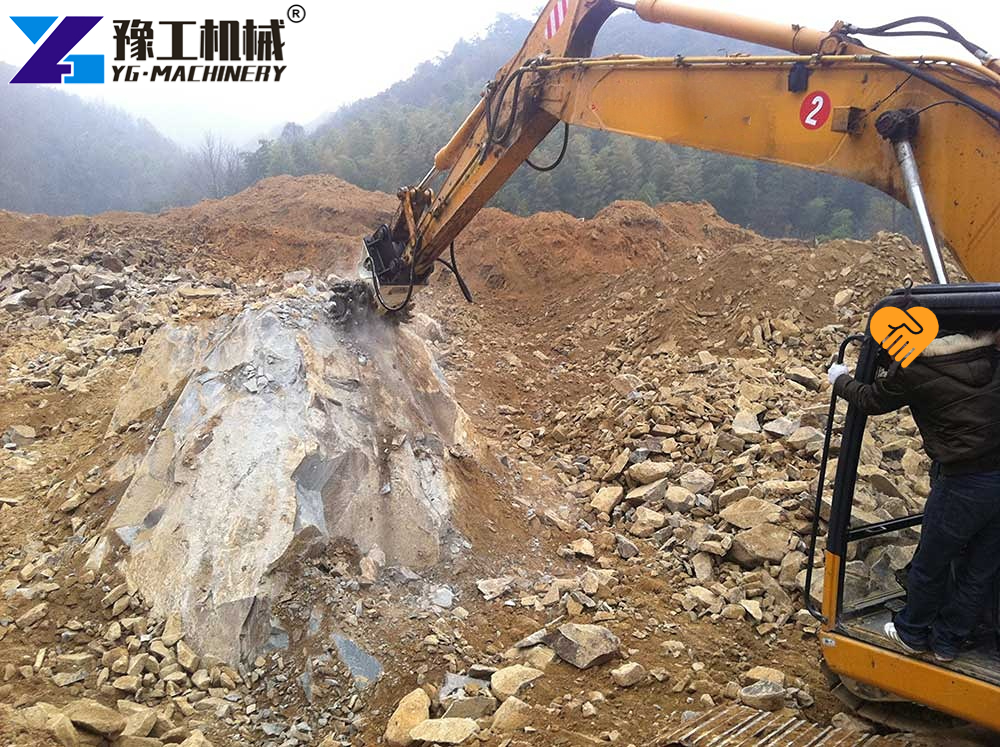

Mining Faces and Quarry Bed Extraction

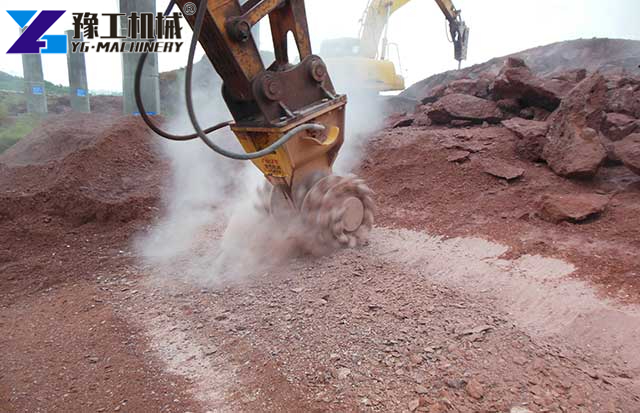

In soft to medium-hard rock quarries, the unit replaces expensive drilling and blasting processes entirely. It works continuously across the rock face, producing a steady stream of small aggregate particles that feed processing plants efficiently.
High-Efficiency Rock Milling: Upgrading Your Fleet with a Heavy Excavator Rock Grinder
Maximizing daily production requires matching your carrier machine with high-torque gearboxes that won’t overheat under continuous load. YG Machinery builds these specialized attachments to optimize power transfer from your excavator’s primary hydraulic lines.
- Optimized Hydraulic Flow: The internal motor utilizes the existing hydraulic capacity of your carrier efficiently, maintaining high rotational speeds without draining fuel reserves.
- Heavy-Duty Gearbox Protection: It includes robust structural sealing that blocks out abrasive rock dust, slurry, and moisture, extending the service life of internal components.
- Easy Pick Replacement: The smart arrangement of the cutting teeth allows mechanics to inspect and swap out worn parts in minutes, minimizing downtime during busy operational shifts.
Compare Models and Get a Quote
Technical Parameters of YG 4 Industrial Excavator Milling Attachment Configurations
Choosing the perfect model size requires evaluating verified engineering statistics against your current excavator fleet. We offer four distinct configurations, enabling procurement managers to choose the exact weight, flow rate, and torque profile for their upcoming project demands.
| Technical Specifications | Model: YG140 | Model: YG160 | Model: YG180 | Model: YG240 |
| Total Attachment Height (H) | 650 mm | 820 mm | 830 mm | 1395 mm |
| Total Drum Width (W) | 410 mm | 650 mm | 780 mm | 960 mm |
| Cutter Housing Depth (D) | 390 mm | 460 mm | 480 mm | 620 mm |
| Compatible Excavator Weight | 5 – 10 Tons | 10 – 15 Tons | 15 – 21 Tons | 20 – 24 Tons |
| Maximum Output Power | 22 Kw | 45 Kw | 55 Kw | 65 Kw |
| Rotational Speed Range | 0 – 120 r/min | 0 – 100 r/min | 0 – 80 r/min | 0 – 90 r/min |
| Required Hydraulic Flow | 40 L/min | 100 – 110 L/min | 130 – 180 L/min | 200 – 250 L/min |
| Maximum Output Torque | 3200 N · m | 5400 N · m | 5600 N.m | 12800 N.m |
The compact YG140 version provides an agile solution for small 5-to-10-ton utility carriers working in tight city alleys. For heavy-duty quarrying and thick tunnel walls, the flagship YG240 version delivers a massive 12,800N · m of maximum torque and 65Kw of power to cut through tough formations effortlessly.
Find the Right Model for Your Project
Profitable Quarrying Operations: Maximizing Yield with a Rock Grinder Attachment for Excavator
Sustaining high profitability in commercial quarries requires durable machinery that lowers your total cost per ton of extracted material. This equipment provides a reliable alternative to traditional blasting, allowing operators to run extraction sites smoothly without clearing the area for explosions.
- Continuous Material Processing: It cuts and crushes material in a single motion, eliminating the need for primary jaw crushers on smaller mining sites.
- Lower Permitting Overhead: The low-vibration method skips the expensive regulatory permits, safety perimeter setups, and insurance costs connected with chemical explosives.
- Enhanced Site Safety: Avoiding explosive materials and high-impact hammer vibrations protects the stability of your quarry walls, reducing the risk of sudden rock slides.
Step-by-Step Selection Guide: Matching the Excavator Milling Attachment to Your Carrier
Selecting the right equipment size prevents hydraulic overheating and ensures your carrier maintains perfect stability during operation. Following a clear technical checklist helps you maximize your return on asset investment.
- Check Excavator Operating Weight: Verify that your carrier’s lift capacity matches the attachment. A small 8-ton machine pairs perfectly with our entry model, while a 22-ton machine requires our flagship version to maximize breakout force.
- Evaluate Hydraulic Flow and Pressure: Review your excavator’s auxiliary hydraulic specifications. Ensure your pumps deliver the required liters per minute to maintain steady drum rotation under high physical resistance.
- Identify Target Rock Hardness: Measure the compressive strength of the strata you intend to cut. This helps determine the optimal cutting speed and pick configuration to minimize wear on your tungsten teeth.
Secure Your Wholesale Factory Quotation for an Excavator Milling Attachment Today
Purchasing directly from an established global manufacturer eliminates third-party broker markups and guarantees excellent quality control. YG Machinery provides commercial buyers with comprehensive equipment warranties, fast international shipping, and lifetime engineering support.
Our technical department is ready to help you analyze your rock hardness data, select the best attachment model, and supply a complete set of spare cutting picks. Protect your project schedules and upgrade your fleet with clean, continuous milling power.
- Step 1: Send your carrier model and rock hardness details through our simple online inquiry form.
- Step 2: Review an itemized, transparent PDF quote and technical packet sent directly to your inbox within 24 hours.
- Step 3: Confirm your customized order and monitor your shipment from our factory floor to your job site.
[Contact Our Technical Sales Team for a Direct Factory Quote]
Contact YG Machinery today via WhatsApp, email, or the website form. Every machine includes a warranty and remote support.【WhatsApp/WeChat/Phone】+86 183 3715 2861
FAQs About Excavator Drum Cutter
The tool excels in soft to medium-hard rock formations, including limestone, shale, sandstone, and weathered granite, as well as thick reinforced concrete structures. For extremely hard rock types, it serves as an excellent tool for precise boundary profiling after primary excavation.
The main housing uses specialized high-pressure mechanical seals that prevent water, silt, and abrasive dust from entering the internal motor and gear assembly. This heavy-duty sealing allows continuous submerged operation in canals and harbors.
Pick longevity depends heavily on the abrasiveness and hardness of the material being milled. The teeth use premium hard-alloy tips that resist wear, and the smart drum pattern allows operators to check and swap worn picks quickly with standard hand tools.
Yes, on projects requiring high-dimensional accuracy, low noise, and zero ground vibration, it replaces traditional breakers completely. It provides a smooth, continuous cutting action rather than an intermittent impact, which prevents micro-cracks in neighboring foundations.
It connects directly to standard excavator arm couplings and uses the existing auxiliary hydraulic lines that power standard breakers or shears. Our factory provides custom mounting plates to ensure a perfect mechanical fit for your specific machine brand.
