An industrial shot blaster is a high-efficiency surface treatment machine designed for cleaning, rust removal, and strengthening metal surfaces. It is widely used in steel structure fabrication, shipbuilding, automotive manufacturing, and heavy engineering industries.
As modern production demands higher efficiency and consistency, different types of industrial shot blasting machine systems have been developed. Among them, the two most commonly used are:
- Through-Type Industrial Shot Blasting Machine
- Hook-Type Industrial Shot Blasting Machine
Each type belongs to advanced industrial shot blasting equipment, but they are designed for different production requirements and workpiece structures.
What is an Industrial Shot Blaster?
An industrial shot blaster uses high-speed steel shots to impact the surface of metal parts. The strong mechanical force removes rust, oxide layers, welding slag, and impurities.
At the same time, it improves:
- Surface roughness
- Coating adhesion
- Corrosion resistance
- Fatigue strength
Compared with manual cleaning, industrial systems offer higher efficiency and consistent quality, making them essential industrial shot blasting equipment in modern manufacturing.
1. Through-Type Industrial Shot Blasting Machine
Working Principle

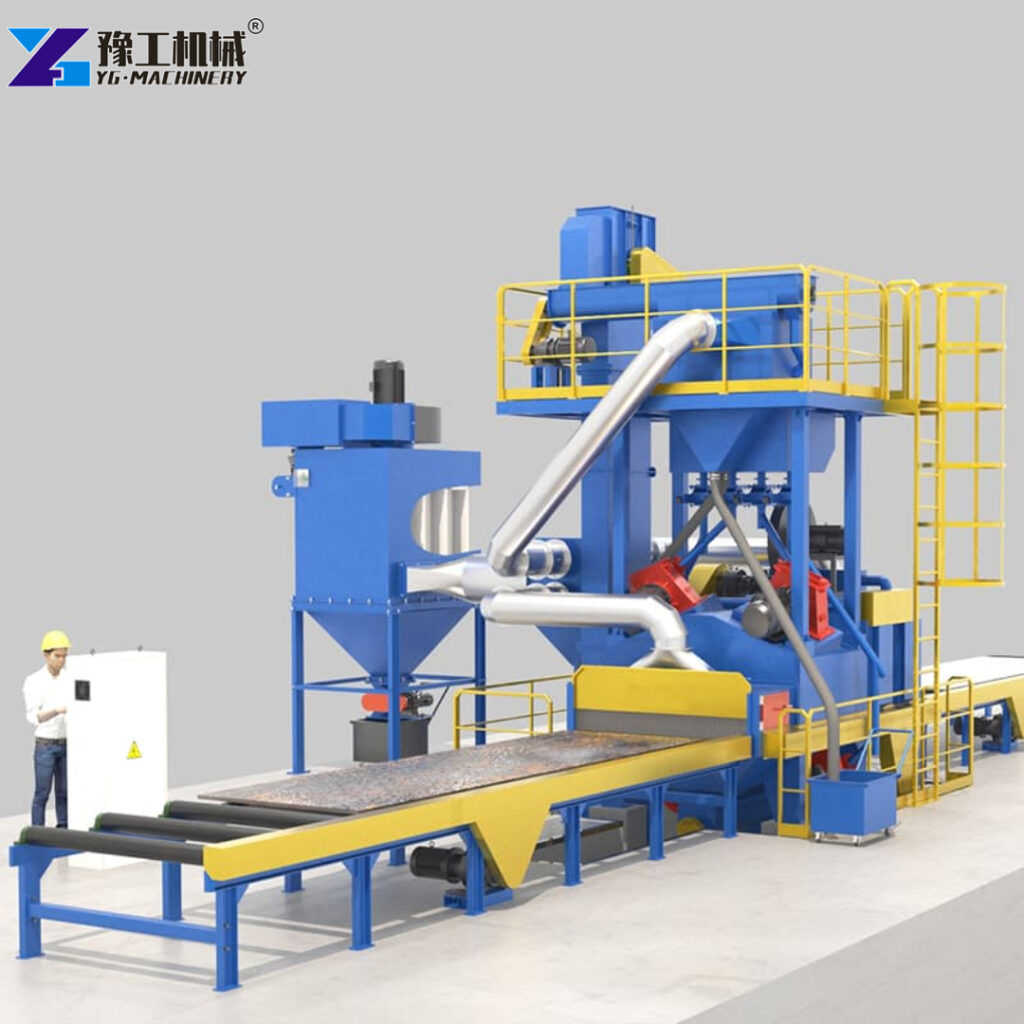

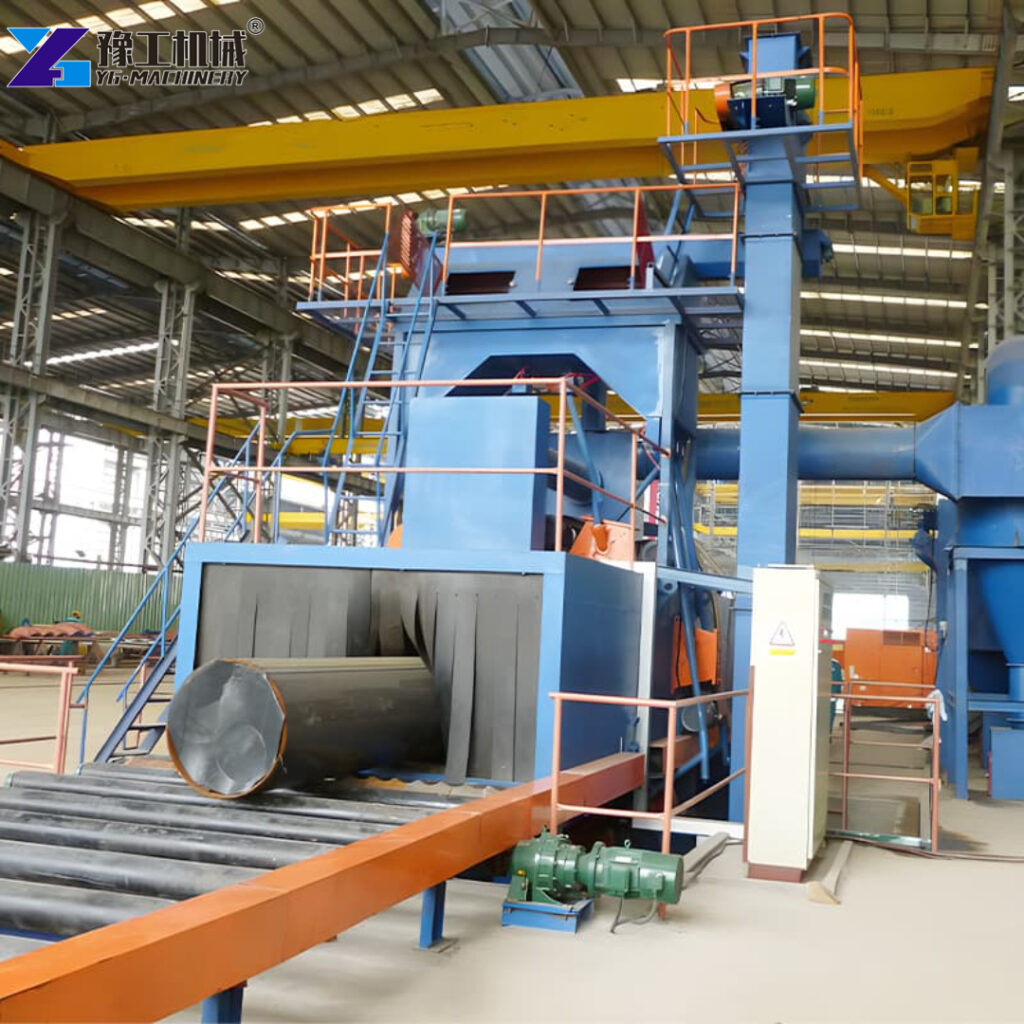

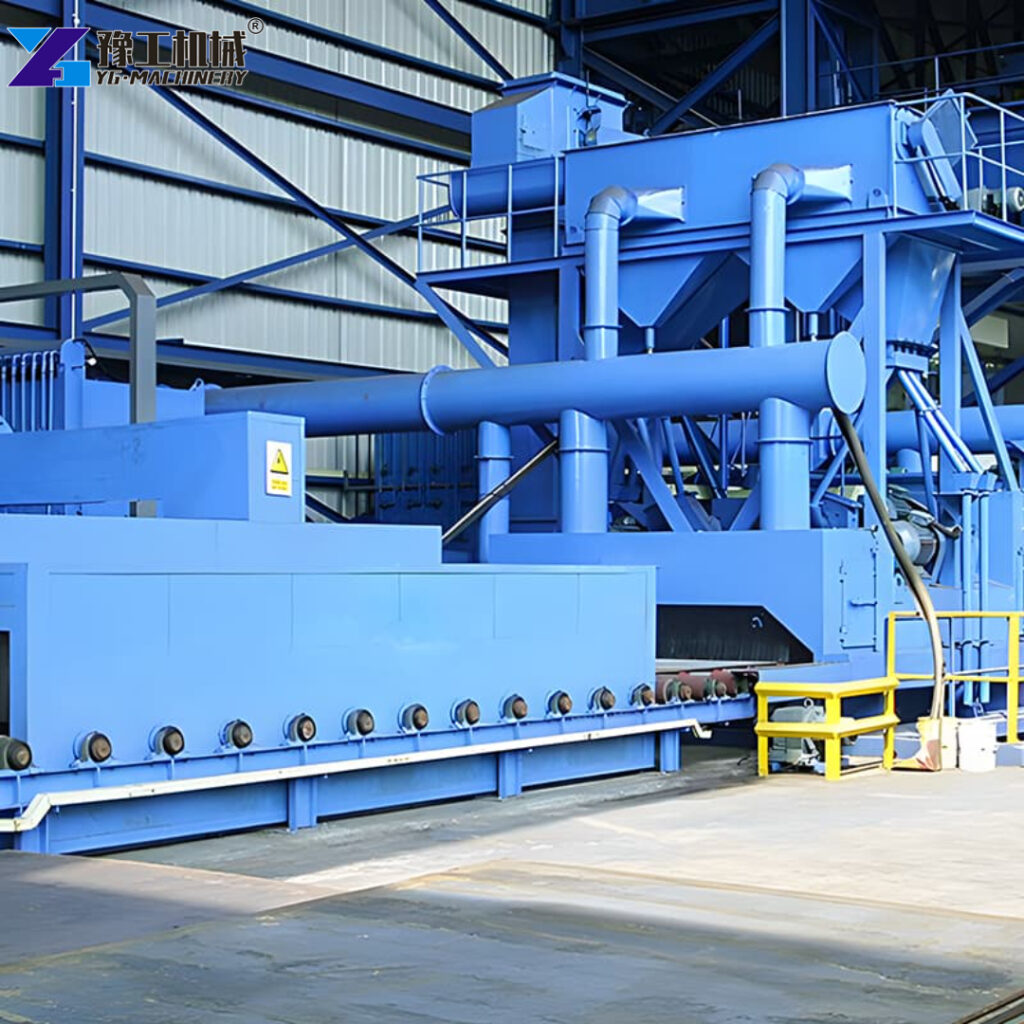

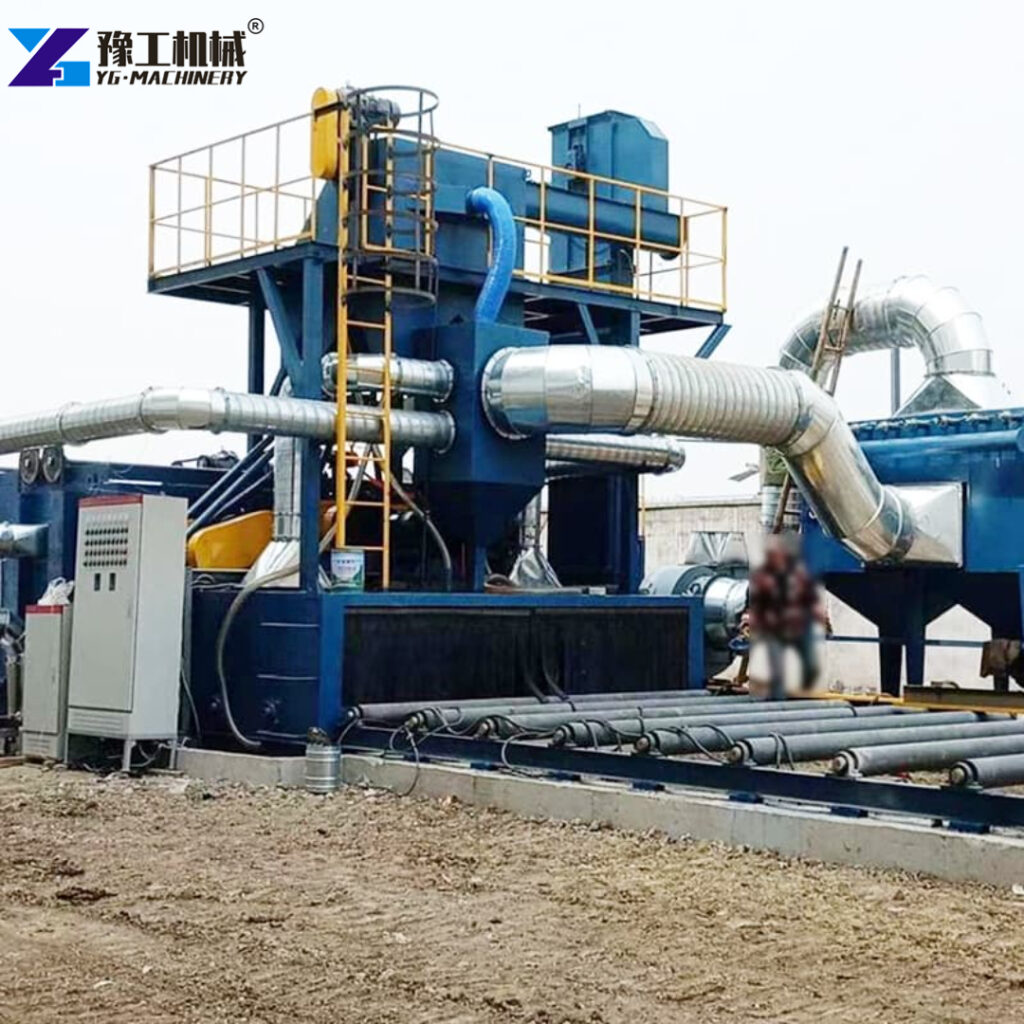

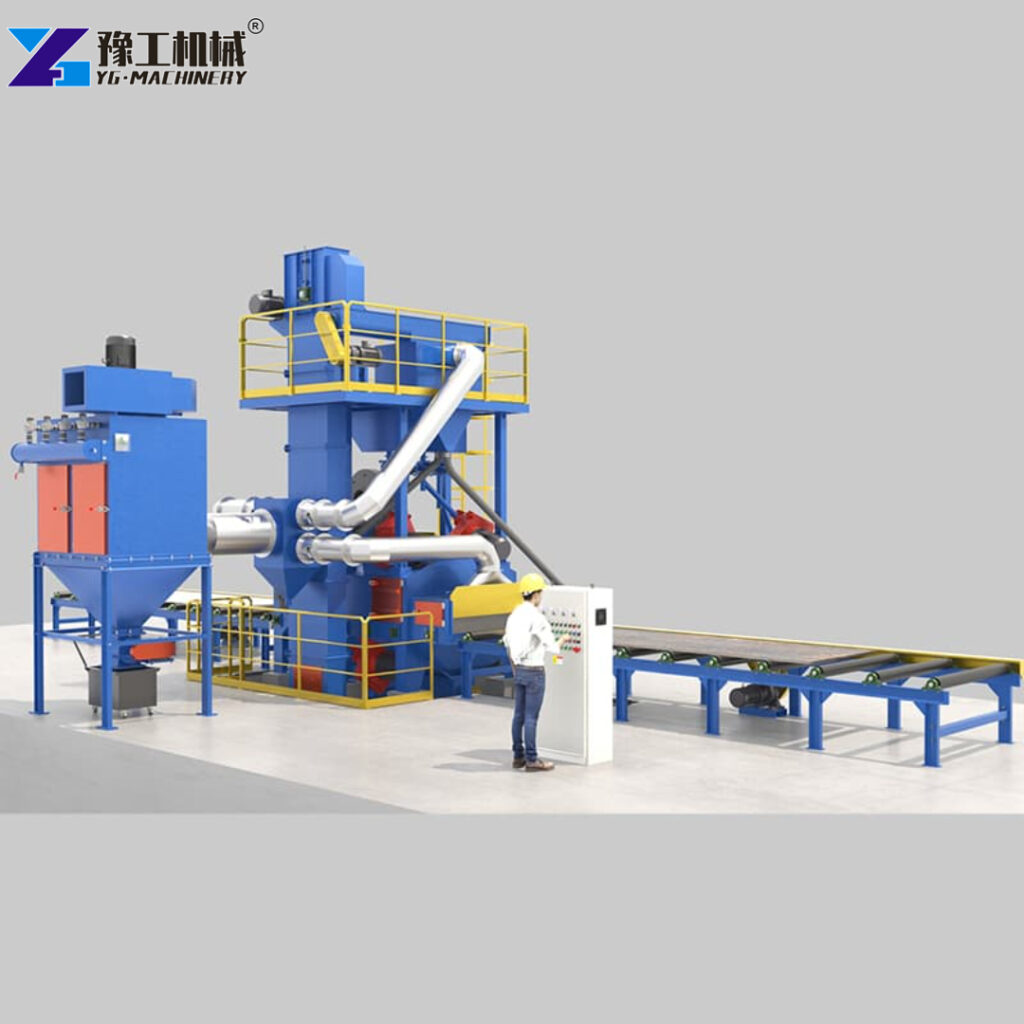

A through-type industrial shot blasting machine uses a roller conveyor system to continuously transport steel plates or profiles through the blasting chamber. Multiple blast wheels clean the surface from different angles.
Features
- Continuous production mode
- High automation level
- Suitable for standard steel materials
- High efficiency for mass production
Applications
- Steel plates
- H-beams and structural steel
- Pipes and profiles
- Shipbuilding steel sections
2. Hook-Type Industrial Shot Blasting Machine
Working Principle

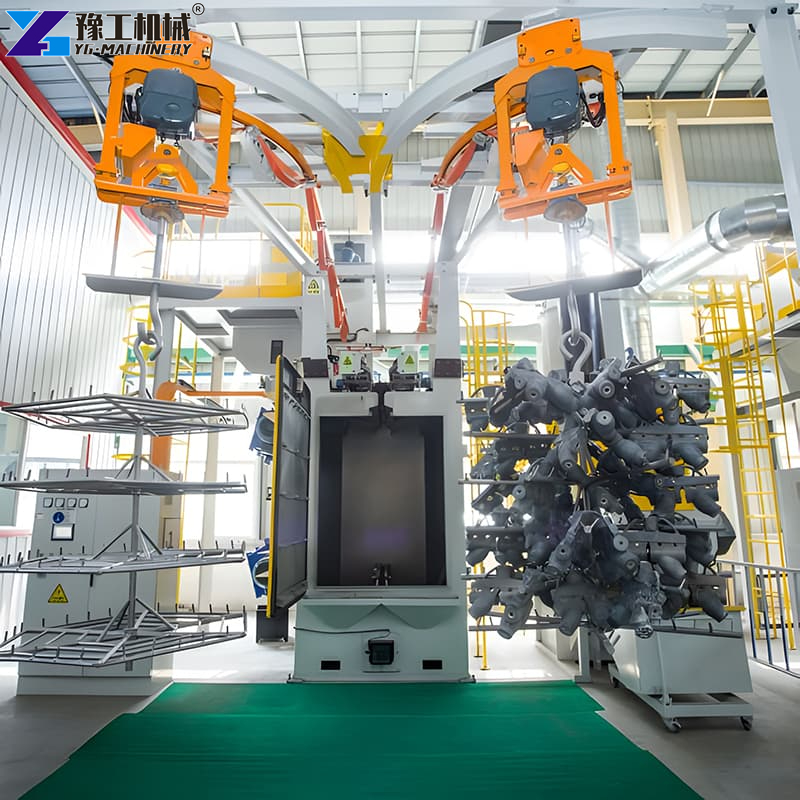

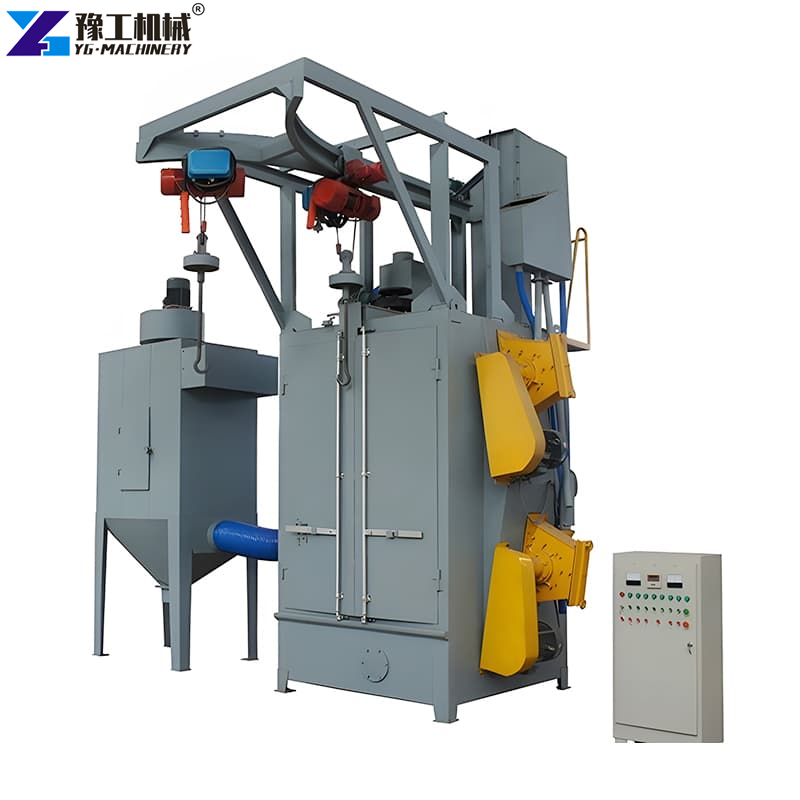

A hook-type industrial shot blaster suspends workpieces on hooks and rotates them inside the blasting chamber. This ensures full-angle cleaning.
Features
- Flexible loading system
- Suitable for complex-shaped parts
- Batch processing mode
- Strong adaptability
Applications
- Castings and forgings
- Automotive parts
- Engine components
- Heavy machinery parts
Through-Type vs Hook-Type Comparison
Key Differences
| Item | Through-Type Shot Blasting Machine | Hook-Type Shot Blasting Machine |
| Production Mode | Continuous | Batch |
| Automation Level | Fully automatic | Semi-automatic |
| Workpiece Type | Standard steel plates, beams | Irregular, heavy parts |
| Efficiency | Very high | Medium |
| Flexibility | Low | High |
| Labor Requirement | Low | Medium |
| Investment Cost | Higher | Lower |
| Maintenance Cost | Lower long-term | Medium |
Performance Comparison
1. Efficiency
- Through-type: ideal for large-scale production lines
- Hook-type: suitable for small to medium batch processing
2. Flexibility
- Through-type: limited to uniform shapes
- Hook-type: handles complex geometries easily
3. Automation
- Through-type: fully automated conveyor system
- Hook-type: requires manual loading/unloading
4. Application Scope
- Through-type: steel structure factories
- Hook-type: casting and machinery workshops
Industrial Shot Blasting Equipment Advantages
Modern industrial shot blasting equipment provides several key benefits:
- High cleaning efficiency
- Stable surface quality
- Reduced labor cost
- Automated production capability
- Improved coating adhesion
- Longer product lifespan
Industrial Shot Blasting Machine Parameter Table
Through-Type Shot Blasting Machine Parameters
| Parameter | YG-698 | YG-6912 | YG-6915 | YG-6920 | YG-6925 | YG-6930 | YG-6940 |
| Effective cleaning width (mm) | 800 | 1200 | 1500 | 2000 | 2500 | 3000 | 4000 |
| Room feed-in size (mm) | 1000×400 | 1400×400 | 1700×400 | 2200×400 | 2700×800 | 3200×800 | 4200×400 |
| Workpiece length (mm) | 1200–12000 | 1200–16000 | 1200–12000 | 1200–12000 | 3000–12000 | 2400–12000 | 4500–18000 |
| Conveyor speed (m/min) | 0.5–4 | 0.5–4 | 0.5–4 | 0.5–4 | 0.5–4 | 0.5–4 | 0.5–4 |
| Steel thickness (mm) | 3–60 | 3–60 | 1.5–60 | 3–60 | 3–60 | 3–110 | 4.5–100 |
| Shot blasting volume (kg/min) | 4×180 | 4×250 | 4×250 | 6×250 | 6×250 | 6×360 | 8×360 |
| Total power (kW) | 90 | 78.3 | 113.5 | 156.6 | 204.8 | 224.55 | 293.6 |
Hook-Type Shot Blasting Machine Parameters
| Parameter | Standard Model A | Heavy Model B | Industrial Model C |
| Load capacity (kg) | 500 | 1000 | 2000 |
| Hook rotation speed (rpm) | 2–4 | 2–5 | 1–3 |
| Blasting turbines | 4–6 | 6–8 | 8–10 |
| Chamber size (mm) | 1200×1500 | 2000×2500 | 3000×3500 |
| Cleaning time (min) | 10–20 | 15–30 | 20–40 |
| Power (kW) | 75 | 110 | 160 |
Why Choose Professional Shot Blasting Machine Manufacturers
Choosing reliable shot blasting machine manufacturers ensures:
- Stable machine performance
- Longer service life
- Lower maintenance cost
- Better blasting efficiency
- Customized industrial solutions
YG Machinery provides both through-type and hook-type industrial shot blasting machines, supporting global industrial applications with stable quality and technical support.
Future Development of Industrial Shot Blasting Machine
The industry is moving toward:
- Intelligent PLC control systems
- Energy-saving blast wheel technology
- Fully automated production lines
- Dust-free environmental systems
- Remote monitoring and diagnostics
These innovations make industrial shot blasting equipment more efficient and environmentally friendly.
Conclusion
The industrial shot blaster plays a vital role in modern metal surface treatment. Through-type machines are ideal for high-volume production, while hook-type machines provide flexibility for complex parts.
As a professional shot blasting machine manufacturer, YG Machinery offers reliable and customized industrial shot blasting machine solutions for different industries worldwide.
Looking for high-performance industrial shot blasting equipment?
Contact YG Machinery today for technical support, machine selection, and customized quotations tailored to your production needs.
FAQs
Q: When should I choose a hook-type shot blasting machine?
A: Hook-type machines are suitable for irregular, heavy, or complex-shaped workpieces such as castings and engine parts.
Q: How does an industrial shot blasting machine improve coating adhesion?
A: It increases surface roughness by impact cleaning, allowing coatings and paints to bond more effectively to the metal surface.
Q: Is industrial shot blasting equipment environmentally friendly?
A: Yes, modern systems include dust collection and abrasive recycling systems that reduce pollution and material waste.
Q: What industries use shot blasting machine manufacturers’ equipment?
A: Industries include steel construction, shipbuilding, automotive manufacturing, aerospace, and heavy machinery production.
Q: How long does an industrial shot blasting machine last?
A: With proper maintenance, high-quality machines can last more than 10–15 years, depending on usage intensity.
Q: Can industrial shot blasters be customized?
A: Yes, manufacturers like YG Machinery provide customized solutions based on workpiece size, production capacity, and automation requirements.
