This core drilling machine export project was carried out for a mining exploration company in the Philippines. The client was engaged in mineral exploration in a remote mountainous region, where geological surveys required deep and accurate core sampling.
The project conditions were far from ideal. The site was located in an area with:
- High humidity and frequent rainfall
- Uneven terrain with limited road access
- Unstable soil layers mixed with rock formations
Additionally, the client faced several operational constraints:
- Limited budget for equipment investment
- Tight project schedule requiring fast deployment
- Need for reliable equipment with minimal downtime
Traditional drilling equipment previously used by the client had issues such as:
- Low drilling efficiency
- High fuel consumption
- Frequent mechanical failures
Because of these challenges, the client decided to search for a more advanced and reliable drilling solution that could adapt to harsh working conditions.
How the Client Chose a Hydraulic Core Drilling Machine
Before selecting YG Machinery, the client conducted a comprehensive evaluation of different suppliers and equipment types.
Evaluation Process
They compared:
- Local equipment providers in Southeast Asia
- European drilling equipment brands
- Chinese manufacturers with export experience
During this stage, several models of hydraulic core drilling machines were reviewed. The client focused on key factors such as:
- Drilling depth capability
- Stability during operation
- Ease of maintenance
- Total cost of ownership
European brands offered high performance but at a significantly higher cost. Local suppliers provided lower prices but lacked proven reliability and technical support.
YG Machinery stood out due to:
- Balanced performance and affordability
- Strong customization capability
- Fast response and technical communication
The decision was not immediate. The client requested:
- Detailed technical specifications
- Video demonstrations of similar projects
- Case references in similar environments
Only after thorough comparison did they finalize the purchase.
Diamond Coring Rig Matching and Site Limitations
Selecting the right configuration was critical for this project. The chosen diamond coring rig needed to meet both geological and environmental requirements.
Matching Key Requirements
The final configuration focused on:
- Strong power output for hard rock drilling
- Stable hydraulic system for precise operation
- Modular design for easy transportation
Site Challenges and Adjustments
During planning, several limitations were identified:
1. Transportation Constraints
The drilling site was difficult to access with heavy equipment.
Solution: modular design allowed easier transport and assembly
2. Weather Conditions
Frequent rain created muddy and unstable ground.
Solution: enhanced stability system and reinforced base
3. Power Supply Issues
The remote location lacked a stable electricity supply
Solution: independent power system configuration
These adjustments ensured that the equipment could operate efficiently despite environmental challenges.
Technical Specifications of Hydraulic Core Drilling Rig
To help you better evaluate whether this core drilling rig fits your project requirements, here are the detailed technical parameters of it.
| Model | YGX-400 | YGX-600 | YGX-800 | YGX-1000 |
| Drilling Depth (m) | 180–400–500 | 200–600–650 | 400–800–1000 | 500–1000–1100 |
| Rated Pressure (MPa) | 21 | 21 | 25 | 28 |
| Rated Flow (L/min) | 168 | 192 | 260 | 300 |
| Heat Dissipation | Air + Water Cooling | Air + Water Cooling | Air + Water Cooling | Air + Water Cooling |

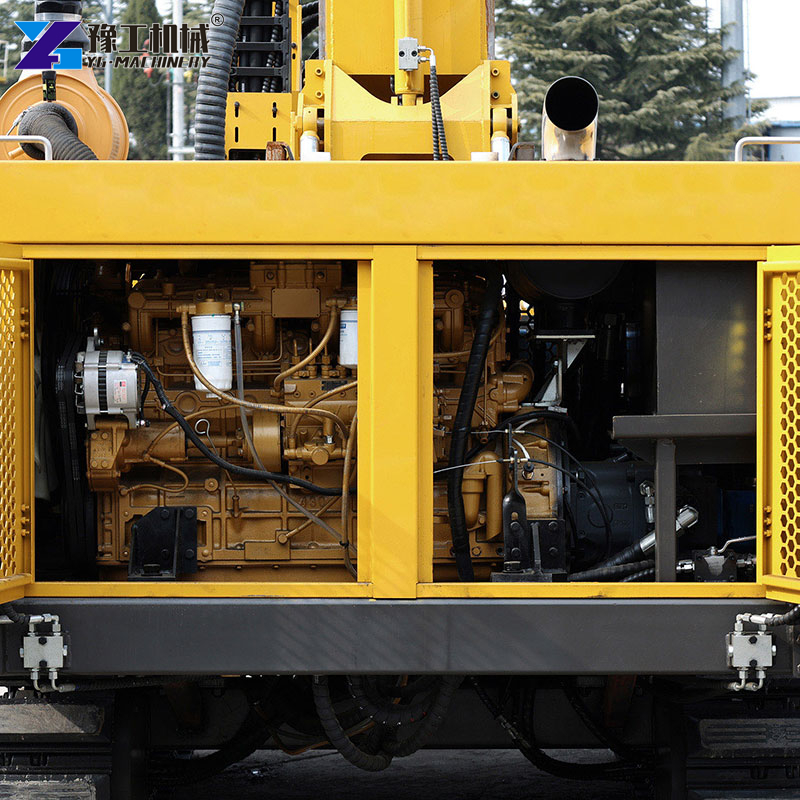

| Engine Brand | Yuchai | Yuchai | Yuchai | Cummins |
| Power | 78kW | 92kW | 92kW | 154kW |
| Drilling Angle | 0–90° | 45–90° | 45–90° | 45–90° |
| Lifting Force (T) | 12 | 16 | 24 | 30 |
| Feed Force (T) | 6 | 8 | 12 | 15 |
| Mud Pump Flow | 30–90 | 30–90 | 90–180 | 90–180 |
| Mud Pump Pressure | 4–7 MPa | 4–7 MPa | 4–7 MPa | 4–7 MPa |
| Dimension (mm) | 4000×1900×1800 | 4000×2000×1800 | 5500×2100×2000 | 6000×2200×2400 |
| Weight | 4.3T | 4.5–5.5T | 6.5T | 7.5T |
Not sure which model suits your drilling depth and geological conditions?
Contact YG Machinery now to get a customized recommendation and quotation.
How to Choose the Right Hydraulic Core Drilling Rig for Your Project
Choosing the right hydraulic core drilling rig depends on your drilling depth, geological conditions, and project scale. Use the guide below to quickly find the best model for your needs.
✅ Step 1: Choose Based on Drilling Depth
| Drilling Depth | Recommended Model |
| 0–400m | YGX-400 |
| 200–650m | YGX-600 |
| 400–1000m | YGX-800 |
| 800–1100m | YGX-1000 |
If your project requires deep exploration, higher-capacity models ensure better stability and efficiency.
✅ Step 2: Match Geological Conditions
| Geological Condition | Recommended Solution |
| Soft soil / clay | Standard configuration |
| Mixed soil & rock | Enhanced hydraulic system |
| Hard rock / mining | Hard rock/mining |
✅ Step 3: Select Based on Project Type
| Application | Suggested Model |
| Geological survey | YGX-400 / YGX-600 |
| Mining exploration | YGX-600 / YGX-800 |
| Deep core drilling | YGX-800 / YGX-1000 |
Still not sure which model to choose?
Many buyers hesitate between YGX-600 and YGX-800. In general:
- Choose YGX-600 for cost efficiency
- Choose YGX-800 for better performance and stability
Diamond Drill Rig for Sale: Delivery and Installation in the Philippines
The export process was carefully planned to ensure smooth delivery.
Shipping and Logistics
- Equipment was securely packed to prevent damage
- Container loading optimized for cost efficiency
- Delivery timeline aligned with project schedule
The diamond core drill was shipped directly to the nearest port and then transported to the project site.
Installation and Training
After arrival:
- Remote technical guidance was provided
- Local operators received operational training
- Initial drilling tests were conducted
The machine was successfully installed within a short period, allowing the project to proceed without delays.
Hydraulic Core Drilling Rig Performance Feedback
After several months of operation, the client provided detailed feedback.
Efficiency Improvement
- Drilling speed increased significantly
- Reduced downtime compared to previous equipment
- Improved core sampling accuracy
Durability and Stability
- Stable operation even in difficult terrain
- Strong resistance to wear and environmental conditions
- Reliable hydraulic system performance
Maintenance Feedback
- Lower maintenance frequency
- Easy access to key components
- Reduced overall operating cost
The client confirmed that the equipment met their expectations and improved project efficiency
What This Hydraulic Core Drilling Rig Case Means for Buyers
This export case offers valuable insights for potential buyers.
1. Equipment Must Match Site Conditions
Different environments require different configurations. Understanding your working conditions is essential.
2. Do Not Focus Only on Price
Lower-cost machines may lead to higher long-term expenses due to maintenance and downtime.
3. Customization Is Critical
Tailored configurations can significantly improve performance and reliability.
4. Supplier Support Matters
Technical support and communication play a key role in successful project execution.
5. Proven Case Experience Reduces Risk
Real project references help buyers make more confident decisions.
Choosing the Right Diamond Drill Rig for Sale
This case demonstrates how YG Machinery successfully delivered a reliable diamond drill rig solution for a challenging mining project in the Philippines. By focusing on real-world needs, environmental conditions, and long-term performance, the hydraulic core drilling rig provided excellent efficiency, durability, and overall value.
If you are planning a drilling project and looking for a dependable diamond drill rig, choosing the right equipment is essential. Partnering with an experienced manufacturer like YG Machinery ensures you get a solution tailored to your project requirements, helping you improve productivity and achieve long-term success.
