The UAE construction industry continues to expand rapidly, especially in commercial buildings, infrastructure networks, and coastal engineering projects. These projects rely heavily on deep foundation systems, in which pile removal is a critical construction stage.
In a recent project in Dubai, a contractor faced serious delays in pile head removal. The original equipment could not handle reinforced concrete piles efficiently. The project schedule started to fall behind, and labour costs increased quickly.
To address this issue, YG Machinery supplied a pile cutting machine designed for high-strength foundation conditions. The equipment helped the contractor restore efficiency and stabilise the entire foundation workflow.
Client Background and Construction Challenges
The client is a UAE-based foundation contractor working on a large commercial complex. The project required thousands of concrete piles, each with high reinforcement density.
The main challenges included:
- Reinforced concrete piles with irregular hardness
- Tight construction schedule with penalty risk
- High labour cost in the manual breaking process
- Uneven pile head quality is affecting the next construction stage
- Low efficiency of traditional mechanical breakers
Before contacting YG Machinery, the contractor tested several tools, including manual breakers and basic hydraulic systems. However, none of them delivered stable performance.
During research, they focused on improving efficiency with a more advanced excavator pile breaker system, but many available solutions lacked durability in the UAE’s high-temperature working conditions.
This situation created a strong need for a reliable pile cutting machine that could integrate with excavators and maintain continuous operation.
Solution: Excavator Pile Breaker Selection for UAE Project
After the technical evaluation, YG Machinery recommended a customised pile cutting machine solution designed for 20T–40T excavators.
The system was selected based on:
- High compatibility with common excavator models in the UAE
- Modular design for different pile diameters
- Strong hydraulic pressure control system
- Stable performance in continuous operation
- Easy maintenance structure for construction teams
Compared with conventional tools, the system provided more stable cutting force and higher precision in pile head removal.
The contractor also compared it with a hydraulic pile breaker, but preferred YG Machinery’s modular system due to better adaptability across multiple construction stages.
Another alternative, a pile breaker, was considered but rejected due to limited control over irregular pile shapes.
The final decision focused on balancing efficiency, stability, and long-term durability.
5 Conditions Your Excavator Must Meet

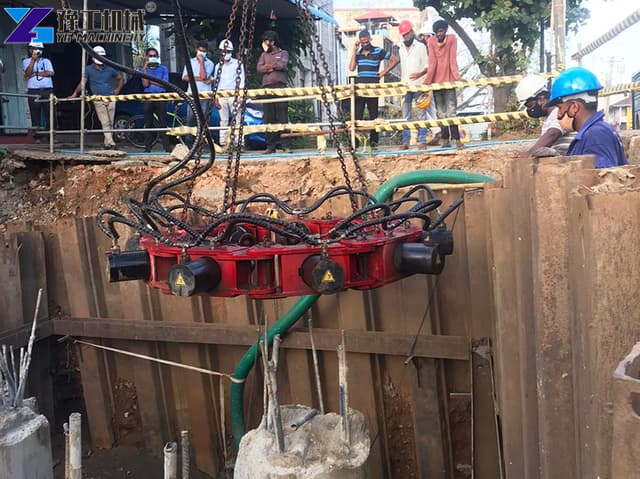

Implementation: Hydraulic Pile Cutter Deployment Process

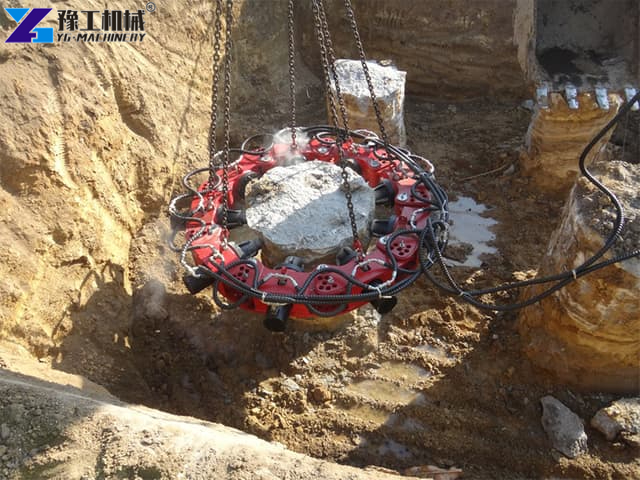

After production, the equipment was shipped directly to the UAE construction site using reinforced export packaging to protect hydraulic components from long-distance transport conditions.
1. Delivery and Site Preparation
The machine arrived on schedule. Site engineers prepared excavators for installation without structural modification.
2. Installation Process
The pile cutting machine was mounted directly onto the excavator arm. Hydraulic connections were completed within a short period, allowing quick deployment.
3. Operator Training
Operators received practical training on:
- Hydraulic pressure adjustment
- Cutting sequence control
- Safety procedures during pile breaking
- Basic maintenance steps
Training focused on simple operations to reduce learning time.

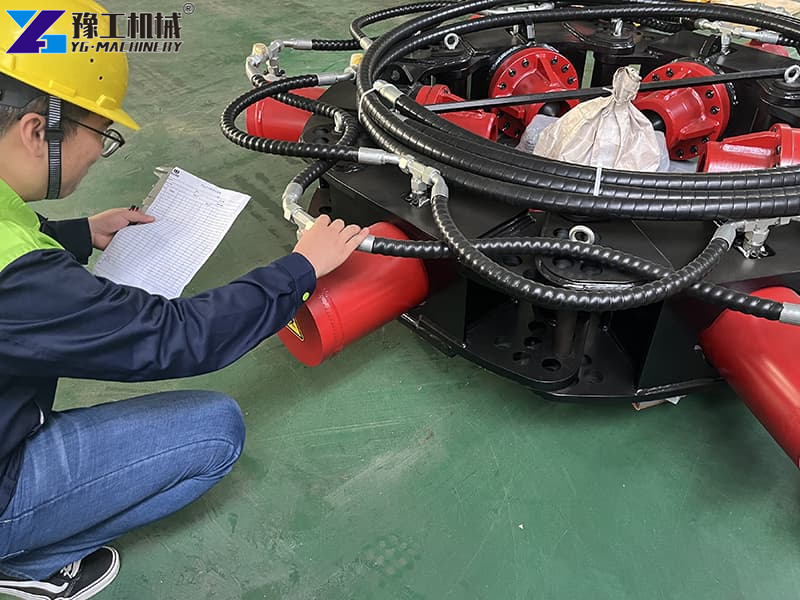

4. Field Testing and Adjustment
Initial tests were conducted on reinforced concrete piles. The system performed stable cutting without vibration issues.
Minor hydraulic adjustments were made to adapt to local pile hardness conditions.
During testing, the system functioned effectively as a hydraulic pile cutter, maintaining consistent pressure output across multiple cycles.

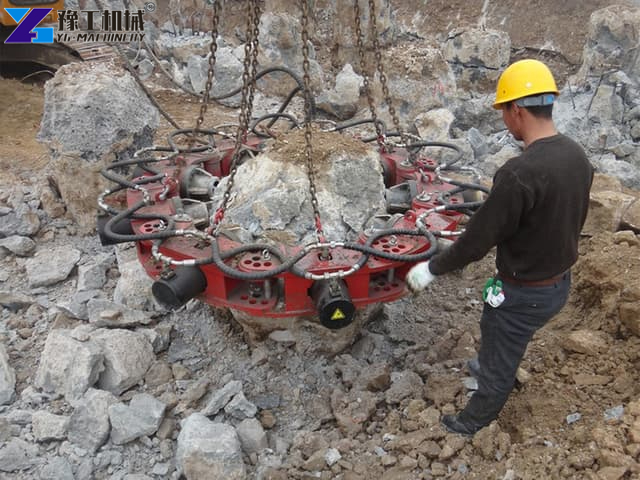

Performance Results: Pile Crusher in Real Operation
After full deployment, the system delivered strong performance improvements.
Efficiency Improvement
Pile head removal speed increased significantly compared to previous manual and semi-mechanical methods. Work cycles became more stable and predictable.
Labor Reduction
The need for manual breaking decreased sharply. Workers focused more on positioning and site coordination rather than physical demolition.
Stability in Continuous Operation
The pile cutting machine maintained stable hydraulic pressure during long working hours. It showed no overheating or performance drop even in high-temperature conditions.
Cost Control
The contractor reduced daily operational costs due to faster pile processing and reduced labour requirements.
Client Feedback
The project manager reported that the system improved the overall foundation workflow. He highlighted that the machine worked better than expected in dense reinforced pile conditions.
The concrete pile cutting machine function was especially useful in final stage adjustments, ensuring clean and controlled pile head removal.
Product Parameters of YG Pile Cutting Machine
| Module Count | Total Weight (kg) | Pile Diameter Range (mm) | Suitable Excavator (T) |
| 4 | 1600 | 400–600 | 20T–30T |
| 8 | 2640 | 600–800 | 20T–30T |
| 9 | 2970 | 800–1000 | 20T–30T |
| 10 | 3300 | 1000–1150 | 20T–30T |
| 11 | 3630 | 1150–1300 | 20T–30T |
| 12 | 3960 | 1300–1500 | 20T–30T |
| 13 | 4290 | 1500–1650 | 30T–40T |
| 14 | 4620 | 1650–1800 | 30T–40T |
| 15 | 4950 | 1800–1970 | 30T–40T |
| 16 | 5280 | 1970–2200 | 30T–40T |
| 17 | 5610 | 2200–2360 | Requires a pump station |
| 18 | 5940 | 2360–2500 | Requires pump station |
Interested in the equipment used in this project? View the product details here.
Pile Cutting Machine Performance in UAE Conditions
The UAE environment presents high temperatures, hard soil layers, and long working hours. These conditions require stable hydraulic performance.
The pile cutting machine handled continuous operation without pressure fluctuation. It also maintained cutting precision even in uneven pile structures.
Compared with older systems, the equipment reduced downtime and improved coordination between excavation and foundation teams.
The contractor continued using the system in later phases of the project due to stable field performance.
Excavator Pile Breaker Application Feedback
It performed reliably in the UAE foundation project, especially in high-reinforcement and mixed-strength concrete piles. Operators found it easier to control compared with traditional manual breaking methods, particularly during continuous batch operation.
In high-temperature site conditions, the system maintained a stable clamping force without slipping or misalignment. This reduced the need for repeated positioning adjustments and improved daily working speed. For a project with a large pile volume, this stability helped keep construction progress on schedule.
Cutting consistency was another key advantage. Once positioned correctly, the force distribution remained even across the pile section. This reduced edge cracking and ensured cleaner pile head separation. The result was a smoother surface, which improved reinforcement connection in later construction stages.
Operators also highlighted flexible hydraulic response. It allowed quick adjustment for different pile diameters and site conditions. Overall, the system improved efficiency and consistency, making it suitable for large-scale foundation work.
Hydraulic Pile Cutter Field Behaviour
It showed strong stability during continuous operation in Dubai’s construction environment. It was tested on different pile sizes and reinforcement densities, maintaining a stable cutting force throughout the project.
Hydraulic pressure remained consistent even during long working cycles. This ensured smooth cutting motion and improved the accuracy of pile head separation. Stable pressure control also reduced vibration during operation.
The system performed well under high temperatures, which is a common challenge in UAE construction sites. Optimised hydraulic flow helped maintain performance without overheating or power loss.
In narrow working areas, the cutter still achieved precise control. It reduced the impact on nearby structures and improved safety during operation. Maintenance checks showed minimal wear and no leakage issues, which reduced downtime.
Overall, the pile cutter helped maintain workflow balance between excavation and foundation stages, improving project efficiency.

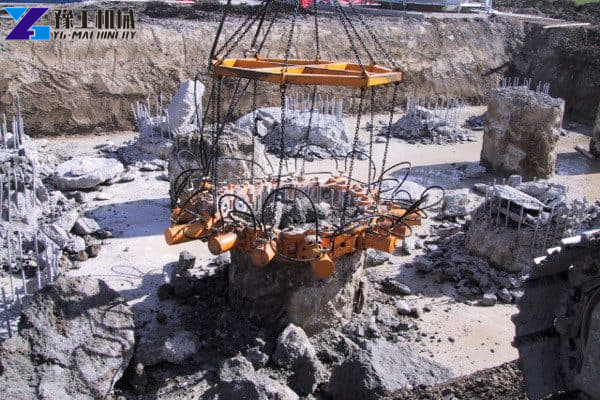

Pile Crusher Operational Impact
It played an important role in the final pile head finishing. It ensured controlled breaking of concrete piles while maintaining reinforcement integrity.
During operation, it applied a steady force with low vibration. This reduced the risk of damage below the cutting line and improved foundation quality. The fracture surface remained uniform, which helped improve construction accuracy in later stages.
Another key advantage was reinforcement exposure quality. Steel bars remained intact and clearly visible after breaking, making the connection work faster and more reliably.
Compared with manual methods, the pile crusher reduced the need for secondary finishing tools. This simplified site workflow and reduced labour requirements.
Low vibration levels also improved operator comfort and safety during long working shifts. Overall, it enhanced both efficiency and construction quality in the final pile processing stage.
