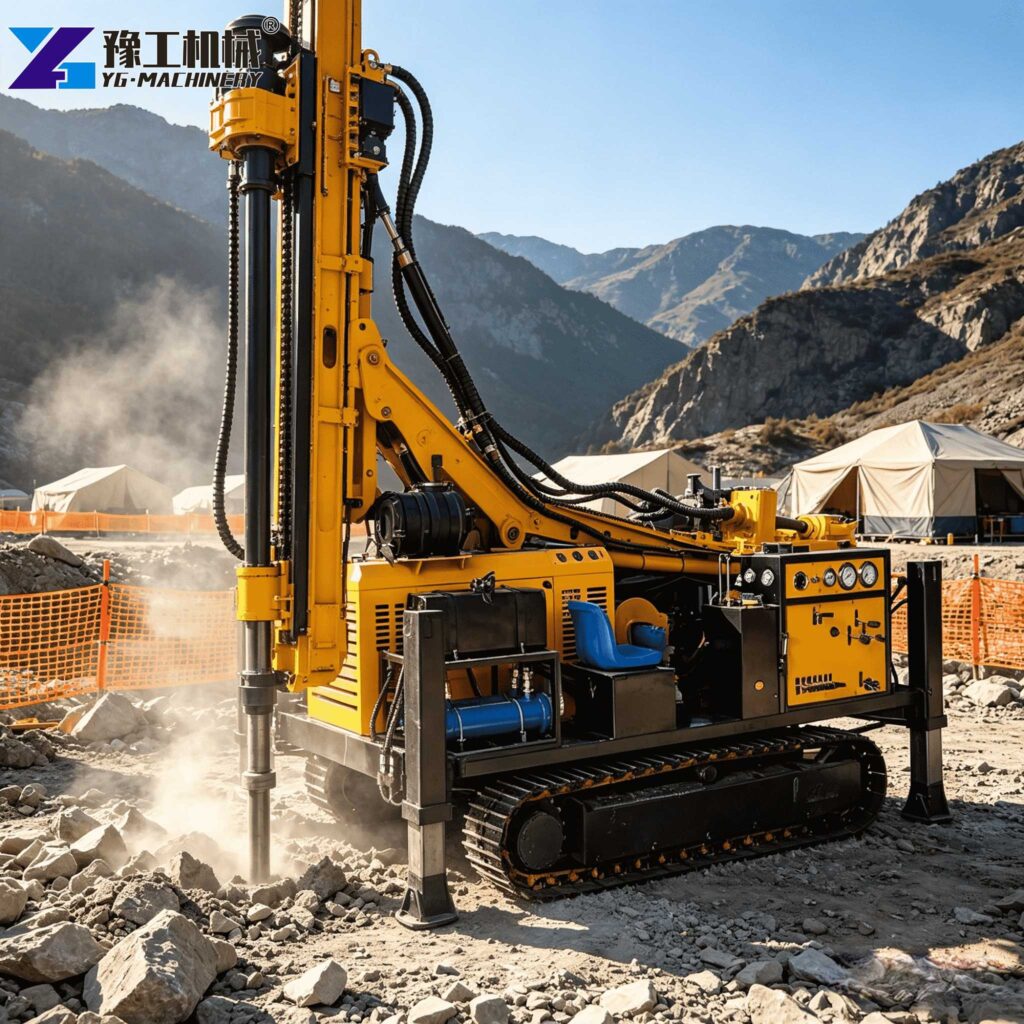

A core drilling machine for mining drives wireline core barrels deep into complex geological strata, extracting pristine rock samples for precise mineral exploration and geotechnical site analysis. Powered by heavy-duty Yuchai and Cummins diesel engines delivering up to 154kW, these fully hydraulic wireline rigs operate at rated pressures reaching 28MPa and main oil flows up to 300L/min. Geological survey teams penetrate hard granite, quartz formations, and fragmented overburden efficiently down to maximum depths of 1100 meters using lifting capacities up to 30 tons and feed forces reaching 15 tons. YG Machinery builds these high-precision rigs with dual air-and-water cooling systems, integrated hydraulic mud pumps, and 0° to 90° adjustable mast angles, enabling mining companies, geotechnical contractors, and exploration crews to recover intact rock cores while reducing operational costs on remote site locations.
The multi-functional hydraulic top-drive head delivers smooth rotational torque across variable speed ranges, maintaining precise bit pressure to protect fragile geological cores from fracturing during retrieval. Integrated hydraulic winches speed up wireline core barrel extraction, cutting sample recovery times and keeping exploration schedules running smoothly.
Start Your Project with the Right Equipment
Core Drilling Machine for Mining Technical Parameters
Matching the right drill rig to your exploration project requires evaluating target drilling depth, engine horsepower, lifting force, and hydraulic pump flow rates carefully. Sourcing your equipment directly from an established machinery manufacturer like YG Machinery guarantees rigorous factory performance testing, custom mast extensions, and direct access to genuine wear parts.
| Parameter Item | Model YGX-400 | Model YGX-600 | Model YGX-800 | Model YGX-1000 |
| Drilling Depth Range | 180 – 500 m | 200 – 650 m | 400 – 1000 m | 500 – 1100 m |
| Rated Pressure | 21 MPa | 21 MPa | 25 MPa | 28 MPa |
| Rated Flow Rate | 168 L/min | 192 L/min | 260 L/min | 300 L/min |
| Heat Dissipation Mode | Air + Water Cooling | Air + Water Cooling | Air + Water Cooling | Air + Water Cooling |
| Engine Brand | Yuchai | Yuchai | Yuchai | Cummins |
| Rated Power / Speed | 78 kW / 2400 rpm | 92 kW / 2400 rpm | 92 kW / 2400 rpm | 154 kW / 2400 rpm |
| Drilling Angle Range | 0° – 90° | 45° – 90° | 45° – 90° | 45° – 90° |
| Max Lifting Force | 12 Tons | 16 Tons | 24 Tons | 30 Tons |
| Max Feed Force | 6 Tons | 8 Tons | 12 Tons | 15 Tons |
| Hydraulic Mud Pump Flow | 30 – 90 L/min | 30 – 90 L/min | 90 – 180 L/min | 90 – 180 L/min |
| Hydraulic Mud Pump Pressure | 4 – 7 MPa | 4 – 7 MPa | 4 – 7 MPa | 4 – 7 MPa |
| Dimensions (LWH) | 400019001800 mm | 400020001800 mm | 550021002000 mm | 600022002400 mm |
| Operating Machine Weight | 4.3 Tons | 4.5 / 5.5 Tons | 6.5 Tons | 7.5 Tons |
Boost Productivity—Get a Free Quote
All models produced by YG Machinery incorporate high-torque hydraulic winches, heavy rubber-tracked or steel-tracked crawlers, and centralized operator control panels. Custom mast configurations and automated rod handlers are available upon request.
Core Drilling: What is it & How Does It Work?
Core drilling is a high-precision rotary sampling technique designed to extract intact, continuous cylindrical rock samples (cores) from deep beneath the earth’s surface. Unlike standard destructive drilling methods that grind rock into tiny rock powder or slurry cuttings, core drilling preserves the exact geological stratification, fracture patterns, and mineral orientation of the underground rock structure.
The core drilling process relies on a hollow cylindrical diamond bit attached to a rotating core barrel and hollow drill rods. Driven by a powerful top-drive hydraulic head, the diamond matrix crown grinds a narrow circular groove into the rock, allowing the solid central rock core to slide smoothly into the inner tube of the core barrel. Continuous drilling fluid (water or bentonite mud slurry) pumps down through the drill string to flush rock dust, lubricate the diamond bit face, and prevent borehole collapse. Once the inner core barrel fills, high-speed hydraulic wireline winches hoist the sample to the surface in minutes without retrieving the entire drill string.
Engineers and geologists depend on high-recovery core drilling to map subsurface ore bodies, evaluate mineral reserve concentrations, determine foundation load capacities, and perform accurate geotechnical site assessments before major excavation or civil construction begins.
5 Engineering Features Driving High-Precision Rock Core Extraction
- Integrated Hydraulic Mud Pumping: Variable mud flow rates up to 180L/min flush cuttings continuously, cool diamond bits, and stabilize deep drill hole walls.
- Dual Air and Water Cooling Systems: Keep hydraulic oil temperatures stable during intense multi-shift drilling in harsh desert or high-altitude environments.
- Variable Mast Drilling Angles: Flexible angle adjustments from 0° to 90° enable horizontal tunnel coring, angled mineral vein sampling, and vertical deep exploration.
- Heavy-Duty Top-Drive Rotary Head: High-torque hydraulic rotary drive maintains smooth spindle rotation without stalling in fractured or sticky rock formations.
- High-Force Hydraulic Feed and Hoist: Powerful cylinder feed systems apply up to 15 tons of thrust and 30 tons of pulling power to retrieve heavy drill strings quickly.

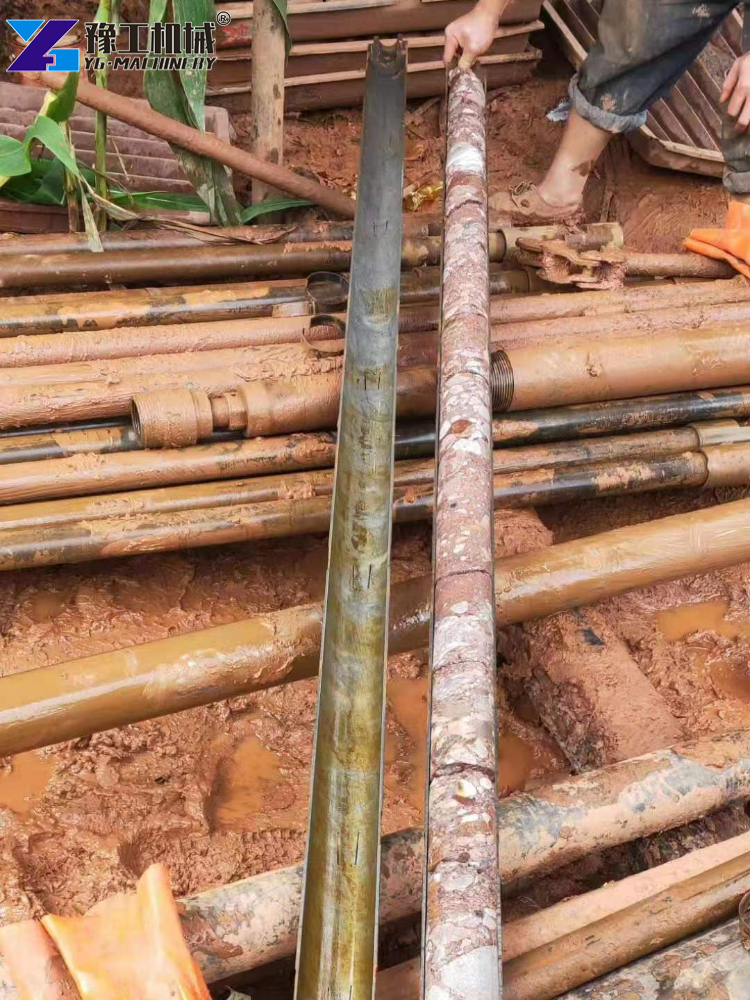

Extracting intact geological core samples provides structural engineers and economic geologists with clear underground data. Exploration teams verify ore grade boundaries accurately, preventing costly miscalculations during full-scale mine design and excavation.

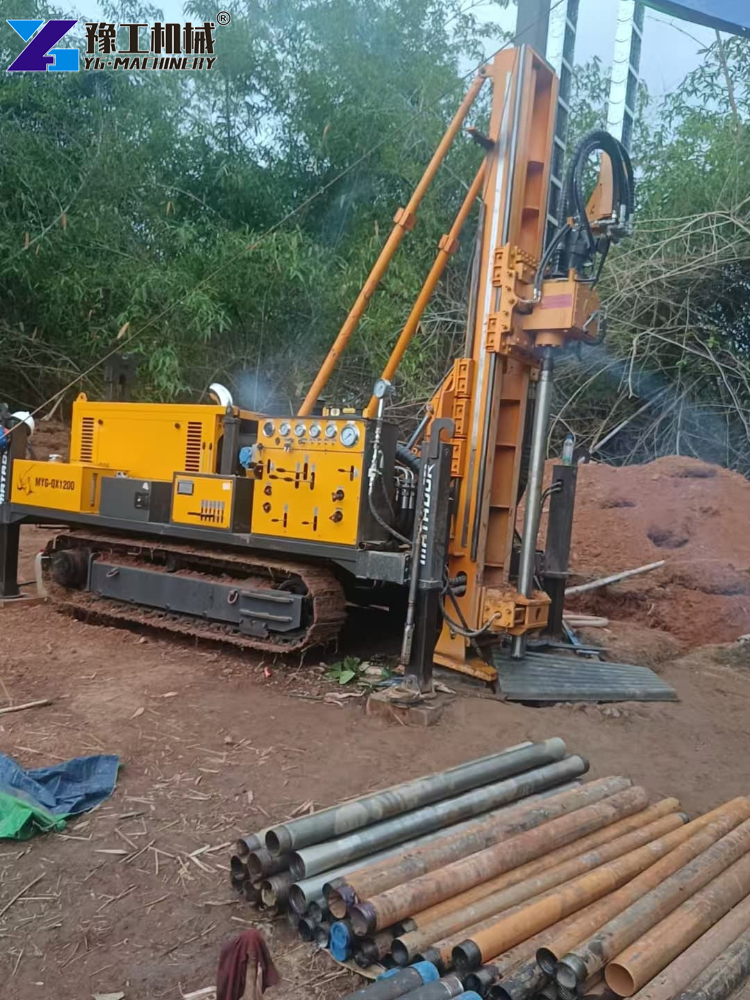

Compact structural dimensions allow these tracked rigs to navigate steep mountain trails, narrow mine drifts, and soft terrain easily. Heavy steel outriggers anchor the chassis securely, dampening operational vibration during high-speed diamond coring operations.
Find the Right Model for Your Project

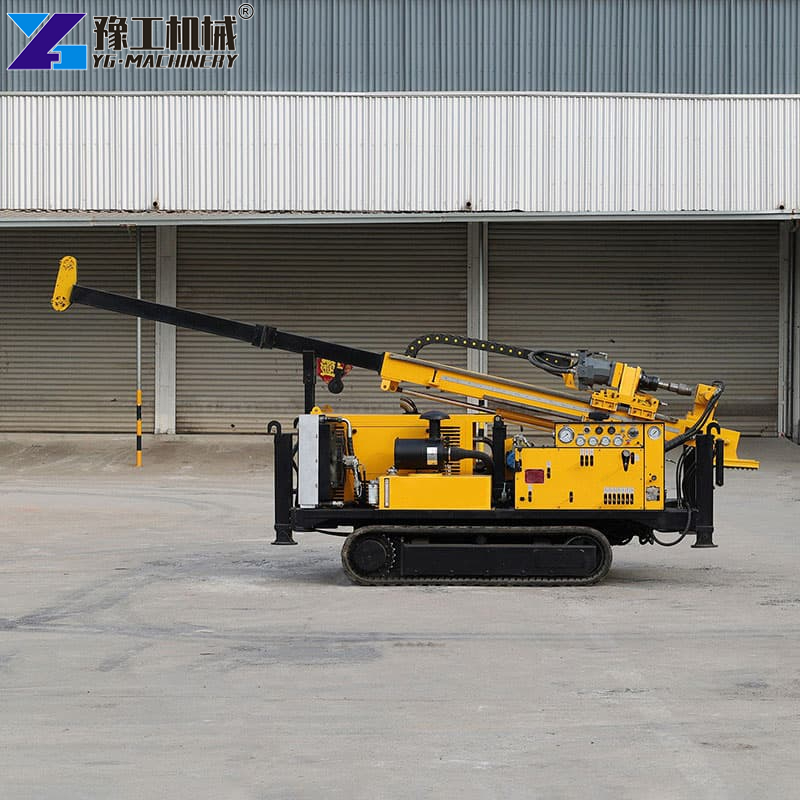

Why Invest in a Heavy-Duty Core Drilling Rig for Sale?
Securing a dedicated core drilling rig for sale gives mineral exploration companies, drilling contractors, and mining operators direct control over their site investigation schedules without relying on costly third-party coring services.
- Lower Total Exploration Costs: Owning equipment eliminates high daily contractor fees and allows continuous exploration across multiple site concessions.
- Rapid Sample Turnaround: On-site drilling crews retrieve rock samples immediately, enabling geologists to adjust drill targets in real time.
- Superior Depth Capacity: Heavy hydraulic hoists handle long strings of heavy drill rods, allowing deep exploration down to 1100 meters.
- High Core Recovery Rates: Smooth, stepless hydraulic rotation prevents bit chatter, yielding intact rock core samples even in fractured geology.
Purchasing direct-drive hydraulic drilling equipment expands site survey capabilities while keeping long-term operational overhead fully manageable.
How Does High-Grade Core Drilling Equipment Lower Project Risk?
Deploying reliable core drilling equipment reduces site risks by delivering consistent geological samples while preventing costly borehole cave-ins and bit-stuck incidents in harsh ground.
- Precise Mud Circulation: High-pressure mud pumps stabilize loose gravel and soft clay layers, keeping boreholes open during deep coring.
- Integrated Hydraulic Winches: High-speed wireline winches hoist core barrels to the surface in minutes without pulling the entire drill rod string.
- Automated Safety Valves: Pressure relief valves prevent hydraulic system spikes, protecting drive motors and internal hoses from bursting.
- Durable Alloy Mast Structures: Rigid steel mast frames resist twisting under heavy rotational torque, ensuring straight, accurate drill holes.
Engineered drilling components maintain consistent penetration rates while protecting on-site crews during multi-shift exploration campaigns.

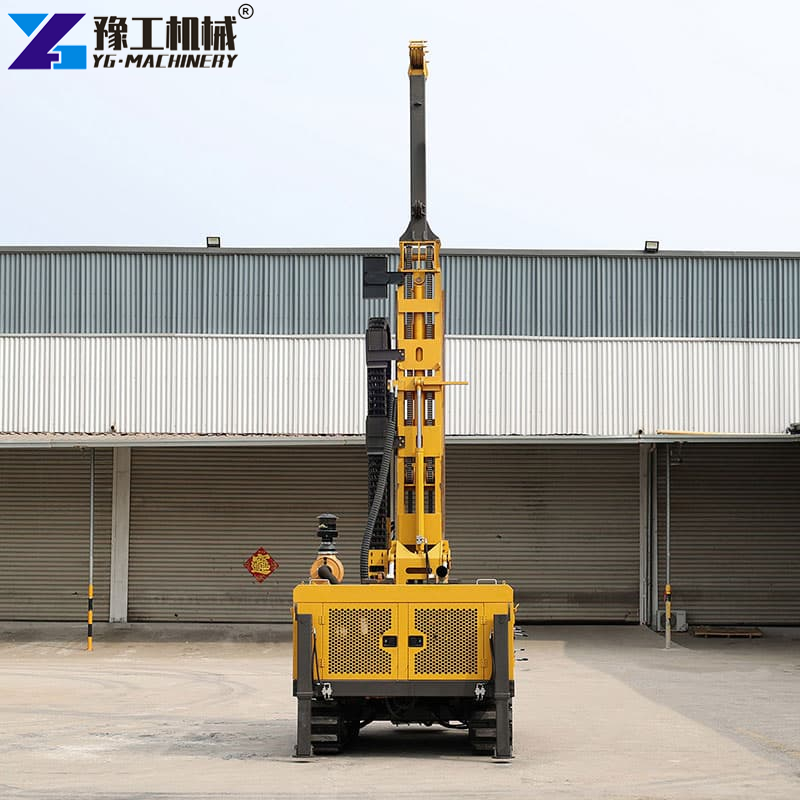

What Key Technical Factors Determine Your Diamond Core Drilling Machine Price?
Calculating total equipment costs involves looking beyond initial purchase figures to evaluate engine brand selection, hydraulic pump output capacities, depth ratings, and long-term wear component pricing.
- Engine Power Output: Premium Cummins diesel engines cost more initially but supply reliable horsepower and lower fuel burn per meter drilled.
- Hydraulic System Flow and Pressure: High-pressure pumps (up to 28MPa) deliver greater hoisting force and faster drilling cycles in hard rock.
- Depth and Pullback Capacity: Rigs rated for 1100-meter depths require larger chassis frames, heavier winches, and stronger hydraulic cylinders.
- Included Accessory Packages: Built-in hydraulic mud pumps, wireline winches, and dual cooling systems increase total initial value and eliminate extra tool purchases.
Investing in heavy structural frames and proven hydraulic components lowers maintenance downtime and lowers your overall cost per recovered core meter over years of service.
Core Drilling Rig Case Study: Copper Exploration Project in Chile
The Project Challenge
A mining exploration firm in Atacama, Chile, required deep core sampling to map a high-grade copper porphyry deposit located at altitudes above 3,200 meters. The project demanded continuous wireline coring through highly fractured quartz veins and granite down to depths of 800 meters. Harsh desert temperature shifts and extreme ground hardness threatened to slow drilling cycles and damage standard equipment.
The Equipment Solution
The contractor purchased a YGX-1000 model core drilling rig from YG Machinery. Featuring a 154kW Cummins engine, 28MPa rated pressure, 300L/min hydraulic flow rate, dual air-and-water cooling systems, and 30-ton hoisting force, the rig operated continuously across 12-hour daily shifts.
Operational Results and Return on Investment
Deploying the heavy hydraulic core drilling rig transformed project outcomes:
- Deep Penetration Achieved: The rig completed five 850-meter boreholes successfully, achieving average core recovery rates above 96%.
- Rapid Project Schedule: Fast wireline hoisting cut core extraction cycles by 25%, completing the program 14 days ahead of schedule.
- Zero Overheating Downtime: Dual air-and-water cooling maintained hydraulic oil temperatures below 60°C despite intense high-altitude ambient heat.
- Significant Cost Savings: The mining firm saved over $85,000 in operational costs compared to hiring external drilling contractors.
Exploration Core Drilling Machine Manufacturer-YG Machinery
Ready to elevate your mineral exploration capabilities and secure high-recovery rock cores with high-force hydraulic drilling equipment? Do not let unreliable tools, slow core extraction, or high contractor fees delay your mining concessions any longer. YG Machinery provides direct factory pricing, custom mast configurations, and rapid global shipping support.
Getting your personalized price quote is quick and simple—just send us your target drilling depth, preferred engine brand, target rock geology, and destination port. Our engineering team will supply an itemized price quotation, technical datasheets, and delivery timelines within 8 hours.
Contact our sales team today via email or inquiry form to claim your direct factory quote!
Compare Models and Get a Quote
FAQs About Core Drilling Machines for Mining
A1: Match your maximum planned hole depth against model ratings: YGX-400 (up to 500m), YGX-600 (up to 650m), YGX-800 (up to 1000m), or YGX-1000 (up to 1100m).
A2: Dual cooling keeps hydraulic oil within optimal operating temperature ranges during continuous heavy drilling in extremely hot or cold climates.
A3: Yes, adjustable mast angles (0° to 90°) allow operators to set up vertical, angled, or horizontal drill strings inside tight underground mine drifts.
A4: Check hydraulic oil and engine fluid levels daily, grease all mast pivot points, inspect wireline cables, and clear mud pump suction filters before every shift.
A5: Wireline winches drop an inner tube down through the drill rod string to lock and retrieve core samples instantly without uncoupling drill rods.
