Thermoplastic Striping Equipment is used for road marking, specifically to apply thermoplastic paint to roads, highways, parking lots, and other surfaces. It uses a heated thermoplastic paint that melts when applied and quickly hardens, ensuring long-lasting, high-visibility markings. This type of road marking equipment is highly favored for its efficiency and durability, offering excellent resistance to weather conditions and traffic wear.
Thermoplastic road marking machines come in various types, with models suitable for both small and large-scale projects. These machines offer superior marking quality compared to traditional methods, ensuring roads and pedestrian areas are clearly and permanently marked for safety.

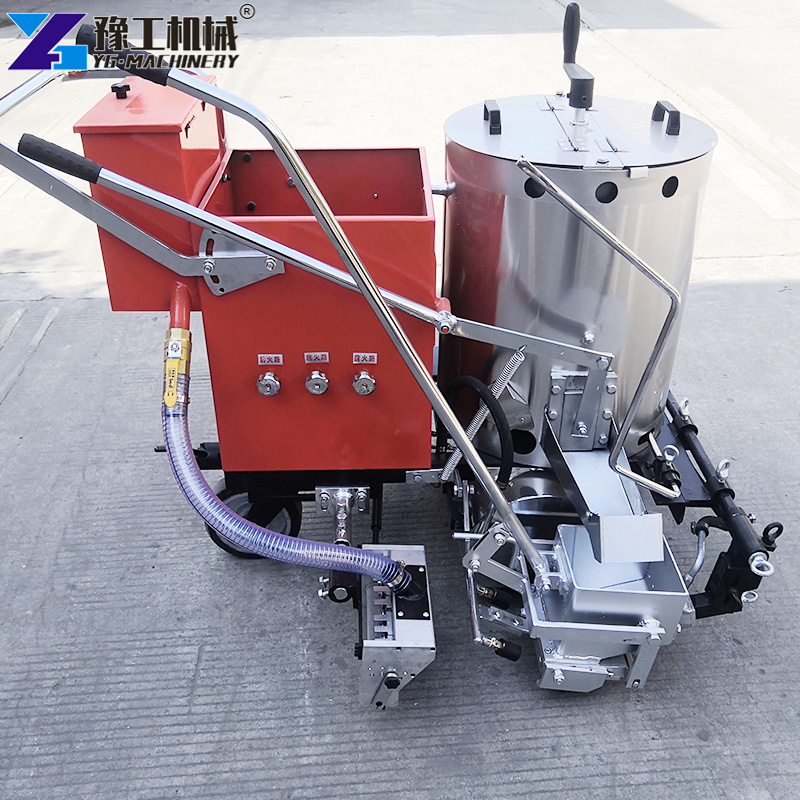

Thermoplastic Road Marking Paint Machine Specifications
YG-CK360S vs YG-CK380S Road Marking Machine Comparison
| Parameter | YG-CK360S | YG-CK380S |
| Thermoplastic Tank | Synchronous clutch spreading, equipped with a speed-adjustable gear shifting device, single/double spreading can be selected according to needs, 50–200mm | Synchronous clutch spreading, equipped with a speed-adjustable gear shifting device, single/double spreading can be selected according to needs, 50–200mm |
| Glass Bead Container | 10 kg/box | 10 kg/box |
| Adjustable Glass Beads Spreader | Ensure the machine is moving in a straight line or turning freely on a curved road | Ensure the machine is moving in a straight line or turning freely on a curved road |
| Rear Wheel Directional Device | 100 kg, double stainless steel heating insulation barrels, plug-in manual mixer devices, and removable devices | Ensure the machine is moving in a straight line or turning freely on a curved road |
| Brake | Using a drum brake, you can adjust the brake tension | Using a drum brake, you can adjust the brake tension |
| Marking Width | Standard 150mm marking bucket; 100mm, 150mm, 200mm, 250mm, 300mm, 400mm, 450mm (at customers’ option) | Standard 150mm marking bucket; 100mm, 150mm, 200mm, 250mm, 300mm, 400mm, 450mm (at customers’ option) |
| Battery Capacity | 15AH | 15AH |
| Battery Voltage | 48V lithium battery | 48V lithium battery |
| Driver Speed | 1–8 km/hour | 1–8 km/hour |
| Working Duration | The machine can mark road lines 24 hours after charging the battery, 5 hours | Ensure the machine is moving in a straight line or turning freely on a curved road |
| Dimensions (L×W×H) | 1210 × 970 × 1070 mm | 1200 × 970 × 1100 mm |
| Net Weight | 130 kg | 100 kg |
How Thermoplastic Striping Equipment Works and Its Advantages
They operate by melting solid thermoplastic materials, turning them into a liquid form that is then sprayed onto the surface. The melted paint is sprayed evenly using an airless nozzle, ensuring smooth and uniform application on roads, highways, and parking lots. The material hardens quickly after being applied, forming durable and reflective lines that are visible under low light conditions, enhancing road safety.
The machine’s main advantages include:
- Durability: The thermoplastic paint is highly resistant to wear, traffic, and weather conditions, ensuring that the road markings remain intact for years.
- Fast Drying Time: Unlike traditional paint, thermoplastic markings dry quickly (usually in just a few minutes), allowing roads to be reopened almost immediately after marking.
- High Visibility: The reflective properties of thermoplastic paint improve road safety by enhancing visibility at night or during foggy conditions.
- Cost Efficiency: While the initial investment in a thermoplastic machine may be higher, the long lifespan of the markings reduces the need for frequent reapplications, leading to cost savings over time.
- Eco-Friendly: Thermoplastic materials produce fewer emissions and require less solvent, making them more environmentally friendly compared to other road marking materials.
These features make thermoplastic road marking machines an excellent choice for businesses and government agencies looking to improve road marking efficiency and reduce long-term maintenance costs.
Investment Return Analysis and Market Outlook for Thermoplastic Striping Equipment
Investing in thermoplastic road marking machines, or thermoplastic striping equipment, offers excellent returns, especially when considering the long lifespan and reduced maintenance costs. For businesses involved in road marking, highways, and municipal projects, investing in this equipment can significantly reduce labor costs, improve operational efficiency, and provide a faster payback period.
ROI Example:
- Labor savings: Businesses can save $150–$500 per day on labor due to the machine’s high efficiency.
- Reduced waste disposal costs: Thermoplastic paint produces less waste than traditional methods.
- Increased productivity: With faster application and drying times, businesses can complete more projects in less time.
The typical payback period for a thermoplastic road marking machine is around 15–40 days, depending on the scale of operations and the volume of work. This rapid ROI makes thermoplastic machines a highly profitable investment for contractors and municipal road departments.
Applications of Thermoplastic Road Marking Paint Machines
They are ideal for use in a variety of industries:
- Road Construction and Maintenance: They are widely used for marking highways, expressways, and urban roads due to their durability and visibility.
- Parking Lots and Traffic Areas: Parking lot line marking and traffic lanes can be marked quickly and efficiently, with minimal downtime.
- Airports and Runways: High-visibility markings are crucial in airports, and thermoplastic road marking machines provide just that, ensuring safety for aircraft movements.
- Industrial Applications: For factory floors, warehouses, and distribution centers, thermoplastic machines create durable markings that help with organization and safety.
These machines are designed to provide both high efficiency and longevity, making them essential for large-scale projects that require consistent, high-quality line marking.
If you require a more economical cold paint road marking machine, we can also provide one for you; please contact us for details.

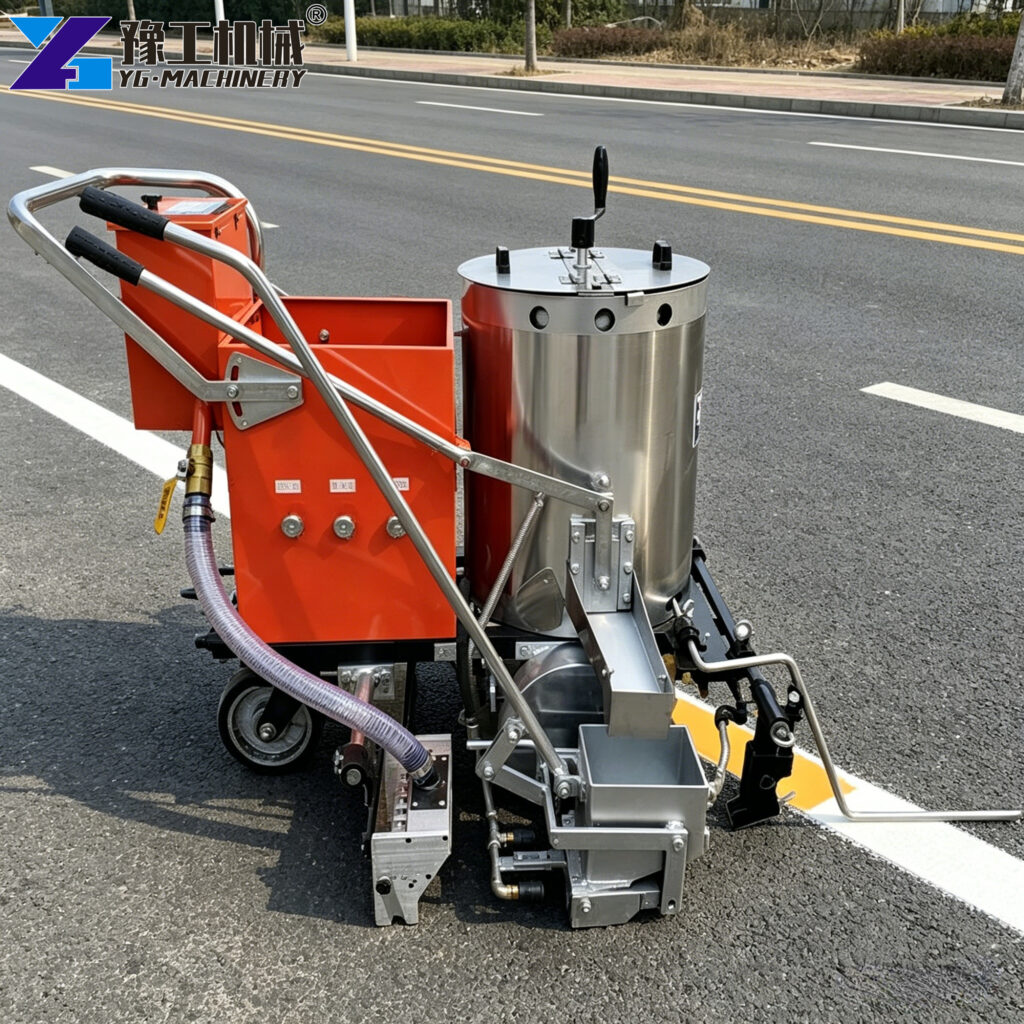

Thermoplastic Road Marking Machine Price
The price of a thermoplastic road marking machine depends on several factors, including the machine’s capacity, features, and the power source (electric or diesel). Here is an estimate of the price range:
- Regular Models: $2,200 – $6,500
- Industrial Models: $6,500 – $15,000+
ROI and Payback Period:
The investment in a thermoplastic road marking machine typically pays off in 15–40 days. Given the labor savings, faster job completion, and longer-lasting road markings, it is clear that the initial cost of the machine is quickly offset by the ongoing operational savings.
FAQ: Thermoplastic Striping Equipment
Q: The machine frequently clogs duringQ: The machine keeps clogging during operation, causing delays. How can I prevent this?
Clogging usually happens when leftover material hardens inside the hopper, hoses, or die. To avoid this problem:
- Clean the hopper and die immediately after each use
- Melt the material gradually to prevent overheating
- Use high-quality thermoplastic beads without contaminants
- Perform regular burn-out cleaning to remove carbon buildup
Q: My line markings look uneven or have gaps. What causes this?
Uneven markings often come from inconsistent material flow or incorrect application settings. Check the following:
- Keep the material temperature within 180–220°C (depending on the material)
- Inspect the die or nozzle for partial blockages
- Maintain a steady pushing speed during application
- Work on a relatively even surface whenever possible
- Remove any air trapped in the hydraulic or pneumatic system
Q: The machine takes too long to heat up. How can I reduce downtime?
Slow heating usually points to equipment or maintenance issues:
- Replace worn or low-performance heating elements
- Improve insulation around the melting tank
- Check that your voltage supply remains stable
- Remove material buildup inside the tank to improve heat transfer
Regular inspection and cleaning will significantly shorten warm-up time.
Q: We experience material waste and inconsistent consumption. How can we improve efficiency?
Material waste often comes from poor setup or operator habits. Focus on these areas:
- Maintain proper temperature (too hot causes degradation; too cold reduces flow)
- Adjust the die height and tilt angle correctly
- Keep a consistent application speed
- Use stable, high-quality thermoplastic materials
Train your operators and fine-tune temperature and flow settings to achieve better consistency.
Q: How can I reduce wear on the die and other key components?
Several factors accelerate wear:
- Low-quality materials with abrasive particles
- Dragging the die across rough surfaces
- Lack of lubrication on moving parts
- Skipping daily cleaning
Use clean materials, lift the die when not marking, and follow a strict maintenance routine.
Q: Our operators struggle to use the machine consistently. How can we simplify the operation?
You can improve consistency by standardizing both training and workflow:
- Train operators on startup, temperature control, and shutdown procedures
- Choose machines with intuitive controls and preset temperature options
- Use a simple pre-operation checklist
- Standardize speed and die settings for common projects
Clear processes and user-friendly controls make a big difference.
Q: What mistake most often leads to major machine failures?
The most common mistake is skipping post-job cleaning.
Thermoplastic hardens quickly after cooling. If operators leave material inside the system, it can:
- Block hoses
- Seize pumps
- Damage heating components
A quick 10-minute cleanup after each job can prevent expensive repairs and downtime.
Contact YG Machinery for Your Thermoplastic Striping Machine
If you’re looking for a reliable, high-performance thermoplastic road marking machine, thermoplastic striping machine, or any other related road marking solution, YG Machinery is your best choice. With our high-quality products and exceptional customer service, we can help you complete your road marking projects efficiently and cost-effectively.
Key Reasons to Choose YG Machinery:
- Affordable pricing with high-quality results
- Durable, long-lasting products for reduced maintenance costs
- Comprehensive after-sales support and technical assistance
- Wide range of machines suitable for different project sizes and requirements
Contact YG Machinery today for expert advice and competitive pricing on thermoplastic road marking machines.
