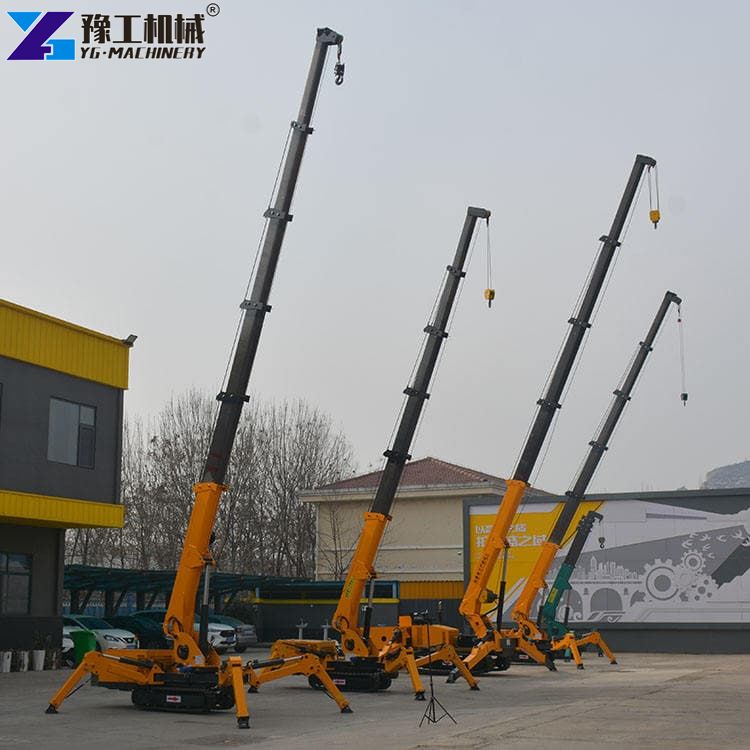

A mini spider crane combines heavy-duty lifting capacities up to 8 tons with an ultra-compact crawler chassis, allowing steel erectors, glazing specialists, and plant engineers to handle heavy loads inside restricted spaces. Featuring multi-position spider outriggers that distribute weight across floor slabs, these compact cranes navigate narrow corridors, residential doorways, and sensitive indoor tiles without causing structural damage. Driven by smooth hydraulic motor systems, operators transport these machines through tight site entrances to execute high-reach lifting up to 18 meters above ground level. YG Machinery builds these mini tracked cranes with 5-section pentagonal boom structures, continuous 360-degree slew systems, and optional wireless remote controls, enabling project managers to boost daily installation speeds while cutting labor costs across complex job sites.
The responsive hydraulic system ensures micro-positioning accuracy during delicate glass curtain wall placement or structural beam installation. Compact rubber tracks deliver excellent 360-degree maneuverability and 20-degree gradeability, allowing crews to access rooftops, sub-basements, and uneven outdoor terrain effortlessly.
Start Your Project with the Right Equipment
What Is a Spider Crane and When Should It Be Used Instead of a Larger Crane?
A spider crane is a compact, crawler-mounted lifting machine featuring four adjustable spider-like outriggers that stabilize the chassis in restricted spaces where standard mobile cranes cannot operate. You should use a spider crane instead of a larger crane whenever access routes are narrower than 1.6 meters, jobsite floor load limits prohibit heavy machinery, or indoor overhead clearances restrict large boom movements.
- Low Floor Loading Limits: Distributes total operating weight (from 2700kg on 3t models) across wide outrigger footprints to prevent concrete slab cracking.
- Tight Access Passage: Compact transport widths starting at just 980mm allow easy movement through double doorways and interior hallways.
- Confined Space Stability: Independent outrigger angle and length settings secure the rig on stairs, sloped ramps, and tight building corners.
- Zero Overhead Obstruction: Telescopic pentagonal booms extend smoothly up to 18 meters without requiring large counterweight clearance radii.
Eliminating expensive traditional crane permits and street closures keeps urban construction contracts running smoothly on schedule. Contractors drive the compact crawler directly through the doorway to set up and begin lifting within minutes.
High-tensile steel boom construction minimizes boom flex under load, providing maximum control when handling heavy steel beams, stone slabs, and glass panels in high-rise interior spaces.
Technical Parameter Overview Across YG Mini Spider Crane
Choose a crawler crane based on your lifting capacity, working radius, and transport needs. Buying directly from YG Machinery ensures factory-tested quality, expert support, and reliable spare parts.
| Parameter Category | Specification / Parameter Item | Model YG-3 | Model YG-5 | Model YG-8 |

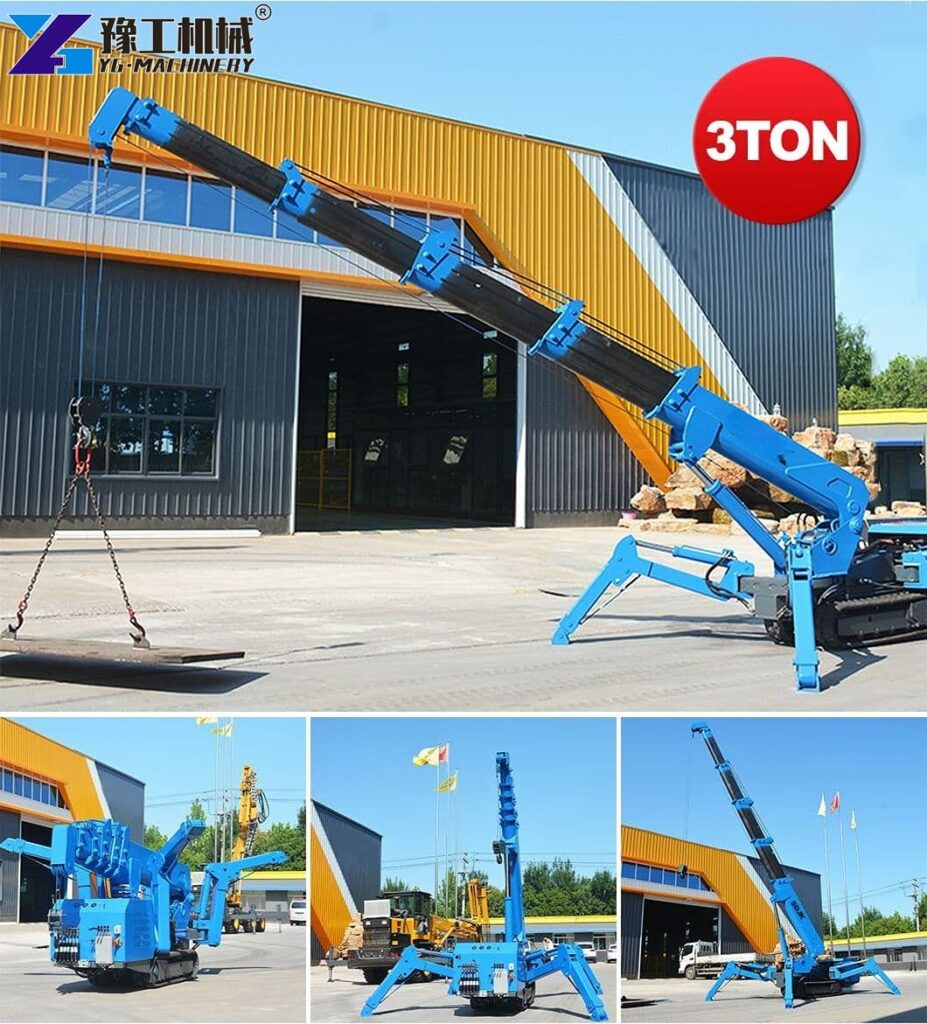

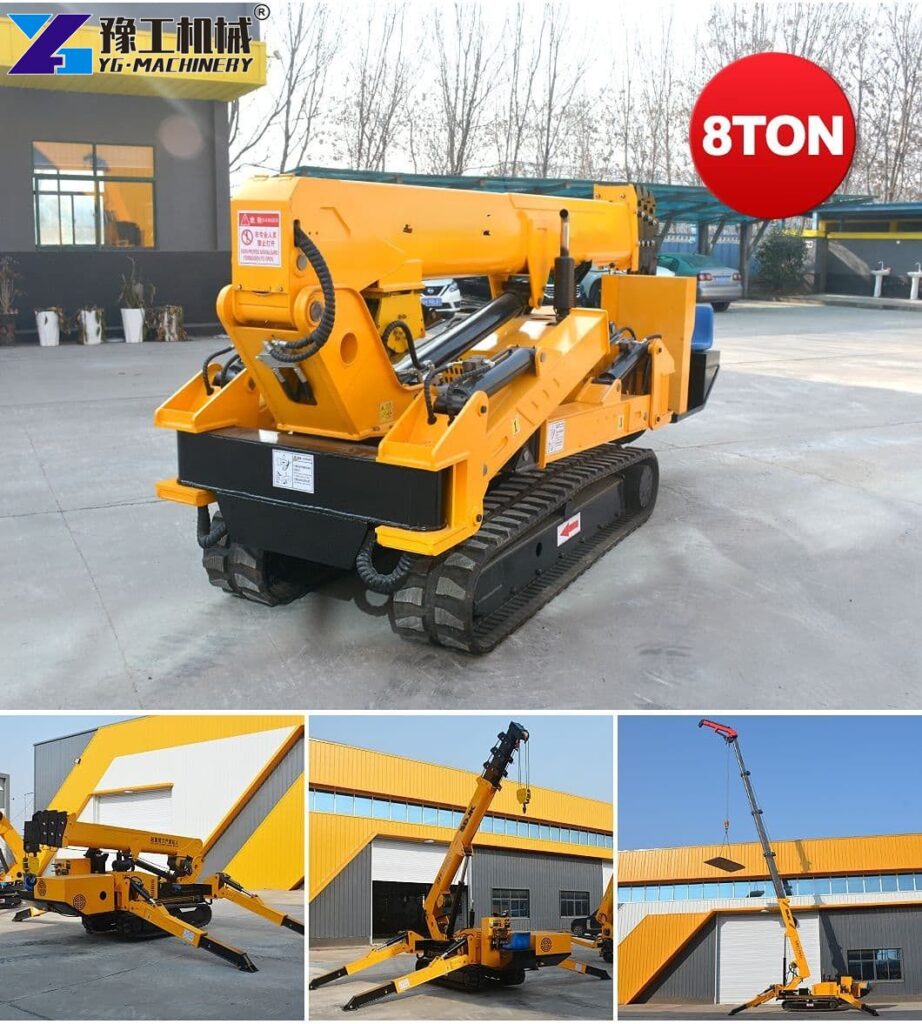

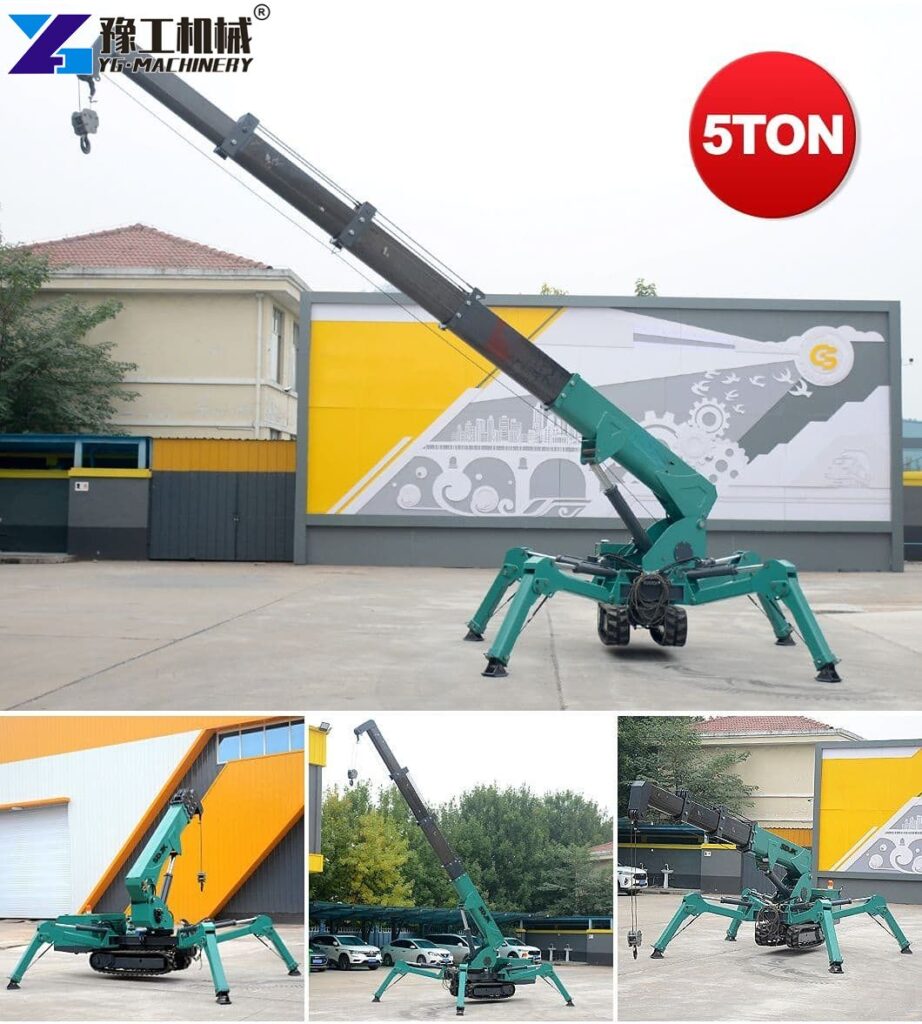

| Capacity | Rated Capacity Specification | 3 Ton | 5 Ton | 8 Ton |
| Working Range | Maximum Working Radius | 8.83 m × 0.15 t | 14 m × 0.5 t | 16.5 m |
| Lifting Reach | Max Above-Ground Head Height | 9.9 m × 0.7 t | 16.8 m | 18 m |
| Winch System | Hook Speed (4 Rope) | 0 – 8 m/min | 12 m/min | 12 m/min |
| Wire Rope Diameter & Length | φ8 mm × 45 m | φ11 mm × 80 m | φ11 mm × 80 m | |
| Telescopic Boom | Boom Type | 5-Section Pentagonal | 5-Section Pentagonal | 5-Section Pentagonal |
| Boom Length / Extension Time | 3.1m – 9.2m / 20 sec | 12.3 m / 54 sec | 12.3 m / 54 sec | |
| Boom Angle | Boom Angle Range / Elevation Time | 0° – 78° / 13 sec | 0° – 78° / 13 sec | 0° – 78° / 13 sec |
| Slew System | Slew Angle Range / Speed | 0 – 360° / 60 sec | 0 – 360° / 38 sec | 0 – 360° / 38 sec |
| Traction System | Walking Drive Mechanism | Hydraulic Motor | Hydraulic Motor | Hydraulic Motor |
| Walking Travel Speed | 0 – 2.5 km/h | 0 – 2.5 km/h | 0 – 2.5 km/h | |
| Gradeability | 25° (36%) | 25° (36%) | 25° (36%) | |
| Operating System | Boom & Outrigger Operation | Manual (Remote Option) | Manual (Remote Option) | Manual (Remote Option) |
| Travel Control Characteristics | Manual / Remote Control | Manual / Remote Control | Manual / Remote Control | |
| Transport Specs | Overall Dimensions (LWH) | 2950 * 980 * 1560 mm | 5000 * 1500 * 1900 mm | 5000 * 1600 * 2180 mm |
| Machine Weight | Total Operating Weight | 2700 kg | 6200 kg | 7200 kg |
Compare Models and Get a Quote
YG Machinery crawler cranes feature high-torque winches, reliable lock valves, and user-friendly controls for dependable performance.
Optional Attachments & Configuration Upgrades:
To enhance versatility for specialized hoisting jobs, all YG mini spider cranes support modular optional attachments:
- Fly Jib (Searcher Hook): Extends working radius and reach under low-hanging eaves, ceiling beams, and balcony overhangs.
- Man Basket (Aerial Work Platform): Converts the crane into a stable aerial lift for overhead lighting, HVAC installation, and indoor maintenance.
- Glass Vacuum Lifter: Integrates with the remote hydraulic system for precise, scratch-free glass curtain wall positioning.
- Non-Marking Rubber Tracks: Protect interior marble, tile, epoxy, and wood flooring from scuffs during indoor navigation.
Boost Productivity—Get a Free Quote

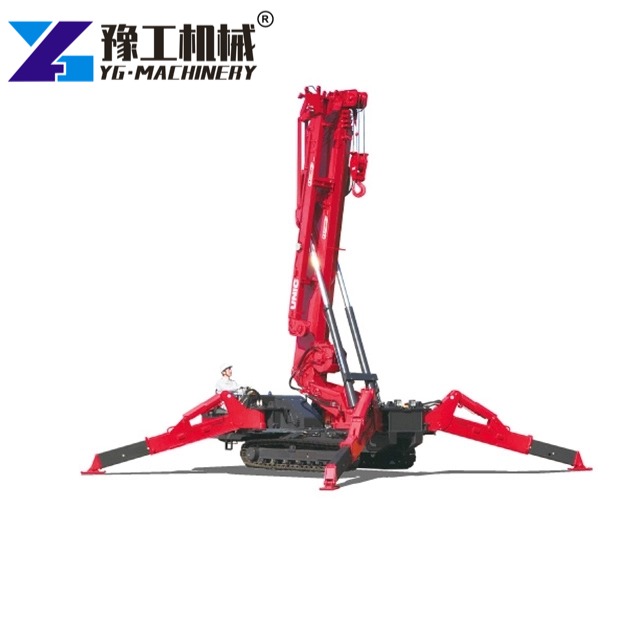

Why Invest in an Industrial Spider Crane for Sale?
Securing a premium spider crane for sale gives glazing companies, general contractors, and steel erection teams full operational independence without relying on expensive rental machinery.
- Reduced Project Overhead: Eliminates recurring rental fees, mobilization surcharges, and costly idle machinery penalties during project delays.
- Streamlined Jobsite Logistics: Machine weights starting from 2700 kg allow easy trailer transport behind standard commercial pickup trucks.
- Expanded Bidding Capabilities: Enables your team to bid on complex indoor atrium glass installations, rooftop HVAC placements, and basement retrofits.
- Rapid Capital Payback: Completes job site tasks faster with smaller installation crews, recovering initial equipment costs across initial projects.
Investing in tracked mini cranes expands your contract scope while keeping transportation costs and jobsite footprint down to absolute minimums.
How Does a Versatile Mini Crawler Crane Increase Jobsite Productivity?
Deploying a high-precision mini crawler crane boosts project speed by simplifying heavy material handling across tight access paths and challenging indoor layouts.
- Continuous 360-Degree Slewing: Full rotational capability speeds up load transfers without repositioning the crawler base.
- Fast Boom Extension Systems: Telescopic pentagonal booms extend out to full working lengths in under 55 seconds, reducing setup downtime.
- Proportional Remote Control: Optional wireless remote control consoles allow operators to stand next to installation points for pinpoint positioning.
- Multi-Tasking Attachment Adaptability: Installing an optional fly jib or man basket allows operators to switch seamlessly between heavy beam hoisting, glass fitting, and high-altitude personnel maintenance.
High-torque hydraulic drive motors navigate 25-degree slopes easily, allowing crews to position equipment on underground parking ramps and terraced sites effortlessly.
Compact Spider Crane Case Study: High-Rise Atrium Glazing Project in Chicago
The Operational Challenge
A commercial glazing contractor in Chicago secured a contract to install 85 heavy double-glazed curtain wall panels (weighing 550 kg each) inside a 5-story commercial atrium. The only site access was a narrow 1.2-meter interior side corridor, and floor loading limits were capped at 3.0 kN/m². The project schedule allowed only 8 days for total installation.
The Equipment Solution
The contractor purchased a YG-3 model mini crawler crane from YG Machinery fitted with an optional searcher hook (fly jib) and non-marking rubber tracks. Featuring a compact 980mm transport width, 2700kg total weight, 9.9m max reach, and independent outriggers, the crane passed through the narrow hallway easily and set up securely inside the atrium.
Operational Results and Return on Investment
Deploying the compact spider crane transformed project execution:
- Rapid Completion: The installation team finished all 85 glass panels in 5 days, fully 3 days ahead of the contract deadline.
- Zero Structural Damage: Outrigger pad weight distribution and non-marking tracks protected the indoor marble flooring without cracking or surface scuffing.
- Labor Overhead Savings: Replaced manual rigging chains and scaffolding setups with one operator, saving over $18,500 in direct labor costs.
- Immediate ROI: The contractor covered nearly 40% of the equipment purchase price during this single installation job.
Find the Right Model for Your Project
Crawler Spider Crane Manufacturer-YG Machinery
Ready to elevate your tight-space lifting capabilities and cut labor expenses with high-precision mini crawler cranes? Do not let narrow access doors, low floor limits, or high machinery rental costs delay your construction contracts any longer. YG Machinery offers direct factory pricing, custom boom configurations, optional fly jib/man basket upgrades, and fast global shipping support.
Getting your personalized price quote is quick and simple—just send us your target lifting capacity, required working height, optional remote control or attachment needs, and destination port. Our technical sales team will supply an itemized quotation, engineering datasheets, and delivery schedules within 24 hours.
Contact our sales team today via email or inquiry form to claim your direct factory price quote!
FAQs About Mini Spider Cranes
A1: Adjust each outrigger’s angle and telescopic length independently until the built-in bubble level shows a perfectly balanced chassis.
A2: Yes, with a transport width of only 980 mm (Model YG-3), the machine passes easily through standard commercial double doorways.
A3: All models come standard with manual hydraulic control levers and offer an optional wireless remote control system for enhanced operator visibility.
A4: Inspect wire ropes for wear, check hydraulic oil levels daily, test outrigger limit switches, and grease boom extension slides every shift.
A5: The fly jib extends reach under overhead obstructions, while the man basket turns the crane into an aerial platform for high-rise indoor maintenance.
