An electric tank trolley moves heavy equipment across factory floors without manual effort. It uses dual gear motors with brakes and high-hardness polyurethane wheels. A wireless remote controls all movement from up to 50 meters away. The 48V lithium battery delivers 3-5 hours of continuous runtime. Q355 manganese steel plates form the chassis. Six models handle loads from 20 to 60 tons. YG Machinery builds these units at our Zhengzhou factory. Each unit includes a C6/C7 remote controller and a D2T series dual-channel driver. Buyers receive a detailed inspection report before shipping.
Electric Tank Trolley: Complete Product Specifications
We offer six models of this equipment. Each one handles a specific load capacity.
| Parameter | 20T | 25T | 30T | 40T | 50T | 60T |
|---|---|---|---|---|---|---|
| Traction Weight | 20T | 25T | 30T | 40T | 50T | 60T |
| Dead Weight | 10T | 12.5T | 15T | 20T | 25T | 30T |
| Electric Motor | 750W×2 | 750W×2 | 1000W×2 | 1200W×2 | 1500W×2 | 2000W×2 |
| Controller | D2T80A | D2T80A | D2T100A | D2T200A | D2T200A | D2T220A |
| Battery | 48V 60Ah | 48V 60Ah | 48V 60Ah | 48V 120Ah | 48V 120Ah | 48V 120Ah |
| Working Current | 60A | 60A | 60A | 120A | 120A | 120A |
| Driving Wheel | 90×135×4mm | 90×135×4mm | 90×135×4mm | 140×140×4mm | 140×140×4mm | 140×140×8mm |
| Panel Material | 10mm Q355 | 12mm Q355 | 12mm Q355 | 16mm Q355 | 16mm Q355 | 16mm Q355 |
| External Dimensions | 670×620×165 | 670×635×165 | 740×640×185 | 810×800×182 | 810×800×182 | 1110×800×185 |
| Disk Flange Diameter | 2900mm | 2900mm | 2900mm | 2900mm | 2900mm | 2900mm |
| Travel Speed | 2-10m/min | 2-10m/min | 2-10m/min | 2-10m/min | 2-10m/min | 2-10m/min |
Start Your Project with the Right Equipment
Common Specifications:
- Remote Controller: C6/C7 or industrial remote
- Wheel Gear: Luomingtai high-strength three-stage design
- Battery Options: Lithium ternary or LiFePO4
- Charging Current: 54.6A
- Drive System: Dual gear motors with brakes
- Flange Gear Options: 104 or 120
We provide free load assessment and model recommendation based on your equipment weight and travel distance.
Electric Tank Trolley Video

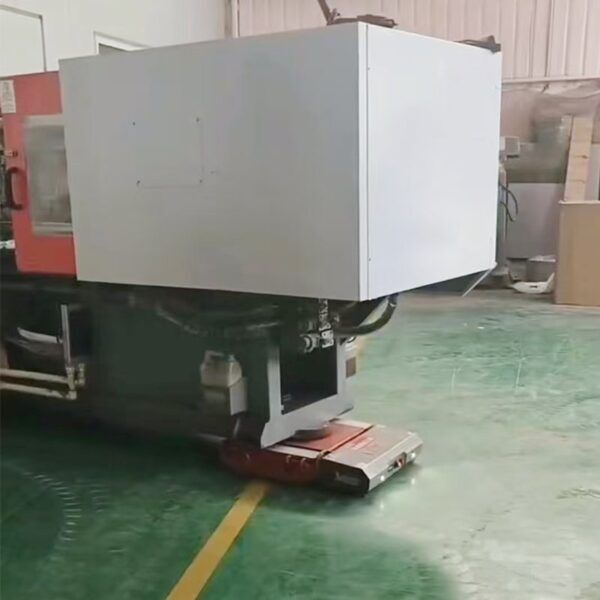

What Is an Electric Machinery Moving Dolly and How Does It Work?
An electric machinery moving dolly is a motorized platform that carries heavy loads across flat surfaces. The dual gear motors with brakes power high-hardness polyurethane wheels. The operator controls movement with a wireless remote. The battery supplies energy to the motors. The motors turn the wheels and move the load.
The user positions the dolly under the equipment. The Q355 manganese steel plate supports the weight. The disk flange adds stability. The operator drives to the destination at 2-10 m/min. The 48V battery provides 3-5 hours of continuous operation. One worker moves 60 tons without physical effort.
Boost Productivity—Get a Free Quote

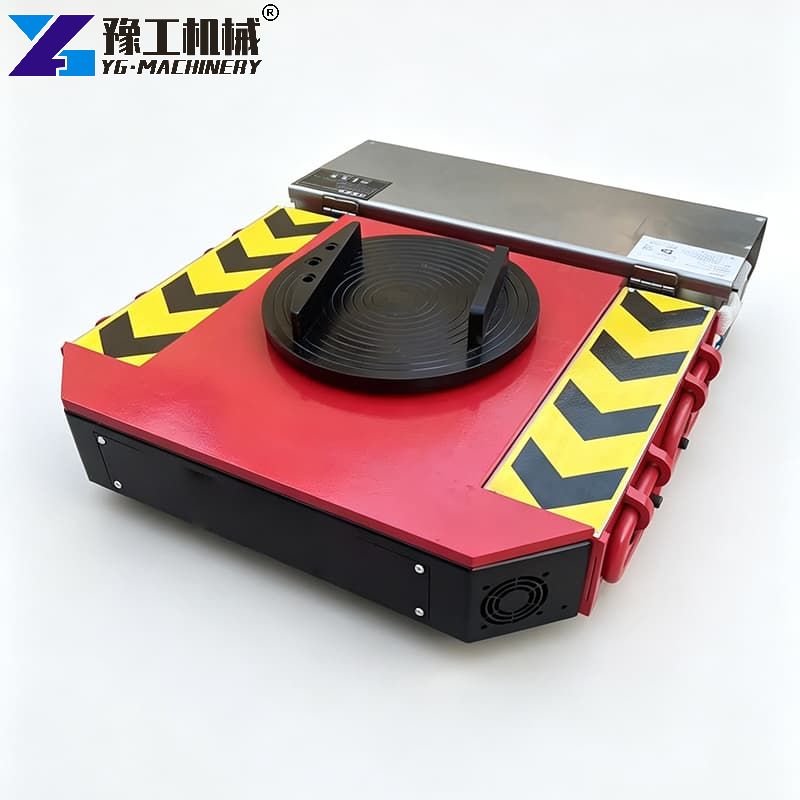

What Makes Battery Powered Machine Skates Different?
Battery powered machine skates from YG offer distinct advantages over manual skates and forklifts.
- 1. Remote control operation. The operator controls the machine from a safe distance. The C6/C7 remote controller provides precise movement. No physical pushing or pulling. No risk of crushing injuries.
- 2. High-capacity battery. The 48V lithium battery delivers 3-5 hours of runtime. The 60Ah or 120Ah capacity handles full-shift operation. Lithium ternary or LiFePO4 options are available.
- 3. Heavy-duty construction. The Q355 manganese steel plate withstands heavy loads without bending. The 10- 16 mm thickness varies by model. The material is stronger than standard steel.
- 4. Imported polyurethane wheels. The high-hardness wheels resist wear. They do not mark floors. The 90×135×4mm to 140×140×8mm sizes support loads without deforming.
- 5. Dual motor design. Two gear motors provide balanced power. The 750W to 2000W motors handle steep gradients and heavy loads. The brakes hold the load securely when stopped.
- 6. Three-stage gear system. The Luomingtai high-strength gears provide smooth, reliable power transmission. The three-stage design reduces wear and extends service life.
Find the Right Model for Your Project
What Is the Remote Control Electric Transporter Load Capacity?
A remote control electric transporter from YG comes in six load ratings. The 20T model handles 20-ton loads. The 25T model handles 25 tons. The 30T model handles 30 tons. The 40T model handles 40 tons. The 50T model handles 50 tons. The 60T model handles 60 tons.
The dead weight increases with capacity. The 20T unit weighs 10 tons. The 60T unit weighs 30 tons. This weight provides stability and traction. The disk flange diameter is 2900mm across all models. This standardization means the same accessory fits all units.
The travel speed is adjustable from 2 to 10 m/min. The battery life ranges from 3-5 hours depending on the load and terrain.

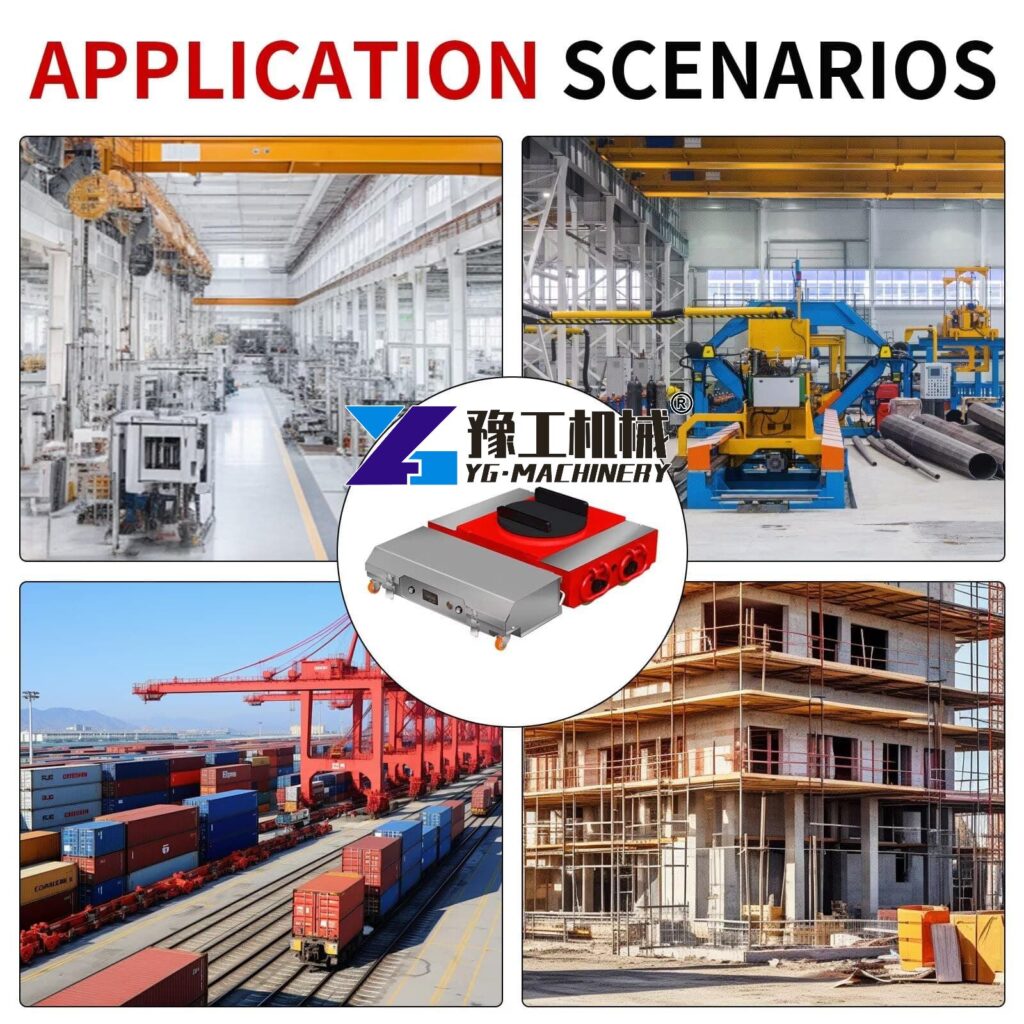

Where Does the Electric Tank Trolley Work?
Electric tank trolleys from YG find use across many industries.
- Power plants. Transformers, generators, and turbines need positioning. The 60T model handles the heaviest components. One operator moves a 50-ton transformer across the turbine hall. No crane required. No floor damage.
- Manufacturing facilities. Heavy presses, stamping machines, and injection molding equipment need repositioning. The 25T and 30T models suit most factory installations. A metal stamping plant in Ohio moved a 28-ton press into a new cell in 4 hours. Manual skates took 2 days.
- Shipyards. Large marine equipment and components require precise movement. The 50T and 60T models handle propeller shafts and engine blocks. A Korean shipyard uses a 60T unit to position shaft sections within ±2mm.
- Data centers. Generators and UPS systems need installation. The 20T model fits through standard doorways and elevator access. A data center in Virginia installed four 18-ton generators using a 20T unit in 6 hours.
- Construction sites. Heavy equipment like compressors and generators move between locations. The compact 20T unit is portable enough for construction use. The 10-ton dead weight stays within standard crane capacity.
- Transformer substations. Power transformers weighing 40-50 tons need positioning. The 40T and 50T models provide the required capacity. A substation in Texas used a 50T unit to install two 45-ton transformers in a single shift.
What Are the Key Safety Features?
The electric tank trolley includes multiple safety features.
- Emergency stop button. The remote control has a prominent emergency stop button. Pressing it stops all movement instantly.
- Brake system. Each motor has a built-in brake. The brakes hold the load securely when the machine stops. No rolling on slopes.
- Low battery warning. The controller monitors battery voltage. A warning sounds when the battery is low. The operator can return to the charging station before the battery dies.
- Overload protection. The controller limits current to prevent motor damage. The machine will not move if the load exceeds capacity.
- Floor protection. The polyurethane wheels do not mark or damage floors. The material is non-marring and floor-friendly.
A Real-World Case: Power Plant Moves 50-Ton Transformer in 2 Hours
A power plant in Texas purchased a 50T electric tank trolley from YG Machinery in July 2024. The facility was replacing a 50-ton transformer that had reached the end of its service life. The transformer measured 3.5 meters tall, 4.5 meters wide, and 7 meters long. The old method used steel rollers, hydraulic jacks, and chain blocks. That process required 6 workers and took 8 hours. Steel rollers damaged the concrete floor surface every time. Repairing the floor added another $2,000 per move.
The new machine arrived with the 2000W dual motors, 48V 120Ah lithium ternary battery, and D2T200A dual-channel driver. The crew trained for one day on remote control operation and safety procedures. The 2900mm disk flange provided a stable base for the transformer. The 16mm Q355 manganese steel plate supported the weight without flexing. The Luomingtai three-stage gears delivered smooth power transmission.
On installation day, the crew positioned the trolley under the transformer using the C7 remote controller. The 140×140×4mm polyurethane wheels made no marks on the floor. The operator drove the load across the turbine hall at 5 meters per minute. The dual motors with brakes provided precise speed control. The transformer was positioned within 3mm of the target location.
The entire move took 2 hours with 2 workers. The plant saved $4,500 in labor costs and $2,000 in floor repairs. No equipment was damaged. No workers were injured. The machine paid for itself on the first job. The plant purchased two more units for other transformers and now moves 100+ tons per month without external contractors.
Frequently Asked Questions About Electric Machinery Moving Dolly
A1: The polyurethane wheels absorb minor floor imperfections. The wheels have 4mm or 8mm thickness and high hardness for consistent contact. Significant unevenness requires additional steel plates.
A2: Lithium ternary batteries have higher energy density and are lighter. LiFePO4 batteries have longer cycle life and better safety. Both options are available.
A3: The C6/C7 remote controller works up to 50 meters. Industrial controllers reach further. The signal passes through obstacles in most factory environments.
A4: Check wheel wear monthly. Inspect the battery connections. Test the remote control function. Lubricate the gear system. Total time: 20 minutes.
A5: The machine works on smooth concrete and asphalt su
A6: The turning radius depends on the load and steering angle. The dual motors allow counter-rotation for zero-radius turns. This is useful in tight factory spaces.
Ready to Choose Your Electric Tank Trolley?
We offer free consultation and load assessment. Tell us your equipment weight, travel distance, and floor conditions. We will recommend the right model.
Three ways to move forward:
- Request a quote – Get pricing within 8hours.
- Watch a test run – See the machine moving your equipment type.
- Visit our factory – Meet our engineering team in Zhengzhou.
Contact us today via WhatsApp, email, or the website form. Every machine includes a 2-year warranty and lifetime remote support.
