Traditional wall plastering relies on skilled workers with trowels and hawk boards. A good crew covers 30-40 square meters per day. The work is slow, physically demanding, and the quality depends entirely on the worker’s experience. For large projects, the schedule stretches for weeks.
A gypsum plaster spray machine changes everything. It pumps premixed material through a hose and sprays it evenly across walls and ceilings at high speed. One operator and one assistant can cover 200-300 square meters per shift. That is 5-10 times faster than hand methods. The finish is uniform. No trowel marks. No uneven thickness.

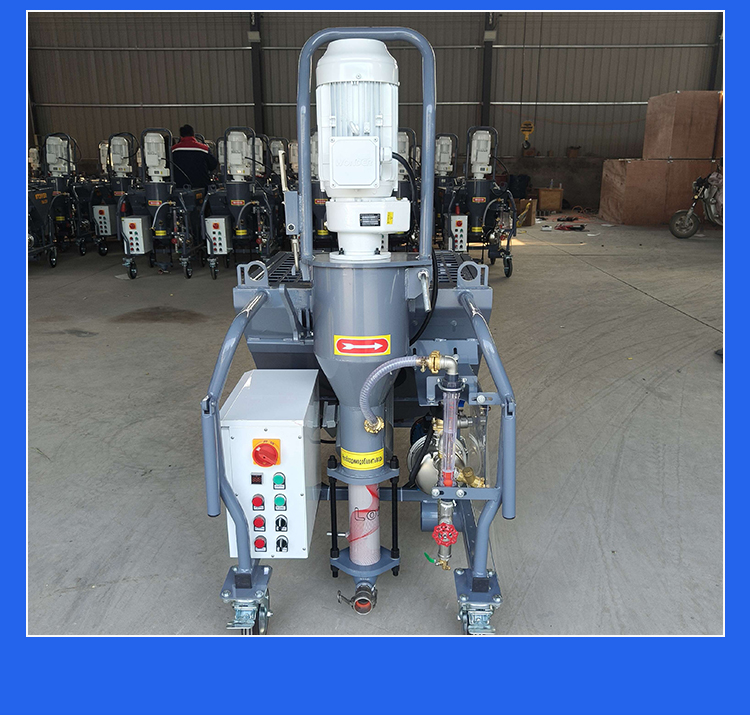

We have been building construction equipment for over 20 years. Our factory in Zhengzhou, China, produces the YG-20 entirely in-house. We machine our own pump rotors, fabricate the hoppers, and assemble each unit. Every machine undergoes a full spray test before shipping, and we provide buyers with a test video showing their unit in operation.
Gypsum Plaster Spray Machine:Product Specifications at a Glance

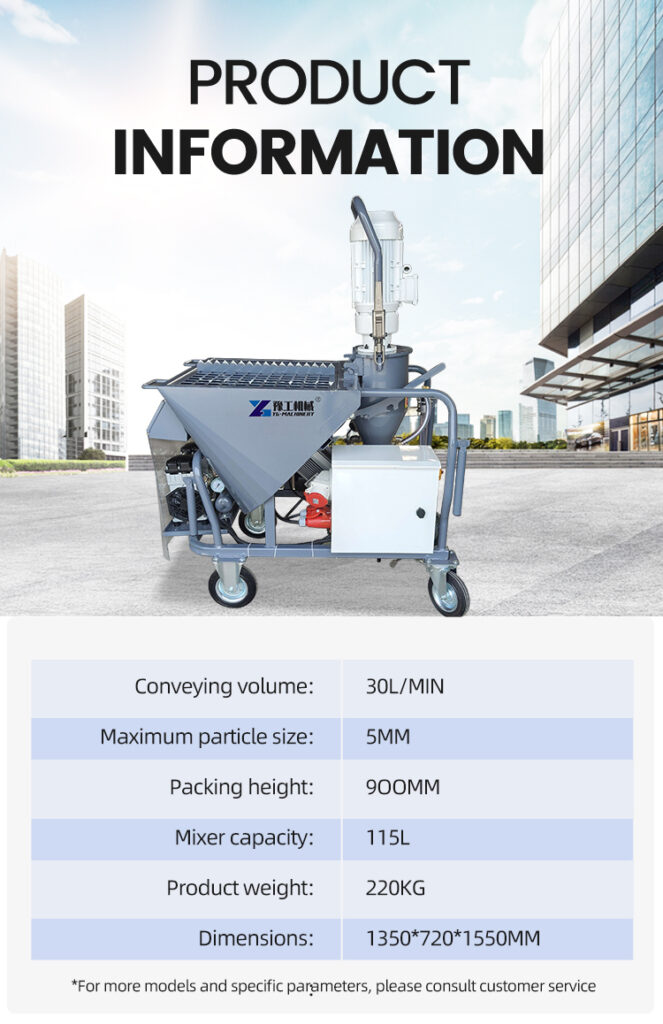

We offer the YG-20 model, designed for high-speed plaster application. The table below shows the complete specifications.
| Parameter | YG-20 Gypsum Spraying Machine |
|---|---|
| Voltage | 220V / 380V |
| Max Flow | 30 L/MIN |
| Main Power | 5.5 KW |
| Vertical Spraying | 20 m |
| Horizontal Spraying | 80 m |
| Hopper Volume | 115 L |
| Max Aggregate Size | 6 mm |
| Weight | 145 kg |
| Dimension (L×W×H) | 110×70×140 cm |
The machine handles most standard plaster mixes. The 115L hopper reduces refill frequency. The 145kg weight makes it portable across job sites. YG Machinery provides free material compatibility advice before purchase.
Boost Productivity—Get a Free Quote
How a Wall Plaster Spray Machine Saves Time and Labor
A wall plaster spray machine uses a screw pump system to move material from the hopper to the spray nozzle. The pump operates continuously, delivering a steady flow without pulsing. This consistent output means the plaster goes on evenly, every time.
Here is what the machine does for your crew:
- One operator handles the spray gun. One helper feeds the hopper and moves the hose.
- Two people cover 200-300 square meters per day. Hand troweling needs four people for the same area.
- Material waste drops by 20-30% because the spray applies a precise thickness.
- No rework from uneven application. The spray pattern is consistent from start to finish.
The spray gun includes an air compressor connection. Compressed air atomizes the plaster as it leaves the nozzle. This creates a fine, even mist that adheres well to walls and ceilings. The operator controls the spray pattern and thickness by adjusting the air pressure and gun angle.
Automatic Gypsum Spray Machine: Consistent Quality Every Time
An automatic gypsum spray machine removes the human error from plastering. Hand application depends on the worker’s arm strength, technique, and fatigue level. By the end of a shift, quality drops. The machine does not get tired.
Key advantages of the automated system:
- Uniform thickness across the entire wall. No thin spots that crack later.
- Smooth finish with no trowel marks. Ready for painting or wallpaper after drying.
- Less material waste because the spray applies exactly what you need.
- Faster drying because the material is atomized and contains less water.
The control panel lets operators adjust the flow rate. For rough base coats, use higher flow. For finish coats, reduce the flow for a thinner application. The pump maintains consistent pressure regardless of hose length. Even at 80 meters horizontal distance, the spray pattern stays stable.
What a Gypsum Plaster Sprayer Can Do
A gypsum plaster sprayer handles more than just gypsum. The machine works with a wide range of materials, making it useful for multiple jobs.
Interior wall plastering. The main application. The machine sprays gypsum plaster smoothly onto new walls or renovation projects. The finish is ready for painting in 24-48 hours.
Ceiling finishing. Spraying ceilings is difficult with hand tools. The machine reaches 20 meters vertically, making it easy to cover high ceilings without scaffolding.
Cement and lime mortar. The machine handles cement-based and lime-based mortars for exterior walls. The 6mm aggregate capacity means it processes standard mortar mixes.
Insulation and fireproof materials. Spray thermal insulation and fireproof coatings with the same equipment. The hopper and pump system handles fibrous materials without clogging.
Floor grouting. The machine pumps grout into gaps and under tiles. The high pressure pushes material into tight spaces.
Self-leveling compounds. Apply self-leveling floor compounds quickly. The spray pattern covers large floor areas before the material sets.
Real-World Applications of Gypsum Plaster Spray Machine
Construction crews use this equipment for many types of work. Here are the most common jobs.
Residential construction. A housing developer in Texas used a YG-20 to plaster 120 homes in 60 days. Each home took 4 hours for the interior walls. Hand methods would have taken 3 days per home. The project finished 6 weeks ahead of schedule.
Commercial renovation. A hotel renovation in London needed 50 guest rooms re-plastered. The contractor had 30 days. The machine covered two rooms per day, including ceilings. The hotel reopened on time.
Tunnel lining. A tunnel project in Malaysia used the machine to spray fireproof coating. The horizontal reach of 80 meters meant the crew set up once and covered long sections. No moving the machine every few meters.
School construction. A school project in Nigeria used the machine for both plaster and insulation materials. One machine did both jobs. The contractor saved the cost of renting a separate insulation sprayer.
A Real-World Case Study: 120 Homes in 60 Days
A housing developer in Austin, Texas, purchased a YG-20 in early 2023. They had a tight deadline for a 120-unit residential complex. Each unit had 600 square meters of wall and ceiling surface. Hand plastering would have required 4 crews of 4 people each, taking 3 days per unit. At that pace, the project would have taken 14 months.
With the YG-20, the developer assigned two crews of 2 people each. One crew sprayed the walls and ceilings. The other crew followed behind, troweling the surface for a final smooth finish. The machine covered one unit in 4 hours of spray time. The entire 120 units took 60 working days. The project finished 6 weeks early. The developer saved $180,000 in labor costs and avoided late completion penalties. The machine paid for itself within the first 4 weeks of the project.
Technical Features of the YG-20
The YG-20 includes several design features that improve reliability and performance.
Screw pump system. The pump uses a rotor-stator design. The rotor turns inside a rubber stator, creating chambers that move material forward. This design handles abrasive materials without excessive wear.
Variable speed control. Operators adjust the pump speed to match the material and application. Slow speed for thick materials. High speed for thin materials or large areas.

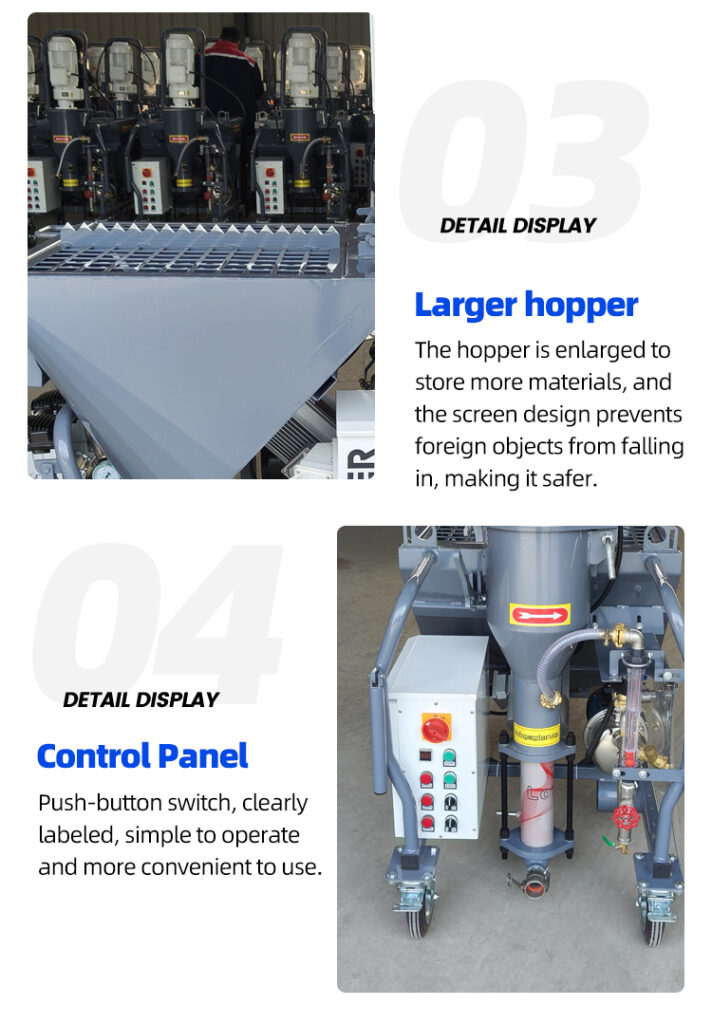

Large hopper. The 115L hopper holds enough material for 30-40 minutes of continuous spraying. Fewer refills means higher productivity.
Quick-clean design. The hopper and pump disassemble in minutes. Cleaning takes 10-15 minutes at the end of the shift. No hardened plaster left in the system.
Durable construction. The machine uses steel frames and wear-resistant pump components. The manufacturer rates the pump for 500 hours before major service.
7 FAQs About Automatic Gypsum Spray Machine
The machine handles gypsum plaster, cement mortar, lime plaster, self-leveling compounds, fireproof coatings, and thermal insulation. The maximum aggregate size is 6mm. For materials with larger aggregate, check with YG for modifications.
Two workers are sufficient for most jobs. One operates the spray gun. One feeds the hopper and manages the hose. For large projects with long hose runs, a third person helps move the hose.
The YG-20 reaches 80 meters horizontally. This covers large rooms and long corridors without moving the machine. The vertical reach is 20 meters.
The machine runs on 220V or 380V three-phase power. The 5.5KW motor draws about 25 amps at 220V. A generator with sufficient capacity works for sites without grid power.
Run water through the pump and hose. Remove the stator and rotor and rinse them separately. Clean the hopper with a hose. Total cleaning time is 15 minutes. Never let plaster dry inside the pump.
The YG-20 handles aggregate up to 6mm. For materials with larger aggregate, the machine cannot process them without modification. YG offers customized versions for larger aggregate.
The stator and rotor last 500-800 hours with proper maintenance. Check the stator for wear every 100 hours. Replace when the pump flow drops or the spray pattern becomes uneven.
Ready to Choose Your Gypsum Plaster Spray Machine?
YG Machinery offers free consultation for buyers. Tell them your project type, daily coverage requirements, and material preference. They will confirm compatibility and provide a detailed cost analysis.
Three ways to move forward:
- Request a quote – Send your project requirements. Get pricing within 24 hours.
- Watch a test run – Ask for a video of the machine spraying your material.
- Visit the factory – See production and meet the engineering team in Zhengzhou.
Contact YG Machinery today via WhatsApp, email, or the website form. Every machine includes a warranty and remote support.【WhatsApp/WeChat/Phone】+86 183 3715 2861
