Industrial drilling in complex geological environments demands unstoppable power, exceptional mobility, and rapid penetration. Standard machinery often fails when tackling hard rock, fractured strata, or steep inclines—leading to costly project delays, high fuel waste, and frequent breakdowns.
For large-scale water wells, geothermal boreholes, and mining operations, you need equipment that balances massive axial pressure with rugged all-terrain mobility. The heavy-duty Air Track Drill from YG Machinery combines high-pressure pneumatic impactors with heavy-duty tracked chassis to deliver maximum uptime in the toughest conditions.
Ready to boost your daily footage and cut operating costs? Explore our high-performance pneumatic track drills below or get an instant factory quote today!
Boost Productivity—Get a Free Quote
Technical Parameters of YG High-Pressure Air Track Drill Fleet
| Technical Specifications | Model: YG-180 | Model: YG-200 | Model: YG-260 | Model: YG-300 | Model: YG-350 |
| Maximum Drilling Depth | 180 meters | 200 meters | 260 meters | 300 meters | 350 meters |
| Drilling Hole Diameter | 90 – 315 mm | 90 – 315 mm | 90 – 315 mm | 90 – 315 mm | 90 – 315 mm |
| Engine Rated Power | 58 KW | 65 KW | 76 KW | 85 KW | 92 KW |
| Working Wind Pressure | 1.7 – 3.0 Mpa | 1.7 – 3.0 Mpa | 1.7 – 3.0 Mpa | 1.7 – 3.0 Mpa | 1.7 – 3.3 Mpa |
| Compressor Air Consumption | 17 – 35 m³/min | 17 – 35 m³/min | 17 – 35 m³/min | 17 – 35 m³/min | 17 – 35 m³/min |

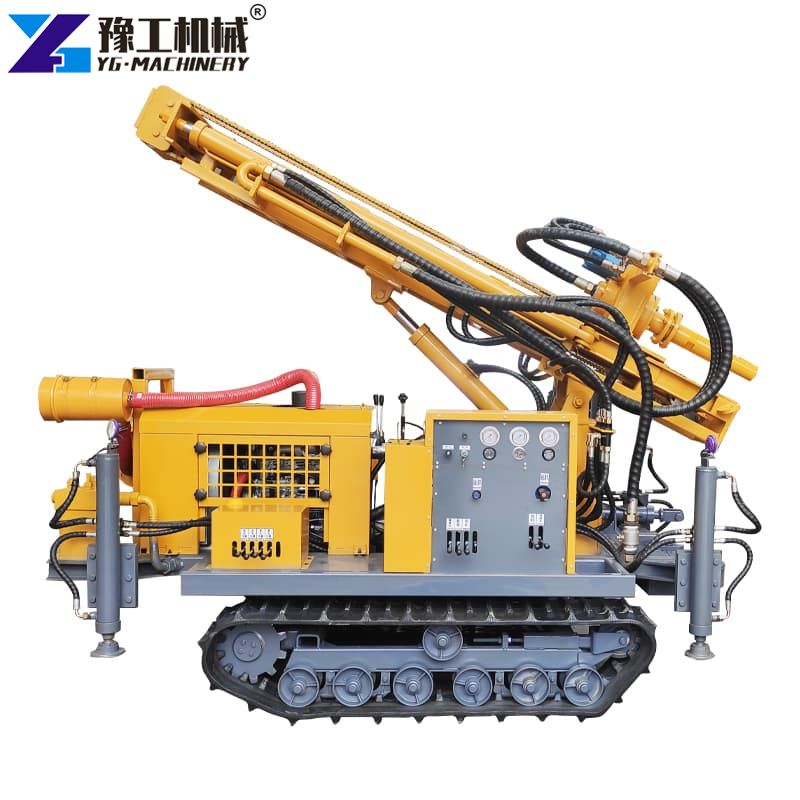

| Maximum Lifting Force | 14 Tons | 15 Tons | 16 Tons | 17 Tons | 25 Tons |
| Maximum Axial Pressure | 4 Tons | 5 Tons | 7 Tons | 8 Tons | 10 Tons |
| Maximum Swing Torque | 4500-6500 Nm | 4900-6900 Nm | 5400-7400 Nm | 7200-8500 Nm | 8800-9500 Nm |
| Rotational Head Speed | 50 – 70 r/min | 50 – 70 r/min | 50 – 70 r/min | 50 – 115 r/min | 50 – 115 r/min |
| Drill Pipe Diameter | 76 / 89 mm | 76 / 89 mm | 76 / 89 mm | 76 / 89 mm | 76 / 89 / 102 mm |
| Drill Pipe Unit Length | 3 meters | 3 meters | 3 meters | 3 / 6 meters | 3 / 6 meters |
| Crawler Travel Speed | 2.5 km/h | 2.5 km/h | 2.5 km/h | 2.5 km/h | 2.5 km/h |
| Crawler Climbing Angle | 35° | 35° | 35° | 35° | 35° |
| Total Equipment Weight | 4 Tons | 4.5 Tons | 5 Tons | 7.5 Tons | 9 Tons |
| Physical Dimensions | 3.91.72.2 m | 3.91.72.2 m | 4.01.72.2 m | 4.31.82.7 m | 4.51.92.7 m |
Find the Right Model for Your Project
5 Strategic Operational Benefits of Selecting a Top-Tier Crawler Drill Machine
Deploying this crawler drill machine brings immediate competitive advantages to your job site, especially when balancing project deadlines and operational overhead. These heavily armored units deliver immense industrial value by resolving the most common logistical, structural, and mechanical bottlenecks found in traditional truck-mounted configurations.
- Superior All-Terrain Mobility: The heavy-duty tracks distribute weight evenly across loose soil, mud, and sand. They confidently climb steep inclines up to 35 degrees, reaching remote mountainous areas where standard wheeled utility vehicles cannot legally or physically travel.
- Massive Penetration Efficiency: Operating with a working wind pressure up to 3.3MPa, these units utilize high-pressure pneumatic impactors to crush hard granite, limestone, and basalt rapidly. This delivers a significantly faster drilling rate than traditional rotary mud systems.
- Exceptional Structural Stability: The robust base creates a solid, self-supporting, low center of gravity. This minimizes mechanical vibrations during heavy boring, ensuring perfect alignment and preventing borehole deviation in fractured strata.
- Deep Strata Capability: Do not let tough geological layers restrict your operational goals. With a maximum depth capability extending up to 350 meters, the fleet easily taps into deep, high-yield aquifers and stable geothermal zones.
- Setup Time Reduction: The self-propelled design allows operators to drive the equipment directly off the transport trailer and begin boring within minutes, eliminating the long setup times associated with stabilizing jacks.
Diverse Heavy-Duty Fields: Where Our Hydraulic Crawler Drill Dominates
Every heavy industrial project features distinct geological hurdles, which is why this hydraulic crawler drilling rig is engineered for maximum operational flexibility across multiple commercial applications. Our factory designs these high-pressure pneumatic systems to adjust seamlessly to various rock formations, ensuring you achieve the best return on investment.

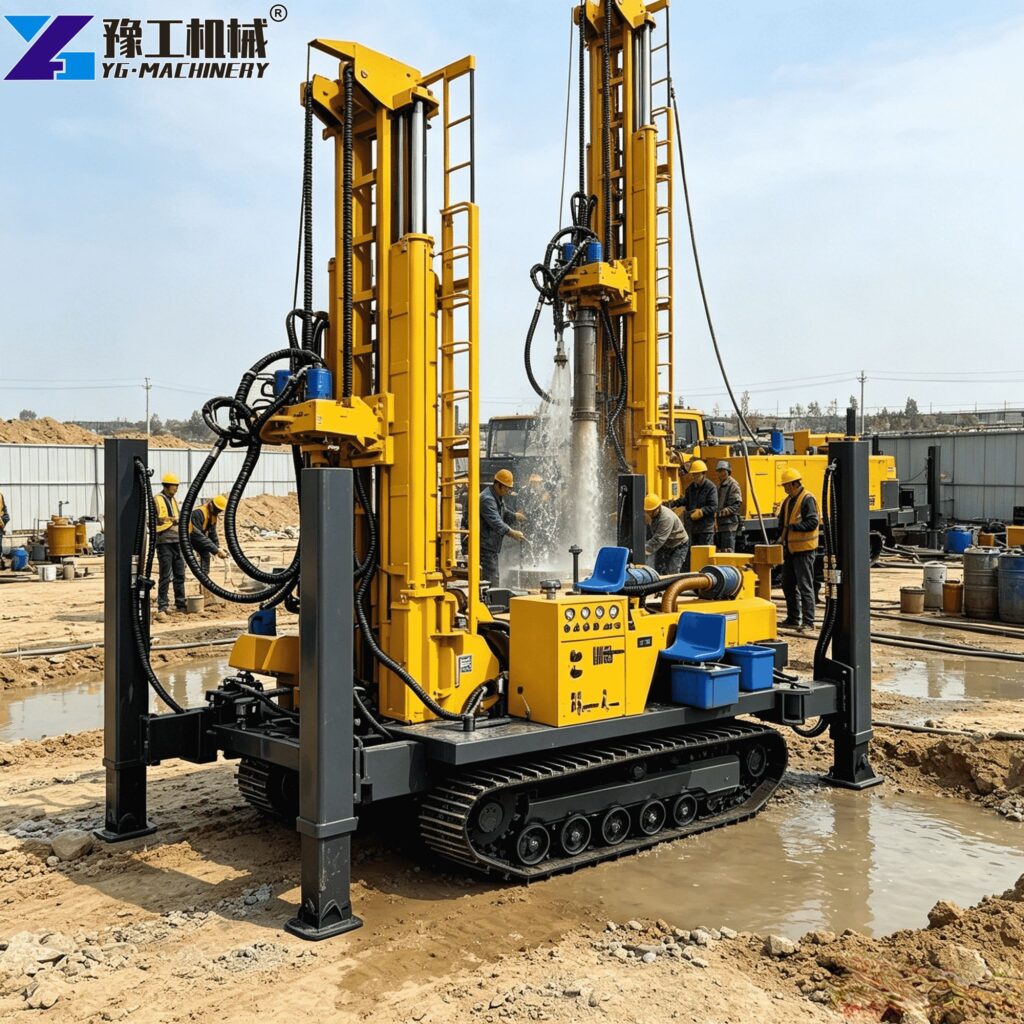

Deep Water Well Construction and Aquifer Tapping
Commercial water exploration requires reaching deep, stable water sources beneath thick rock layers. These heavy units handle diameters ranging from 90mm to 315mm, making them ideal for installing large-diameter steel or PVC casings. They easily blast through hard rock caps to secure high-volume water flows for municipal grids, industrial plants, and massive agricultural estates.
Geothermal Loop Installation and Energy Boring
Geothermal energy systems require drilling numerous deep boreholes across a single site to install heat exchange loops. The rapid travel speed of 2.5km/h combined with an efficient automatic pipe handling layout allows operators to move from one borehole to the next with minimal delay, making high-volume production schedules highly profitable.

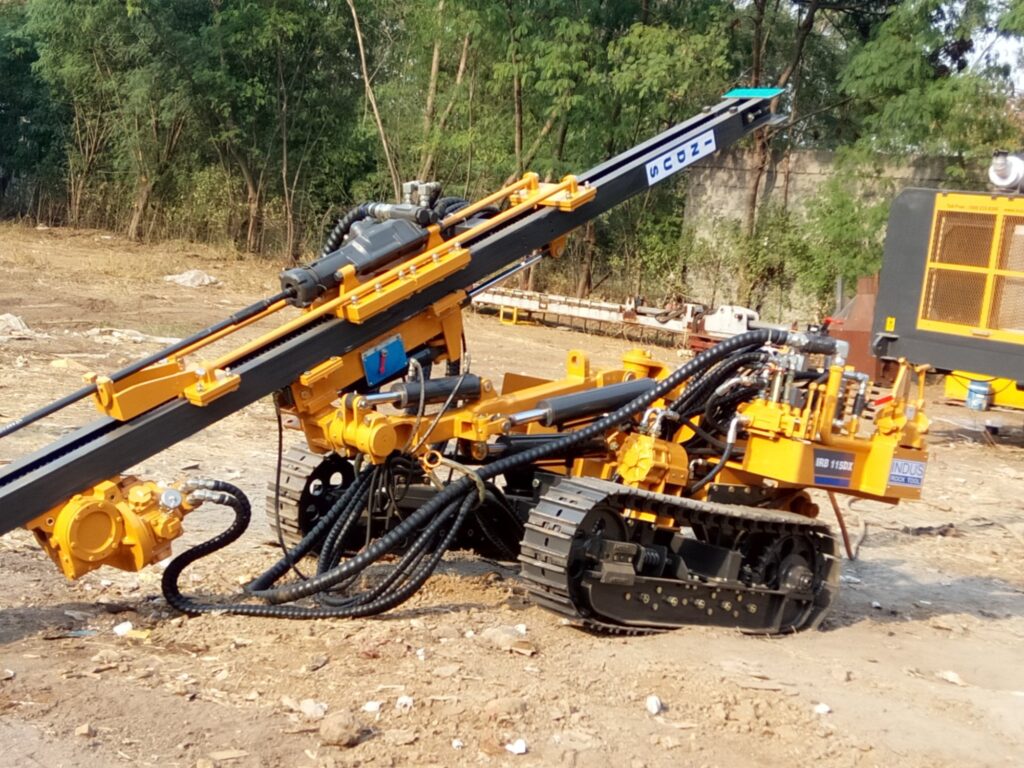

Open-Pit Mining and Blast Hole Creation
In quarrying and mining operations, creating highly uniform blast holes is essential for controlled rock fragmentation. The immense axial pressure, reaching up to 10T on top-tier models, ensures continuous, straight boring through highly abrasive rock, enabling blasting crews to maintain a strict production schedule.
Infrastructure Foundation and Anchor Engineering
Large engineering projects, including highway retaining walls, mountain tunnels, and dam foundations, require deep structural anchoring. These flexible tracked chassis allow operators to position the heavy mast at precise angles, delivering reliable stabilization holes in unstable mountain slopes or rugged construction zones.

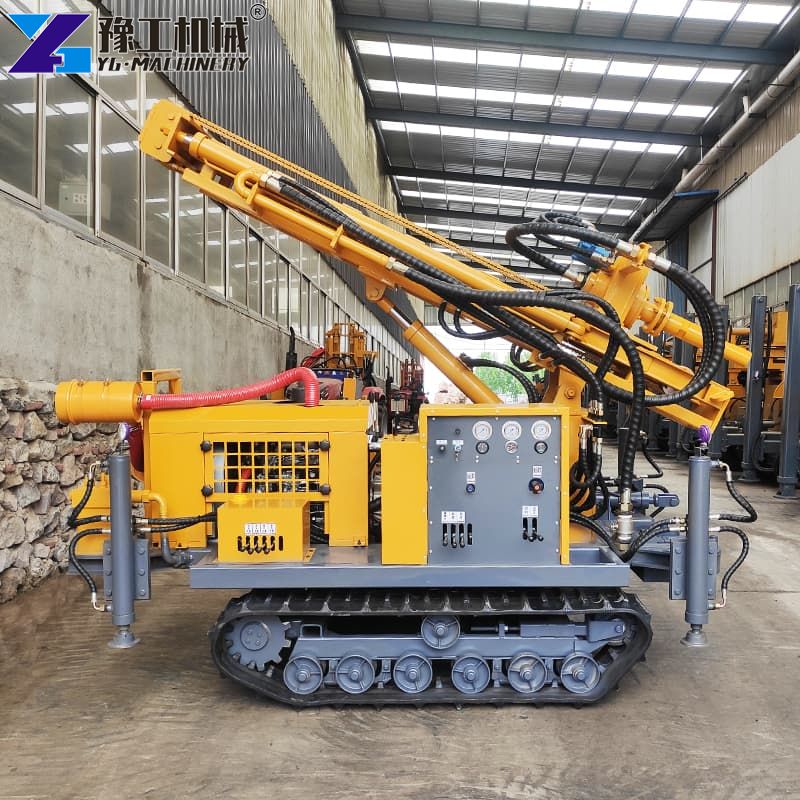

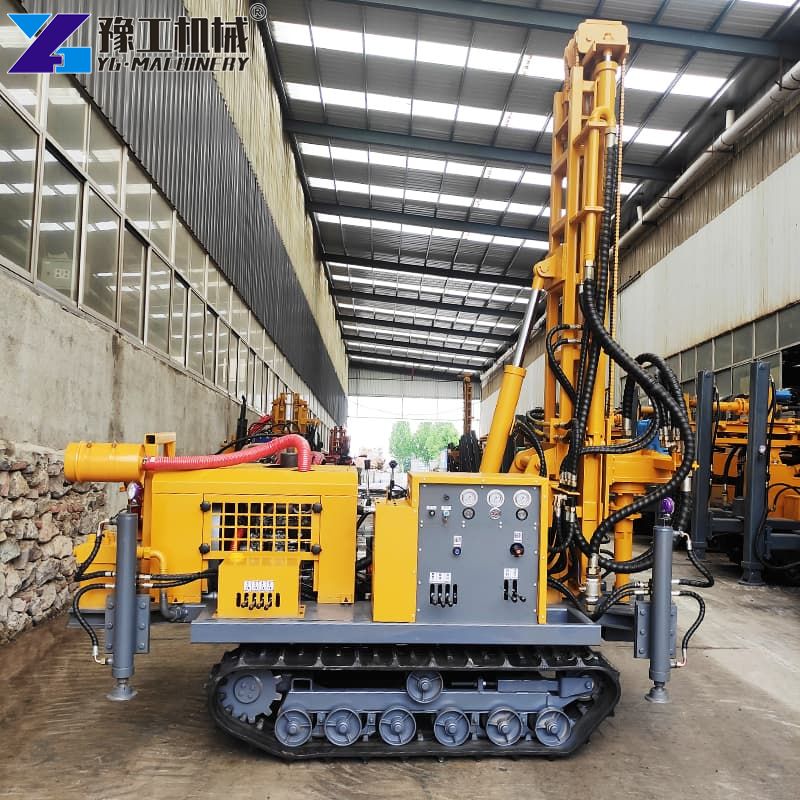

Advanced Manufacturing Features of the Heavy Air Track Drill
When procurement managers invest in industrial assets, mechanical durability, factory quality control, and component reliability are non-negotiable. At YG Machinery, we integrate decades of heavy industrial manufacturing experience with premium steel alloys to produce systems that operate reliably under extreme structural loads.
- High-Output Turbocharged Diesel Engines: The foundational power source relies on customized industrial engines, ranging from 58KW up to a massive 92KW. These powerhouses deliver exceptional fuel efficiency and continuous torque output, driving the dual pumps smoothly even when operating at maximum pneumatic wind pressure.

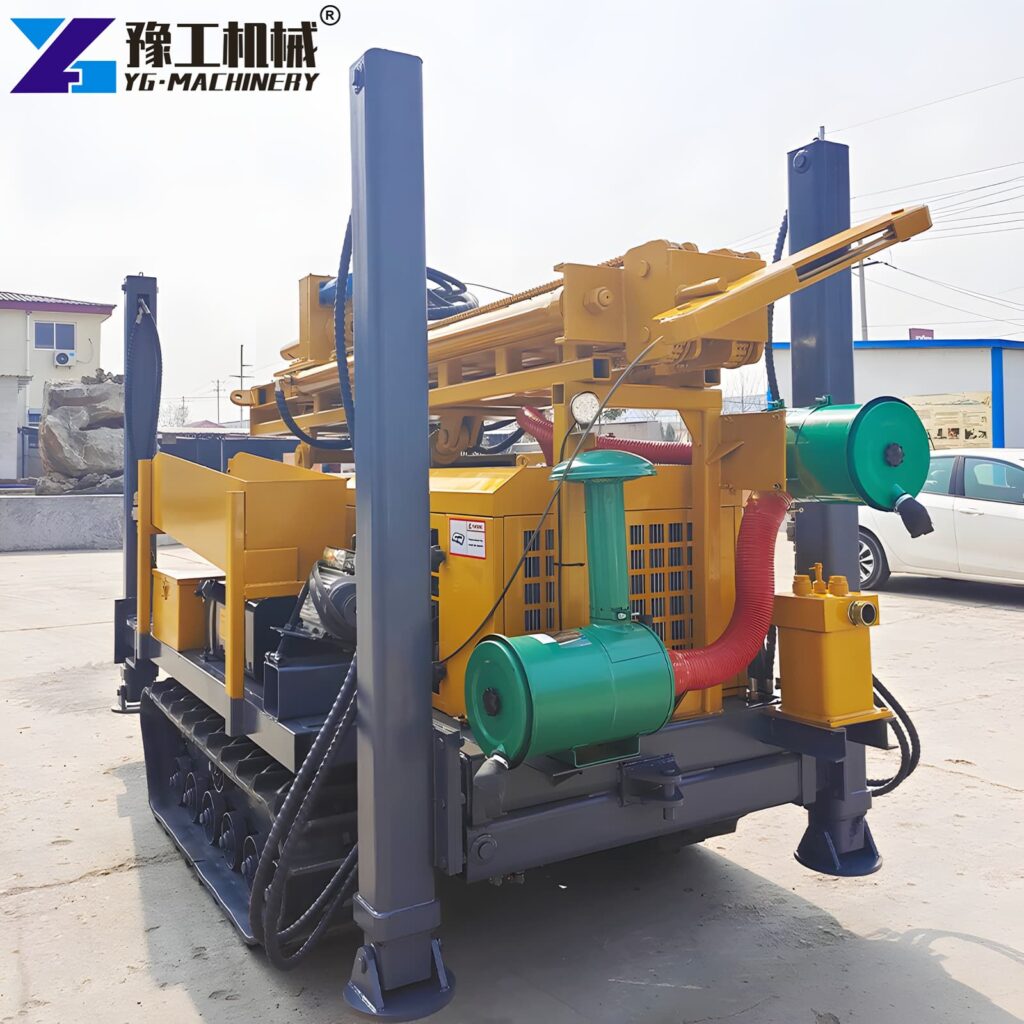

- Dual Hydraulic Rotational Heads: Heavy strings can easily bind in fractured rock formations. Our heavy-duty dual-motor rotational drives deliver adjustable swing torques up to 9500Nm, providing the immense rotational force necessary to break free from shifting strata and prevent down-hole tool loss.
- Reinforced Structural Steel Mast and Tracks: Torsional stress from high-impact pneumatic boring can fracture lower-grade frames. We use thick, reinforced structural steel for the entire mast and chassis. This rigid design absorbs high-frequency vibrations, preserves perfect mechanical alignment, and extends the operational lifespan of the asset.
Expert Engineering Insight: “Integrating a multi-stage hydraulic system with high-pressure pneumatic impactors allows these tracked systems to achieve excellent penetration rates in hard rock while reducing total fuel consumption by up to 20% compared to single-pump configurations.”
Step-by-Step Selection Guide: Matching the Air Track Drill to Your Strata
Selecting the correct air track drill rig model prevents operational delays and protects your capital investment. Evaluating your primary drilling depths and geological conditions allows you to optimize your equipment configuration for maximum efficiency.
- Analyze Your Maximum Depth Needs: If your target water table or geological zone sits within 200 meters, the smaller configurations provide a lighter, highly agile option. For deep industrial exploration down to 350 meters, choose the largest variant to ensure adequate structural reserve power.
- Evaluate Your Required Casing Diameters: Planning to install large 12-inch industrial water casings? The entire model lineup supports hole diameters up to 315mm. However, managing larger casings requires a superior lifting force to handle the heavy weights safely.
- Check Your Air Compressor Compatibility: High-pressure down-the-hole (DTH) operations require a well-matched air supply. The standard configurations run efficiently on air supplies up to 3.0MPa, while the flagship variant requires up to 3.3MPa wind pressure to maximize its deeper potential.
[ SELECT YOUR CORE SPECIFICATION ]
│
┌────────────────────────────────────┼────────────────────────────────────┐
▼ ▼ ▼
[ YG-180 / YG-200 ] [ YG-260 / YG-300 ] [ YG-350 ]
4T-4.5T Weight | 58-65KW 5T-7.5T Weight | 76-85KW 9T Weight | 92KW
Max Depth: 180m - 200m Max Depth: 260m - 300m Max Depth: 350m
│ │ │
└────────────────────────────────────┼────────────────────────────────────┘
▼
[ REQUEST FACTORY PRICING ]
Real-World Success: How an Air Track Drill Increased Production by 35%
In 2025, a large infrastructure quarry encountered severe operational bottlenecks when traditional, slow-moving wheeled rigs struggled on steep 30° inclines and abrasive granite strata, causing frequent bit wear and dangerous positioning delays.
Seeking a rugged and agile solution, the quarry management integrated our heavy-duty air track drill rig into their fleet.
Key Performance Improvements Achieved:
- 35% Increase in Daily Footage: The high-pressure pneumatic hammer easily penetrated hard granite without rotational binding.
- Zero Extra Road Prep: The heavy-duty tracked chassis navigated loose gravel and 35° slopes without needing dedicated haul roads.
- Reduced Fuel & Labor Overhead: Faster pipe extraction using high lifting force significantly minimized manual labor and fuel burn per meter.
“Replacing our cumbersome wheeled equipment with YG’s tracked pneumatic system instantly solved our slope navigation issues and boosted overall site productivity beyond our expectations.” — Quarry Operations Director
Secure Your Direct Factory Quote for an Air Track Drill Today
Why deal with expensive third-party distributors when you can buy directly from an industry-leading heavy machinery manufacturer? YG Machinery offers comprehensive international warranties, global logistics coordination, and lifetime technical support for every client.
Our dedicated team of application engineers is ready to help you analyze your geological challenges, select the ideal machine model, and pair it with the perfect high-pressure air compressor, pipes, and alloy bits. Do not let hard rock formations or tough terrain slow down your operations.
- Step 1: Click the button below to submit your specific depth and hole diameter requirements through our inquiry form.
- Step 2: Receive a detailed, itemized PDF quote and full product specifications within 8 hours.
- Step 3: Confirm your customized equipment package and enjoy direct factory-to-port tracking.
Contact YG Machinery today via WhatsApp, email, or the website form. Every machine includes a warranty and remote support.【WhatsApp/WeChat/Phone】+86 183 3715 2861
FAQs About Air Track Drill
The equipment excels in hard, abrasive rock formations such as granite, basalt, limestone, and quartz. Utilizing high-pressure pneumatic DTH hammers allows it to impact and fracture hard rock efficiently, delivering much faster penetration rates than conventional rotary methods.
The system uses independent heavy-duty steel plates for optimal weight distribution and traction. It performs reliably on mud, loose gravel, and rough terrain, and can safely climb industrial slopes of up to 35° without slipping.
This design integrates a high-torque diesel engine with a dual hydraulic pump system. Hydraulics handle movement, lifting, and mast control, while the high-pressure pneumatic system focuses on rock breaking for higher efficiency and energy use optimization.
Yes, the fleet is highly versatile. Depending on the specific model selected, the mast accommodates diameters of 76mm, 89mm, or 102mm. Pipe lengths can be configured in 3-meter or 6-meter sections to match your crew’s operating preferences.
The machines operate within a working air pressure range of 1.7–3.3 MPa and an air consumption of 17–35 m³/min. A matching high-pressure diesel compressor can be supplied to ensure stable, optimal performance.
The dual hydraulic rotational head motors deliver 4500–9500 Nm of swing torque, enabling stable rotation in fractured and changing strata. This high torque efficiently clears rock cuttings and reduces the risk of down-hole tool jamming.
