Electric tractor loader solutions are transforming material handling for construction, agriculture, industrial facilities, and municipal projects. Businesses increasingly seek machines that are quiet, emissions-free, and capable of operating in tight spaces. This electric loader provides efficient lifting, loading, and transportation, helping reduce operating costs and improve daily productivity without the restrictions of diesel equipment. Its compact dimensions, high lifting capability, and zero emissions make it a practical choice for urban, indoor, and outdoor applications. YG Machinery delivers durable, reliable electric tractor loaders designed to meet diverse project requirements while optimizing total cost of ownership.
Boost Productivity—Get a Free Quote
Electric Tractor Loader Technical Specifications
Performance
| Parameter | DN08 Electric |
|---|---|
| Rated Load | 0.8T |
| Bucket Rated Capacity | 0.3m³ |
| Dumping Height (at 45°) | 1780mm |
| Max Lifting Height | 3140mm |
| Dumping Reach | 980mm |
| Max Lifting Weight | 600kg |
| Max Excavation Force | 1000kN |
| Max Gradeability | 30° |
| Max Turning Angle | 38°±1 |
| Swing Degree of Rear Axle | 7° |
Dimensions & Weight
| Parameter | Value |
| Overall Length (Bucket on Ground) | 3840mm |
| Overall Width – Bucket Width | 1160mm |
| Overall Height | 2330mm |
| Wheelbase | 850mm |
| Min. Ground Clearance | 240mm |
| Net Weight | 1980kg |
| Turning Radius | 2610mm |
Compare Models and Get a Quote
Battery System
| Parameter | Specification |
| Battery Model No. | 6-EVF-203A |
| Rated Capacity (3hr) | 200Ah |
| Number of Battery Groups | 12 |
| Rated Voltage | 72V |
| Working Hours | 4–5 h |
Transmission & Hydraulic
| Component | Specification |
| Hydraulic Motor Model | CBHV |
| Motor Power | 5000W |
| Displacement | 18ml/r |
| Travel Motors | 2 × 4000W |
| Tyres | 26×1200-12 |
| Working Pressure | 0.3MPa |
| Steering System | Full Hydraulic |
| Braking System | Drum Brake |
How Electric Tractor Loader Operates Efficiently
This electric tractor loader combines an electric drive system with a responsive hydraulic circuit to deliver smooth and reliable performance. The 72V battery pack supplies power to two travel motors, enabling stable movement across construction sites, farms, warehouses, and municipal projects. At the same time, a 5000W hydraulic motor drives the pump, generating the pressure required for lifting, lowering, tilting, and dumping operations.
When the operator activates the controls, hydraulic oil flows through the distribution valve to the lifting and dumping cylinders. This process converts hydraulic pressure into mechanical force, allowing the bucket to raise materials, transport loads, and unload them accurately. The independent control of travel and hydraulic functions enables efficient multitasking, such as moving while lifting or positioning materials during transport.
The full hydraulic steering system provides precise handling and smooth directional changes, while the articulated structure and 2610mm turning radius improve maneuverability in confined spaces. During operation, the electric powertrain delivers instant torque without engine warm-up, helping operators start work quickly and maintain consistent productivity. Because there is no diesel engine, the machine produces significantly less noise and zero exhaust emissions, making it suitable for indoor facilities, residential areas, greenhouses, and environmentally sensitive job sites.
Core Advantages of YG Electric Tractor Loader
Switching to an electric skid steer for sale provides several advantages over conventional diesel equipment:
- Substantial Cost Savings: Eliminates diesel fuel dependence and drastically cuts long-term operating expenses. With fewer moving engine parts, maintenance costs for oil changes, filters, and engine wear are significantly reduced.
- Zero-Emission Operation: Produces no exhaust emissions during use, meeting strict local environmental regulations and enabling safe, continuous operation in enclosed indoor environments like warehouses, barns, and greenhouses.
- Low Noise & High Comfort: Operates with minimal acoustic footprint, making it ideal for noise-sensitive sites such as residential neighborhoods, hospitals, schools, and livestock farms without disturbing surroundings.
- Compact Maneuverability: Designed with an articulated frame, a narrow body width, and a tight $2610\text{ mm}$ turning radius, allowing effortless navigation through confined spaces, narrow aisles, and restricted job sites.
- Instant Torque & Smooth Hydraulics: Powered by a high-efficiency electric motor and dedicated hydraulic system, providing immediate power delivery, responsive lifting capacity, and smooth control for precise material handling.

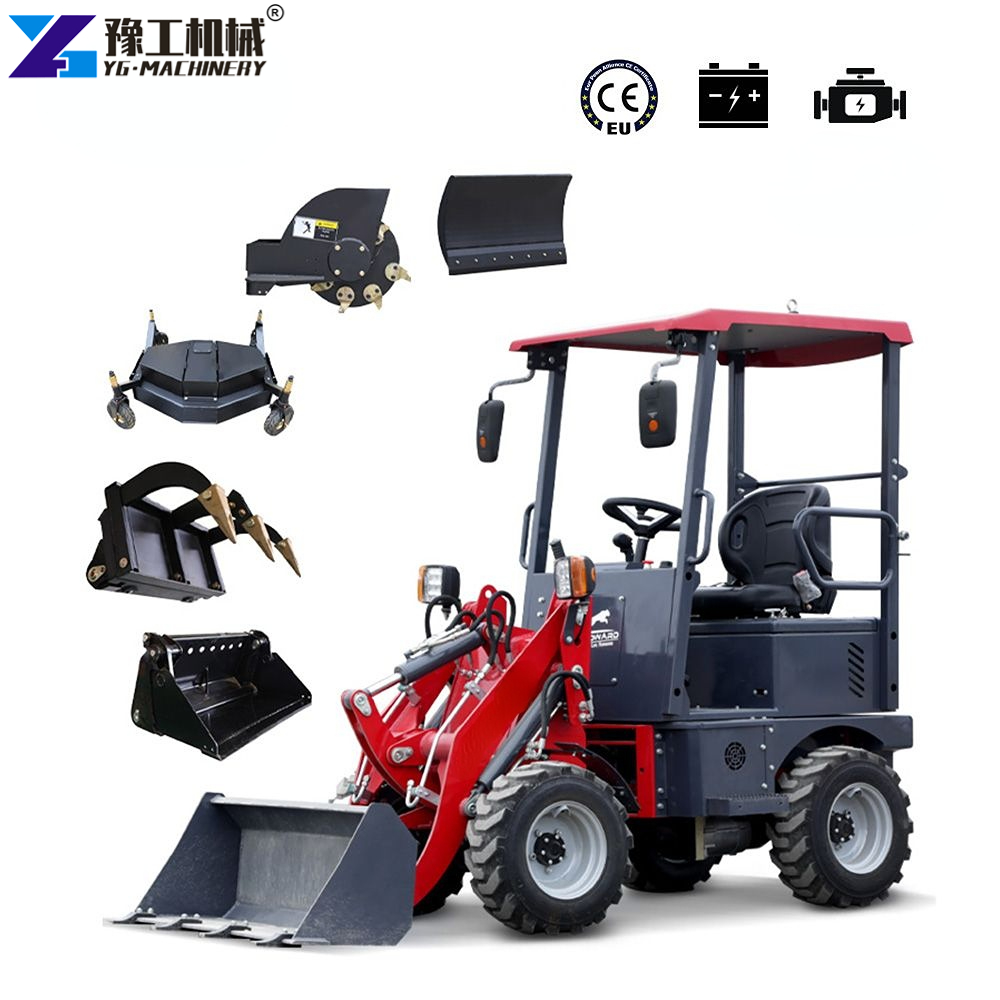

- Multi-Task Attachment Versatility: Compatible with a wide range of quick-attach implements—including standard buckets, pallet forks, grapples, and augers—transforming a single loader into a multi-functional workhorse.
Electric Mini Loader Applications Across Industries
Construction Sites
- Sand and gravel transport
- Aggregate handling
- Material loading and site cleanup
- Backfilling trenches
Municipal Engineering
- Road maintenance and landscaping
- Park and public facility management
- Urban debris collection
- Small-scale infrastructure support
Agriculture & Ranch Operations
- Feed and fertilizer transport
- Manure handling and barn cleaning
- Material stacking and stockpile management
- Low-noise operations for livestock
Industrial Facilities
- Warehouse loading and unloading
- Inventory movement and yard maintenance
- Indoor material transport without exhaust limitations
- Facility cleanup and waste handling
Why Businesses Choose This Electric Loader
Using the electric tractor loader, operators achieve faster job completion, lower labor costs, reduced downtime, and improved acceptance in residential and urban environments. Its compact design allows operation in constrained spaces without sacrificing lifting performance.
Real-World Application Case: Australian Cattle Ranch & Farm Efficiency Upgrade
Client Background
A large pastoral operation in Queensland, Australia needed a cleaner, quieter material handling solution for indoor livestock sheds, feed yards, and covered storage facilities. Traditional diesel loaders were generating harmful exhaust fumes in enclosed barn spaces and causing stress to cattle during routine feeding.
The Solution
The property deployed the YG Electric Tractor Loader fitted with quick-attach pallet forks and standard buckets. Powered by a 72V battery system, the loader took over daily duties including fodder distribution, manure clearing, and bulk material handling across the yard.
Key Results & Operational Impact
- Zero Fume Contamination: Eliminated diesel exhaust inside enclosed livestock sheds, maintaining clean air quality for workers and cattle.
- 80% Lower Daily Energy Costs: Replacing diesel fuel with standard electrical charging significantly cut daily operating expenses.
- Low-Noise Operation around Livestock: The ultra-low sound output allowed operators to move feed and materials close to cattle without triggering noise-induced stress or herd disruption.
- Reliable Duty Cycle: Handled demanding farm tasks and dusty outdoor conditions with stable torque delivery and precise hydraulic control across full 4–5 hour shifts per charge.
Electric Skid Steer For Sale | Upgrade Your Fleet
Choosing the right electric tractor loader involves evaluating project needs, working space, material types, and expected usage. YG Machinery offers professional guidance to help customers select the model and attachments that maximize productivity and return on investment. Factory-direct pricing, technical consultation, and shipping options are available to ensure a smooth purchasing process.
Simple Steps to Choose the Right Electric Loader
- Assess Job Requirements: Determine load capacity, site conditions, and attachment needs.
- Select Suitable Model: Choose between compact, mid-size, or heavy-duty configurations.
- Receive Professional Recommendations: YG Machinery guides optimal configuration.
- Request Quote: Obtain detailed pricing, delivery, and warranty information.
- Deploy Electric Loader: Start reducing operational costs and improving project efficiency.
Electric Tractor Loader FAQs
Get acquainted with the ins and outs of your Electric Wheel Loader. Here, we’ve compiled a list of frequently asked questions to help you optimize performance, maintain efficiency, and ensure safety in every operation.
To maximize battery life:
Fully charge the battery before first use.
Avoid deep discharges; recharge when the battery reaches around 20%.
Store the loader in a dry, temperature-controlled environment.
Perform regular battery maintenance and check for any signs of wear.
Typically 4–5 hours under standard conditions.
Yes, zero emissions and low noise make it suitable for warehouses and urban environments.
Standard bucket, grapple, auger, pallet fork, snow blade, and hydraulic tools.
0.8 tons rated load with 0.3 m³ bucket capacity.
Compact dimensions and a 2610mm turning radius allow operation in narrow job sites.
Lower operating costs, quieter operation, zero emissions, and simplified maintenance provide significant advantages.
