Removing concrete pile heads is one of the slowest, most labour-intensive jobs on any foundation site. Jackhammers take hours, damage rebar, and exhaust crews. Explosives are dangerous and often banned near cities. Hand chipping with air tools leaves uneven surfaces that fail inspection.
A hydraulic pile cutter changes everything. It mounts on your excavator, closes around the pile, and cracks the concrete cleanly in under a minute. The rebar stays intact. The cut is straight. No flying debris. No vibration damage to nearby structures. One operator does what a crew of five used to do in a fraction of the time.
We have built excavator attachments for over a decade. We produce modular pile cutters from 4 to 18 modules. Each excavator pile cutter undergoes a full pressure test before shipping. Buyers receive a test report and video with their machine.
Hydraulic Pile Cutter Product Specifications at a Glance
We offer modular pile cutters that adapt to any pile diameter. The table below shows the complete lineup.
| Modules | Total Weight (kg) | Pile Diameter Range (mm) | Excavator Size |
|---|---|---|---|
| 4 | 1600 | 400-600 | 20-30T |
| 8 | 2640 | 600-800 | 20-30T |
| 9 | 2970 | 800-1000 | 20-30T |
| 10 | 3300 | 1000-1150 | 20-30T |
| 11 | 3630 | 1150-1300 | 20-30T |
| 12 | 3960 | 1300-1500 | 20-30T |
| 13 | 4290 | 1500-1650 | 30-40T |
| 14 | 4620 | 1650-1800 | 30-40T |
| 15 | 4950 | 1800-1970 | 30-40T |
| 16 | 5280 | 1970-2200 | 30-40T |
| 17 | 5610 | 2200-2360 | Pump station required |
| 18 | 5940 | 2360-2500 | Pump station required |
Common specifications across all models:
- Max. Thrust: 300KN
- Max. Cylinder Trip: 300mm
- Max. Cylinder Pressure: 300MPa
- Single Module Weight: 335KG
- Single Module Size: 1015×865×340mm
- Location Pin: Φ35mm
- Chisel Diameter: 110mm
- Max. Hoist Capacity: ≤500mm
We provide free sizing advice based on your pile diameters and excavator size. For piles over 2200mm, we recommend a separate hydraulic pump station.
Where Contractors Use This Hydraulic Pile Cutter
Construction crews use this equipment across a wide range of projects. Here are the most common applications.
- Bridge foundations. Highway bridges sit on groups of large-diameter piles. After driving or pouring, each pile head must be cut to a precise elevation. The machine handles piles from 400mm to 2500mm. A crew of two breaks piles in minutes. Bridge projects finish weeks faster.
- Building foundations. High-rise buildings transfer massive loads through piles to bedrock. Each pile needs a clean, flat head for the pile cap. The machine leaves a surface ready for concrete placement. No damaged rebar that requires welding repairs.
- Marine structures. Docks and piers use piles driven into the seabed. Working over water makes hand methods dangerous. An excavator on a barge uses the cutter safely above the waterline. Marine contractors cut project timelines by 60-70%.
- Wind turbine foundations. Each turbine sits on a ring of 20-40 piles. Each pile needs precise height trimming before the tower base installs. The modular cutter moves from pile to pile quickly. Foundation work goes in days faster.
- Seismic retrofits. Older buildings get new pile foundations during earthquake upgrades. The low-vibration cracking method protects existing structures. Contractors work next to occupied buildings without complaints.
- Power transmission towers. Transmission towers use piles in soft ground, often in remote locations. A 20-ton excavator with a 4-module cutter handles the job. The compact size fits on narrow access roads. No need for heavy equipment that damages the terrain.

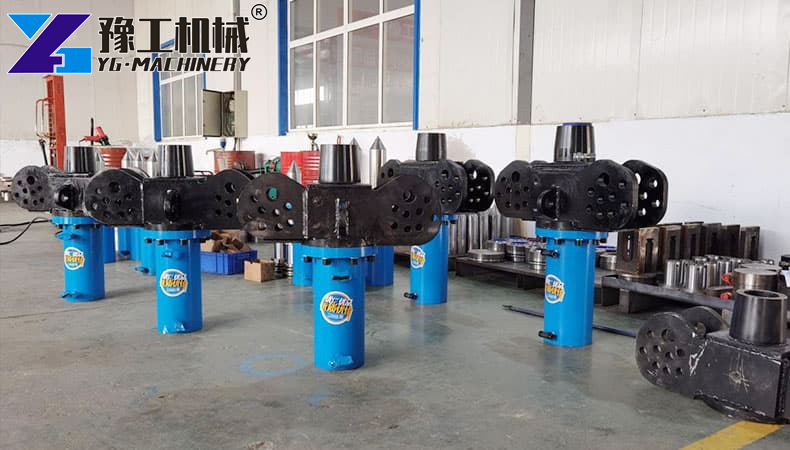

Pile Breaking Machine: How Modular Design Saves You Money
A pile breaking machine with modular construction gives you flexibility that fixed-size cutters cannot match. You buy only the modules you need for your current job. When pile diameters change, you add or remove modules.
Here is how the modular system works:
- Each module weighs 335kg and covers a specific diameter range
- Add modules for larger piles, remove them for smaller ones
- One machine handles 400mm to 2500mm piles with the right module count
- No need to buy multiple cutters for different pile sizes
The cost savings are significant. A fixed-size cutter that handles only 800mm piles costs $8,000-$12,000. If your next job has 1500mm piles, you need another cutter. With our modular system, you buy 4-18 modules once and reconfigure as needed. The total investment is lower than buying two or three dedicated cutters.
We build each module from high-strength cast steel. The location pins (Φ35mm) align modules precisely. Assembly takes two workers about an hour. No special tools required.

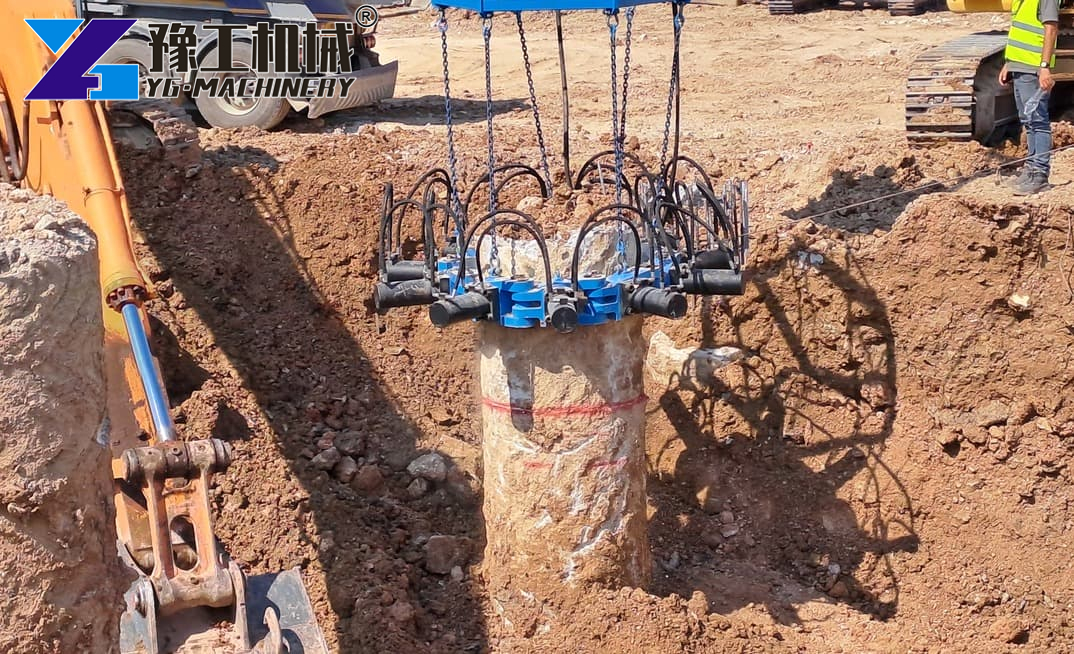

Hydraulic Pile Cutter: 7 Features That Protect Your Rebar
A pile breaker must crack concrete without damaging the steel reinforcement inside. Damaged rebar means failed inspections and expensive repairs. Our design protects the rebar at every stage.
Here is what makes our unit different:

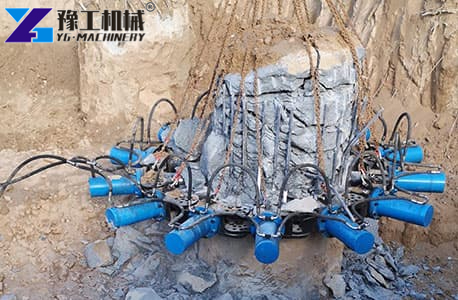

- 360° cracking pattern. The chisels push inward from all directions at once. The concrete breaks evenly around the pile. No single-side pressure that bends rebar.
- Chisel tip design. Each chisel has a 110mm diameter flat tip. It contacts the concrete surface, not the rebar. The tip stops at the rebar depth, never penetrating past it.
- Controlled cracking depth. The 300mm cylinder stroke delivers exactly the right force. The concrete cracks; the rebar stays intact. No over-cracking.
- Low vibration operation. Hydraulic pressure does the work, not impact. No hammering that transfers shock to the rebar-concrete bond.
- Visual inspection ports. Operators see the crack progress. They stop the cycle when the concrete breaks, preventing over-penetration.
- Replaceable chisels. Worn chisels get replaced before they damage rebar. We supply chisel sets with every machine.
- Even pressure distribution. All cylinders pressurise simultaneously. No weak spots that cause uneven cracking and rebar exposure.
A bridge contractor in Texas tested our unit against a competitor’s pile breaker. Our unit left 100% of rebar intact. The competitor’s unit damaged 15-20% of the rebar on each pile.

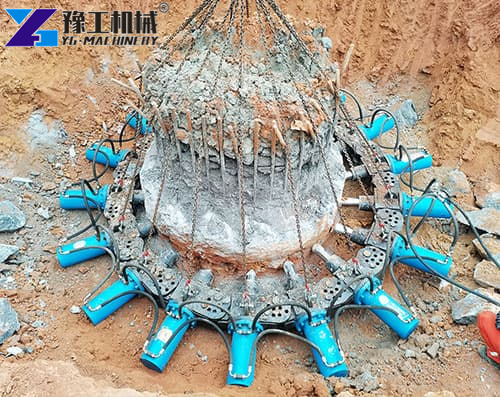

Pile Head Breaking Machine: 6 Steps to Faster Pile Removal
A pile head breaking machine follows a simple, repeatable process. Here is how it works.

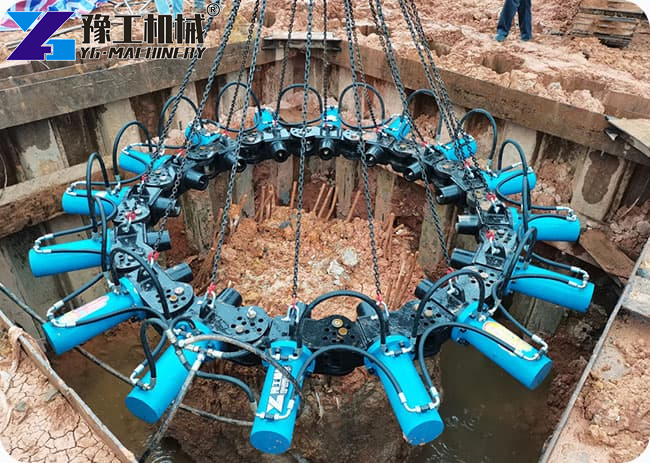

Step 1: Position. The excavator operator positions the cutter around the pile head. The 360° rotation on some models lets you align without repositioning the excavator.
Step 2: Close the jaws. The operator activates the hydraulic cylinders. All modules close simultaneously around the pile.
Step 3: Apply pressure. The cylinders push chisels into the concrete. The 300KN thrust cracks the concrete along multiple lines.
Step 4: Open and rotate. The operator opens the jaws, rotates the cutter 90°, and closes again. The second pass completes the crack pattern.
Step 5: Remove concrete. The broken concrete falls away from the rebar. The rebar stands clean and straight, ready for the next construction step.
Step 6: Move to next pile. The operator lifts the cutter and moves to the next pile. Total time per pile: 40-50 seconds for the cracking cycle.
A typical 10-pile foundation takes 15-20 minutes with our machine. Hand methods take 2-3 hours per pile. The time savings add up fast on large jobs.
Pile Breaker Real-World Case: Bridge Contractor Saves $12,000 Per Project
A bridge construction company in Texas bought a 12-module hydraulic pile cutter from us in early 2024. They were working on a highway overpass with 96 piles, each 1300mm in diameter. Their previous method used three workers with jackhammers. Each pile took 2.5 hours. The entire project required 240 labour hours just for pile breaking.
The new machine arrived with 12 modules, a full chisel set, and a spare cylinder kit. Their crew trained for one day on assembly, operation, and maintenance. They cut their first pile in 45 seconds. The rebar was perfect.
The project finished 3 weeks ahead of schedule. Labour costs dropped from $18,000 to $6,000 for pile breaking. The machine paid for itself on the first project. The contractor bought a second unit for their other bridge crew in 2025 and now bids on larger projects with confidence.
We shipped the unit from our Zhengzhou factory with a 12-month warranty. Spare chisels and seal kits arrived from our Houston warehouse within 3 days of their first order.
