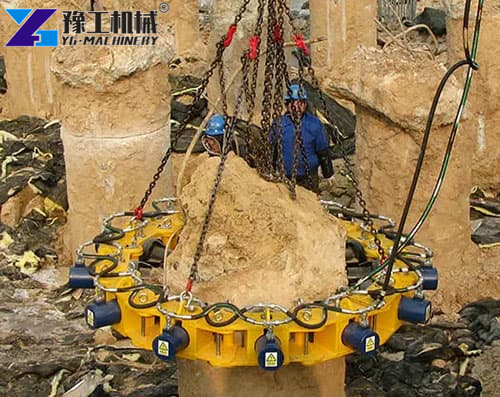

Removing concrete pile heads is one of the slowest, most labour-intensive jobs on any foundation site. Jackhammers take hours, damage rebar, and exhaust crews. Explosives are dangerous and often banned near cities. Hand chipping with air tools leaves uneven surfaces that fail inspection.
A pile breaking machine changes everything. It mounts on your excavator, closes around the pile, and cracks the concrete cleanly in under a minute. The rebar stays intact. The cut is straight. No flying debris. No vibration damage to nearby structures. One operator does what a crew of five used to do in a fraction of the time.
Pile Breaking Machine: Complete Technical Specifications
Our modular system adapts to any pile diameter from 400mm to 2500mm. The table below shows the full range.
| Modules | Total Weight (kg) | Pile Diameter Range (mm) | Excavator Size |
|---|---|---|---|
| 4 | 1600 | 400-600 | 20-30T |
| 8 | 2640 | 600-800 | 20-30T |
| 9 | 2970 | 800-1000 | 20-30T |
| 10 | 3300 | 1000-1150 | 20-30T |
| 11 | 3630 | 1150-1300 | 20-30T |
| 12 | 3960 | 1300-1500 | 20-30T |
| 13 | 4290 | 1500-1650 | 30-40T |
| 14 | 4620 | 1650-1800 | 30-40T |
| 15 | 4950 | 1800-1970 | 30-40T |
| 16 | 5280 | 1970-2200 | 30-40T |
| 17 | 5610 | 2200-2360 | Pump station |
| 18 | 5940 | 2360-2500 | Pump station |
Technical parameters common to all models:
- Max. Thrust: 300KN
- Max. Cylinder Trip: 300mm
- Max. Cylinder Pressure: 300MPa
- Single Module Weight: 335KG
- Single Module Size: 1015×865×340mm
- Location Pin: Φ35mm
- Chisel Diameter: 110mm
- Max. Hoist Capacity: ≤500mm
We provide free sizing guidance based on your pile diameters and excavator capacity. For piles above 2200mm, we recommend a standalone hydraulic pump station.
How the Concrete Pile Breaker Modular System Cuts Your Equipment Costs

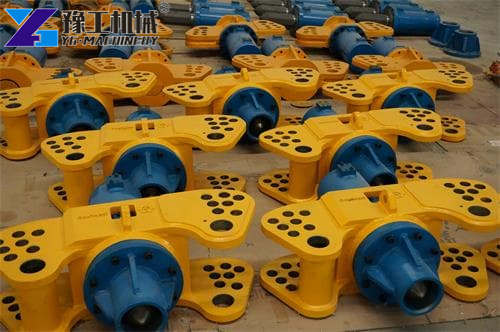

Modular construction gives you flexibility that fixed-size cutters cannot match. You buy only the modules you need for your current job. When pile diameters change, you add or remove modules.
Here is why contractors choose modular:
- Each module weighs 335kg and covers a specific diameter range
- Add modules for larger piles, remove them for smaller ones
- One investment handles 400mm to 2500mm piles
- No need to purchase multiple dedicated cutters
The financial advantage is clear. A fixed-size cutter for 800mm piles costs $8,000-$12,000. A fixed-size cutter for 1500mm piles costs another $10,000-$15,000. With our modular system, you buy 4-18 modules once. The total investment is lower than owning two or three separate machines.
We manufacture every component at our Zhengzhou facility. The location pins (Φ35mm) ensure precise alignment between modules. Two workers assemble a full unit in about one hour using standard hand tools.
Start Your Project with the Right Equipment
Pile Breaking Machine:5 Critical Safety Features
Working with concrete piles involves heavy loads and high pressure. Our machine includes several safety features that protect operators and equipment.
1. Pressure relief valves. Each module has its own relief valve. If a cylinder binds on hard aggregate or rebar, the valve opens. The other cylinders continue working. No single stuck cylinder stops the entire operation.
2. Steel guard plates. The module frames include guard plates that deflect concrete fragments downward. No flying chips that hit operators or nearby workers.
3. Visual pressure indicators. The manifold block has pressure gauges for each cylinder. Operators see the exact pressure applied. They stop the cycle when concrete cracks.
4. Automatic cylinder synchronisation. The manifold ensures all cylinders extend at the same rate. Even pressure distribution prevents sudden shifts that could damage the unit.
5. Rebar protection chisels. Each chisel has a flat tip that stops at rebar depth. The tip never penetrates past the concrete cover. Rebar stays 100% intact.
We test every safety system before shipping. Each unit undergoes a full pressure test at 300 MPa. Buyers receive a test video showing their machine cracking a test pile.

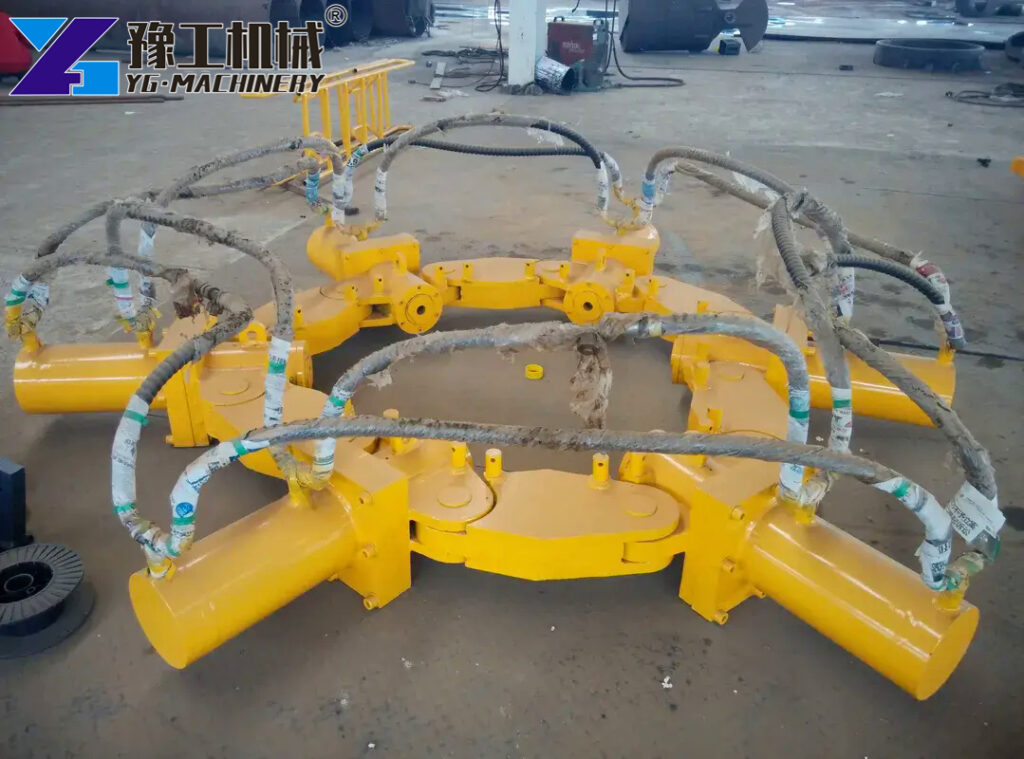

Concrete Pile Breaker: How Clean Cutting Saves You Rework Time
A concrete pile breaker must leave a clean, flat surface. Uneven pile heads require additional chipping or grinding. That means extra labour, extra time, and potential inspection failures.
Our unit delivers clean cutting three ways:
First, the 360° cracking pattern. The chisels push inward from every direction at once. The concrete breaks evenly around the entire circumference. No single-sided pressure that creates jagged edges.
Second, the controlled cracking depth. The 300mm cylinder stroke delivers exactly the right force. The concrete cracks to the rebar depth and stops. No over-cracking below the cut line.
Third, the simultaneous cylinder action. All cylinders pressurise at the same rate. No weak spots that cause uneven breaks.
A bridge contractor in Texas tested our unit against a competitor’s pile breaker. Our unit left a clean, flat surface ready for concrete placement. No grinding required. The competitor’s unit left uneven breaks that needed two hours of additional work per pile.
Boost Productivity—Get a Free Quote

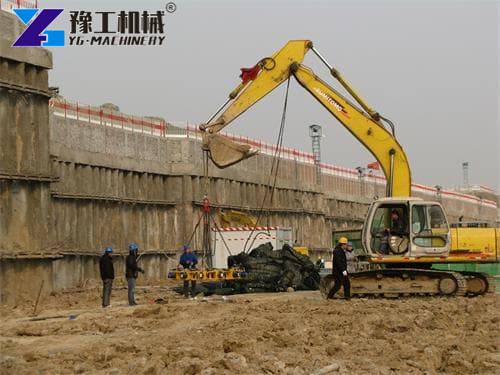

Where Contractors Use Pile Breaking Machine
- Bridge foundations. Highway bridges sit on groups of large-diameter piles. A crew of two breaks piles in minutes. Bridge projects finish weeks faster.

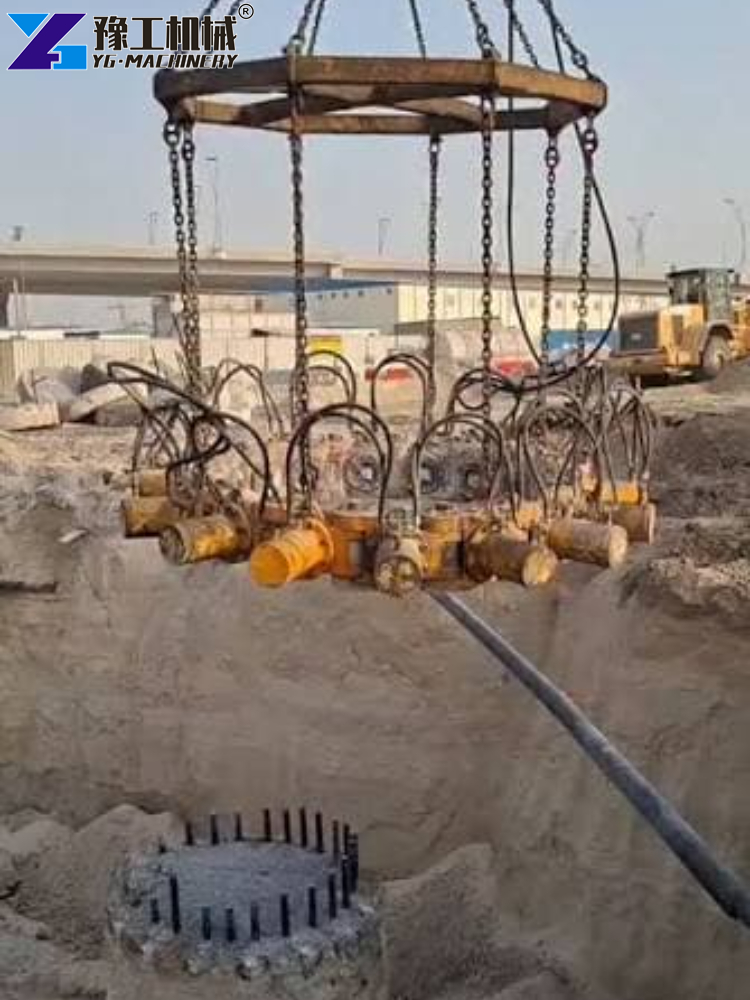

- High-rise buildings. Each pile needs a clean, flat head for the pile cap. The machine leaves a surface ready for concrete placement. No additional grinding.
- Marine structures. Working over water makes hand methods dangerous. Marine contractors cut project timelines by 60-70% with this equipment.
- Wind farms. Each turbine sits on 20-40 piles. The modular cutter moves quickly between piles. Foundation work finishes days faster.
- Seismic upgrades. The low-vibration method protects existing buildings. Contractors work next to occupied structures without damage claims.

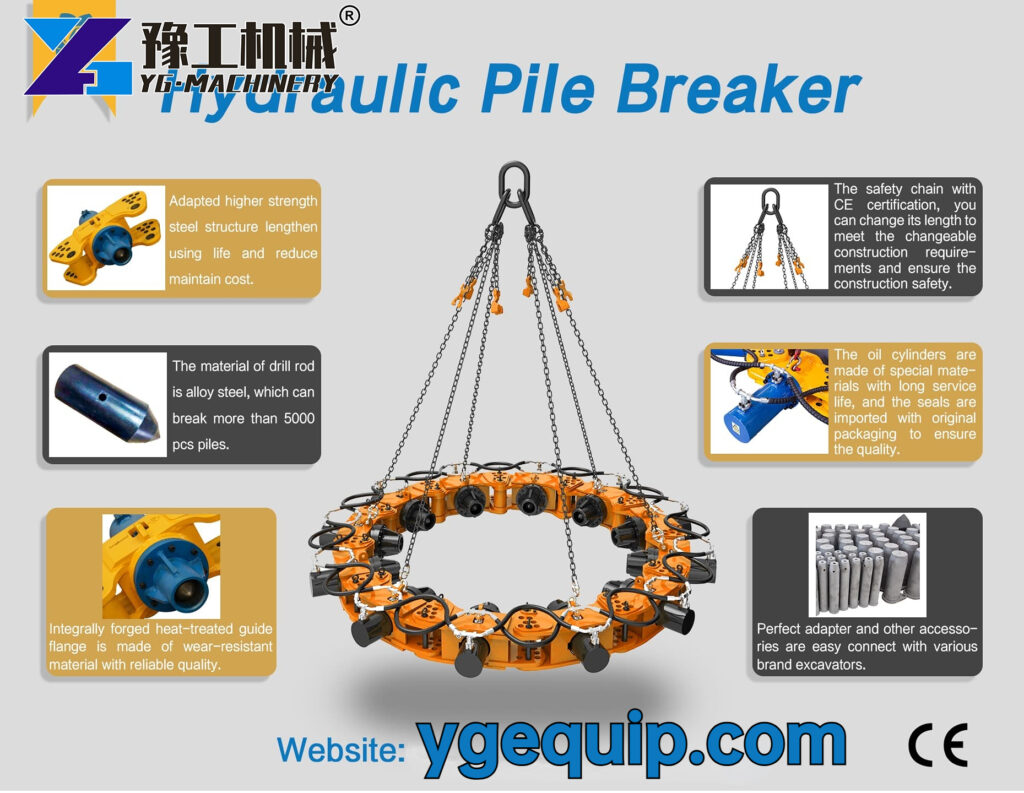

Hydraulic Pile Breaker Price: What You Pay vs. What You Save
The hydraulic pile breaker price depends on the number of modules you need. A 4-module unit costs around $8,000. An 18-module unit runs about $18,000. The price increases incrementally with each module you add.
Here is what the base price includes: all modules with hydraulic cylinders, connecting pins, location pins (Φ35mm), one full set of chisels (110mm diameter), a hydraulic manifold block with pressure gauges, and an operator manual.
Compare that to the savings. A bridge contractor in Texas paid $12,000 for a 12-module unit. On their first project with 96 piles, they saved $12,000 in labour costs. The machine paid for itself on one job. Over four bridge projects in a year, total labour savings reached $48,000.

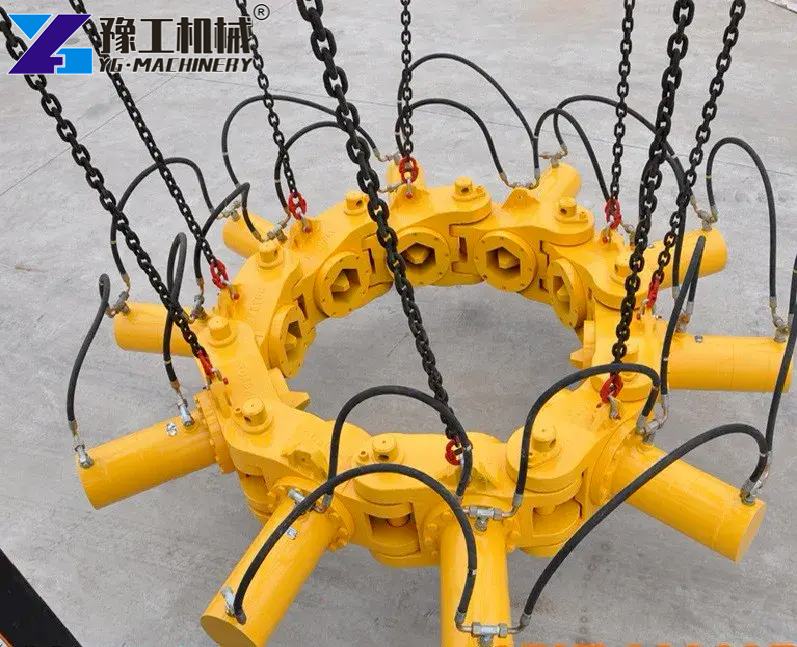

Hand chipping costs $75 per hour per worker. Three workers take 2.5 hours per pile. That is $562 per pile in labour. For 100 piles, that is $56,200. Our machine does the same work in 16 hours with one operator. Labour cost: $1,200. The savings on one large project cover the machine price.
6 FAQs About Pile Head Breaking Machine
The 4-12 module units work with 20-30 ton excavators. The 13-16 module units need 30-40 ton machines. For 17-18 modules, you need a separate pump station.
The cracking cycle takes 40-50 seconds. Add positioning time of 30-60 seconds. Total time per pile is about 2 minutes.
No. The chisels stop at rebar depth. The rebar stays completely intact. This is a key advantage over jackhammers.
Measure your pile diameter at the cut point. Use the widest measurement. Match it to the table. Order the number of modules shown.
Each module has its own cylinder. If one fails, the others continue working. We stock individual modules and cylinders.
Yes. Even dense rebar cages work fine. You may need an extra rotation for very tight patterns.
Ready to Choose Your Pile Breaking Machine?
We offer free consultation for buyers. Tell us your typical pile diameters, excavator size, and daily production targets. We will recommend the right module count and provide a detailed cost analysis.
Three ways to move forward:
- Request a quote – Send your project specifications. Get pricing within 24 hours.
- Watch a test run – Ask for a video of the machine breaking your pile size.
- Visit our factory – See production and meet our engineering team in Zhengzhou.
Contact YG Machinery today via WhatsApp, email, or the website form. Every machine includes a warranty and remote support.【WhatsApp/WeChat/Phone】+86 183 3715 2861
