A pump mixer concrete system completely transforms construction site logistics by blending raw materials and transporting the liquid mix directly to the pouring site under high hydraulic pressure. Contractors eliminate slow manual wheelbarrow transport and dangerous crane lifting operations. Powered by robust diesel engines or heavy-duty electric motors, these integrated machines deliver fresh material across massive horizontal distances and extreme vertical heights. YG Machinery engineers these high-throughput units with durable hydraulic cylinders, wear-resistant pipes, and smart control systems. Your construction crew can process up to 60 cubic meters per hour while maintaining perfect material consistency. Upgrading to an automated pipeline system cuts labor overhead, prevents aggregate segregation, and accelerates your project timeline drastically.
Start Your Project with the Right Equipment
YG Pump Mixer Concrete Parameters

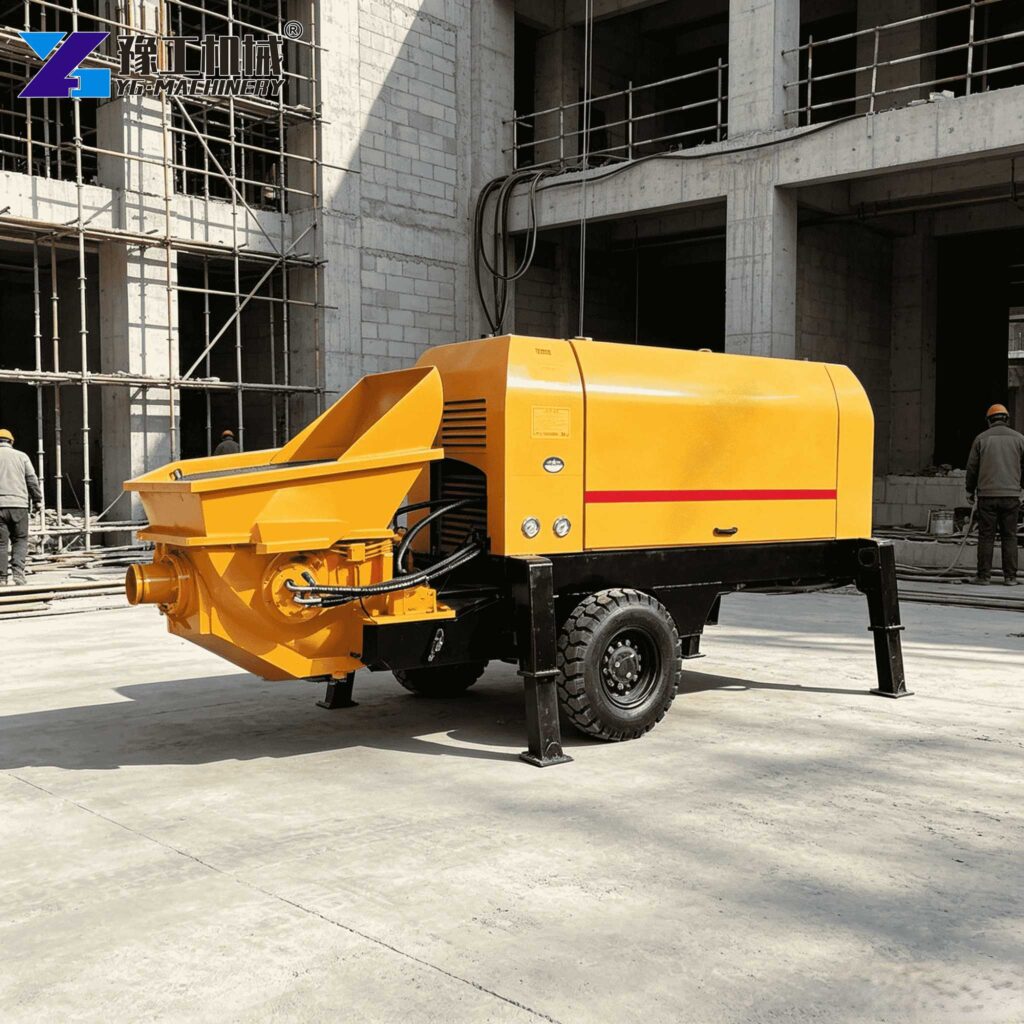

Electric Concrete Pump Parameter
| Model | YG-45 | YG-55 | Yg-90 | Yg-110 | Yg-180 |
| Transport Volume | 43 | 54 | 83/49 | 86/51 | 95/61 |
| Max pressure | 10 | 12 | 13 | 16 | 20 |
| Hydraulic system | open | open | open | open | open |
| Power(KW) | electric | electric | electric | electric | electric |
| Rotating speed | 1480 | 1480 | 1480 | 1480 | 1480 |
| Power(KW) | 45 | 55 | 90 | 110 | 90*2 |
| Distribution Valve | S valve | S valve | S valve | S valve | S valve |
| Cylinder Bore | 200 | 200 | 200 | 200200 | 200 |
| High/Low Voltage | No | No | No | No | No |
| Hydraulic Oil Tank Volume | 350 | 460 | 400 | 450 | 800 |
| Hopper Volume | 0.6 | 0.8 | 0.8 | 0.8 | 0.8 |
| Loading height | 1280 | 1280 | 1380 | 1380 | 1430 |
| Dimensions(m) | 5.4*1.86*1.9 | 5.4*1.86*1.9 | 6*2.16*2.3 | 6*2.16*2.3 | 7*2.3*2.6 |
| Total weight(KG) | 4000 | 4500 | 6000 | 6150 | 7000 |
Diesel Concrete Pump Parameter
| Name | Diesel concrete pump | Diesel concrete pump | Concrete mixer with pump |
| Model | YG-130 | YG-145 | YG-37 |
| Transport Volume | 86/51 | 86/51 | 32 |
| Max Pressure | 16 | 16 | 10 |
| Hydraulic System | open | open | open |
| Power(KW) | Diesel | Diesel | Diesel |
| Rotating Speed | 2400 | 2400 | 1480 |
| Power(KW） | 130 | 145 | 30 |
| Distribution Valve | S valve | S valve | S valve |
| Cylinder Bore | 200 | 200 | 200 |
| High/Low Voltage | Yes | Yes | No |
| Hydraulic Oil Tank Volume | 860 | 860 | 170 |
| Hopper Volume | 0.8 | 0.8 | 0.6 |
| Loading Height | 1430 | 1280 | 1280 |
| Dimensions(m) | 6*2.16*2.3 | 6*2.16*2.3 | 5.1*2.1*3.1 |
| Total Weight(KG） | 6250 | 6250 | 3500 |
Compare Models and Get a Quote
Why Choose a Pump Mixer Concrete Over Traditional Methods?
You choose a pump mixer concrete to eliminate the costly delay between material preparation and final placement. Traditional methods require a separate mixer truck to dump concrete into a stationary pump hopper, creating severe workflow bottlenecks. An integrated machine handles both stages simultaneously. Operators load cement, sand, and water directly into the mixing drum. Once the mix reaches the correct slump, the internal mechanism discharges it straight into the pumping hopper for immediate delivery.
- Rapid Setup: Position the unit, connect the delivery hoses, and start pouring immediately.
- Seamless Flow: Continuous hydraulic pressure prevents blockages and keeps the project moving smoothly.
- Zero Waste: Precise hose control directs the heavy aggregate exactly where needed without spilling.
Combining these two heavy-duty functions into a single towable frame drastically reduces site footprint and fuel consumption. You no longer need to coordinate multiple large vehicles on a tight residential street or crowded industrial site.
4 Reasons to Invest in a Mini Concrete Pump for Sale
Finding a reliable mini concrete pump for sale gives rural contractors and urban renovation teams total operational independence. Smaller footprint machines navigate narrow alleyways and residential driveways effortlessly.
- Ultimate Portability: Weighing as little as 900kg, standard pickup trucks can easily tow the equipment to remote sites.
- High Pressure Output: Despite the compact size, these systems generate up to 15 MPa, pushing materials 50 meters vertically.
- Labor Reduction: One machine operator and a small hose-guiding crew replace dozens of manual laborers carrying heavy buckets.
- Fast Return on Investment: By eliminating recurring rental fees and cutting labor costs, you recover your initial capital investment quickly across your first few structural jobs.
Purchasing your equipment directly from established manufacturers secures full warranty coverage and fast access to genuine replacement parts. Securing a high-quality mini concrete pump for sale ensures you never miss a critical pouring deadline due to unexpected rental machinery breakdowns.
Find the Right Model for Your Project
How Does a Concrete Mixer and Pumping Machine Boost Site Output?
A robust concrete mixer and pumping machine boosts site output by handling coarse aggregates smoothly without jamming the delivery pipeline. The internal dual-cylinder hydraulic system pushes the mixture with immense force. When casting large bridge decks or structural foundations, consistent material delivery prevents cold joints and structural weaknesses.
Advanced models accommodate aggregate sizes up to 5cm, providing immense versatility for different architectural requirements. YG Machinery equips these rigs with hardened alloy steel delivery pipes ranging from 80mm to 125mm in diameter, paired with premium cutting rings that extend the service life significantly. Operating a unified concrete mixer and pumping machine minimizes the risk of human error during material transfer. The continuous mixing action guarantees that the heavy aggregate remains perfectly suspended in the cement paste right up until it exits the nozzle.
Choosing the Right Small Mobile Pump Concrete for Your Project
The right small mobile pump concrete strictly matches your specific power availability, required conveying distance, and output volume. Understanding these technical metrics prevents you from overspending on unnecessary capacity or under-equipping your team.
- Power Source Selection: Choose an electric motor ranging from 22kw to 90kw for quiet urban zones with reliable grid access. Select a heavy-duty diesel engine, such as the 4102 or 6102, for total off-grid independence.
- Vertical Conveying Reach: If you construct high-rise buildings, prioritize models generating 23 MPa to push concrete up to 150 meters vertically.
- Volume Throughput Rate: Match the output capacity to your daily site demands. A compact 12m³/h unit perfectly suits residential foundations, while a 60m³/h rig handles massive commercial floor slabs.
Deploying the correct small mobile concrete pump ensures optimal fuel efficiency and prevents costly machinery wear and tear during intense pouring phases.

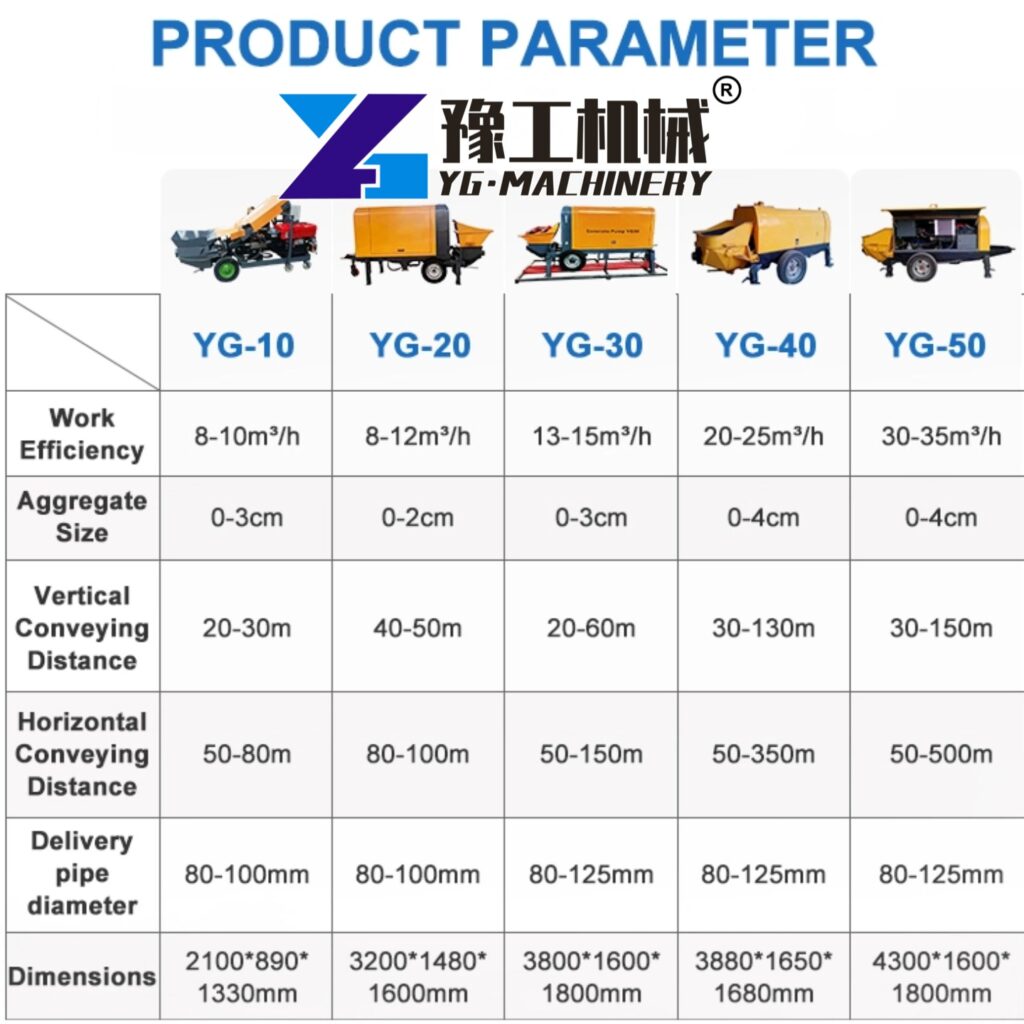

Technical Parameters Across 5 High-Performance Models
Review the technical specifications below to select the exact machinery your upcoming commercial contracts demand.
- Model YG-20: Features 22kw Electric or 4102 Diesel power, delivering 8-12m³/h output at 15mpa pressure. It reaches 40- 50 m vertically and 80- 100 m horizontally, with a total weight of 900kg.
- Model YG-30: Features 37kw Electric or 4105 Diesel power, delivering 13-15m³/h output at 20mpa pressure. It reaches 20- 60 m vertically and 50- 150 m horizontally, with a total weight of 1500- 2000 kg.
- Model YG-40: Features 45kw Electric or 4108 Diesel power, delivering 20-25m³/h output at 23mpa pressure. It reaches 30- 130 m vertically and 50- 350 m horizontally, with a total weight of 2200kg.
- Model YG-50: Features 55kw Electric or 6102 Diesel power, delivering 30-35m³/h output at 23mpa pressure. It reaches 30- 150 m vertically and 50- 500 m horizontally, with a total weight of 2200kg.
- Model YG-60: Features a massive 90kw Electric motor, delivering 55-60m³/h output at 23mpa pressure. It reaches 30- 150 m vertically and 50- 500 m horizontally, with a total weight of 3500kg.
All models feature durable delivery pipes to prevent clogging and handle aggregate sizes from 2cm up to 5cm efficiently.
Field Case Study: Accelerating Rural Construction with a Pump Mixer Concrete
A regional contractor recently faced strict deadlines while constructing a multi-level school foundation in a remote, off-grid location. Narrow access roads prevented standard ready-mix trucks from reaching the pouring site, threatening to delay the project by weeks. To resolve this logistical bottleneck, the contractor deployed a diesel-powered YG-30 pump mixer concrete unit. Operating as a unified concrete mixer and pumping machine, the equipment processed raw sand and 3cm aggregates on-site, pushing the fresh mixture 150 meters horizontally directly into the foundational forms. By utilizing this compact system, the construction crew eliminated manual wheelbarrow transport entirely, reducing their physical labor requirements by 60%. The steady 15m³/h output ensured continuous pouring without structural cold joints, allowing the team to complete the critical foundation phase five days ahead of schedule. This immediate boost in productivity helped the contractor recover the initial investment in their small mobile pump concrete within just two subsequent projects.
Get Your Direct Factory Quote Today
Ready to accelerate your construction timeline and reduce manual labor costs with heavy-duty pumping equipment? Do not let slow material transport delay your high-rise builds, commercial structures, or massive foundation pours any longer.
Getting your personalized equipment quote is incredibly fast and simple. Just send us your required pumping distance, preferred power type, and destination port. Our technical sales team will supply an itemized quotation, engineering datasheets, and delivery schedules within 8 hours. Contact us today via email or our inquiry form to upgrade your construction fleet!
