Tight access, low ground-bearing limits, and indoor restrictions shouldn’t stall your lifting operations. The mobile spider crane is designed specifically to bridge the gap where standard cranes fail. From high-rise rooftop work and narrow alleyways to indoor equipment installation, these compact lifting solutions combine powerful performance with exceptional site maneuverability.
At YG Machinery, our compact spider cranes empower contractors to complete demanding jobs safely and efficiently. Featuring advanced crawler drive technology, stable outrigger support, and precise control, YG lifting equipment helps you save labor costs, reduce downtime, and take on complex projects with complete confidence.
Technical Specifications of Tracked Mini Crane for Different Project Sizes
YG Machinery offers several models to match various lifting requirements.
| Model | YG-3 | YG-5 | YG-8 | |
| Specification | 3t | 5t | 8t | |
| Maximum working radius | 8.83m×0.15t | 14m×0.5t | 16.5m | |
| Maximum above-ground head | 9.9m×0.7t | 16.8m | 18m | |
| Winch device | Hook Speed | 0-8m/min(4 rope) | 12m/min(4 rope) | 12m/min(4 rope) |
| Rope diameter | φ8mm×45m | Φ11mm×80m | Φ11mm×80m | |
| Telescopic system | Boom Type | 5-section boom, pentagonal structure | 5-section boom, pentagonal structure | 5-section boom, pentagonal structure |
| Boom Length/Time | 3.1m-9.2m/20sec | 12.3m/54sec | 12.3m/54sec | |
| Up and down | Boom Angle/Time | 0°~78°/13sec | 0°~78°/13sec | 0°~78°/13sec |
| Slew system | Slew Angle/Speed | 0-360°continuous/60sec | 0-360°continuous/38sec | 0-360°continuous/38sec |
| Traction system | Walking Way | Hydraulic motor drives | Hydraulic motor drives | Hydraulic motor drives |
| Walking Speed | 0~2.5km/h | 0~2.5km/h | 0~2.5km/h | |
| Grade Ability | (25°)36% | (25°)36% | (25°)36% | |
| Operating system | Operation type (Boom/outrigger) | Manual operation, manual walking(remote control option) | Manual operation, manual walking(remote control option) | Manual operation, manual walking(remote control option) |
| Operating characteristics | Manual operation, remote control | Manual operation, remote control | Manual operation, remote control | |
| Transport parameters | L*W*H(mm) | 2950*980*1560 | 5000*1500*1900 | 5000*1600*2180 |
| Total weight(kg) | 2700 | 6200 | 7200 | |
Additional technical highlights include:
- Boom angle range: 0°-78°
- Continuous 360° slewing
- Hydraulic crawler travel system
- Remote-control operation available
- Compact transportation dimensions
- Stable multi-outrigger support structure
Customers can select the appropriate model according to lifting height, load requirements, and project environment.
Find the Right Model for Your Project

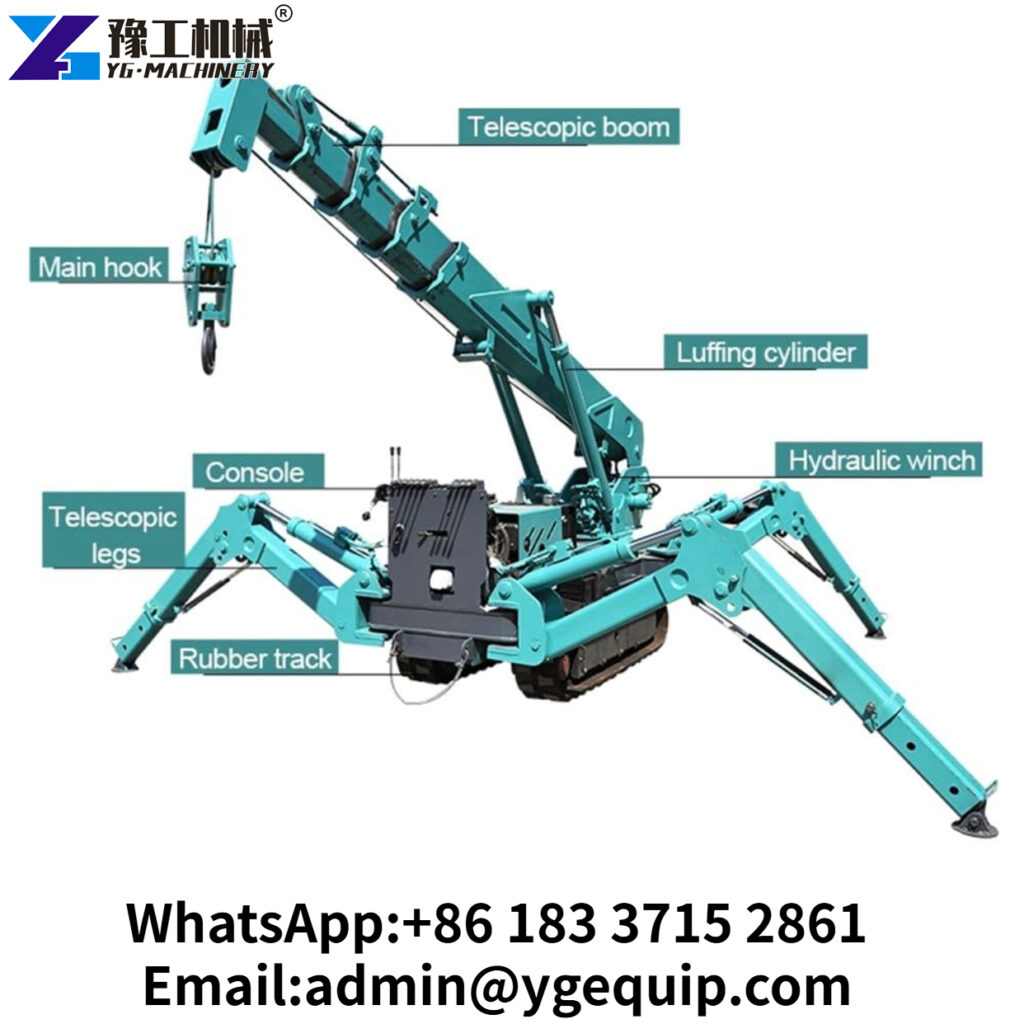

5 Mobile Spider Crane Reliable Performance Features
Reliable lifting performance requires more than lifting capacity alone. Structural design, boom configuration, stability systems, and control precision all play critical roles. YG mini spider crane: Several engineering features contribute to operational efficiency:
1. Five-Section Telescopic Boom
The pentagonal boom structure enhances strength while maintaining compact transportation dimensions. Telescopic movement allows operators to adapt quickly to varying lifting requirements.
2. Continuous 360° Rotation
Smooth rotational movement helps position loads accurately without repeatedly repositioning the crane.
3. Hydraulic Travel System
The crawler drive system delivers excellent maneuverability and stable movement across uneven surfaces.
4. Remote-Control Capability
Operators can position themselves at safer viewing angles while maintaining full control over lifting operations.
These features improve both productivity and safety while reducing operator fatigue during extended working hours.
5. Optional Attachments for Maximum Versatility
To meet diverse on-site demands, the YG mini spider crane supports flexible attachment upgrades:
- Fly Jib (Extension Boom): Reaches over high-level obstacles and extends working radius in confined indoor angles.
- Man Basket (Aerial Work Platform): Safely elevates technicians for high-altitude installation, inspection, and maintenance.
- Vacuum Glass Lifter: Integrates seamlessly for non-marking, high-precision suction and placement of heavy glass panels.
Find the Right Model for Your Project
6 Mini Crawler Cranes for Sale Across Multiple Industries
Tracked mini cranes continue to expand into a wide variety of industries.
1. Glass Installation & Curtain Walls
Handling heavy glass panels in tight spaces requires pinpoint precision. Equipped with vacuum glass suction lifters and fly jibs, YG spider cranes easily hoist and tilt oversized glass units into place without scratching or damaging the material.
2. Curtain Wall Projects
Contractors frequently use these machines to install façade materials on commercial buildings.

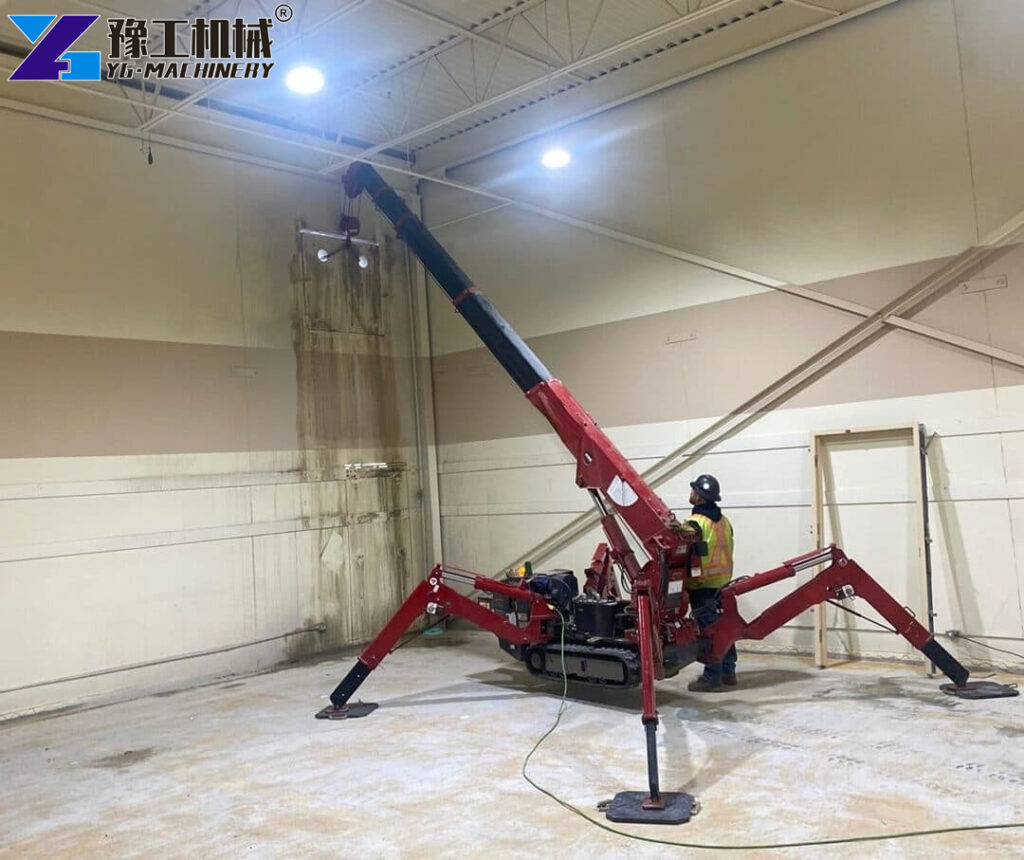

3. Equipment Relocation
Factories and industrial facilities use compact cranes to move heavy machinery inside buildings.

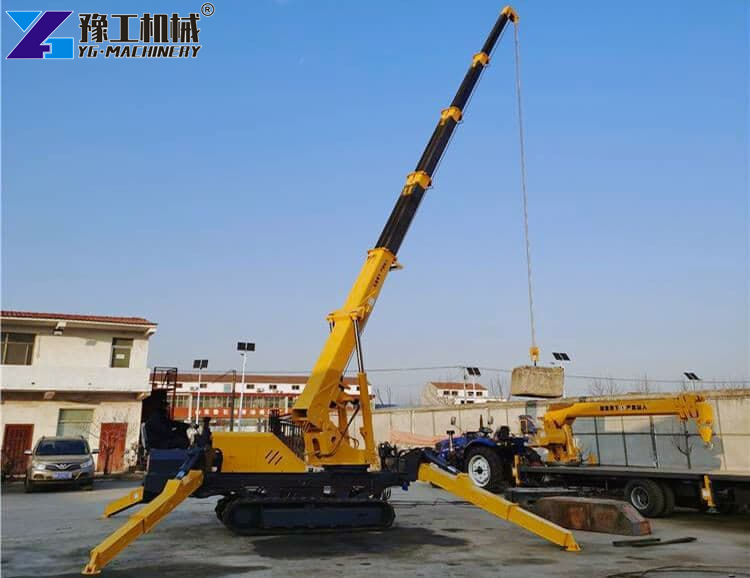

4. Steel Structure Assembly
The equipment assists with positioning beams and structural components during construction.
5. Residential Construction
Roof materials, steel members, and prefabricated components can be lifted efficiently even in restricted spaces.

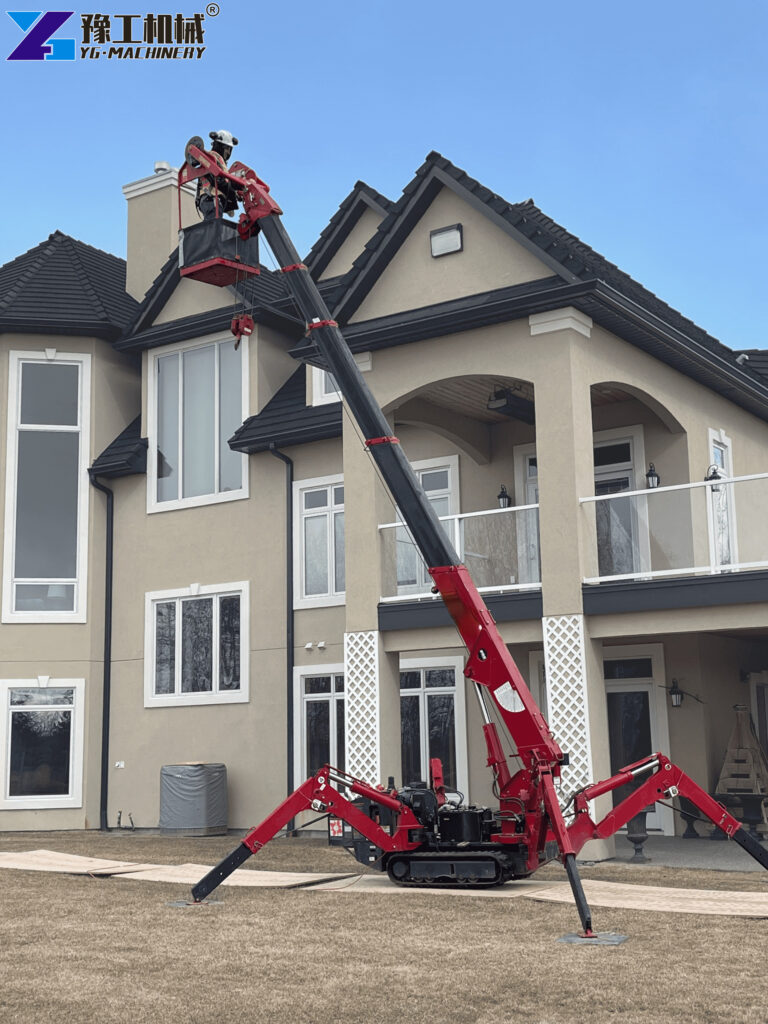

6. Maintenance Operations
Shopping centers, airports, and factories frequently require equipment updates at height. With an optional man basket, the spider crane converts into an aerial work platform, allowing workers to perform safe overhead maintenance in restricted areas.
These diverse applications help maximize equipment utilization and improve overall investment returns.

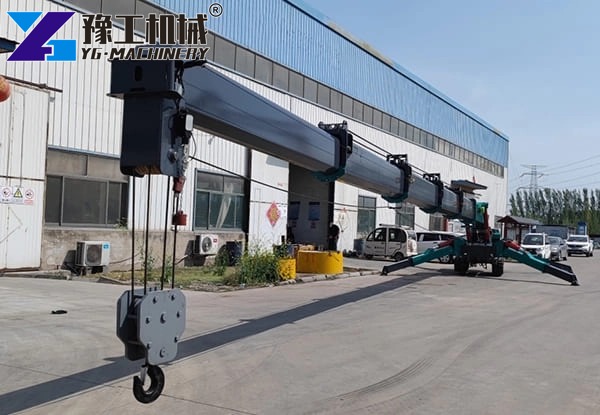

4 Spider Crane Price Factors Every Buyer Should Understand
Spider crane cost depends on several important factors beyond lifting capacity alone.
Major factors affecting investment cost include:
1. Lifting Capacity
Higher-capacity models require stronger structural components and hydraulic systems.
2. Maximum Working Radius
Longer boom reach generally increases manufacturing complexity and overall cost.
3. Control System Configuration
Remote-control systems and advanced safety functions can influence pricing.
4. Project Requirements
Special attachments, custom configurations, and export requirements may impact final equipment cost.
Rather than focusing solely on purchase price, buyers should evaluate total ownership costs, including productivity gains, labor savings, maintenance expenses, and equipment utilization rates.
Many contractors find that faster project completion and reduced labor requirements provide a strong return on investment within a relatively short period.
Compare Models and Get a Quote
Why Mobile Spider Crane Is Transforming Modern Lifting Projects
Traditional cranes perform well in open spaces, but many modern construction and industrial projects involve restricted access areas. Compact spider cranes fill this gap by offering powerful lifting capabilities within a small footprint.
Key benefits include:
- Compact transportation dimensions
- Easy access through narrow entrances
- Excellent stability during lifting
- Low ground pressure
- Indoor and outdoor usability
- Remote-control operation options
- Reduced manpower requirements
Unlike larger lifting equipment that often requires extensive site preparation, this machine can quickly reach the working position and begin operation. This significantly improves project efficiency while minimizing disruption to surrounding activities.
For companies handling glass installation, steel structure assembly, equipment relocation, and maintenance work, these advantages directly translate into faster project completion and improved profitability.
Tracked Mini Crane Built for Areas Larger Cranes Cannot Reach
One of the biggest challenges in lifting operations is accessing confined work environments. Many job sites have limited entry widths, weight restrictions, or uneven terrain that prevent conventional cranes from operating effectively.
The crawler-driven design allows stable movement across:
- Construction sites
- Shopping malls
- Industrial plants
- Warehouses
- Airports
- Hospitals
- Residential projects
- Roof structures
The hydraulic crawler system provides excellent traction while maintaining low ground pressure. This allows operators to move safely across sensitive flooring surfaces and unfinished construction areas.
Even when working in complex environments, the machine maintains strong stability through its multi-outrigger support system. This combination of mobility and lifting performance makes it a preferred choice for contractors facing challenging lifting conditions.
Boost Productivity—Get a Free Quote
Mobile Spider Crane Case Study: Shopping Mall Glass Installation
Project Challenge: Complex Indoor Atrium Glass Replacement
A commercial contractor was tasked with replacing and installing large glass panels for a multi-story atrium in an active shopping mall. The site presented several critical logistics and safety hurdles:
- Strict Access & Floor Load Limits: The only entry point was a narrow service doorway measuring just 1.2 meters wide. Additionally, the indoor floor consisted of delicate marble tile with strict ground-bearing pressure limits, completely ruling out standard truck cranes or heavy equipment.
- Confined Indoor Space: Scaffolding and interior structural columns left minimal clearance. Manually moving glass panels weighing over 300 kg across multiple levels was both extremely slow and carried high risks of glass breakage and personal injury.
The Solution: Precision Lifting with the YG-5 Mini Spider Crane
To solve these constraints, the contractor deployed the YG-5 Tracked Mini Spider Crane equipped with an optional vacuum glass lifter and fly jib.
- Ultra-Compact Access: With a transport width of just 1.5 meters and a low-profile crawler chassis, the YG-5 easily navigated through narrow service doors directly to the atrium site.
- Multi-Attachment Precision: The integrated vacuum glass lifter safely secured 300+ kg glass panels without manual rigging, while the fly jib extension allowed the crane to maneuver past tight structural columns smoothly.
- Surface Protection & 360° Control: Rubber crawlers protected the sensitive marble floor, and the operator used a wireless remote control to position panels into curtain-wall frames with millimeter accuracy.
Key Outcomes & ROI
- Repeat Business: Satisfied with the operational performance, the contractor subsequently purchased additional YG spider crane units to expand their commercial curtain wall and building maintenance services.on work.
- 70% Time Savings: The entire high-altitude glass installation took just 3 days to complete, down from the originally estimated 10-day manual timeframe.
- 60% Labor Reduction: The installation crew was reduced from 8 workers down to 3 (1 remote operator and 2 alignment technicians), significantly lowering labor costs.
- Zero Safety Accidents & Damage: Wireless remote operation eliminated dangerous manual lifting, achieving zero site injuries and zero glass breakage throughout the project.
Start Your Project with the Right Equipment
FAQs About Tracked Mini Crane
Spider cranes excel in tight-access jobs—indoor HVAC installation, glass curtain wall lifting, rooftop MEP work, and machinery placement in basements or factories with narrow doorways.
Yes. All YG series mini spider cranes (YG-3, YG-5, YG-8) support modular attachments, including fly jibs for extended reach, man baskets for high-altitude personnel work, and vacuum suction lifters for specialized glass handling. These options can be customized based on your specific project needs.
Yes. All YG series models (YG-3, YG-5, YG-8) offer remote control as an option, allowing you to stand at the safest vantage point with clear visibility.
YG series spider cranes handle up to 25° (36% grade). This makes them suitable for sloped construction sites, ramps, and uneven terrain.
Always inspect the 5-section boom for damage, test the slew system for smooth 360° rotation, ensure outriggers are stable, and verify the hook and rope (φ8mm or φ11 mm) show no wear.
Regularly check hydraulic motor drives for leaks, lubricate the telescopic boom sections, keep the walking speed system (0-2.5 km/h) functional, and store the crane on flat ground to protect the pentagonal boom structure.
