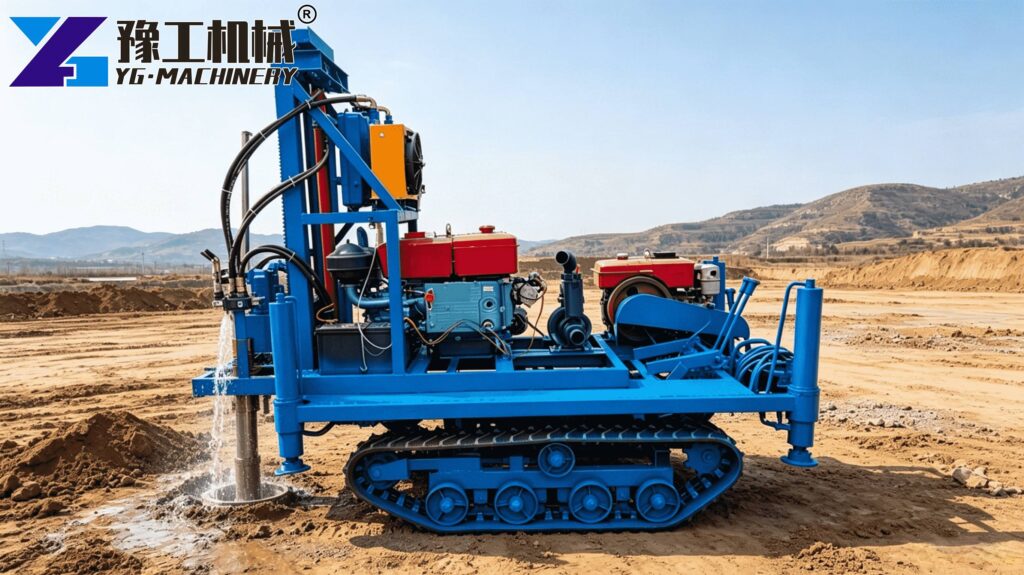

A portable well drill is becoming an essential solution for modern water sourcing projects in agriculture, residential construction, and remote area development. Unlike large stationary rigs, this equipment offers mobility, flexibility, and efficient drilling performance in different terrains.
At YG Machinery, we design compact drilling systems based on real field requirements. With strong engineering experience and strict manufacturing standards, the company provides reliable drilling solutions that help users access groundwater quickly and reduce operational costs in rural and industrial applications.
The system is widely used in small farms, residential water supply projects, and construction sites where fast deployment and mobility are critical.
6 Reasons a Portable Well Drill Improves Water Access Efficiency
Water drilling projects often face challenges such as limited access, high transportation costs, and unstable terrain conditions. This system is designed to solve these problems with a compact structure and strong drilling capability.
Key advantages include:
- Lightweight structure for easy transport
- Fast setup time on different terrains
- High drilling depth capacity up to 200m
- Stable diesel engine power output
- Simple operation suitable for small teams
- Reduced overall drilling cost
Instead of relying on heavy industrial rigs, operators can quickly deploy this system and start drilling within a short setup time. This improves efficiency in rural and remote water supply projects.

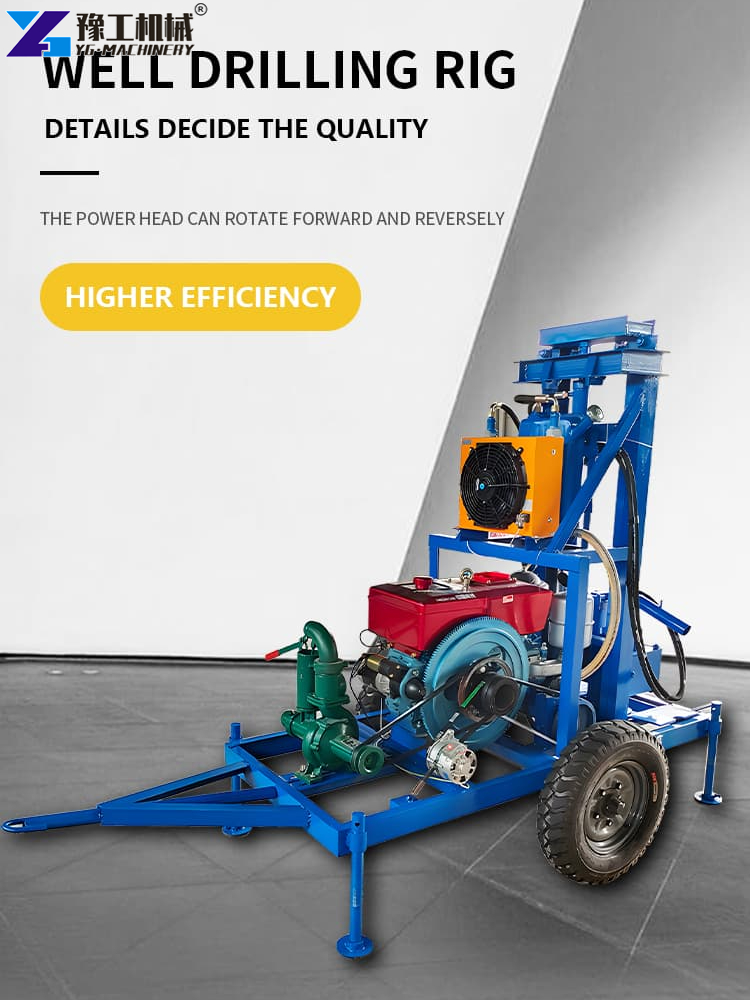

Portable Well Drilling Rig for Sale | Compact Solution For Mobile Drilling Operations
We design portable well drilling rigs for sale for contractors and users who need flexible drilling equipment that can be easily transported between job sites.
The system uses a compact frame structure combined with a high-efficiency diesel engine to ensure stable drilling performance. It supports automatic rod changing, which reduces manual labour and improves drilling continuity.
It is commonly used in:
- Agricultural irrigation wells
- Rural drinking water projects
- Construction site water supply
- Small municipal water systems
- Remote geological exploration
Its mobility allows operators to move between sites without complex logistics, making it highly suitable for distributed drilling tasks.
YG Machinery provides multiple configurations to meet different drilling depth and hole diameter requirements.
Water Well Boring Machine | Working Principle For Stable Groundwater Drilling
The water well boring machine operates through a rotary drilling system driven by a diesel engine. The drill rods rotate and penetrate soil layers, gradually reaching groundwater sources.
Working process:
- A diesel engine generates rotational power
- Drill rods transfer torque to the drilling bit
- Soil layers are broken and removed continuously
- Hole depth increases step by step
- The water source layer is reached at the target depth
👉 This process ensures stable, continuous, and efficient drilling performance.
Compared to manual or low-power systems, this machine provides higher penetration speed and better stability in different soil conditions, including clay, sand, and mixed formations.

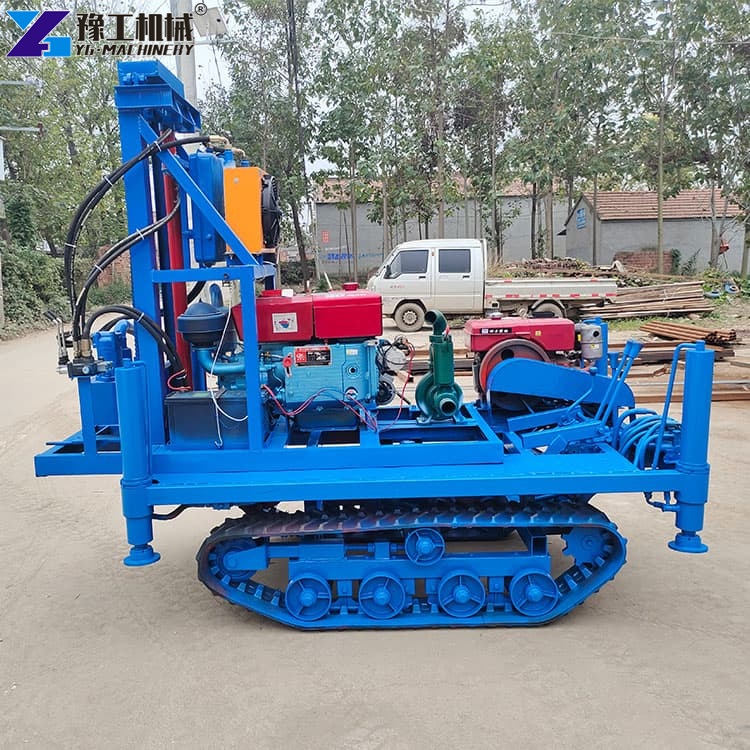

Small Borewell Drilling Machine | Lightweight Design For Field Flexibility
The small-bore drilling machine is designed for users who need compact equipment with strong drilling capability in limited working environments.
The system structure allows fast assembly and disassembly, making it suitable for transport to rural or mountainous areas. It can be operated by a small team, reducing labour requirements while maintaining drilling efficiency.
Key application scenarios:
- Rural water supply systems
- Farm irrigation wells
- Household water access projects
- Small construction foundations
- Emergency water sourcing
Its compact design makes it especially useful in regions where large drilling rigs cannot operate efficiently.
We ensure each unit undergoes durability and field performance testing before delivery to guarantee stable operation and reliable performance in real working conditions.
5 Core Advantages of Portable Well Drill for Drilling Efficiency and Cost Reduction
We design this portable drilling system to optimise both operational efficiency and overall project cost structure.
High Mobility Design
Compact frame allows easy transportation across different job sites without heavy logistics support.
Deep Drilling Capability
Supports up to 200m drilling depth, suitable for most groundwater applications.
Stable Diesel Power System
Ensures continuous drilling performance even in remote areas without an electricity supply.
Automatic Rod Change System
Reduces manual labour and improves drilling continuity and speed.
Flexible Application Range
Suitable for agriculture, construction, and rural water supply projects.
These advantages make the system a practical choice for contractors and users who need reliable and cost-effective drilling equipment.
Compare Models and Get a Quote
Technical Specifications of the YG Portable Well Drill Series
The YG portable drilling series is designed for efficient field operation with stable performance and easy maintenance.
| Model | YG-240-22P | YG-240-30P |
|---|---|---|
| Dimension | 1450×1550×1970mm | 2000×1230×2090mm |
| Weight | 200kg | 200kg |
| Drill Rod Diameter | 42mm | 51mm |
| Rod Length | 1.5m/unit | 1.5m/unit |
| Rod Change Method | Automatic screw thread | Automatic screw thread |
| Max Drilling Depth | 200m | 200m |
| Diesel Engine Power | 22HP | 30HP |
| Drilling Diameter Range | ≤280mm | 100–240mm |
| Lifting Height | 2.5m | 2.5m |
| Lifting Force | 1000kg | 2000kg |
We optimise the structure for durability, ensuring stable operation even under continuous drilling conditions. We design the hydraulic and mechanical components for easy maintenance and long service life.
How To Choose The Right Portable Well Drill
Selecting the right model depends on actual project requirements rather than size alone.
Key factors include:
Drilling Depth Requirement
Choose based on expected groundwater depth.
Hole Diameter Requirement
Different applications require different drilling sizes.
Terrain Conditions
Soft soil, rocky ground, or mixed formations affect model selection.
Power Requirement
22HP suits lighter projects, while 30HP handles more demanding drilling tasks.
Transport Conditions
Remote or mountainous areas benefit from lighter configurations.
YG Machinery provides technical consultation to help customers choose the most suitable configuration for their drilling needs.
Find the Right Model for Your Project
Real Project Case: Rural Water Supply Expansion Project In Africa
A rural development project in Kenya required the fast installation of groundwater wells for multiple villages spread across a wide region. Traditional drilling rigs were too large and difficult to transport between sites.
The contractor selected the YG-240-30P portable well drill for its mobility and 200m depth capability.
Results included:
- Faster deployment across multiple locations
- Reduced transportation costs between villages
- Stable drilling performance in mixed soil conditions
- Improved access to clean water for local communities
- Completion of the project ahead of schedule
The project demonstrated how compact drilling systems can significantly improve rural water infrastructure development efficiency.
Why Choose YG Machinery
YG Machinery is a professional manufacturer specialising in construction and drilling equipment. The company provides:
- Factory-direct supply
- Global technical support
- Custom engineering solutions

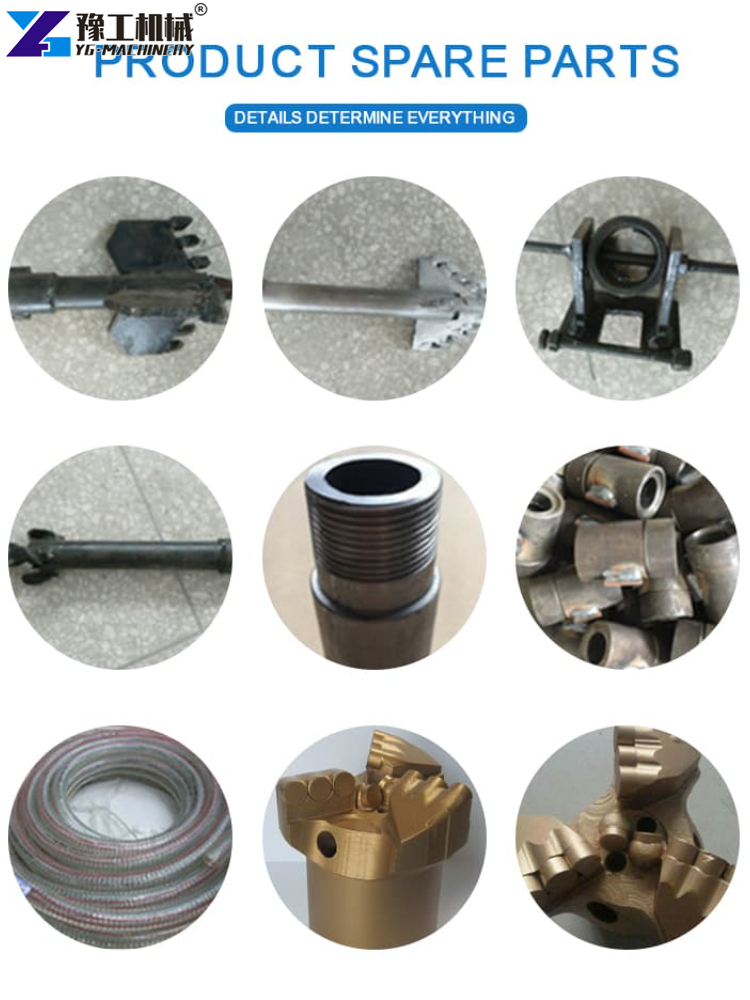

- Spare parts availability
- Proven field performance
With strong production capability and engineering experience, YG Machinery helps users access reliable water drilling solutions with lower cost and higher efficiency.
Contact YG Machinery today via WhatsApp, email, or the website form. Every machine includes a warranty and remote support.【WhatsApp/WeChat/Phone】+86 183 3715 2861
Boost Productivity—Get a Free Quote
FAQ About Small Borewell Drilling Machine
It can reach up to 200 meters depending on soil conditions.
Yes, it is designed for portable and mobile use.
Yes, with appropriate drill bit selection.
Usually, 2–3 people are sufficient.
Yes, full spare parts support is available.
