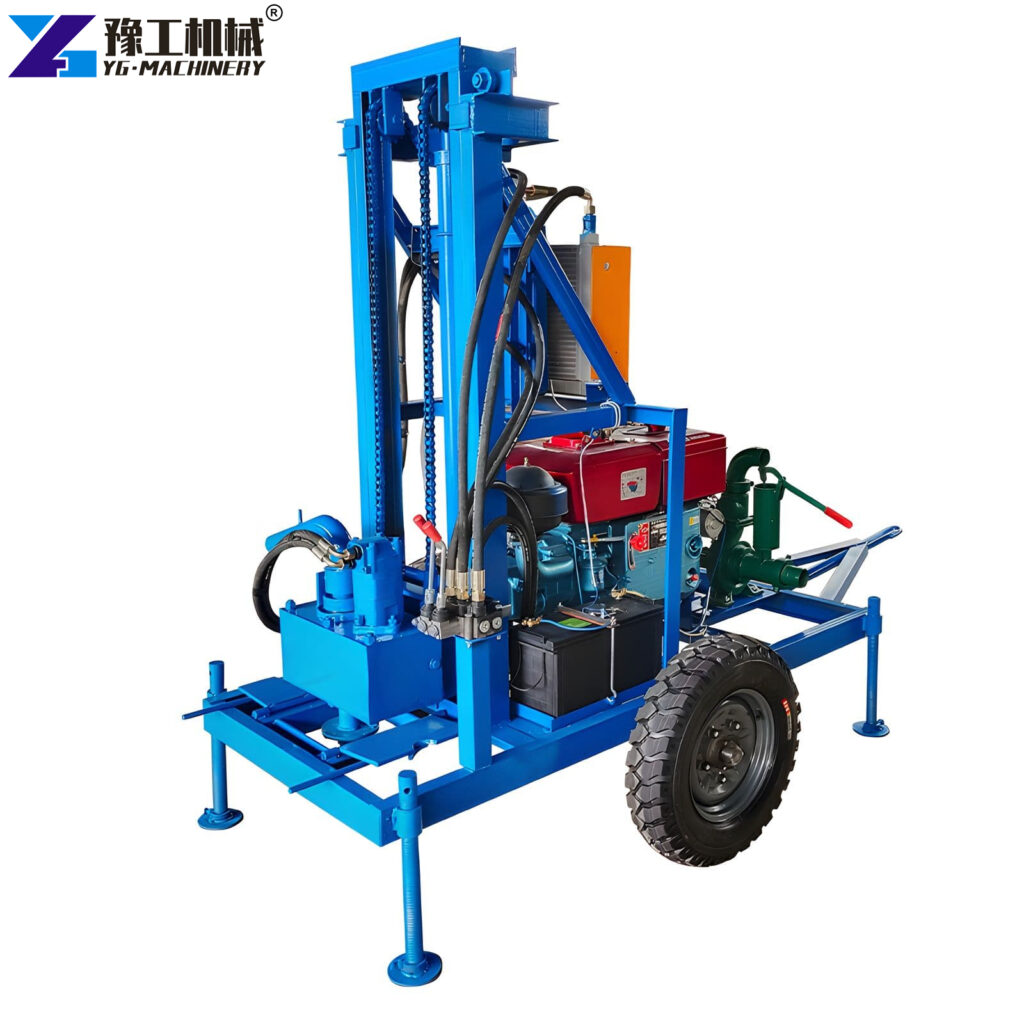

The small borehole drilling machine is designed for efficient and practical water well drilling in rural, agricultural, and small-scale construction environments. It delivers a compact structure with strong drilling capability, helping contractors access groundwater in areas where large rigs are not suitable. The small-borehole drilling machine from YG Machinery focuses on portability, operational stability, and long-term reliability, making it a preferred choice for global water well projects.
YG Machinery has been supplying drilling equipment to Africa, Southeast Asia, South America, and the Middle East for years. These regions often require flexible drilling solutions that can operate in remote areas, uneven terrain, and limited infrastructure conditions. This machine directly solves these challenges by combining mobility with efficient drilling performance.
The increasing demand for a clean water supply has made small drilling systems essential in modern field engineering. Instead of relying on expensive large rigs, contractors now prefer compact machines that can be deployed quickly, maintained easily, and operated at a lower cost. This equipment meets all these requirements while maintaining professional drilling depth capability.
Technical Specifications of Small Borehole Drilling Machine
| Model | YG-240-22P | YG-240-30P |
|---|---|---|
| Dimension | 1450×1550×1970mm | 2000×1230×2090mm |
| Weight | 200kg | 200kg |
| Drill rod diameter | 42mm | 51mm |
| Drill rod length | 1.5m/unit | 1.5m/unit |
| Rod change method | Fully automatic screw thread | Full automatic screw thread |
| Max drilling depth | 200m | 200m |
| Diesel engine power | 22HP | 30HP |
| Drilling hole diameter | Within 280mm | 100–240mm |
| Lifting height | 2.5m | Max 2.5m |
| Lifting force | 1000kg | 2000kg |
This configuration provides flexibility for projects of different scales. Contractors can select models based on required depth, soil condition, and working environment.
Compare Models and Get a Quote
Application Scenarios of Small Borehole Drilling Machine
The small portable borehole drilling machine is a highly versatile piece of equipment engineered to meet diverse water access and geotechnical requirements. Thanks to its compact design, powerful drilling capacity, and outstanding mobility, it serves as a reliable solution across various industries and real-world environments.
Key application scenarios include:
- Rural & Village Drinking Water Projects: Ideal for community-based water supply initiatives in remote villages and off-grid settlements where heavy drilling rigs cannot pass through narrow roads or rough terrain.
- Agricultural & Farm Irrigation Systems: Provides a direct, independent water source for crop irrigation, greenhouses, and livestock farming, helping farmers reduce reliance on municipal water and maintain productivity during dry seasons.
- Residential & Backyard Well Construction: Perfectly sized for homeowners and local contractors looking to drill shallow-to-medium depth private water wells in residential yards, gardens, or rural homesteads with minimal space disruption.
- Emergency Drought Relief & Disaster Response: Rapidly deployable in drought-affected areas or disaster zones to establish temporary and long-term emergency clean water access points for affected populations.
- Commercial & Construction Site Water Sourcing: Supplies on-site operational water for concrete mixing, dust suppression, equipment cleaning, and temporary worker accommodations at construction and infrastructure sites.
- Geotechnical Exploration & Soil Sampling: Frequently utilized by environmental engineers and geological survey teams to perform site investigations, soil core sampling, and groundwater monitoring boreholes.
By combining fast setup times with adaptable drilling performance across soil, sand, and mixed rock layers, this machine enables contractors to complete a wide array of field engineering projects efficiently and cost-effectively.
Small Borehole Drilling Machine for Efficient Water Access Projects
The small-borehole drilling machine provides a balanced solution between portability and drilling depth. It supports both shallow and medium-depth water well construction, making it suitable for different geological environments.
Key advantages include:
- Compact body design for easy transportation
- High drilling depth capacity up to 200m
- Stable diesel engine power output
- Fast rod connection system for reduced downtime
- Suitable for soil, sand, and mixed rock formations
- Low operating cost for long-term projects

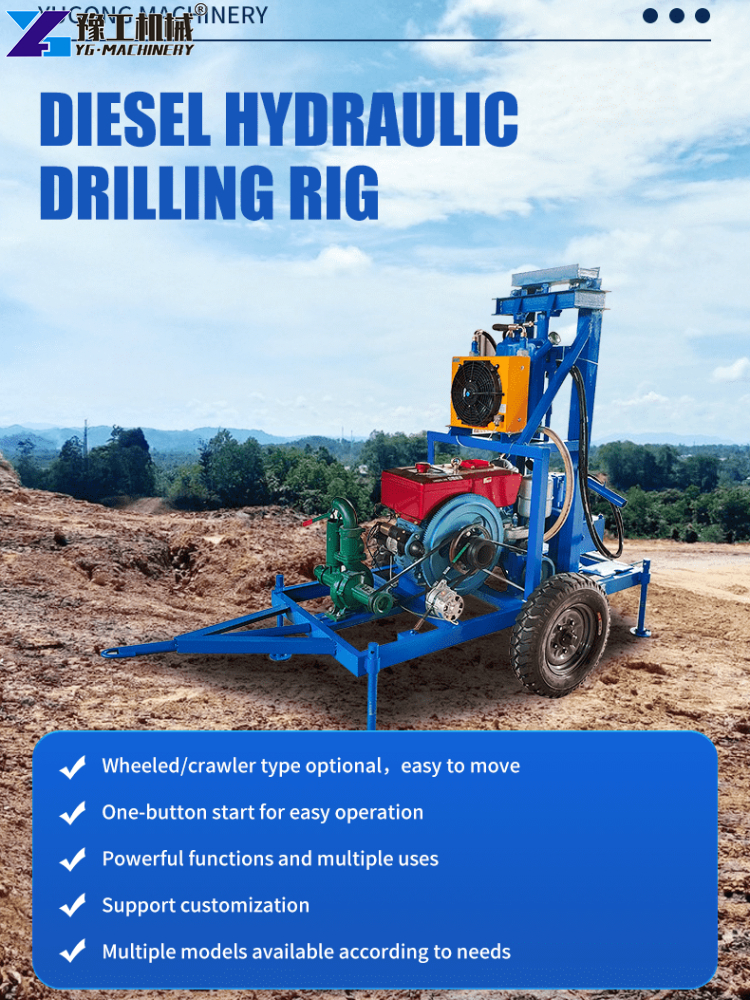

This machine is widely used in rural water supply systems where fast deployment is essential. Contractors can transport it using small trucks or trailers, allowing operations even in areas without proper road infrastructure.
Unlike large industrial rigs, this system reduces setup complexity and allows operators to start drilling quickly after arrival at the site. This improves project turnaround time and increases daily productivity

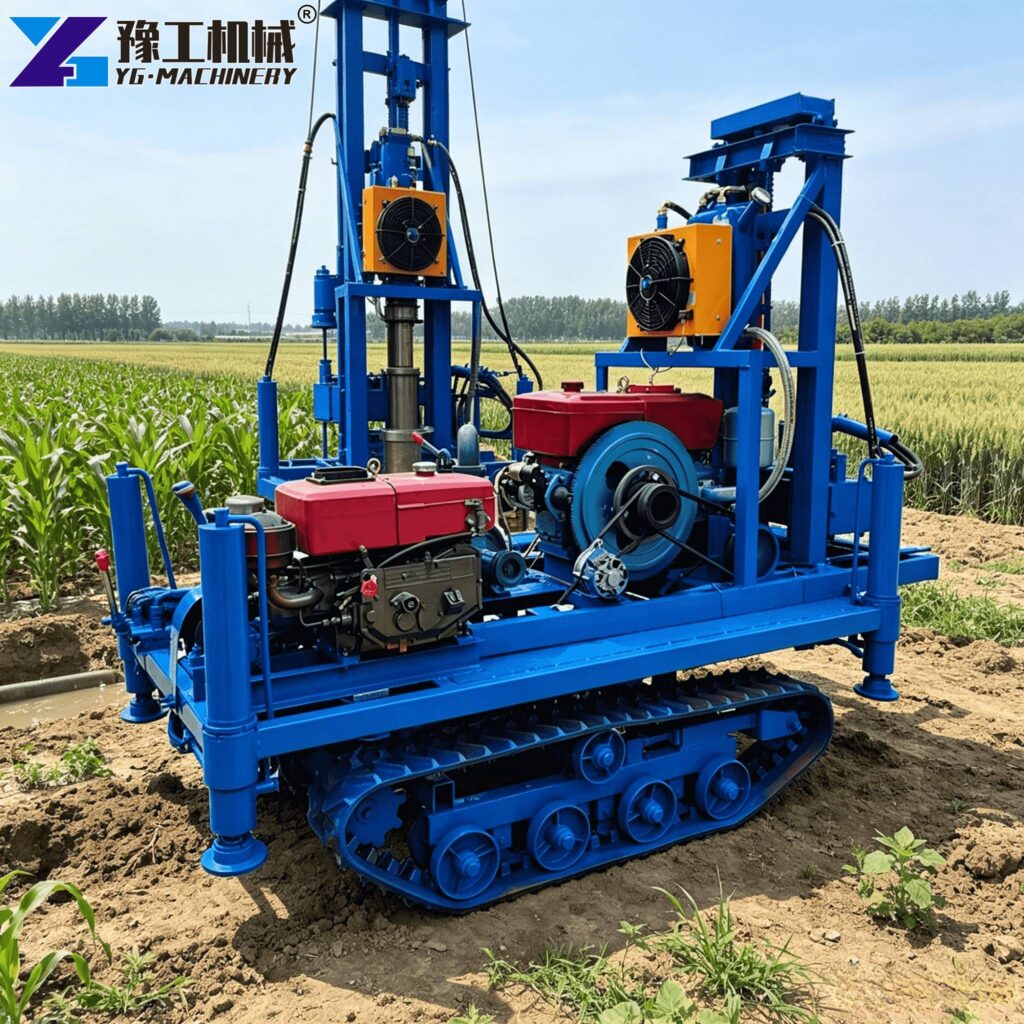

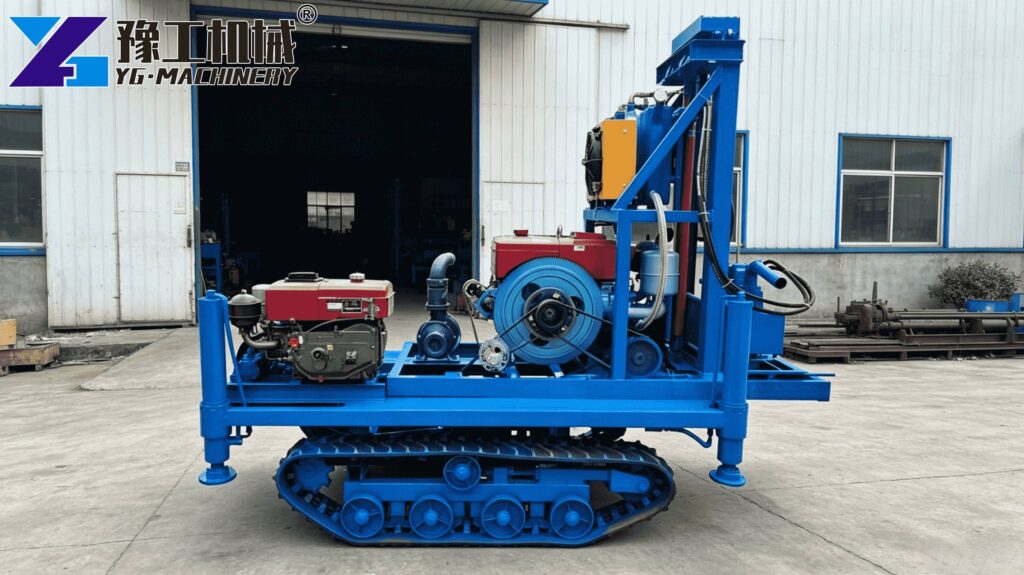

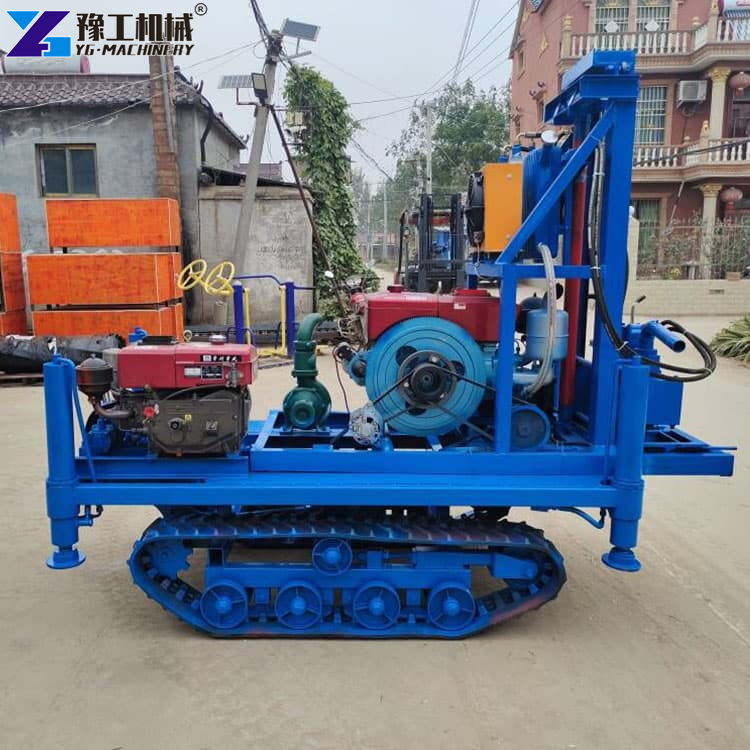

Portable Well Drill for Remote and Rural Water Projects
The portable structure is one of the most important advantages of this equipment. It allows operators to move the machine easily across villages, farms, and construction sites without heavy logistics.
Key benefits include:
- Lightweight frame for fast relocation
- Quick assembly and disassembly process
- Reduced transportation cost
- Suitable for mountainous and off-road areas
- Flexible operation in narrow working spaces
- Easy storage and maintenance
This type of equipment is widely used in agricultural irrigation systems where water sources are scattered across large farmland areas. It also plays a key role in emergency water supply projects, especially in regions affected by drought or infrastructure damage.
Operators can quickly reposition the machine between drilling points, which significantly improves overall project efficiency.

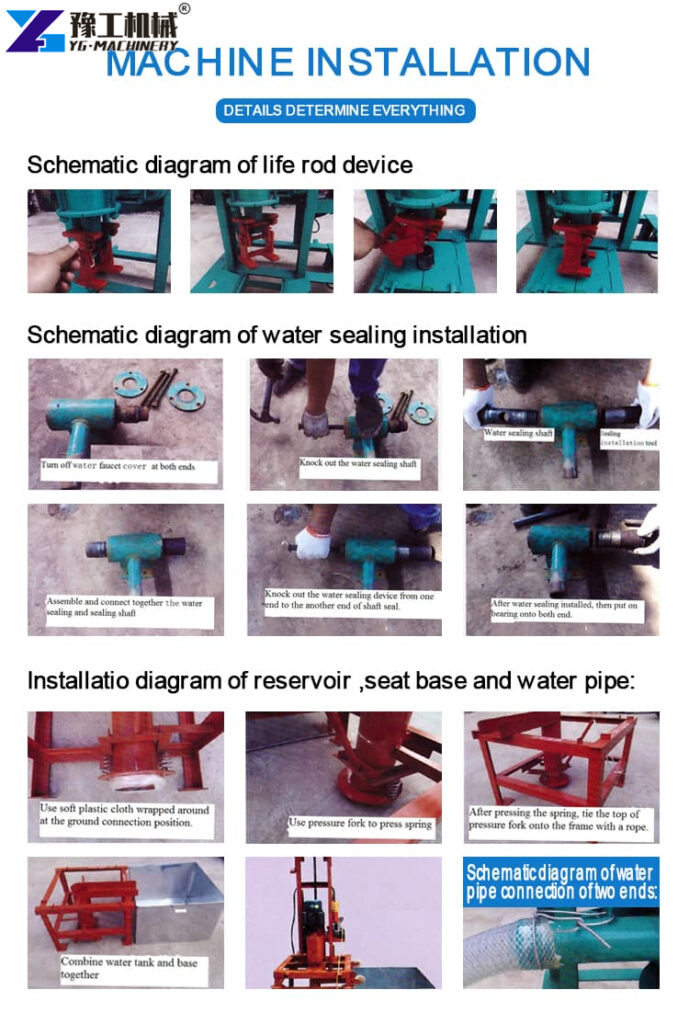

Home-Built Water Well Drilling Rig for Flexible Field Operation
The portable well drilling rig structure is designed with simplicity and modular assembly in mind. This allows users to perform maintenance and part replacement directly in the field without complex tools or technical support.
Key advantages include:
- Modular mechanical structure for easy servicing
- Fully automatic screw-thread rod connection system
- Reduced dependence on highly skilled operators
- Stable performance in long-term field operation
- Lower maintenance costs compared with large rigs
- Strong adaptability for different drilling environments
Because of its simple mechanical design, local contractors and small drilling teams can quickly learn how to operate the system. This reduces training time and allows faster project deployment.
The system also improves reliability in remote areas where technical support is limited. Even under harsh conditions, it maintains stable drilling output and consistent borehole quality.

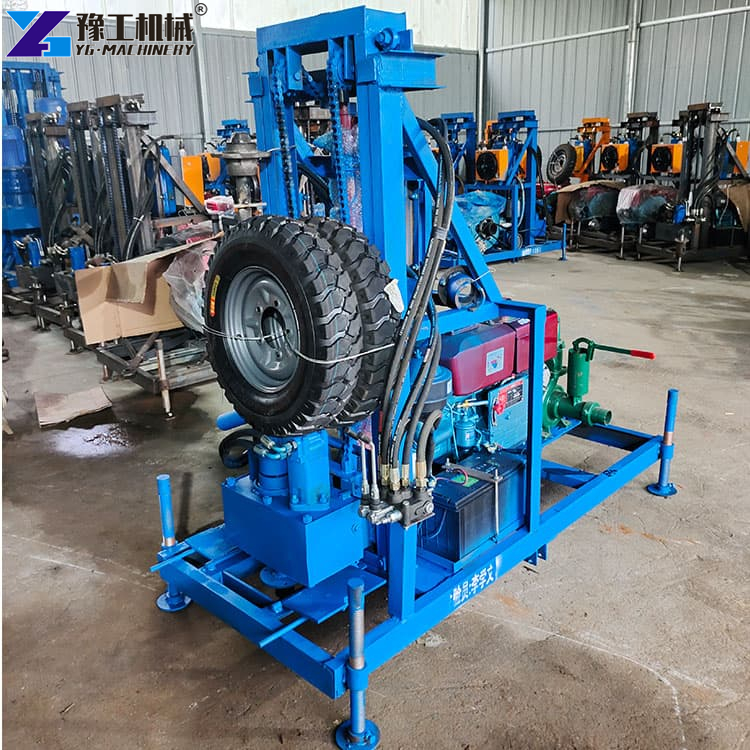

Water Drilling Machine for Sale with High Efficiency Output
This drilling system is designed for commercial water well contractors who need both performance and cost efficiency. It supports continuous operation in demanding field conditions while maintaining stable torque output.
Performance highlights:
- Diesel engine power: 22HP / 30HP
- Maximum drilling depth: 200m
- Lifting force: 1000kg–2000kg
- Drill rod diameter: 42mm–51mm
- Hole diameter range: up to 280mm
- Lifting height: 2.5m
The system maintains a consistent drilling speed even through mixed geological layers. Operators can adjust drilling pressure and rotation based on soil hardness, ensuring stable penetration without damaging drill rods.
Compared with manual drilling or outdated equipment, this machine significantly reduces labor intensity and increases overall drilling efficiency. It also improves borehole quality, which is essential for long-term water extraction systems.
Working Principle of Small Borehole Drilling Machine
The drilling process is powered by a diesel engine that converts fuel energy into mechanical rotation.
Main workflow includes:
- A diesel engine generates rotational force
- Drill rods transfer torque to the drill bit
- The bit penetrates soil and rock layers gradually
- Cuttings are lifted through mechanical circulation
- Rods extend continuously until the target depth is reached
- The system maintains a stable borehole diameter throughout drilling
This simple yet efficient mechanism ensures reliable operation in different soil conditions. The operator can control drilling speed and pressure based on geological feedback, improving accuracy and reducing equipment wear.
Why Contractors Choose YG Machinery Drilling Equipment
YG Machinery focuses on practical engineering solutions designed for real field conditions. Every unit undergoes strict testing before shipment to ensure performance stability.
Key advantages include:
- Global export experience in 100+ countries
- Stable diesel engine performance
- Easy maintenance and spare parts availability
- Strong field adaptability
- Professional technical support team
- Competitive factory pricing
The goal is to help contractors complete drilling projects faster while reducing operational risk and total cost.
Contact YG Machinery today via WhatsApp, email, or the website form. Every machine includes a warranty and remote support.【WhatsApp/WeChat/Phone】+86 183 3715 2861
