Modern mining and geological exploration projects demand faster drilling speed, accurate sample collection, and reliable operation in difficult terrain. A professional RC drilling rig provides an efficient solution for reverse circulation drilling operations in mining, water well drilling, geological investigation, and infrastructure projects. Compared with traditional drilling methods, this equipment improves drilling efficiency, reduces contamination of samples, and delivers better drilling stability in complex geological environments.
YG Machinery focuses on practical drilling solutions for global contractors and mining companies. With strong hydraulic systems, crawler mobility, and intelligent operation controls, the equipment supports continuous drilling performance while reducing labor intensity and operating costs.

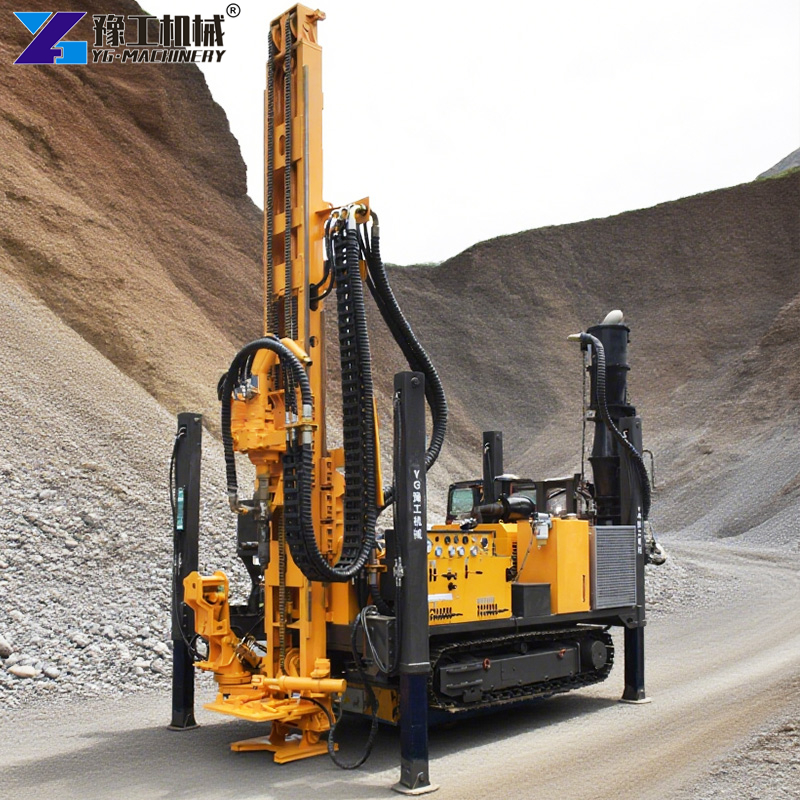

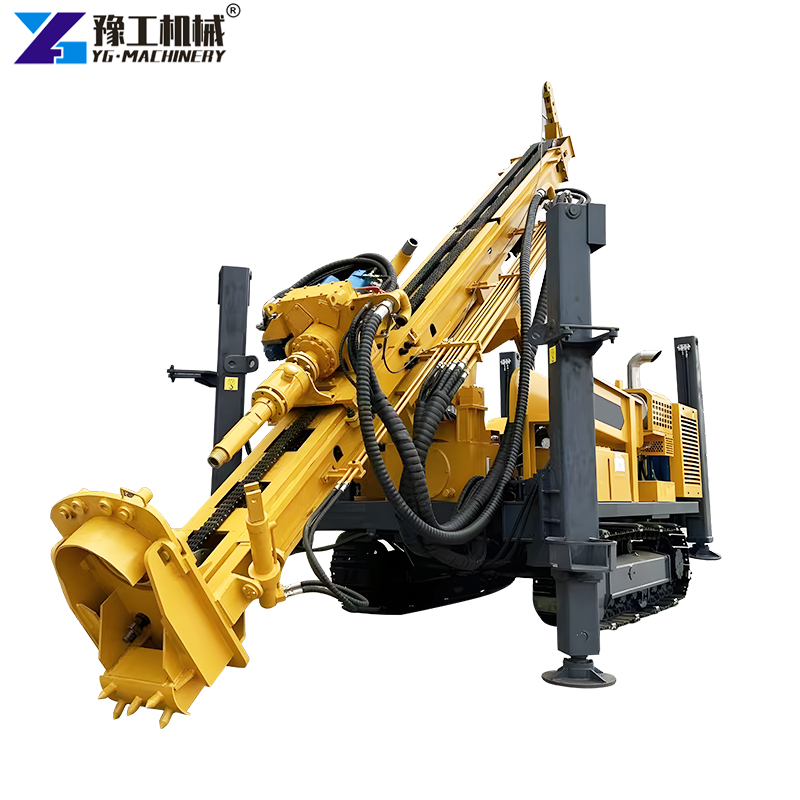

What Is an RC Drilling Rig?
An RC drilling rig is a specialized drilling system designed for reverse circulation drilling operations. It uses dual-wall drill pipes to transport rock samples from the drill bit directly to the surface through compressed air circulation.
This drilling method improves sample accuracy because the collected material moves inside sealed pipes rather than mixing with external soil layers. It is widely used in mineral exploration and geological investigation projects that require reliable underground data.
Compared with conventional drilling systems, reverse circulation drilling offers several advantages:
- Faster drilling speed
- Cleaner sample collection
- Reduced contamination risk
- Lower operational downtime
- Better adaptability in hard rock formations
- Improved drilling precision
The equipment combines a crawler chassis, hydraulic power system, rotary drilling head, feeding system, auxiliary winch, and pipe handling system into one integrated drilling platform.
RC Rig for High-Efficiency Drilling Operations
A modern RC rig focuses on drilling productivity, operational stability, and adaptability to challenging work environments.
High Drilling Speed
Strong rotary power and efficient air circulation improve penetration efficiency in hard geological conditions.
Accurate Sample Recovery
Reverse circulation technology transports drilling samples directly through the inner pipe, helping operators obtain cleaner geological data.
Stable Crawler Mobility
Crawler walking systems provide strong traction on uneven terrain, rocky ground, and muddy construction sites.
Flexible Drilling Angles
The drilling angle adjustment system supports different project requirements, including inclined drilling operations.
Reduced Operational Downtime
Efficient hydraulic systems and simplified machine structure help reduce maintenance interruptions during long drilling projects.
How the RC Drilling Rig Works
Understanding the working principle helps contractors select the right drilling solution for exploration and engineering projects.
Step 1: Drill Bit Penetration
The rotary drilling head drives the drill pipe and drill bit into the ground through hydraulic torque and feeding pressure.
Step 2: Compressed Air Circulation
Compressed air enters the outer pipe and carries rock cuttings upward through the inner pipe.
Step 3: Sample Collection
Collected samples move directly to the surface through the sealed circulation system, improving geological sampling accuracy.
Step 4: Continuous Drilling Process
The crawler-mounted system maintains machine stability while operators continue drilling to the target depth.
This drilling process significantly improves drilling efficiency while minimizing contamination during exploration work.
Examine its working principles in detail.
Reverse Circulation Drilling Rig for Complex Geological Conditions
A professional reverse circulation drilling rig performs effectively in different soil and rock formations.
Geological Adaptability
The machine can operate efficiently in:
- Hard rock formations
- Gravel layers
- Clay formations
- Sandstone
- Weathered rock
- Mixed geological conditions
Stable Hydraulic Power
The hydraulic system maintains continuous drilling force and rotary torque during heavy-load operations.
Excellent Drilling Accuracy
Accurate drilling alignment helps improve exploration efficiency and project reliability.
Lower Environmental Disturbance
Compared with some traditional drilling methods, reverse circulation drilling produces cleaner job sites and reduces unnecessary ground disturbance.
Key Features of the RC Drilling Rig
Powerful Rotary Drilling Head
The drilling head delivers stable torque output for demanding drilling conditions.
High Feeding Capacity
The feeding system provides a strong thrust and lifting force for deep drilling operations.
Heavy-Duty Pipe Puller Device
The pipe-puller system simplifies drill pipe handling and improves operational efficiency.
Durable Crawler Chassis
The crawler base maintains stable movement across rough and uneven terrain.
Cummins Engine Configuration
Reliable engine performance supports long working hours and stable power output.
Intelligent Hydraulic Control
The hydraulic system improves operational precision and simplifies machine handling.

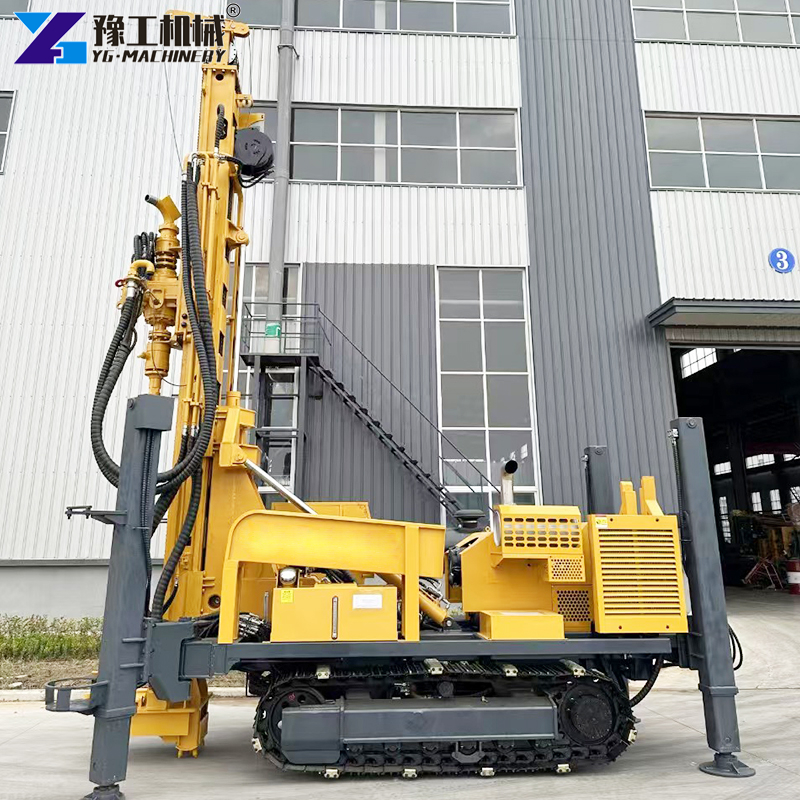

RC Drilling Machine Manufacturer With Reliable Engineering Support
Choosing a professional RC drilling machine manufacturer affects long-term drilling efficiency and equipment reliability.
YG Machinery focuses on supplying durable drilling equipment for mining, exploration, water well drilling, and infrastructure construction projects.
Why Contractors Choose YG Machinery
- Professional export experience
- Stable hydraulic system design
- Reliable crawler structure
- Technical installation guidance
- Spare parts supply support
- Competitive factory pricing
- Multiple drilling equipment solutions
YG Machinery also supplies:
- Rotary drilling rigs
- DTH drilling machines
- Horizontal directional drilling rigs
- Water well drilling rigs
- Pile drivers
- Diesel generator sets
- Excavators
- Road construction equipment
RC Drilling Rig Technical Specifications
| Item | Unit | YG150RC |
|---|---|---|
| Model | — | YG150RC |
| Drill Rig Weight (Crawler Mounted) | kg | 9000 |
| Engine Power | kW | 125 |
| Length × Width × Height | mm | 6750 × 2200 × 2950 |
| Ambient Temperature Range | °C | -10～38 |
| Nominal Drill Depth | m | 150 |
| End-hole Diameter | mm | 110–250 |
| Drill Angle | ° | -10–90 |
| Horizontal Hole Height | m | 1.85–2.8 |
| Max Output Torque | N.m | 8000 |
| Output Rotation Speed (Continuity) | rpm | 30/60, 54/108 |
| Output Rotation Speed (Interval) | rpm | 62/124, 105/210 |
| Feeding Stroke | mm | 3500 |
| Thrust Force | kN | 45 |
| Lifting Capacity | kN | 65 |
| Pipe Puller Rotation Speed | rpm | 40 |
| Pipe Puller Max Torque | N.m | 30000 |
| Hole-through Diameter | mm | 370 |
| Auxiliary Winch Pull Force | kN | 11 |
| Rope Diameter | mm | 14 |
| Rope Capacity | m | 60 |
| Engine Model | — | Cummins 6BTA5.9-C125 |
| Maximum Engine Speed | rpm | 2200 |
| Walking Speed | Km/h | 1.2 |
| Unit Pressure | MPa | ＜0.05 |
| Climb Ability | ° | ≥20 |
Technical Parameter Interpretation
150-Meter Drilling Depth
The machine supports deep drilling projects required in mining exploration and geological investigation.
8000 N · m Rotary Torque
Strong rotary torque improves penetration efficiency in hard rock formations.
45kN Feeding Force
Stable feeding pressure helps maintain drilling continuity and operational precision.
30000 N · m Pipe Puller Torque
The heavy-duty pipe-puller system improves drill pipe handling efficiency.
Cummins Engine System
The 125kW engine provides stable power output for long working hours.
Compact Transportation Size
The machine structure simplifies transportation between project sites.
Applications of Reverse Circulation Drilling Equipment
The equipment supports multiple industries and drilling applications.

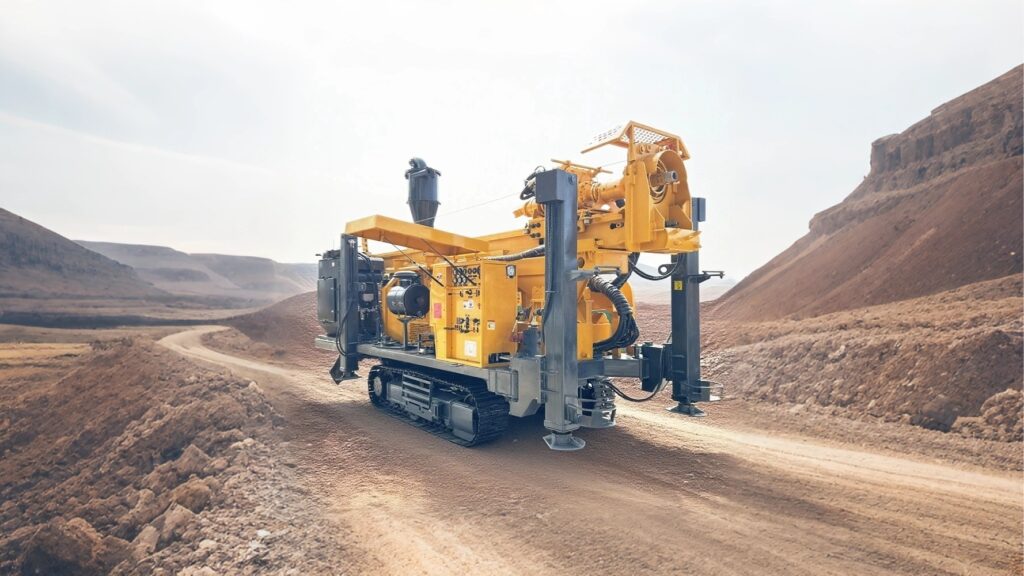

Mineral Exploration
Geological sampling accuracy makes it suitable for mining exploration projects.
Water Well Drilling
The machine can support deep water resource drilling operations.
Infrastructure Engineering
Foundation investigation and geological surveys require reliable drilling performance.
Quarry Exploration
Fast drilling speed improves operational efficiency in quarry environments.
Geological Research
Clean sample collection supports accurate underground data analysis.

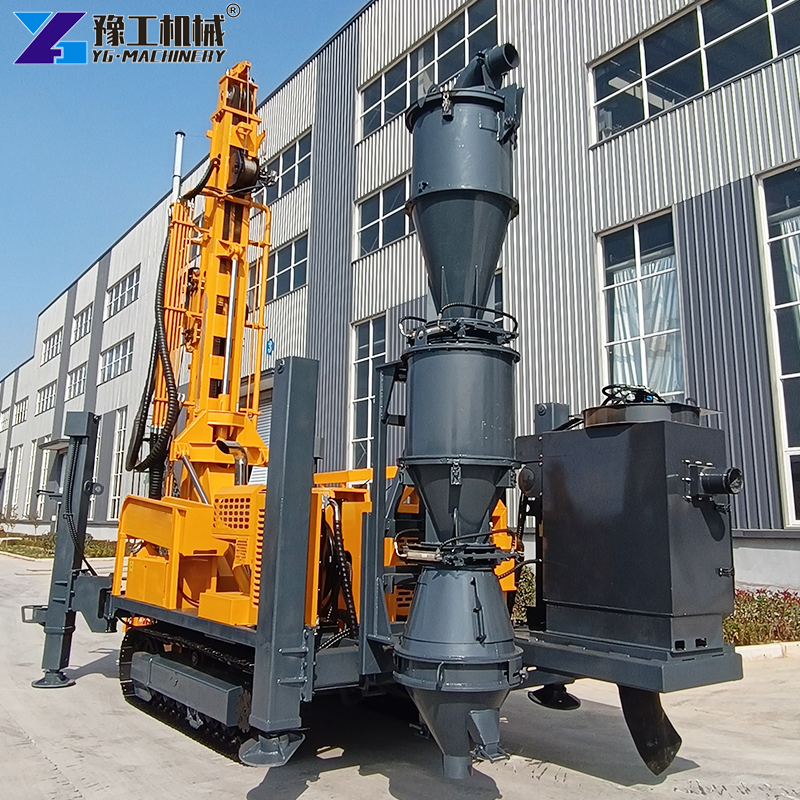

Advantages of Crawler-Mounted RC Drilling Systems
Crawler-mounted drilling systems provide important operational advantages compared with wheeled equipment.
Better Terrain Adaptability
Crawler tracks maintain stability on rough construction sites and rocky ground.
Lower Ground Pressure
Low unit pressure reduces ground sinking in muddy environments.
Improved Climbing Ability
The machine can operate effectively on sloped terrain with climbing capability above 20 degrees.
Stable Drilling Position
Crawler stability improves drilling accuracy during deep-hole operations.
Buying Guide for RC Drilling Rigs
Selecting suitable drilling equipment requires evaluating several important factors.
Consider Project Depth Requirements
Different projects require different drilling capacities. Exploration projects often demand deeper drilling capability.
Evaluate Geological Conditions
Hard rock formations require higher rotary torque and stronger hydraulic systems.
Check Engine Reliability
Reliable engine systems improve operational continuity and reduce downtime.
Review Transportation Requirements
Compact dimensions can reduce transportation costs between construction sites.
Compare Hydraulic System Quality
Efficient hydraulic systems improve drilling stability and operational accuracy.
Examine After-Sales Support
Reliable spare parts supply and technical assistance help reduce operational interruptions.
Maintenance Tips for Long-Term Performance
Regular maintenance improves drilling efficiency and extends machine lifespan.
Daily Inspection
- Check hydraulic oil levels
- Inspect drill pipes for wear
- Examine the crawler track condition
- Verify hose connections
- Clean dust and debris after the operation
Hydraulic System Maintenance
Replace hydraulic oil regularly to maintain stable power transmission.
Engine Maintenance
Follow scheduled servicing intervals to ensure stable engine performance.
Drill Pipe Inspection
Regular inspection reduces unexpected drilling interruptions caused by pipe damage.
Frequently Asked Questions About RC Rig
No. The system is based on a mature and proven design with standardized components. Routine maintenance mainly includes air/mud system inspection, drill pipe sealing checks, and wear part replacement. Overall, it is easy to maintain with relatively low operational downtime.
Yes. The rig is highly adaptable and can operate effectively in gravel layers, sand formations, and fractured rock conditions. Its stable circulation system makes it especially suitable for challenging geological environments such as mining and deep foundation projects.
The drilling depth depends on the model and configuration. Generally, a reverse circulation drilling rig can reach 30m to over 1200m+. Light-duty models are suitable for shallow exploration and foundation projects, while heavy-duty rigs are designed for deep mineral exploration and large-scale drilling operations.
Yes. The drilling angle adjustment range supports multiple drilling directions.
Yes. The crawler-mounted structure performs effectively in rough and uneven terrain conditions.
Yes. The machine supports ambient temperatures ranging from -10°C to 38°C.
A reverse circulation drilling rig uses an inner-tube reverse circulation system, where drill cuttings are directly transported through the inner drill pipe by air or mud flow. This reduces material re-circulation and clogging, resulting in faster and more efficient cuttings discharge compared to conventional drilling methods.
Deep drilling stability is strong. The efficient circulation system continuously cleans the borehole, reducing sediment buildup. This helps minimize risks such as hole collapse, sticking, and borehole instability, making it reliable for medium and ultra-deep drilling applications.
