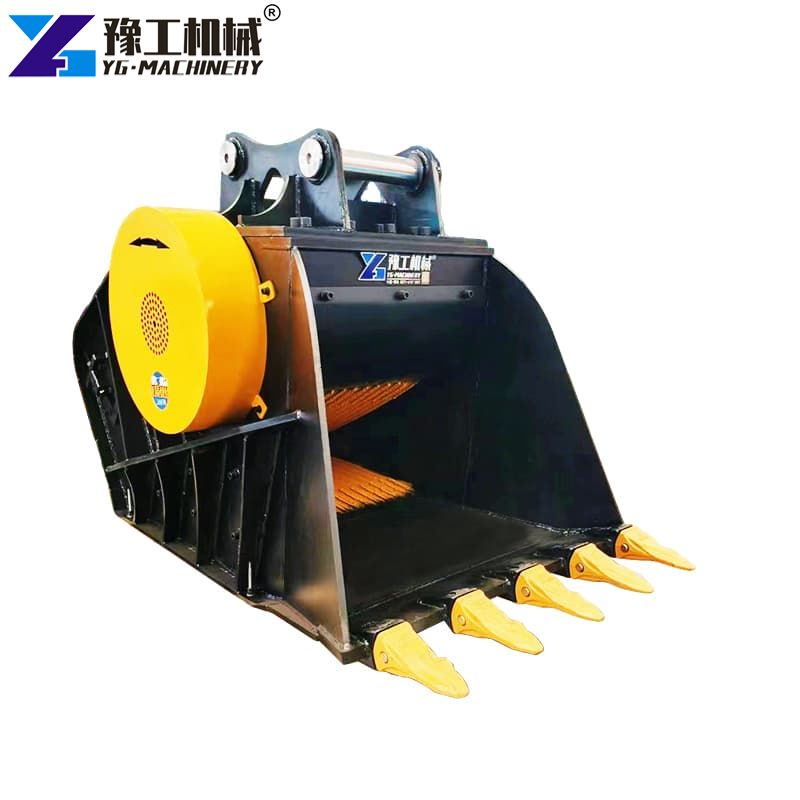

Skid steer crusher bucket transforms demolition waste into reusable aggregate directly at the job site. Contractors no longer need expensive hauling or off-site crushing. The attachment reduces transportation costs and speeds up every recycling project. It crushes reinforced concrete, bricks, asphalt, stones, and construction debris into reusable materials. YG Machinery supplies heavy-duty crusher buckets for excavators from 20 to 70 tons. Every model uses wear-resistant steel, a powerful hydraulic drive, and a high-strength jaw system for continuous operation. Whether you work in demolition, quarrying, road construction, or municipal engineering, this attachment helps improve productivity while lowering operating costs.
Excavator Crusher Bucket Technical Specifications for Every Job Site
YG Machinery offers five standard models covering excavators from 20T to 70T.
| Model | YGDP-25 | YGDP-35 | YGDP-45 | YGDP-55 | YGDP-65 |
|---|---|---|---|---|---|
| Suitable Excavator | 20–25T | 24–35T | 30–40T | 35–50T | 45–70T |
| Working Pressure | 25 MPa | 25 MPa | 25 MPa | 25 MPa | 25 MPa |
| Flow Rate | 180L/min | 220L/min | 260L/min | 300L/min | 390L/min |
| Weight | 2900kg | 3950kg | 4850kg | 5800kg | 6900kg |
| Bucket Capacity | 0.7m³ | 0.9m³ | 1.05m³ | 1.2m³ | 1.4m³ |
| Crushing Size | 15–130mm | 15–130mm | 15–130mm | 15–140mm | 15–160mm |
| Jaw Width | 750mm | 900mm | 1100mm | 1300mm | 1500mm |
| Jaw Height | 400mm | 400mm | 450mm | 450mm | 450mm |
Our engineers also provide customized models for larger excavators and special demolition projects.
Compare Models and Get a Quote
Mobile Crusher Bucket Video
5 Reasons Contractors Choose a Skid Steer Crusher Bucket
Construction companies constantly seek ways to lower operating costs while increasing equipment utilization. Traditional concrete disposal requires multiple machines, additional workers, and expensive transportation. A crusher bucket allows contractors to complete crushing and recycling with a single excavator. This improves productivity and creates reusable aggregates directly on-site.
Contractors choose this attachment because it offers several practical advantages:
- Reduce Disposal Costs
Crush demolition waste on-site instead of paying landfill and transportation fees. - Save Transportation Time
Eliminate repeated truck movements between the construction site and recycling plant. - Produce Valuable Recycled Aggregates
Create materials suitable for road bases, backfilling, drainage layers, and secondary construction. - Increase Excavator Utilization
Convert one excavator into both a loading machine and a mobile crushing plant. - Lower Overall Project Costs
Reduce labor, fuel consumption, machine rental, and material purchasing expenses.
Additional benefits include:
- Heavy-duty jaw plates with excellent wear resistance
- Stable hydraulic transmission for continuous operation
- Adjustable crushing output for different applications
- Easy installation on most excavator brands
- Low maintenance requirements
- High return on investment for demolition contractors
Instead of transporting hundreds of tons of concrete every week, contractors recycle materials immediately. Many projects recover equipment investment within a relatively short operating period.
Boost Productivity—Get a Free Quote
How an Excavator Crusher Bucket for Sale Improves Daily Productivity
Traditional crushing usually requires loaders, excavators, trucks, crushers, and multiple operators. Every transportation step increases both project time and operating expenses. This attachment simplifies the entire workflow.
The operator loads demolition waste directly into the bucket. Hydraulic power drives the moving jaw to crush concrete, bricks, stones, and asphalt. Finished materials discharge immediately and can enter the next construction process without additional handling.
A typical workflow includes:
- Collect demolished concrete.
- Feed materials into the bucket.
- Crush materials through hydraulic jaw movement.
- Discharge recycled aggregate.
- Reuse aggregates directly on-site.
This simple process creates several operational advantages:
- Less material handling
- Fewer vehicles
- Faster site cleanup
- Lower fuel consumption
- Reduced equipment idle time
- Improved job site safety
- Continuous crushing without relocating equipment
The attachment performs efficiently in confined construction sites where large mobile crushers cannot operate. It also minimizes noise and dust compared with repeated loading and hauling operations.
Many contractors report higher daily output because operators can demolish, crush, and recycle without changing machines.
Start Your Project with the Right Equipment
Applications Across Construction and Recycling Industries
A crusher bucket is no longer limited to demolition projects. It has become an essential attachment for companies that want to recycle materials, reduce operating costs, and improve sustainability.
Typical applications include:
Building Demolition
Process reinforced concrete, floor slabs, foundations, and structural debris directly on demolition sites.
Road Construction
Recycle old pavement, curbstones, sidewalks, and road foundations into reusable aggregates for new road projects.
Bridge Maintenance
Crush removed bridge decks and concrete structures without transporting heavy waste long distances.
Quarry Operations
Break limestone, granite, and other natural stones into smaller sizes for secondary processing.
Municipal Engineering
Recycle concrete from drainage systems, public infrastructure, pipelines, and urban reconstruction projects.
Industrial Plant Renovation
Handle factory foundations, warehouse floors, and reinforced concrete during facility upgrades.
Mining Projects
Process waste rock and construction materials around mining sites while reducing transportation requirements.
Construction Waste Recycling Centers
Increase recycling capacity by processing incoming concrete and masonry waste more efficiently.
Disaster Recovery Projects
Quickly remove damaged concrete after earthquakes, floods, or industrial accidents while producing reusable fill material.
Because the attachment works directly with the excavator, operators can move easily between different work areas. This flexibility makes it ideal for urban construction, confined spaces, mountain projects, and temporary job sites where stationary crushers are impractical.
Whether handling a small residential demolition or a large infrastructure project, the crusher bucket provides an efficient solution for crushing, recycling, and material recovery while supporting sustainable construction practices.
Why Choose an Excavator Crusher Bucket for Concrete Recycling
Construction waste has become one of the largest environmental challenges worldwide. Instead of treating demolished concrete as waste, contractors can recycle it into valuable aggregate.
Common recycled applications include:
- Road base materials
- Parking lots
- Building foundations
- Drainage layers
- Landscape filling
- Backfill materials
- Temporary construction roads
On-site recycling also reduces truck traffic and carbon emissions. Many government infrastructure projects now encourage recycled aggregate usage because it supports sustainable construction goals. For contractors, recycling creates additional profit while lowering disposal fees.
Build a Complete Demolition Solution with YG Machinery
Professional demolition projects rarely rely on one attachment. YG Machinery provides complete attachment solutions to maximize excavator utilization.
Recommended internal products include:
- Excavator Screening Bucket — Separates crushed materials by size after recycling.
- Hydraulic Pulverizer — Breaks reinforced concrete before crushing.
- Hydraulic Demolition Shear — Cuts structural steel and rebar efficiently.
- Excavator Rock Saw — Performs precise cutting on concrete and natural rock.
- Excavator Drum Cutter / Rock Grinder — Mills hard rock, tunnels, and trench walls.
- Pile Breaker — Removes concrete pile heads during foundation construction.
- Hydraulic Breaker — Breaks oversized concrete before recycling.
- Orange Peel Grapple — Loads and handles scrap steel and recycled materials.
Combining these attachments creates a complete demolition and recycling workflow while reducing equipment downtime.
Real Customer Case: Concrete Recycling Project in Australia
An Australian demolition contractor contacted YG Machinery to reduce concrete disposal costs on several commercial renovation projects. Previously, the company transported all demolition waste to an external recycling center. High transportation fees and landfill charges significantly increased project costs.
After reviewing the customer’s excavator fleet, our engineers recommended the YGDP-35 model. It matched their 30-ton excavator and daily crushing capacity requirements.
The customer mainly processed:
- Reinforced concrete walls
- Building foundations
- Concrete pavement
- Brick blocks
- Asphalt debris
After installation, the attachment began producing recycled aggregates directly on-site. The customer reused the crushed material as road base and backfill.
Customer Results
- Reduced transportation costs by over 40%
- Lowered landfill disposal expenses
- Completed projects faster
- Reduced truck movements inside the city
- Increased equipment utilization
The project manager commented:
“The crusher bucket changed our demolition workflow. We now recycle almost all concrete on-site instead of paying to haul it away. The equipment performs reliably every day.”
Today, the customer continues purchasing additional hydraulic attachments from YG Machinery to expand their recycling business.
What Makes YG a Reliable Crusher Bucket Manufacturer
Choosing a reliable supplier affects equipment lifespan more than initial purchase price. YG Machinery focuses on manufacturing durable hydraulic attachments for global contractors.
Our advantages include:
- High-strength alloy steel structure
- Precision hydraulic system
- Wear-resistant jaw plates
- Strict quality inspection
- Professional export packaging
- Fast spare parts supply
- Technical installation guidance
- Worldwide customer service
Our engineering team can also customize bucket width, crushing size, hydraulic configuration, and mounting brackets according to different excavator brands.
Request Your Free Crusher Bucket Quote Today
Want to recycle concrete directly on-site and reduce project costs?
Contact YG Machinery today for:
- Free equipment consultation
- Factory quotation within 24 hours
- Customized hydraulic solutions
- OEM & distributor support
- Worldwide shipping service
Our engineers will recommend the right skid steer crusher bucket based on your excavator model, material type, and production requirements. Turn construction waste into valuable recycled aggregate with a professional crushing solution from YG Machinery.
Frequently Asked Questions About Heavy Duty Crusher Bucket
A1. Yes. It easily crushes reinforced concrete, bricks, asphalt, limestone, granite, and other construction waste. For heavily reinforced structures, many customers first use a Hydraulic Pulverizer or Hydraulic Demolition Shear to separate the steel.
A2. Standard models fit excavators from 20 to 70 tons. Our engineers recommend the most suitable model based on your excavator and working conditions.
A3. Depending on the model, the finished material ranges from 15 mm to 160 mm, making it suitable for road base, backfill, drainage layers, and recycled aggregate.
A4. No. Operators mainly inspect hydraulic hoses, lubricate bearings, and check jaw wear. Replace wear parts only when necessary.
A5. Yes. High-strength alloy steel, heavy-duty bearings, and a stable hydraulic system allow long working hours under demanding conditions.
A6. Yes. We provide customized mounting brackets, hydraulic configurations, bucket capacities, jaw sizes, and OEM branding for distributors and contractors worldwide.
