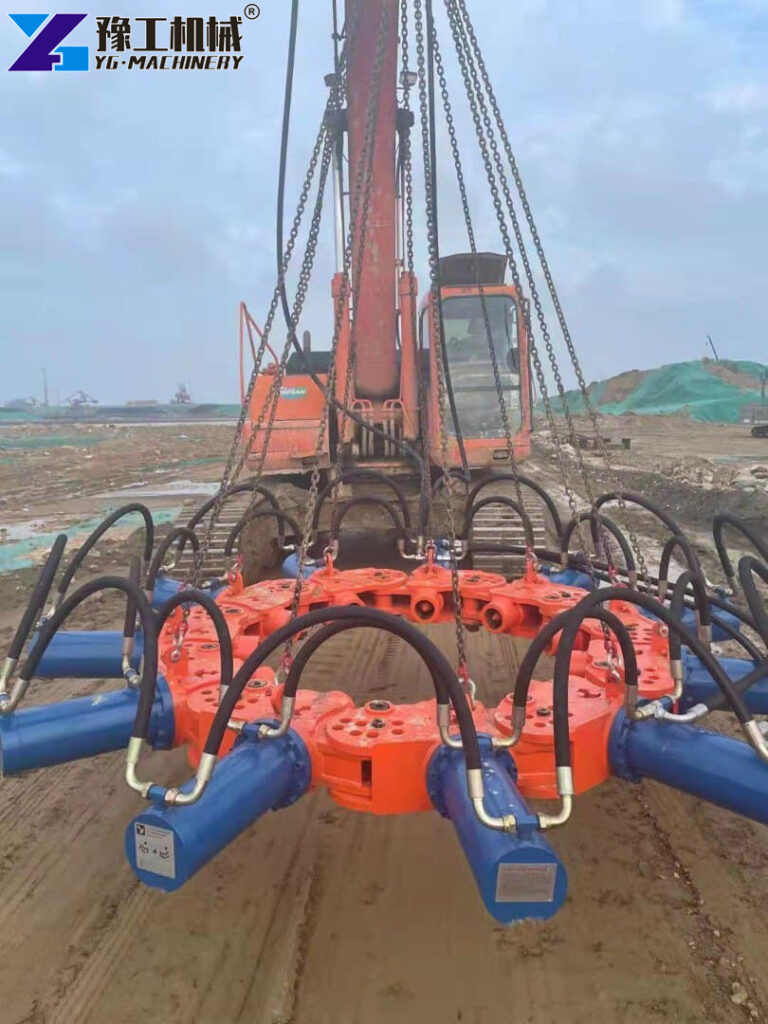

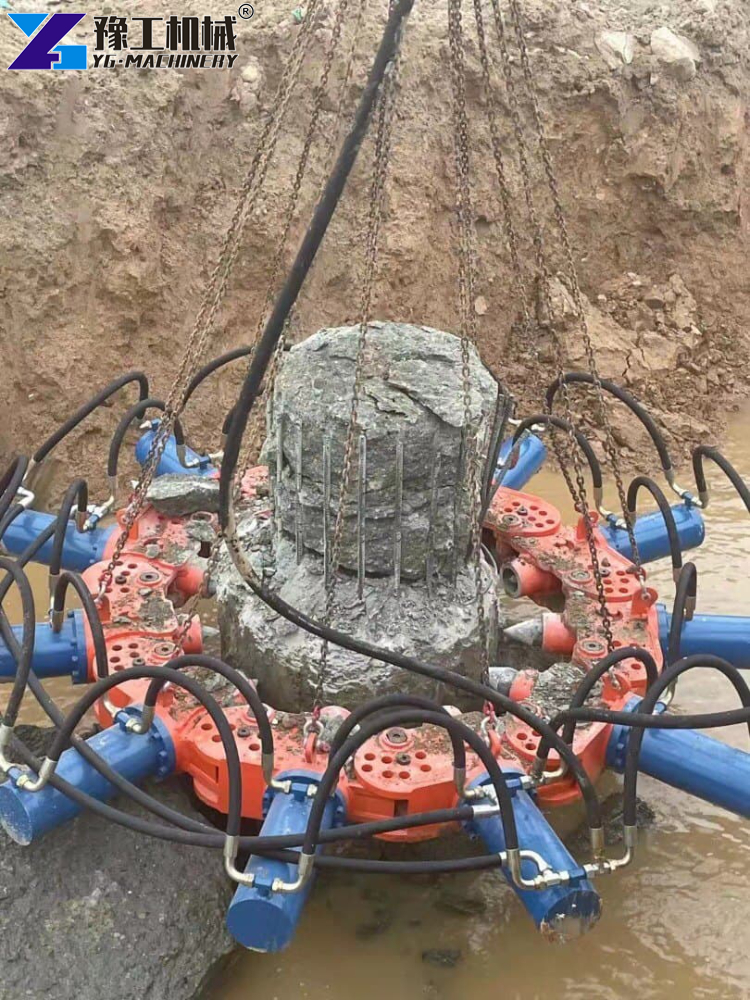

A pile head breaking machine is essential in modern foundation engineering, especially for bridge construction, high-rise buildings, and infrastructure projects where pile foundation quality directly affects structural safety. This equipment provides a fast, controlled, and precise way to cut pile heads without damaging reinforcement bars inside the concrete. Compared with traditional manual or impact methods, it significantly improves efficiency and construction safety.
At YG Machinery, we design heavy-duty foundation equipment based on real construction site demands. With strong engineering experience and strict manufacturing standards, the company delivers reliable solutions that help contractors reduce labour costs and shorten project cycles while maintaining structural precision.
Boost Productivity—Get a Free Quote
7 Key Reasons Pile Head Breaking Machine Improves Foundation Efficiency
Modern construction projects require speed, precision, and safety. Traditional methods often fail to meet these requirements, especially in large-scale foundation works.
The system improves efficiency through:
- Fast and uniform pile cutting
- No damage to internal reinforcement
- Modular structure for flexible diameter control
- Reduced labor requirements
- Safer operation compared to manual breaking
- Consistent cutting height accuracy
- Faster project turnover
Unlike manual breaking or impact tools, this system applies synchronised hydraulic force across multiple modules. This ensures clean fracture lines and controlled separation, improving both structural quality and construction speed.
Pile Breaker | Why Traditional Methods Are No Longer Efficient
Before modern hydraulic systems became widely used, contractors relied on several outdated methods. Each method had serious limitations in safety, efficiency, and cost.
Traditional Solutions vs Problems
| Traditional Method | Existing Problem |
|---|---|
| Manual jackhammer breaking | Extremely low efficiency |
| Hydraulic hammer impact | Damages pile structure |
| Cutting + blasting | High safety risk |
| Manual chiseling | High cost and slow speed |
These limitations often lead to delayed project schedules and inconsistent pile quality. Modern infrastructure demands more reliable and controlled solutions.
The hydraulic system eliminates these problems by applying uniform pressure instead of impact force, ensuring clean and predictable results.
Start Your Project with the Right Equipment

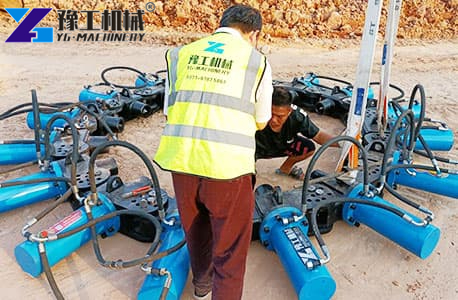

Pile Cutting Machine | Modular Design for Flexible & Efficient Construction
Our Pile cutting machine is designed with a modular structure, allowing it to adapt to different pile diameters and engineering conditions.
Product Classification By Structure
| Type | Features |
|---|---|
| Circular module breaker | Suitable for cast-in-place piles |
| Square module breaker | Suitable for square piles and bridges |
| Combined system | Adjustable diameter for multiple pile types |
| Quick-connect excavator type | Direct excavator attachment |
Classification By Excavator Size
| Type | Excavator Range |
|---|---|
| Small type | 6–15 ton excavators |
| Medium type | 15–30 ton excavators |
| Large type | 30–50+ ton excavators |
This modular system allows contractors to select the most suitable configuration based on project requirements. It reduces equipment redundancy and improves operational flexibility across different job sites.
YG Machinery also provides customised configurations for complex foundation engineering projects.
Compare Models and Get a Quote

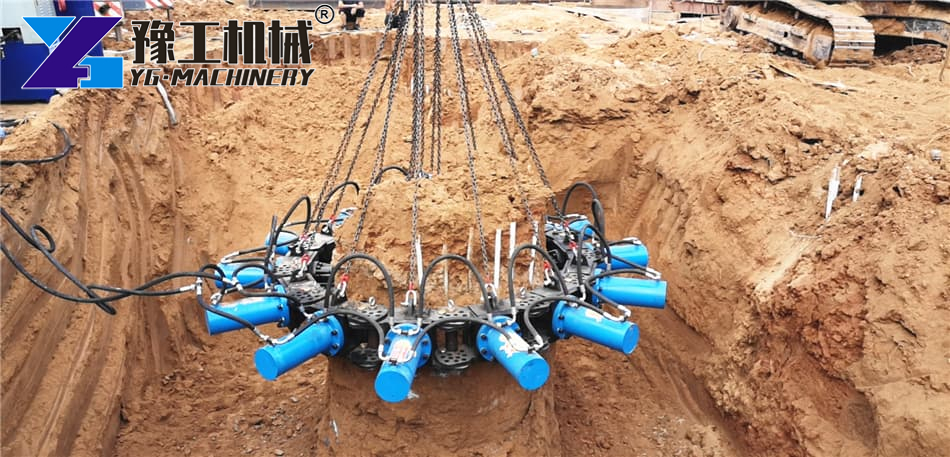

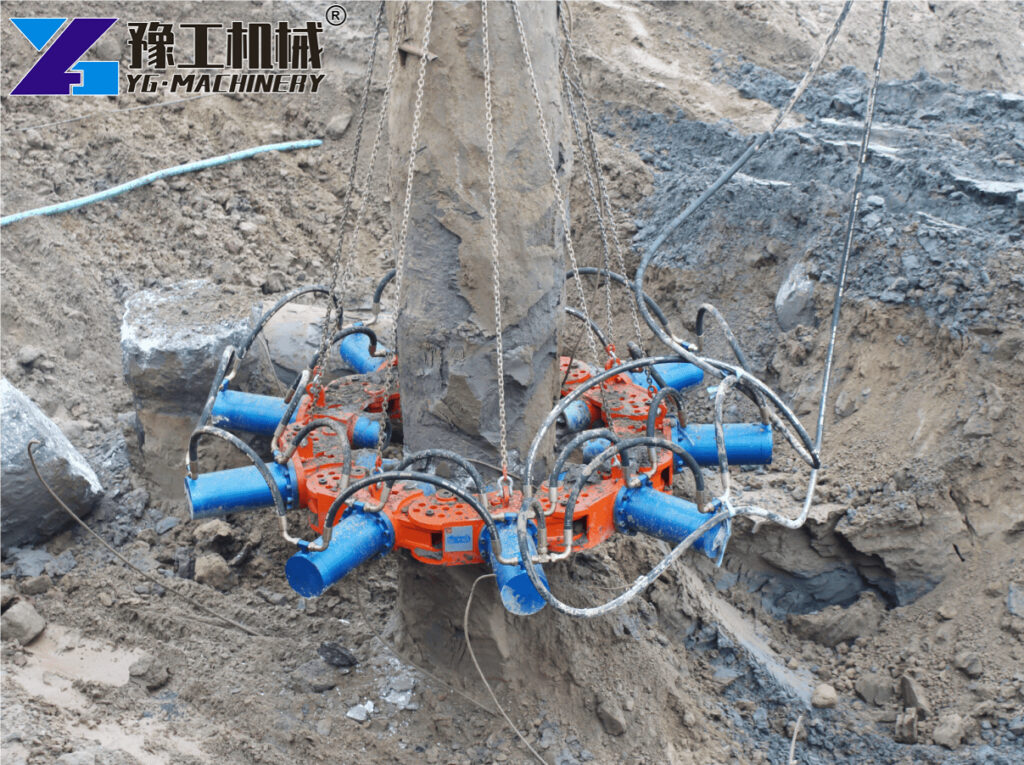

Hydraulic Pile | Working Principle Behind Fast and Clean Pile Removal

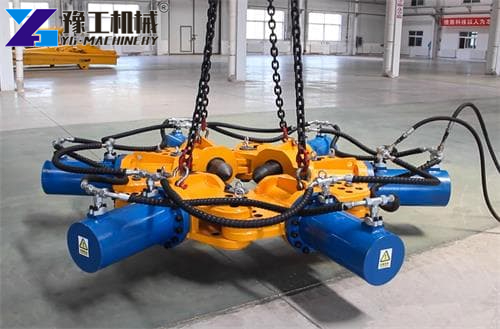

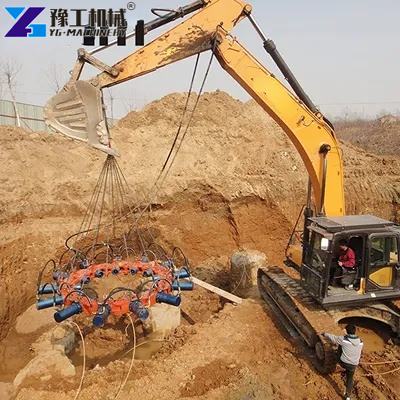

Hydraulic pile systems operate through a synchronised force distribution mechanism powered by the excavator’s hydraulic system.
Working process:
- Excavator hydraulic system drives multiple breaking modules
- Modules apply uniform pressure around the pile head
- Concrete fractures at stress points
- Pile head separates cleanly at designed height
- Internal steel reinforcement remains intact
👉 The result is fast, clean, and non-destructive pile cutting.
This method ensures consistent quality, especially in high-rise and bridge foundation projects where structural integrity is critical.
Compared with traditional impact methods, hydraulic breaking reduces vibration, eliminates structural damage, and improves construction precision.

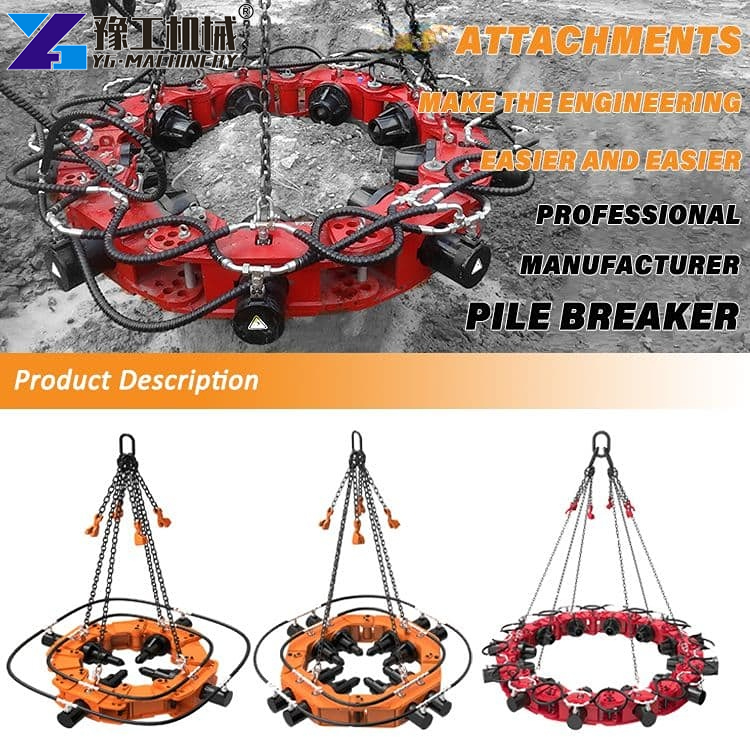

Product Parameters of Pile Head Breaking Machine
The YG series is engineered for high-performance foundation cutting applications. Each model is designed for durability, stability, and efficient operation under heavy construction conditions.
| Module Count | Total Weight (kg) | Pile Diameter Range (mm) | Suitable Excavator |
|---|---|---|---|
| 4 | 1600 | 400–600 | 20T–30T |
| 8 | 2640 | 600–800 | 20T–30T |
| 9 | 2970 | 800–1000 | 20T–30T |
| 10 | 3300 | Requires pump station | 20T–30T |
| 11 | 3630 | 1150–1300 | 20T–30T |
| 12 | 3960 | 1300–1500 | 20T–30T |
| 13 | 4290 | 1500–1650 | 30T–40T |
| 14 | 4620 | 1650–1800 | 30T–40T |
| 15 | 4950 | 1800–1970 | 30T–40T |
| 16 | 5280 | 1970–2200 | 30T–40T |
| 17 | 5610 | 2200–2360 | Requires pump station |
| 18 | 5940 | 2360–2500 | Requires pump station |
Each configuration uses a reinforced hydraulic frame to ensure uniform force distribution. This prevents uneven cracking and ensures clean separation of pile heads.
YG Machinery focuses on durability and real-world construction reliability, ensuring stable performance in continuous heavy-duty operations.
Find the Right Model for Your Project
5 Core Advantages of Pile Breaker in Reducing Foundation Project Cost
The pile head breaking machine delivers strong operational and economic benefits across modern foundation engineering projects. By replacing slow and inconsistent traditional methods, it helps contractors complete pile cutting work with better precision, higher speed, and lower overall cost.
Modular Pile Breaking
The system uses an adjustable modular structure that adapts to different pile diameters and shapes. This flexibility allows one equipment set to handle multiple project requirements without frequent replacement or reconfiguration.
👉 Value focus: adapts to diverse pile sizes and improves equipment utilisation
High-Efficiency Cutting
The machine applies synchronised hydraulic force to complete pile separation in a short time. This significantly reduces waiting time between foundation construction stages and keeps the project moving smoothly.
👉 Value focus: faster operation improves daily construction output
Non-Destructive Operation
The controlled force distribution ensures the internal reinforcement remains intact during breaking. This helps maintain structural integrity and avoids additional repair work after cutting.
👉 Value focus: protects pile structure quality and reduces rework risk
Excavator Direct Connection
The system connects directly with standard excavators, allowing operators to control the process easily without complex setup. This improves on-site flexibility and reduces installation time.
👉 Value focus: simple integration and operator-friendly design
Multi-Spec Adaptability
One system can be configured for different engineering conditions and pile dimensions, making it suitable for a wide range of foundation projects.
👉 Value focus: supports varied construction requirements with one solution
Overall, these advantages help contractors improve project efficiency, reduce manual labour dependency, and maintain more stable construction quality while keeping operating costs under control.
FAQs About Pile Head Breaking Machine
No. The machine is designed to split concrete while leaving the internal steel reinforcement completely intact and undamaged.
It works on both cast-in-place (bored) piles and precast square piles, offering versatile application across different project types.
Yes. It operates several times faster than manual breaking methods, significantly reducing labour time and speeding up project schedules.
Absolutely. It features a standard hydraulic interface for quick and easy connection to most excavators on site.
Not at all. The modular design simplifies servicing, and routine maintenance can be performed quickly with minimal downtime.
Yes. It is specifically engineered for bridge foundation piles, providing reliable performance in demanding civil infrastructure projects.
Contact YG Machinery today via WhatsApp, email, or the website form. Every machine includes a warranty and remote support.【WhatsApp/WeChat/Phone】+86 183 3715 2861
