A small concrete pump machine is designed to transport fresh concrete quickly and accurately through pipelines. It reduces manual handling, improves pouring quality, and shortens construction time. Compared with wheelbarrows or cranes, it delivers continuous concrete flow with lower labor requirements and higher efficiency. Its compact size allows contractors to work inside narrow construction sites where larger boom pumps cannot operate. YG Machinery offers both electric and diesel models to match different jobsite conditions, providing reliable pumping solutions for residential buildings, municipal engineering, commercial construction, and infrastructure projects. Compact dimensions, stable hydraulic performance, and simple operation make this equipment an ideal investment for contractors seeking higher productivity and lower operating costs. Concrete pumps have become one of the most important machines for modern concrete placement because they improve construction speed while maintaining consistent concrete quality.
Start Your Project with the Right Equipment
YG Small Concrete Pump Machine Technical Specifications & Video
| Model | YG-10 | YG-20 | YG-30 | YG-40 |
|---|---|---|---|---|
| Engine | Electric / Diesel | Electric / Diesel | Electric / Diesel | Electric / Diesel |
| Power | 15kW | 22kW | 37kW | 45kW |
| Max Aggregate Size | 15mm | 20mm | 30mm | 40mm |
| Conveying Capacity | 6m³/h | 10–15m³/h | 15–30m³/h | 30–40m³/h |
| Horizontal Distance | 100–120m | 100–120m | 150–200m | 200–350m |
| Vertical Distance | 20–50m | 50–60m | 80–100m | 120–140m |
| Pipe Diameter | 80–100mm | 80–100mm | 80–100–125mm | 80–100–125mm |
| Outlet Diameter | 80mm | 100mm | 125mm | 125–150mm |
| Material Tank Diameter | 100mm | 120mm | 140–160mm | 160–180mm |
| Dimensions | 1.8×0.7×1.1m | 2.8×1.1×1.3m | 4×1.4×1.5m | 4×1.5×1.5m |
| Weight | 600kg | 900kg | 1800kg | 2500kg |
YG Machinery offers both electric and diesel power options for all models (YG-10, YG-20, YG-30, and YG-40). Whether your jobsite has a stable power supply or is located in a remote area without electricity, you can choose the motor type that best suits your project requirements.
Compare Models and Get a Quote
Why More Contractors Choose a Cement Pump for Sale
A compact concrete pump can significantly improve daily construction efficiency and streamline workflow on various job sites.
Traditional concrete transportation relies heavily on large crews, repeated manual handling, and physical labor. A trailer-mounted concrete pumping system delivers concrete directly from the mixer to the precise pouring location, eliminating unnecessary material transfer delays and maximizing placement accuracy.
Versatile Power Solutions for Any Jobsite: To suit diverse operational conditions, all model series are equipped with both electric motor and diesel engine options. Whether your project has access to a stable power supply or is situated in a remote off-grid area, you can easily choose the right power configuration to ensure uninterrupted performance.
Contractors prefer this equipment because it delivers several key operational advantages:
- Continuous concrete delivery without costly interruptions or delays
- Flexible power choices (Electric and Diesel models available for all series)
- Significantly reduced labor requirements and lower overall labor expenses
- Faster foundation, slab, and column pouring schedules
- Stable hydraulic pressure for high-vertical and long-distance pumping
- Compact structure designed for easy maneuvering in tight or narrow sites
- Lower fuel consumption and operating costs across all power types
- Convenient towing and mobility between different job sites
- Quick setup, simple operation, and hassle-free maintenance
The machine adapts smoothly to residential foundations, floor slabs, retaining walls, columns, and municipal engineering tasks with consistent reliability. By conveying concrete directly through sealed pipelines, contractors minimize material spillage and waste while significantly cutting down project completion times.
YG Machinery designs every model with precision engineering to ensure high performance, helping you maximize productivity and boost your return on investment. et different pumping capacities and conveying distances, helping customers choose equipment that matches both project size and investment budget.
Find the Right Model for Your Project

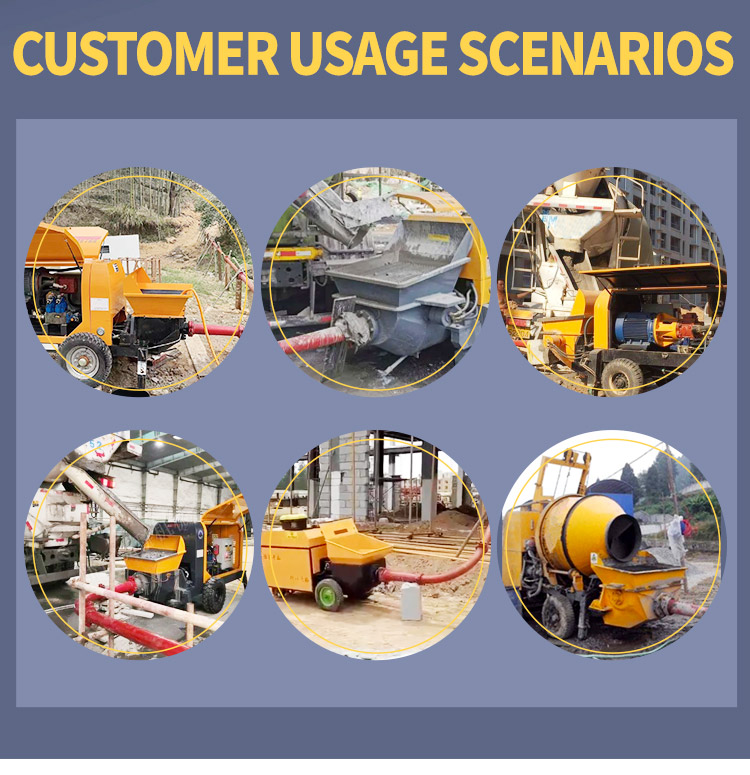

Where Can a Concrete Pump Machine Be Used?
Modern construction projects require equipment that can adapt to different site conditions. A compact trailer-mounted pump is suitable for a wide range of applications because it combines mobility with strong conveying performance.
Typical application areas include:
Residential Construction
Ideal for house foundations, villas, basements, garages, and floor slabs where space is limited.
Commercial Buildings
Supports concrete placement for shopping centers, office buildings, warehouses, schools, and hospitals.
Municipal Engineering
Used for sidewalks, drainage systems, retaining walls, bridges, and public infrastructure projects.
Agricultural Projects
Suitable for livestock farms, grain storage facilities, irrigation channels, and rural construction.
Industrial Plants
Delivers concrete efficiently inside factories, workshops, and manufacturing facilities.
Mountainous and Remote Areas
The compact structure makes transportation easier than large boom pumps, allowing contractors to work in difficult environments.
One machine can often support several different projects throughout the year, increasing equipment utilization and improving return on investment.
How Does a Portable Concrete Pump Improve Construction Efficiency?
A portable concrete pump improves efficiency by moving concrete directly to the pouring point. It eliminates repeated manual transportation and keeps the pouring process continuous. This reduces waiting time between batches and helps contractors maintain a consistent construction schedule.
The working process is simple and reliable:
- Fresh concrete is discharged into the hopper.
- The hydraulic pumping system generates stable pressure.
- Concrete enters the delivery cylinders.
- The S-valve switches automatically during each pumping cycle.
- Concrete travels through the pipeline to the pouring location.
- Operators control pumping speed according to project requirements.
Compared with traditional placement methods, the machine offers several practical benefits:
- Continuous concrete flow without interruption
- Accurate placement in hard-to-reach areas
- Reduced segregation during transportation
- Lower material waste
- Higher pouring quality
- Faster project completion
Electric models are suitable for indoor projects or sites with stable power supplies. Diesel models perform well on remote construction sites where electricity is unavailable.
Whether pouring foundations, columns, beams, or slabs, the pumping system delivers stable output throughout long working hours. This consistency helps improve concrete quality while reducing labor costs and equipment downtime.
Real Project Case: Small Concrete Pump Machine Helped a Philippine Contractor Finish Ahead of Schedule
A residential contractor in Cebu, Philippines, was building several three-story townhouses in a crowded urban area. The project faced two major challenges. Workers had limited space to transport concrete manually, and labor costs continued to increase. Concrete pouring often required more than ten workers, resulting in slow progress and inconsistent placement quality.

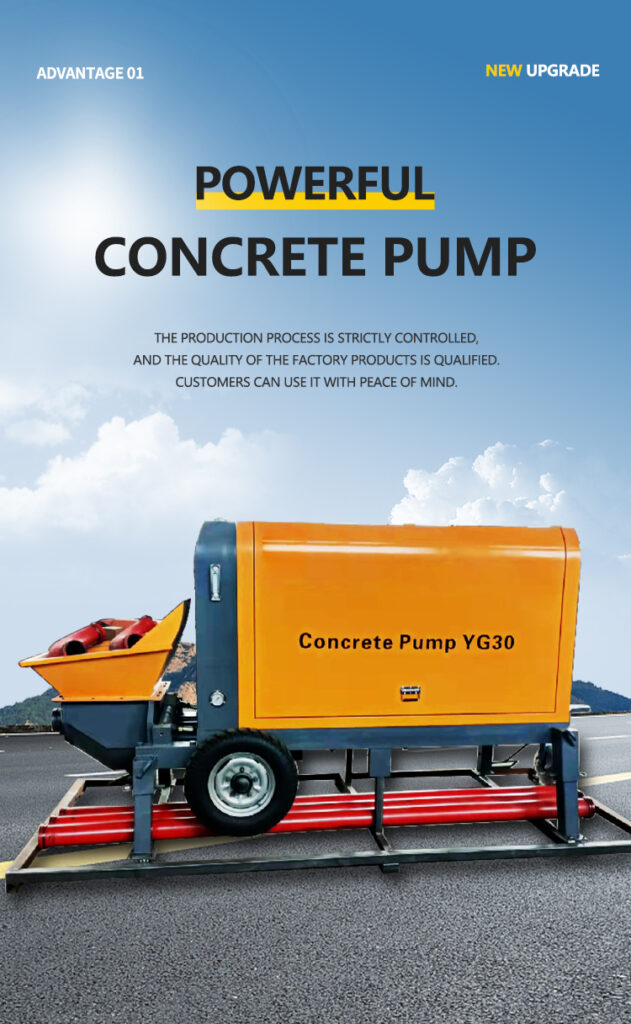

After evaluating several solutions, the customer selected the YG-30 Small Concrete Pump Machine. The machine provided a conveying capacity of 15–30 m³/h with a vertical pumping distance of 80–100 meters, which fully met the project requirements. Its compact size also allowed it to enter narrow construction sites where large truck-mounted pumps could not operate.
After installation, the contractor immediately noticed several improvements:
- Daily concrete pouring efficiency increased by more than 40%.
- The number of workers required for concrete transportation dropped from 10 to 4.
- Concrete reached every pouring location continuously without interruption.
- Material waste decreased because delivery became more accurate.
- Foundation, column, and floor slab pouring finished much faster.
The project manager shared his feedback:
“The YG concrete pump worked every day without problems. It saved labor, reduced pouring time, and improved concrete quality. We finished the project nearly two weeks earlier than planned. We will purchase another unit for our next housing development.”
Today, the contractor continues using the machine for residential and commercial projects throughout the Philippines. The successful cooperation also demonstrates how YG Machinery helps overseas customers improve construction efficiency through reliable equipment, technical guidance, and responsive after-sales support.
Why Choose YG Machinery For Your Concrete Pump Project?
Selecting the right supplier is just as important as selecting the right machine. YG Machinery has supplied construction equipment to customers in more than 120 countries and understands the practical requirements of different job sites.
When you work with YG Machinery, you receive:
- Factory-direct pricing with no middleman
- Electric and diesel models available
- Professional model selection support
- Customized voltage for your country
- Fast spare parts supply
- Technical guidance before and after delivery
- Global export experience and reliable logistics
Whether you need a portable concrete pump for residential construction or a higher-capacity model for commercial projects, our engineering team can recommend the most suitable solution based on your budget, pumping distance, and daily concrete demand.
Contact YG Machinery today for a free quotation, technical consultation, and customized pumping solution for your next project.
