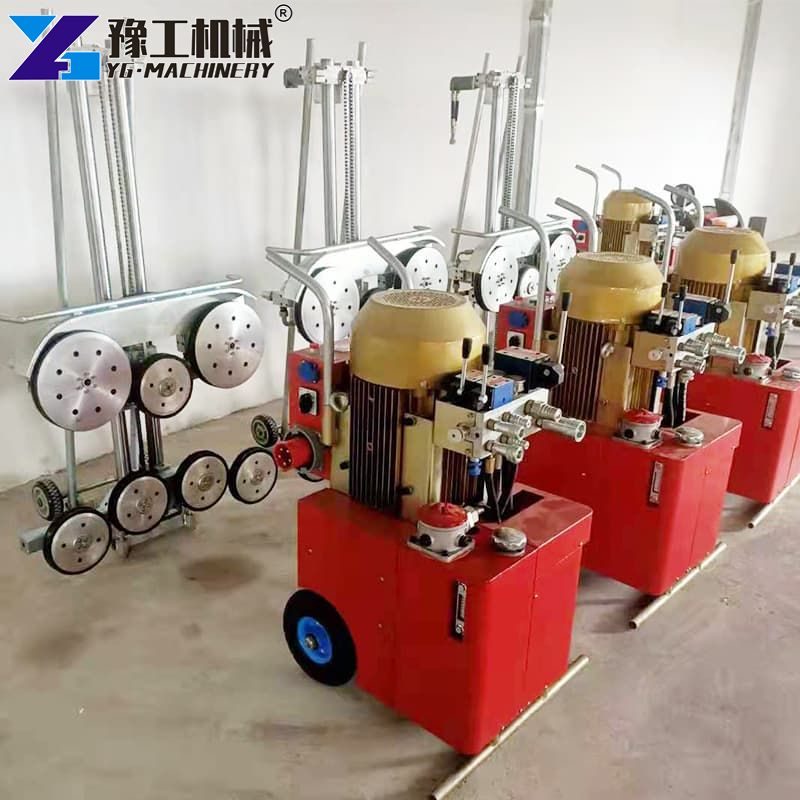

A diamond wire saw for concrete cutting executes clean, vibration-free, controlled demolition across heavily reinforced concrete structures, thick bridge piers, underwater foundations, and dense stone retaining walls. Powered by a high-pressure 22/25KW hydraulic pump station generating up to 20Mpa working pressure, this advanced cutting system drives steel cables embedded with industrial diamond beads through thick concrete sections without thickness limits. Civil contractors and structural demolition specialists utilize this heavy equipment to perform transverse and longitudinal cuts inside restricted urban job sites without inducing micro-cracks in adjacent structures. YG Machinery manufactures these portable wire cutting systems with fully hydraulic feeding mechanisms, variable shaft speeds up to 1300r/min, and lightweight drive wheels, enabling field crews to complete complex structural modifications faster while reducing overall labor overhead.
Start Your Project with the Right Equipment
How Does a Diamond Wire Saw for Concrete Cutting Handle Unlimited Structure Thickness?
A diamond wire saw for concrete cutting handles unlimited structure thickness by utilizing a flexible, continuous diamond-beaded steel loop guided around targeted concrete structures via adjustable flywheel pulleys. Traditional blade saws remain strictly limited by their physical blade radius, preventing deep cuts on thick foundation blocks or massive bridge abutments.
- Flexible Cutting Geometry: Wraps around awkwardly shaped concrete columns, heavy machine foundations, and thick retaining walls effortlessly.
- Vibration-Free Demolition: Cuts through dense steel rebar and high-strength concrete without sending shockwaves into surrounding structural footings.
- Low Noise Operation: Hydraulic drive motors reduce site noise levels significantly compared to heavy percussive breaker hammers.
- Deep Reach Capabilities: Accommodates maximum wire lengths up to 18 meters, allowing operators to execute massive structural sectional cuts in a single pass.
Eliminating structural vibration protects critical surrounding buildings from micro-fissures and foundation damage. Contractors mount guide pulleys, loop the diamond wire, and execute precision cuts directly from a safe remote hydraulic control platform.

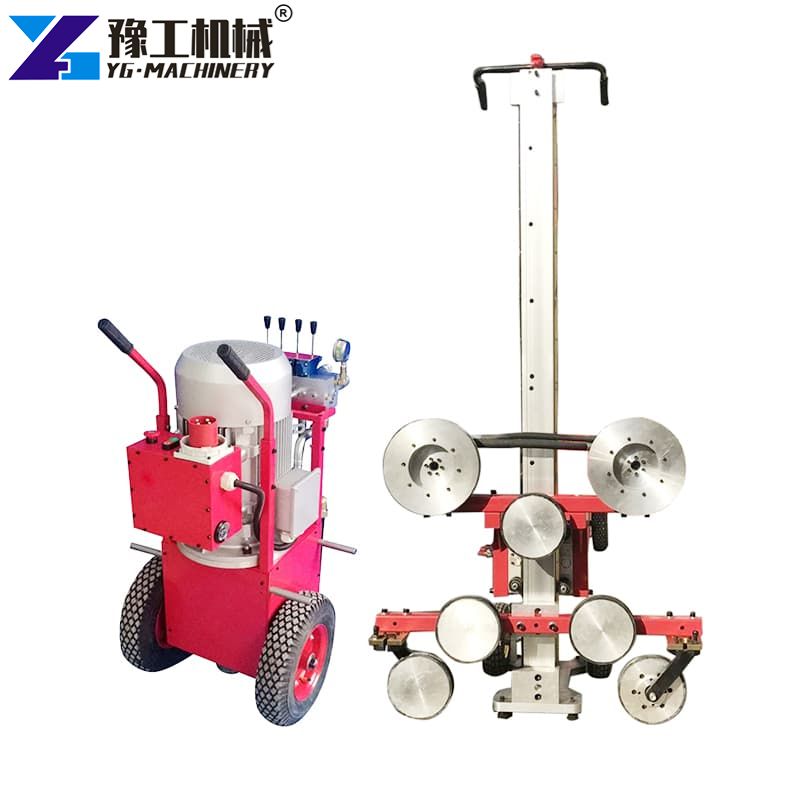

Technical Parameter Overview Across YG Hydraulic Wire Cutting Systems
Selecting the right hydraulic cutting rig requires matching your jobsite’s required output power, hydraulic oil flow, wire drive speed, and total equipment weight. Sourcing your cutting machinery directly from an established manufacturer like YG Machinery guarantees rigorous factory pressure testing, engineered component reliability, and immediate access to direct engineering guidance.
| Equipment Category | Specification / Parameter Item | Factory Parameter Value |
| Model Type | Machinery Model Specification | HM-40/80 |
| Wire Drive Parameters | Drive Mechanism Type | Fully Hydraulic |
| Minimum Input Power Requirement | 25HP / 33HP | |
| Output Shaft Speed Options | 350 / 940 / 1300 r/min | |
| Maximum Deployable Wire Length | 18 m | |
| Feeding System Control | Fully Hydraulic | |
| Drive Wheel Weight | 64 kg | |
| Drive Motor Weight | 13 kg | |
| Supported Cutting Orientations | Transverse & Longitudinal Cutting | |

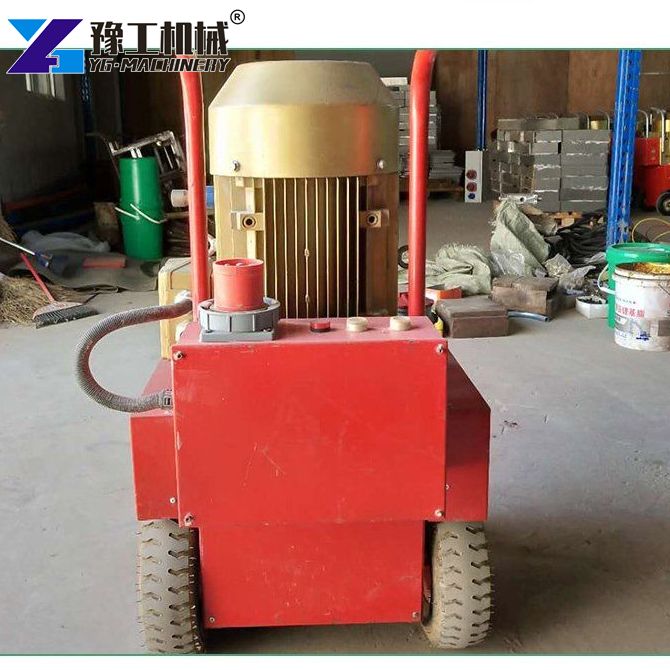

| Pump Station Specs | Rated Output Power Rating | 22 / 25 kW |
| Standard Working Voltage | 380 V, 50 Hz (3-Phase) | |
| Hydraulic Pump Station Type | Heavy Duty Gear Pump | |
| Motor Working Flow Rate | 40 – 100 L/min | |
| System Working Pressure | 15 – 20 Mpa | |
| Hydraulic Oil Tank Volume | 16 L | |
| Pump Station Total Weight | 98 kg | |
| Overall Station Size (LWH) | 650 * 550 * 1150 mm |
Centralized hydraulic stations operating at 15–20Mpa pressure maintain steady wire tension during continuous cutting operations, extending diamond bead service life under heavy load conditions.
Find the Right Model for Your Project
Why Invest in a Heavy-Duty Hydraulic Wire Saw for Sale?
Securing a high-torque hydraulic wire saw for sale equips your demolition fleet with total operational versatility across underwater projects, confined indoor basements, and heavy civil engineering jobs.
- Reduced Project Costs: Eliminates expensive specialty subcontracting fees by keeping technical concrete cutting operations in-house.
- Modular Site Transport: A lightweight 13kg drive motor and 64kg drive wheel allow small field crews to set up cutting equipment in tight spaces.
- High Steel Cutting Power: Cuts dense rebar matrices and structural steel beams embedded inside concrete without binding or stalling.
- Rapid Job Execution: Output shaft speeds reaching 1300r/min slash cut completion times, accelerating project turnover rates.
Investing in hydraulic wire cutting equipment expands your operational bidding scope while keeping site labor overhead and transport logistics down to minimums.
How Does a Wire Saw Machine Outperform Traditional Mechanical Breakers?
A specialized wire saw machine outperforms traditional percussive mechanical breakers by producing smooth, finished cut faces that require zero secondary grinding or surface finishing before structural reconstruction. Heavy percussive tools create jagged fractures, produce excessive airborne dust, and risk damaging surrounding structural integrity.
Deploying a continuous diamond wire cutting system delivers key operational advantages:
- Clean Structural Edges: Leaves flush, straight concrete surfaces ready for immediate anchor bolting or epoxy dowel installation.
- Controlled Dust Management: Water cooling channels suppress concrete dust completely, maintaining clean air quality inside enclosed job site zones.
- Multi-Angle Flexibility: Executes precise transverse and longitudinal cuts across horizontal floors, vertical walls, and sloped surfaces easily.
- Remote Safety Distance: Remote hydraulic station operation positions technicians safely away from falling concrete blocks and high-tension cables.
Utilizing continuous wire cutting technology preserves neighboring concrete structures while maintaining total compliance with modern urban noise and environmental regulations.

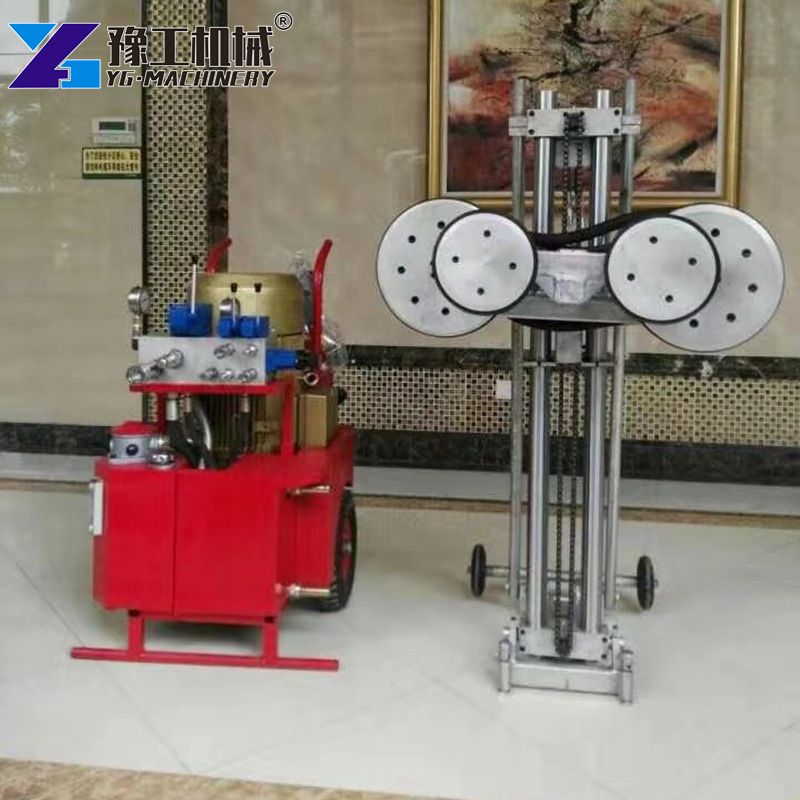

Integrating Cutting Equipment with Complete Demolition Lines
While a diamond wire cutting machine handles deep, precision cutting through thick reinforced concrete, complex demolition and infrastructure clearing projects often require pairing cutting units with complementary heavy excavator attachments.
Building a complete Demolition & Cutting Equipment fleet allows contractors to execute multi-phase structural teardowns seamlessly:
- Initial Heavy Cutting: Deploy a diamond wire unit alongside a heavy excavator [rock saw] to cut through thick stone, bedrock, or reinforced concrete slabs.
- Primary Structural Crushing: Use a heavy [double-cylinder hydraulic shear] or [hydraulic demolition shear] to crush concrete beams and cut rebar structures efficiently.
- Foundation & Piling Removal: Rapidly trim foundation concrete pilings down to grade level using a high-efficiency [pile breaker].
- Secondary Breaking & Scrap Processing: Deploy an excavator [hydraulic breaker hammer] to break up crushed concrete slabs, and finish by processing scrap vehicles or metal frames with an [excavator car dismantling shear].
Sourcing your complete lineup of heavy attachments directly from YG Machinery guarantees 100% hydraulic oil flow compatibility, standardized mounting brackets, and lower bundled direct factory rates.
Field Case Study: Bridge Pier Removal in Metropolitan Highway Project
The Operational Challenge
A civil engineering contractor needed to remove four reinforced concrete bridge piers (each measuring 2.8 meters in diameter) in a densely populated urban area. The project site carried strict vibration limits to protect adjacent subway tunnels and enforced zero-dust environmental regulations. The contract schedule allowed only 7 days for total pier removal.
The Equipment Solution
The contractor deployed a Model HM-40/80 hydraulic wire saw unit from YG Machinery, paired with a 25KW hydraulic pump station generating 20Mpa pressure. Featuring a 1300r/min drive shaft speed and an 18m diamond wire loop, the crew wrapped the wire around the bridge piers to execute transverse cuts.
Operational Results and Return on Investment (ROI)
Deploying the hydraulic wire cutting system transformed jobsite productivity:
- Ahead-of-Schedule Completion: The crew completed all four pier cutting operations in 4 days, beating the strict 7-day contract deadline by 3 days.
- Zero Structural Vibration: Clean diamond cutting registered zero seismic vibrations, fully protecting the adjacent subway tunnels.
- Significant Labor Savings: Reduced physical site labor requirements by 60%, saving over $16,500 in direct wage and site setup overhead.
- Immediate Payback: The contractor fully amortized the initial machinery purchase price during this single infrastructure contract.
Accelerate Your Demolition Capability: 3 Ways to Get Started
Upgrading your construction fleet with a high-performance diamond wire saw for concrete cutting from YG Machinery is sUpgrading your site with a high-performance diamond wire saw for concrete cutting from YG Machinery is simple and direct:
- Direct Quotation (Ready to Buy): Send us your cutting dimensions and target port to receive an itemized factory price quote within 8 hours.
- Technical Match (Evaluation Stage): Share your power (380V) and flow requirements (40–100 L/min) to select the ideal HM-40/80 setup.
- Engineering Specs (Research Stage): Download our complete technical blueprints, hydraulic schematics, and diamond wire selection guides.
Contact our engineering sales team today via email or inquiry form to lock in direct factory rates!
Compare Models and Get a Quote
FAQs About Diamond Wire Saws
A1: Diamond wire saws cut through heavily reinforced concrete, thick structural rebar matrices, granite, marble, sandstone, and submerged steel structures.
A2: Continuous water cooling is required to suppress friction heat, wash away concrete slurry, and prevent diamond bead overheating.
A3: Yes! The flexible diamond wire loop and hydraulic drive motor operate reliably underwater for bridge pier and harbor foundation removal.
A4: The HM-40/80 hydraulic drive wheel system accommodates a maximum wire length of 18 meters for massive structural cuts.
A5: Fully hydraulic feeding maintains constant wire tension automatically, preventing wire slippage, reducing cable wear, and maximizing cutting speed.
