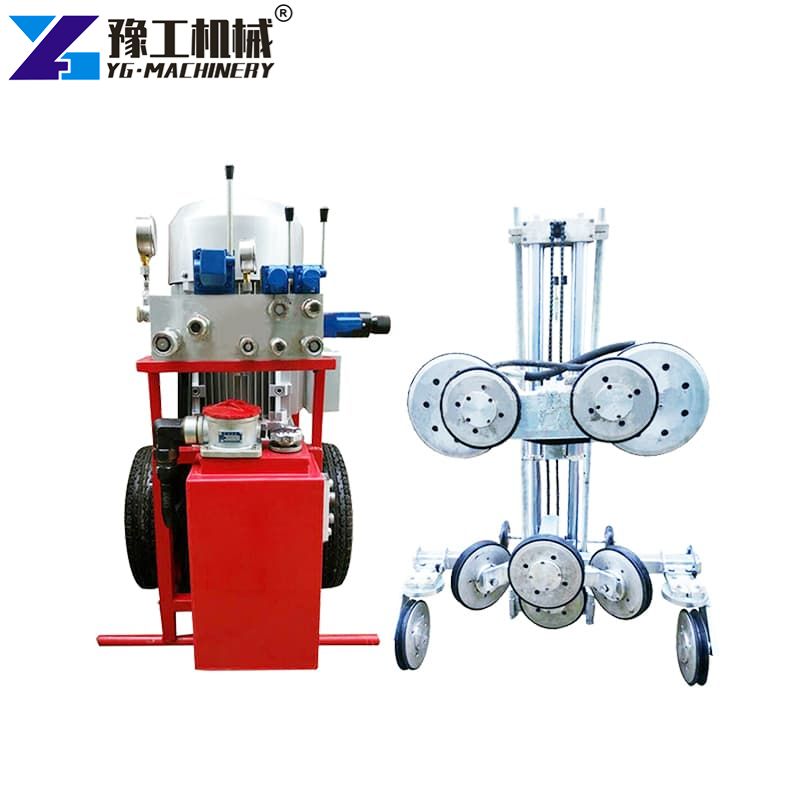

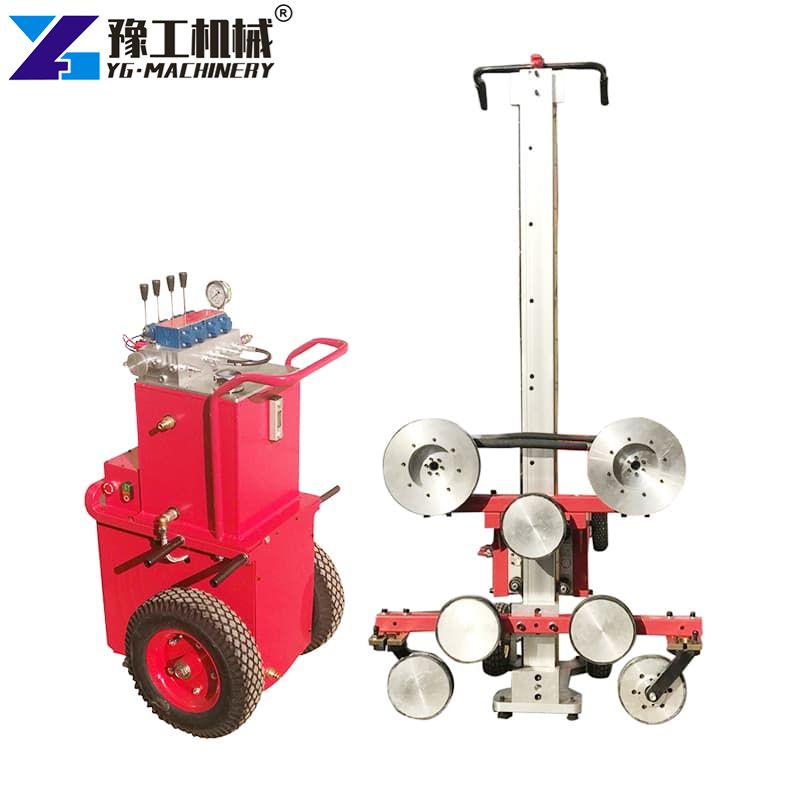

An industrial wire saw from YG Machinery delivers precise, high-speed cutting on reinforced concrete and large structures. The fully hydraulic system supports up to 18 meters of wire length and maintains 15- 20 MPa working pressure. Operators benefit from consistent force, three adjustable speeds, and a compact design that simplifies transport and setup on demanding job sites.
YG Industrial Wire Saw Complete Technical Parameters
| Diamond Wire Saw Parameters | Hydraulic Pump Station Parameters | ||
| Wire drive mode | hydraulic | Rated output power | 22/25kw |
| Mode type | HM-40/80 | Working voltage | 380v50Hz |
| Minimum input power | 25/33HP | Hydraulic pump station | gear pump |
| Output shaft speed | 350/940/1300r/min | Motor working flow | 40-100L/min |
| Maximum wire length | 18m | Working pressure | 15-20Mpa |
| Enter method | fully hydraulic | Oil tank volume | 17L |
| Cutting machine weight | 64kg | Weight | 98kg |
| Motor weight | 14kg | Dimension(mm) | 650*550*1150 |
Compare Models and Get a Quote
Diamond Wire Saw Parameters
- Wire drive mode: hydraulic
- Mode type: HM-40/80
- Minimum input power: 25/33 HP
- Output shaft speed: 350/940/1300 r/min
- Maximum wire length: 18 m
- Enter method: fully hydraulic
- Cutting machine weight: 64 kg
- Motor weight: 14 kg

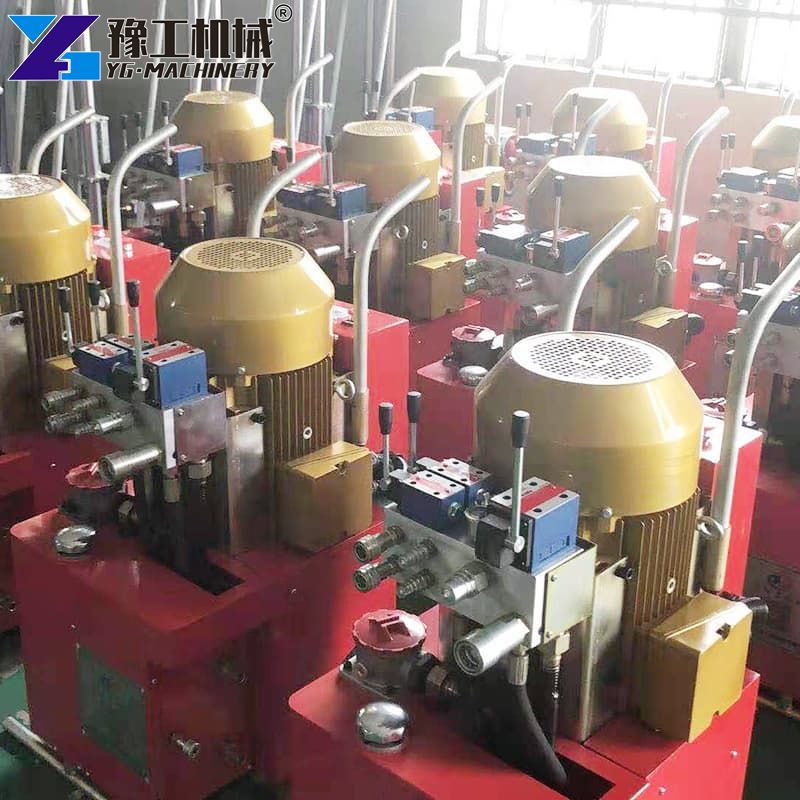

Hydraulic Pump Station Parameters
- Rated output power: 22/25 kW
- Working voltage: 380 V, 50 Hz
- Hydraulic pump station: gear pump
- Motor working flow: 40-100 L/min
- Working pressure: 15-20 MPa
- Oil tank volume: 17 L
- Weight: 98 kg
- Dimension: 650 × 550 × 1150 mm
These specifications give clear numbers for power matching, transport planning, and site preparation.
Why This Industrial Wire Saw Delivers Faster and Cleaner Cuts
The hydraulic drive keeps cutting force steady even under heavy load. Minimum input power is 25HP or 33HP, while the pump station delivers 22/25 kW. Output shaft speed switches between 350, 940, and 1300 r/min, allowing crews to match the wire to material hardness and cut length quickly.
Fully hydraulic feeding removes the need for manual force. The wire advances at a controlled rate, which reduces breakage risk and produces straighter edges. The cutting unit weighs only 64 kg, and the motor adds 14 kg. The separate pump station weighs 98 kg and measures 650×550×1150 mm. Total system weight stays practical for frequent site moves. These features help contractors complete thick concrete sections faster while keeping vibration low and edges clean.
Find the Right Model for Your Project
Diamond Wire Saw for Sale – Built for Daily Job-Site Demands
This diamond wire saw for sale is designed for continuous professional use. The HM-40/80 motor type and gear pump combination provide reliable torque across long shifts. Working voltage is 380 V, 50 Hz, matching standard industrial power supplies. Oil tank volume of 17 liters supports extended operation without frequent refills.

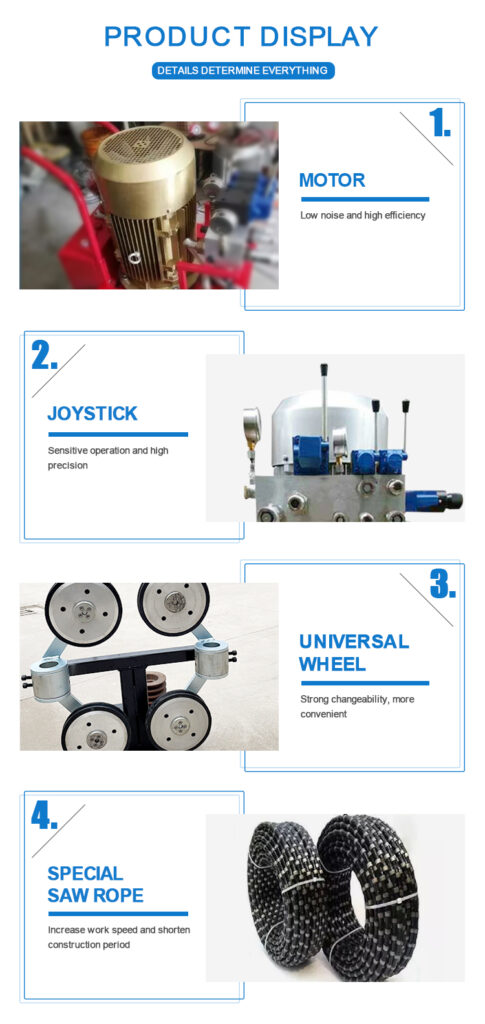

Crews value the light cutting head and separate pump layout. The wheel unit can be positioned close to the cut line while the pump stays at a safer distance. Hydraulic hoses transfer power cleanly, reducing setup time and improving safety on crowded sites.
How Much Does a Hydraulic Wire Saw Price Reflect Real Value?
Hydraulic wire saw price should be judged by performance, durability, and total cost of ownership. This model offers 18-meter maximum wire length, 15- 20 MPa pressure, and fully hydraulic feeding at a competitive level. The 64 kg cutting unit and 98 kg pump station keep transport and handling costs low. Three speed ranges extend wire life and improve cut quality across different materials. Buyers who calculate cost per cut often find the combination of power, weight, and reliability delivers strong long-term value.

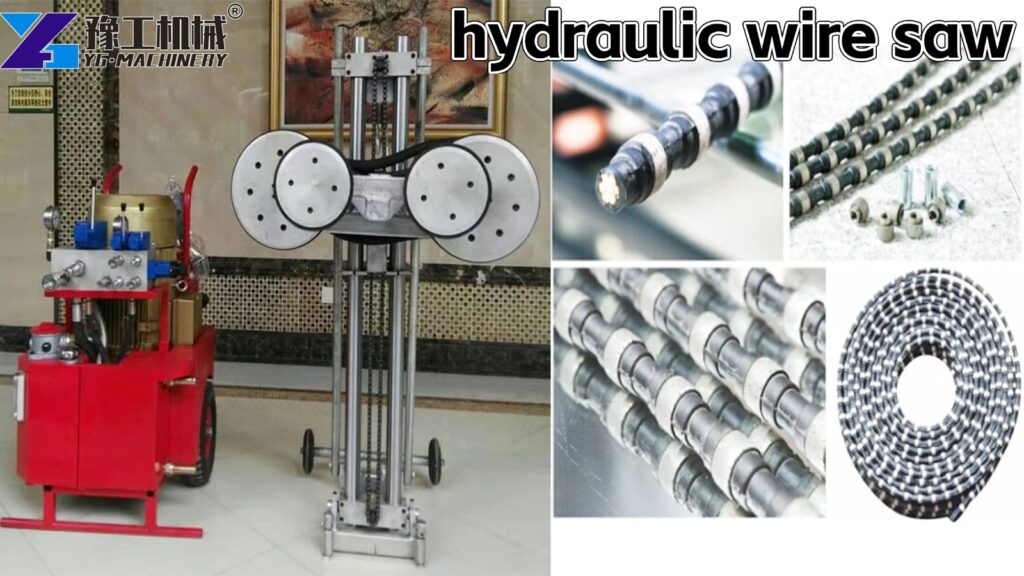

Concrete Wire Saw Machine Applications That Deliver Results
This concrete wire saw machine handles reinforced walls, floor slabs, foundations, and selective demolition. Thick concrete with heavy rebar frequently causes conventional blade saws to overheat or leave uneven surfaces. The diamond wire runs under continuous hydraulic tension, producing straight cuts and clean edges.
Operators use the 18-meter wire capacity to complete long horizontal or vertical cuts in one setup. Working pressure of 15- 20 MPa supplies stable force through dense, steel-reinforced sections. Low vibration helps protect adjacent structures. The finished cut face usually requires less secondary chipping and grinding. On complex projects, teams often combine the machine with concrete wall saws or hydraulic rock splitters for both precision cutting and controlled separation.

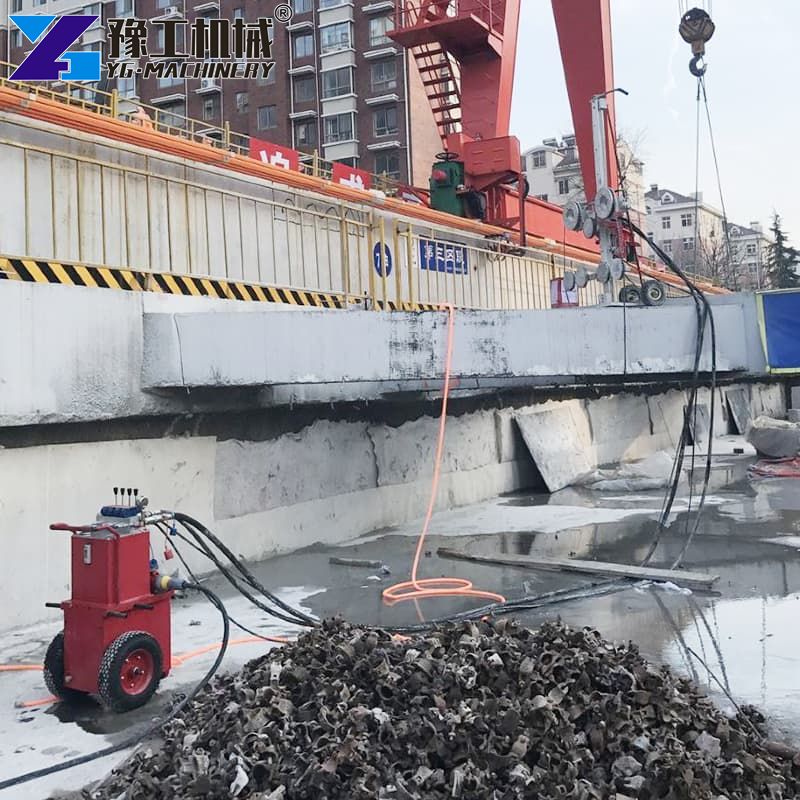

How an Industrial Wire Saw Solved a Thick Foundation Cutting Challenge
A recent foundation modification project required clean separation of a 1.2-meter-thick reinforced concrete slab in a restricted urban site. Conventional blade saws struggled with the dense rebar and generated excessive heat and vibration, slowing progress and risking damage to adjacent structures.
The crew selected this industrial wire saw for its 18-meter maximum wire length and fully hydraulic feeding system. They positioned the 64 kg cutting unit directly along the cut line and kept the 98 kg pump station at a safe distance. Working pressure of 15- 20 MPa delivered steady force through the heavily reinforced section, while the three selectable speeds allowed operators to adjust for changing material density.
The diamond wire completed the full-length cut in a single setup without mid-process repositioning. The resulting edge was straight and clean, significantly reducing secondary chipping and grinding time. Low vibration also protected nearby columns and existing utilities. The compact size and manageable weight of both units made daily transport and setup practical within the limited site access.
This application demonstrates how the combination of hydraulic stability, adequate wire length, and practical weight distribution helps contractors handle demanding concrete cutting tasks more efficiently and with greater control.
What Professional Buyers Check Before Ordering
Experienced buyers first confirm that power and wire length match their typical material thickness. They examine hydraulic stability, setup speed, and ease of movement. Light cutting unit weight and separate pump design rank high for multi-site crews. Voltage compatibility with a 380V supply and documented pressure range also influence the final decision. Many buyers request matching equipment such as road cutting machines or hydraulic splitters from the same supplier to simplify training and spare-parts management.
Why Contractors Trust YG Machinery
YG Machinery focuses on practical performance and reliable support for industrial cutting equipment. The company provides complete technical documentation, clear operating guidance, and responsive after-sales service. Clients appreciate consistent build quality when they expand their fleet of cutting tools.
Frequently Asked Questions About YG Concrete Wire Saw Machine
A1: The machine supports up to 18 meters of diamond wire.
A2: It operates on 380 V, 50 Hz. Confirm site power before ordering.
A3: The cutting unit weighs 64 kg plus a 14 kg motor. The pump station weighs 98 kg.
A4: Yes. Fully hydraulic feeding provides steady wire advance and reduces operator effort.
A5: Yes. The 15- 20 MPa pressure and adjustable speeds handle dense concrete with rebar.
Take the Next Step
Match the machine to your common cut lengths and available power supply. Request the full parameter sheet and current quotation from the sales team. They can also advise on suitable diamond wire and recommended operating settings for your materials.
Prepare your site voltage and average project requirements for a faster response. Many contractors confirm the order after a short technical discussion because the specifications already meet standard industrial needs.
Contact YG Machinery today for pricing, availability, and technical support on this industrial wire saw.
