Factory relocation projects require precision, safety, and efficient material handling. In early 2025, a manufacturing company in South Korea contacted YG Machinery after searching for an Electric Machinery Skate capable of moving heavy production equipment inside an operating factory. The customer needed a reliable solution for relocating stamping presses and CNC machining centers without using overhead cranes. After several rounds of technical discussions, they selected our 30-ton electric model. The project was completed successfully, and the equipment has since become part of the customer’s regular factory relocation workflow.
Start Your Project with the Right Equipment
Why The Korean Customer Needed Heavy Equipment Moving Rollers
The customer operates a precision metal processing factory in Gyeonggi Province. The company manufactures automotive components and industrial equipment. Due to production expansion, several manufacturing lines needed to be rearranged while keeping part of the factory in operation.
Previously, heavy machines were moved using forklifts, manual roller skates, and hydraulic jacks. This method created several challenges.
The factory experienced:
- High labor requirements
- Slow relocation progress
- Difficult steering in narrow aisles
- Increased safety risks
- Equipment vibration during movement
- Long production downtime
Some stamping presses weighed nearly 30 tons. Several CNC machining centers exceeded 20 tons. Traditional handling methods could no longer satisfy daily relocation requirements.
The customer hoped to reduce labor while improving positioning accuracy and operational safety.
How YG Recommended The Right Electric Machinery Moving Dolly
Instead of immediately recommending a model, YG engineers first organized an online meeting with the customer’s engineering department.
Several technical details were discussed.
These included:
- Maximum equipment weight
- Machine dimensions
- Floor condition
- Turning radius
- Daily moving frequency
- Available aisle width
- Power supply requirements
Videos recorded inside the workshop helped our engineers understand the actual working environment. After calculating the maximum load and safety margin, we recommended the 30T Electric Machinery Skate. The selected configuration offered sufficient capacity while remaining compact enough to maneuver between production lines. Remote control operation also allowed workers to maintain a safe distance during equipment movement.
Boost Productivity—Get a Free Quote
Why The Customer Chose An Electric Tank Trolley
Before making the final decision, the customer compared several handling methods. Hydraulic roller skates required continuous manual adjustment. Forklifts lacked sufficient lifting capacity. Overhead cranes required stopping production in nearby work areas.
The electric system offered several advantages.
It provided:

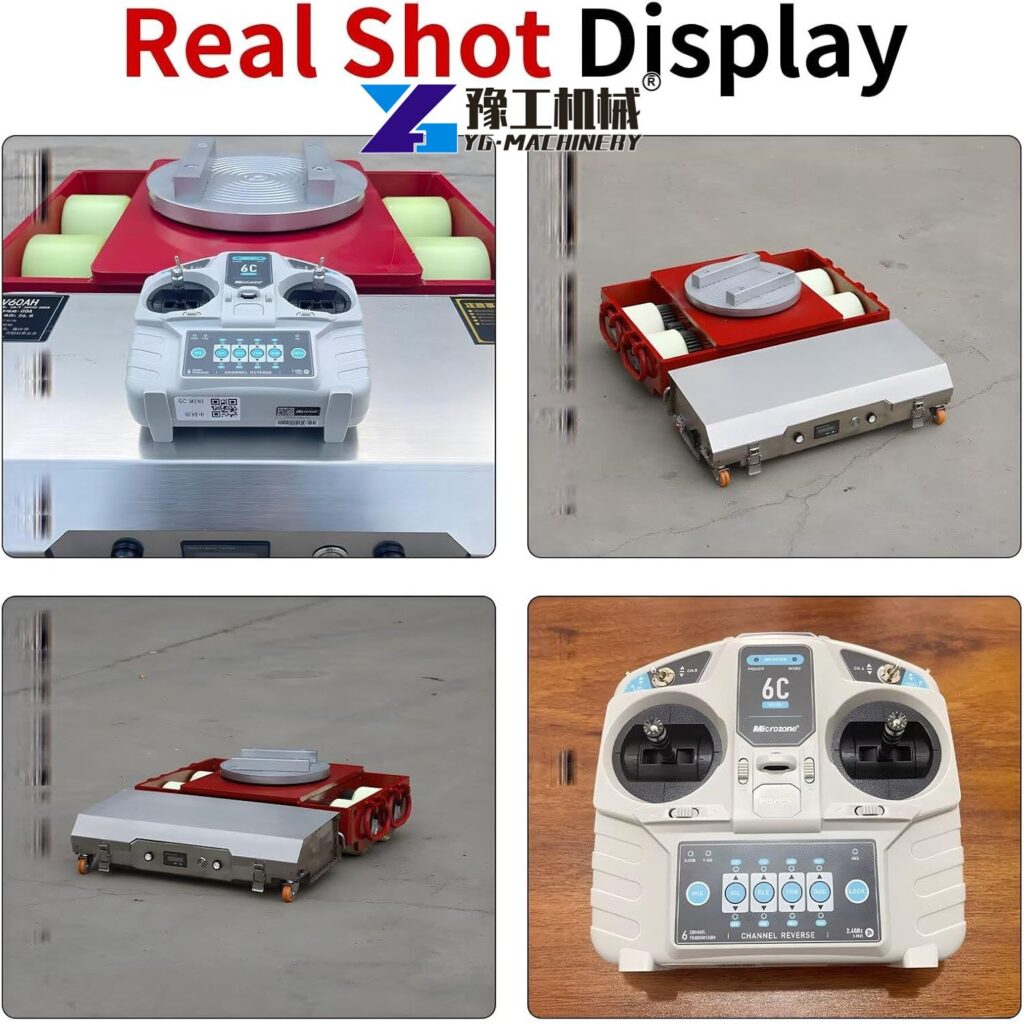

- Wireless remote control
- Adjustable travel speed
- Smooth acceleration
- Stable braking
- Accurate positioning
- Lower operator fatigue
The customer also appreciated that the system could transport different machines using the same equipment without requiring permanent rails or expensive lifting infrastructure. After reviewing the proposal and operating videos, the purchasing department confirmed the order.

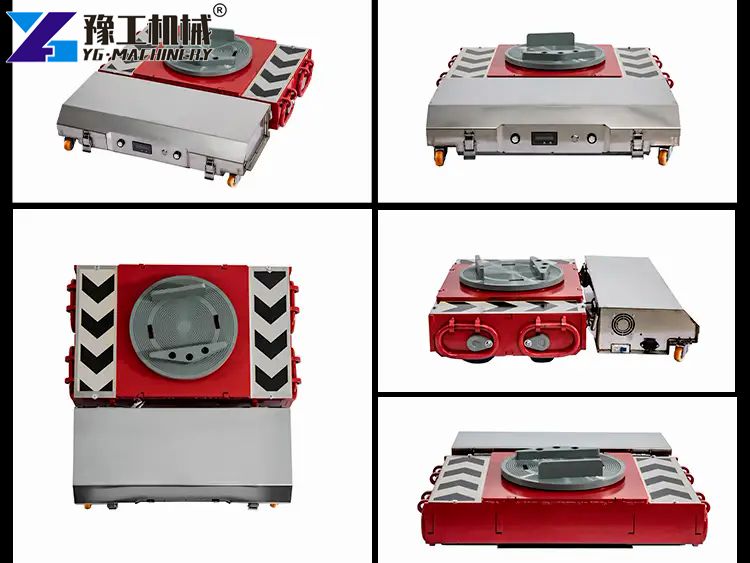

Electric Machinery Skate Technical Parameters
After confirming the application requirements, YG Machinery provided a detailed specification sheet for the customer to compare different load capacities. Since the heaviest stamping press weighed approximately 28 tons, engineers recommended the 30T model. It provided sufficient safety margin while maintaining excellent maneuverability inside the workshop. The customer also valued its dual-drive motor, wireless remote control, adjustable travel speed, and reinforced gearbox, making it suitable for continuous factory relocation work.
| Model | 10T | 20T | 25T | 30T | 40T | 50T | 60T |
|---|---|---|---|---|---|---|---|
| Motor | 500W ×2 | 750W ×2 | 1000W ×2 | 1200W ×2 | 1500W ×2 | 2000W ×2 | 3000W ×2 |
| Controller | D2T80A | D2T80A | D2T100A | D2T100A | D2T200A | D2T200A | D2T220A |
| Remote Control | C7 | C6/C7 | C7 | C7 | C6/C7 | C7 | C7 |
| Battery | 48V 30Ah | 48V 60Ah | 48V 60Ah | 48V 60Ah | 48V 120Ah | 48V 120Ah | 48V 120Ah |
| Operating Current | 25A | 60A | 60A | 60A | 120A | 120A | 120A |
| Towing Weight | 10T | 20T | 25T | 30T | 40T | 50T | 60T |
| Load Capacity | 10T | 10T | 12.5T | 15T | 20T | 25T | 30T |
| Dimensions | 500×550×145mm | 670×620×165mm | 670×635×165mm | 740×640×185mm | 810×800×182mm | 810×800×182mm | 1110×800×185mm |
| Disc Flange | colspan | 2900mm Diameter | |||||
| Travel Speed | 2–10 m/min | 2–10 m/min | 2–10 m/min | 2–10 m/min | 2–10 m/min | 2–10 m/min | 2–10 m/min |
| Continuous Running Time | 2–3 h | 3–4 h | 3–4 h | 3–4 h | 4–5 h | 4–5 h | 4–5 h |
Compare Models and Get a Quote
Manufacturing And Factory Inspection Before Export

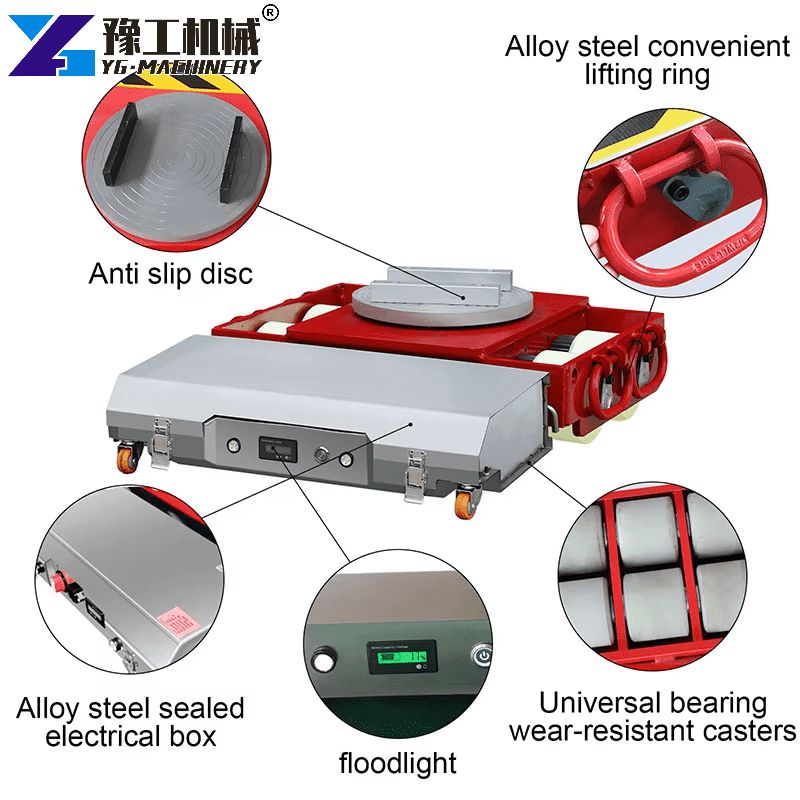

Production started after the customer approved the final technical drawings. During manufacturing, technicians carefully inspected every major component before assembly. The dual-drive motors, reinforced gearboxes, battery system, controllers, remote-control modules, and braking units all underwent strict quality inspections. Once assembly was completed, the equipment entered factory testing.
Engineers performed:
- Full-load driving tests
- Wireless remote-control verification
- Brake response testing
- Steering accuracy inspection
- Battery endurance testing
- Motor temperature monitoring
- Emergency stop testing
The equipment then completed several hours of continuous operation under simulated factory working conditions. All performance indicators met the export standards before shipment.

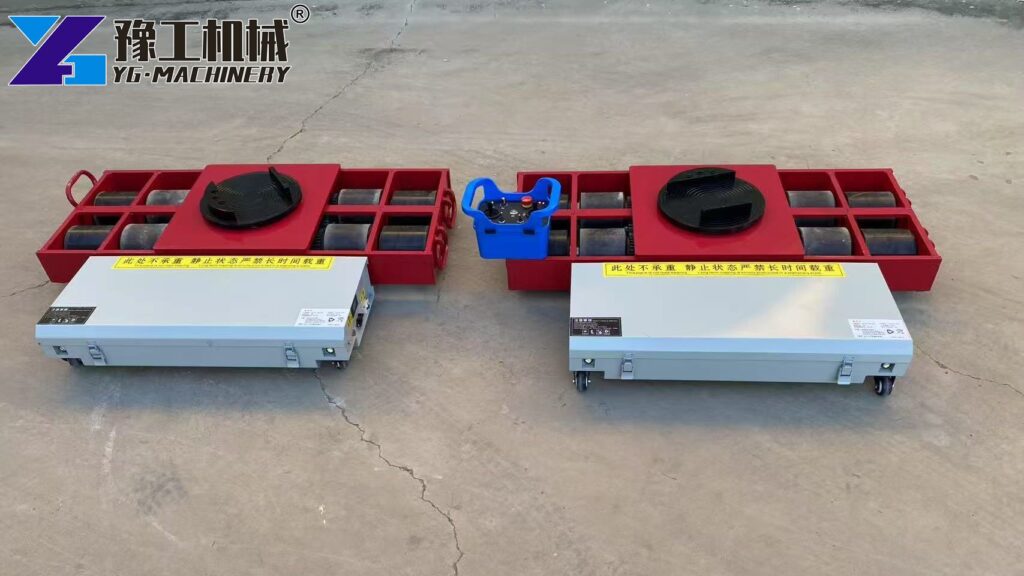

Shipping Electric Machinery Skate To South Korea
After final inspection, the customer requested additional protective packaging because the equipment would travel by sea before being transported by truck to the factory. YG Machinery applied anti-rust treatment to exposed metal surfaces and secured every moving component with reinforced fixtures.
The shipment process included:
- Export inspection
- Wooden protective packaging
- Shock-resistant fixation
- Waterproof covering
- Container loading
- Export documentation preparation
Throughout transportation, our logistics team updated the customer with container photographs, shipping schedules, and customs documents.
The shipment arrived at Busan Port according to schedule before being transported directly to the customer’s production facility.
Find the Right Model for Your Project
Installation And Operator Training
Installation required very little time. After unpacking the equipment, operators completed battery charging, controller pairing, and basic system inspection before beginning operational testing. YG engineers provided remote commissioning support through online video sessions. Training focused on practical operation.
Topics included:
- Remote-control operation
- Speed adjustment
- Synchronized movement
- Safe turning procedures
- Daily battery maintenance
- Emergency braking
- Routine inspection
Because the operating interface was straightforward, the customer’s maintenance team became familiar with the system after only one day of training. Within two days, the equipment entered normal factory operation.

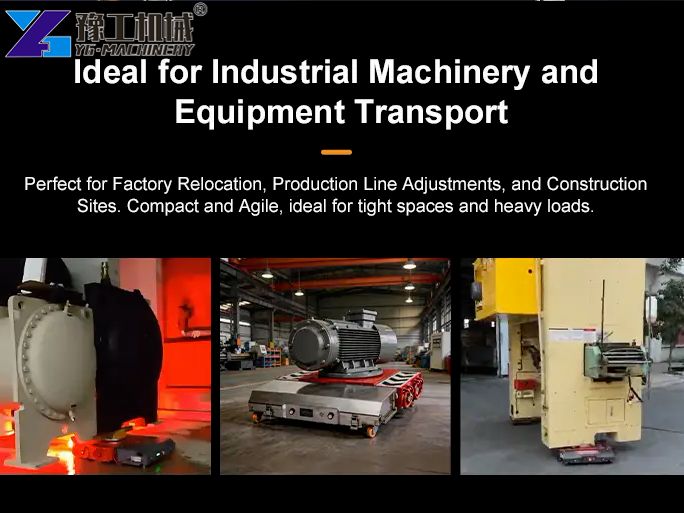

First Factory Relocation Project Using Heavy Equipment Moving Rollers
The first relocation project began one week after commissioning. The customer planned to move three large production machines from the old assembly area to a newly completed workshop without interrupting adjacent production lines.
The equipment included:
- 28-ton stamping press
- 21-ton CNC machining center
- 17-ton hydraulic forming machine
Each relocation required precise positioning because the machines needed to align accurately with power supplies, compressed air pipelines, and production conveyors. Before movement, operators lifted each machine slightly using hydraulic jacks before positioning the heavy equipment moving rollers underneath the load. Once the weight was evenly distributed, operators controlled the system remotely while guiding the equipment along predetermined routes.
The variable-speed drive system allowed slow, stable movement through narrow factory aisles. When approaching installation positions, operators reduced travel speed to achieve millimeter-level positioning. Compared with the company’s previous relocation method, the entire process became smoother, quieter, and significantly safer.
Factory supervisors reported that equipment vibration during transportation was almost eliminated, reducing concerns about machine calibration after installation.
Daily Performance of The Electric Machinery Moving Dolly
After several weeks of continuous operation, the customer recorded detailed operating data for internal evaluation. The Electric Machinery Skate was used almost every working day for equipment relocation, maintenance support, and production line adjustments. Several operational improvements became evident.
Compared with previous handling methods:
- Equipment relocation efficiency increased by approximately 40%
- Labor requirements decreased from four operators to two
- Average machine positioning time was reduced by nearly 50%
- Equipment installation preparation became significantly faster
- Production downtime decreased noticeably
The customer also praised the stability of the remote-control system. Even when transporting large stamping presses weighing nearly 30 tons, the machine maintained smooth acceleration and stable braking without sudden movement.
Battery performance also exceeded expectations. Under normal factory conditions, one charge supported approximately 3 to 4 hours of continuous operation, covering most daily relocation tasks without requiring intermediate charging.
Customer Feedback After Three Months
Three months after delivery, the customer shared comprehensive feedback with YG Machinery. According to the maintenance manager, the equipment had become an essential part of daily production support. Several features received particularly positive comments.
The customer appreciated:
- Smooth remote-control operation
- Stable travel speed
- Reliable braking performance
- Strong climbing ability on slight floor transitions
- Low operating noise
- Easy battery maintenance
The engineering department also reported that the reinforced gearbox and dual-drive motors maintained stable performance throughout continuous daily operation. No major maintenance issues occurred during the first three months.
Because relocation efficiency improved substantially, factory management estimated that the investment would generate measurable labor savings over the coming years. The company also indicated plans to purchase additional units as production capacity expands.
Why This Electric Machinery Skate Project Was Successful
This project demonstrated that successful heavy equipment relocation depends on selecting equipment that matches actual factory conditions rather than simply choosing the highest load capacity.
YG Machinery worked closely with the customer throughout equipment selection, technical confirmation, factory testing, shipment, and commissioning. By understanding the customer’s equipment weights, aisle dimensions, floor conditions, and production schedule, our engineers recommended a solution that balanced capacity, maneuverability, and operating efficiency.
The result was a reliable relocation system capable of supporting daily factory operations while reducing labor intensity and minimizing production downtime.
Need A Reliable Electric Tank Trolley for Factory Relocation?
Every factory relocation project presents different challenges. Equipment weight, workshop layout, travel distance, and positioning accuracy all influence the ideal handling solution.
YG Machinery supplies electric tank trolley systems ranging from 10T to 60T for CNC machines, stamping presses, transformers, generators, injection molding machines, and other heavy industrial equipment. Our engineering team can recommend the most suitable model based on your load capacity, floor conditions, and application requirements.
Contact YG Machinery today for technical consultation, detailed specifications, and a customized quotation for your next heavy equipment moving project.
