Dust Suppression Cannon for Sale: 20-120m Spray Range for Heavy Dust

A dust suppression cannon for sale from YG Machinery delivers a 20m to 120m spray range to control dust on large sites. It uses a high-power blower and atomizing nozzles to create a fine mist. Eight standard models offer total power from 8.5kW to 91kW. They operate on 380V 50Hz three-phase power. Spray flow reaches up to 15 m³/h. Nozzle counts range from 8 to 120. We build every unit in our Zhengzhou factory. Because we sell factory-direct, you avoid dealer markups and get a highly competitive price. Each machine undergoes a full test before shipping. Send us your project details today. We will respond within 6 hours with a free quote and model recommendation.

Start Your Project with the Right Equipment

YG Dust Suppression Cannon For Sale: Complete Product Specifications

We offer compact and large models to match your dust zone size. Check the power and water supply requirements for each.

Parameter	YG-20	YG-30	YG-40	YG-50	YG-60	YG-80	YG-100	YG-120
Spray Range	20m	30m	40m	50m	60m	80m	100m	120m
Total Power	8.5 kW	9.5 kW	14.5 kW	14.5 kW	24.75 kW	45.25 kW	75 kW	91 kW
Blower Motor	3 kW	4 kW	11 kW	11 kW	18.5 kW	37 kW	55 kW	75 kW
Spray Flow	1,000 L/h	1,500 L/h	3,000 L/h	8 m³/h	8 m³/h	12 m³/h	12 m³/h	15 m³/h
Rotation	360°	360°	360°	±160°	±320°	±320°	160°	0-320°
Pitch Angle	-10° to 55°	-10° to 55°	-10° to 55°	-5° to 35°	-5° to 35°	-5° to 35°	-10° to 45°	0° to 60°
Nozzles	8	10	16	40	58	80	120	120
Water Tank	—	460 L	480 L	600 L	600 L	600 L	—	—

What Makes YG Mist Cannon Sprayer Fog Machine Stand Out?

Our units are built to deliver superior performance and long-term reliability. Here are the key technical advantages:

98%+ Dust Suppression Rate. We use exclusive “Cloud-Mist” technology. The system atomizes water into 10-150 µm droplets. These fine droplets bind completely with dust particles. This raises the effective dust suppression rate from the traditional 50-60% to over 98%.
20X Water-Saving Efficiency. The atomization process expands the water’s volume by over 10,000 times. This expands the coverage area by nearly 30 times. It uses less than 5% of the water required by traditional methods for the same area, saving 70-80% on water costs compared to sprinkler trucks.
360° Coverage, No Blind Spots. The machine features horizontal 360° rotation and a vertical pitch angle from -10° to 45° (or up to 60° on larger models). This ensures complete dust control across the entire site.
8,000 Hours MTBF. Built for tough environments, the machine offers an 8,000-hour Mean Time Between Failures (MTBF). The modular design makes maintenance simple and extends the equipment’s lifespan.
Smart PLC Control. We use intelligent PLC programming technology. Operators can use one-key start/stop and remote control functions. The system is compatible with both remote and electric controls.
High Penetration and Fast Spray Speed. The fine mist forms a wet cloud that quickly suppresses and settles airborne dust. It has strong penetration and adhesion to dust particles.
Dual Power Options. You can power the unit using a diesel generator set or a standard three-phase 380V city power supply. The trailer-mounted design makes it highly flexible for rapid deployment.

Compare Models and Get a Quote

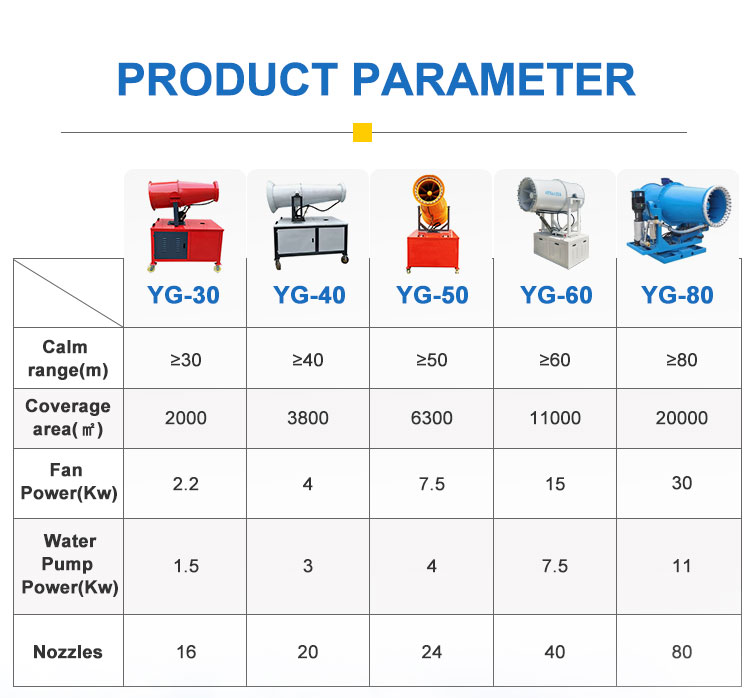

Mobile vs Stationary Fog Cannon Machine Trailer

How Does a Mist Cannon Sprayer Fog Machine Work?

The machine works by combining high-pressure water with a powerful airflow. A water pump pushes water to the nozzles. The nozzles atomize the water into tiny droplets (30-150 µm). A high-power blower motor drives a fan. The fan blows the atomized water into the air. The droplets collide with dust particles and drag them to the ground.

The operator controls the spray direction. The unit rotates horizontally and adjusts its pitch angle. The YG-20, YG-30, and YG-40 offer full 360° horizontal rotation. This lets one unit cover an entire site without moving.

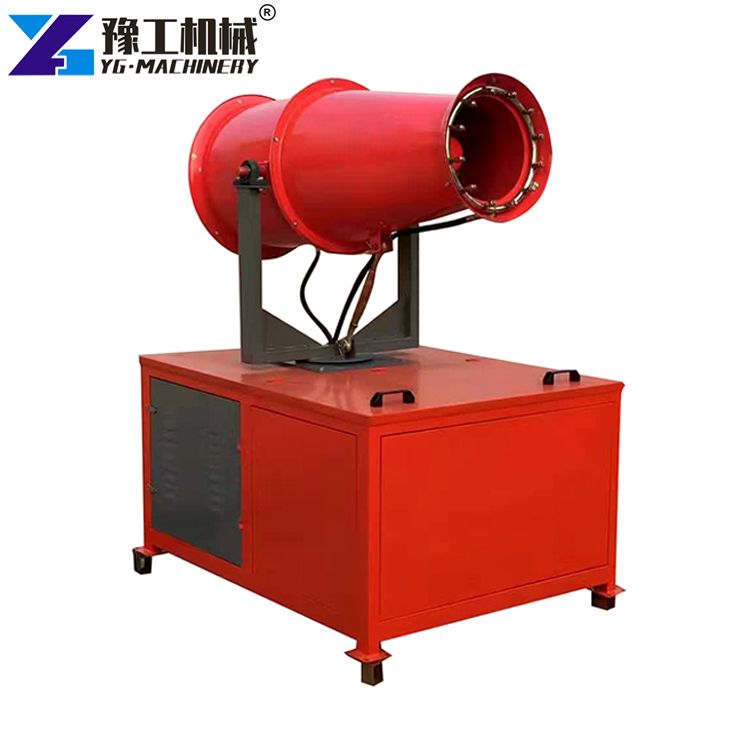

The system uses very little water compared to manual hoses. A YG-30 unit sprays 1,500 liters per hour. A fire hose might use 10 times that amount. The fine mist evaporates quickly, cooling the air and suppressing dust without creating muddy ground.

Boost Productivity—Get a Free Quote

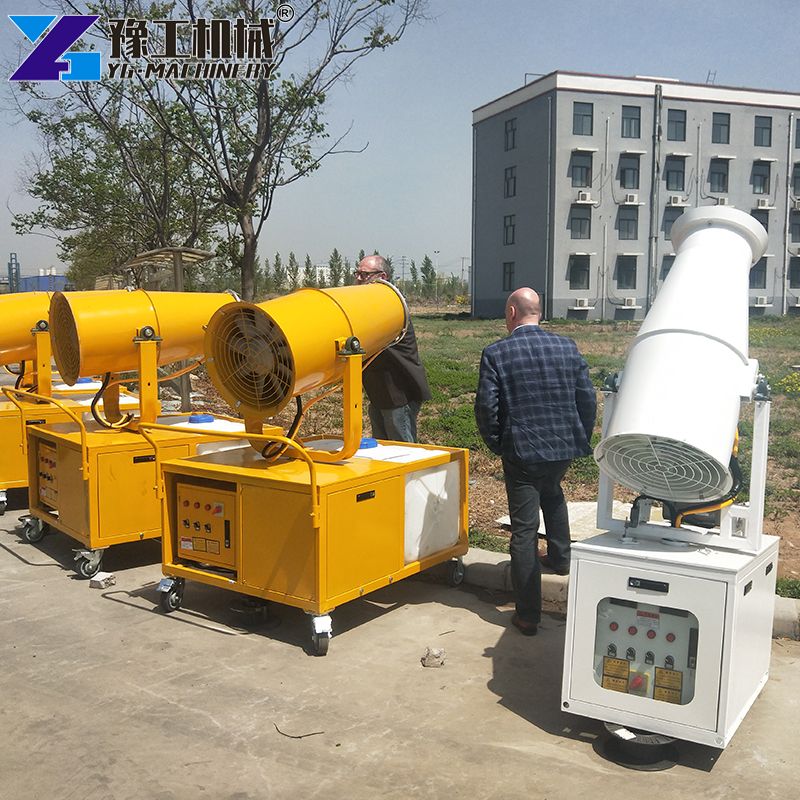

What Affects the Fog Cannon Machinery Price?

Several factors determine the cost of this equipment. Here is what drives the final number.

Spray Range. A 20m unit costs much less than a 120m unit. Longer ranges require larger blowers, higher power, and more robust frames.
Motor and Power Requirements. The YG-120 uses a 75kW blower motor and a total of 91kW. The YG-20 uses a 3kW blower and 8.5kW total. Higher power components cost more.
Rotation and Control. Units with full 360° continuous rotation use stronger gear rings than units with partial rotation.
Nozzle Count and Water Flow. The YG-120 uses 120 nozzles and sprays 15 m³/h. More nozzles require a larger water pump and a stronger manifold.
Mounting Type. Stationary units are standard. Adding a trailer or vehicle mount increases the total price.

Because we manufacture in-house, we eliminate middleman fees. You pay for the steel, the motors, and the assembly. Ask for a detailed quote to see the breakdown for your specific model.

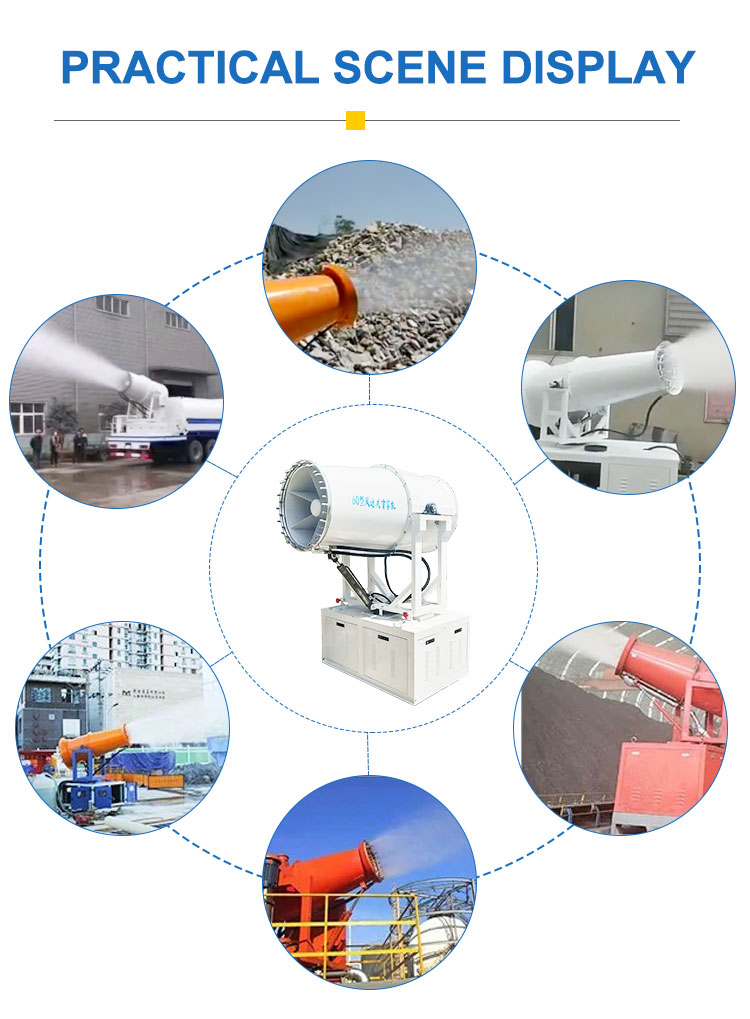

5 Real-World Applications for Dust Suppression

Contractors and facility managers use these machines to stay compliant and safe.

Demolition Sites. Crushing concrete creates massive dust clouds. A YG-50 suppresses dust over a 50m radius, protecting nearby workers and neighborhoods.
Quarries and Mines. Blasting and hauling generate continuous dust. The YG-100 covers haul roads and crusher discharge points.
Coal Yards. Wind blows coal dust into surrounding areas. Stationary units keep stockpiles wet without over-saturating the coal.
Construction Earthworks. Excavation and grading create airborne silica. The YG-30 fits on a small trailer and follows the grading crew.
Waste Transfer Stations. Trucks dump waste indoors and outdoors. A YG-40 with 360° rotation covers the tipping floor and keeps dust down.

These units reduce PM10 and PM2.5 particles. They help sites pass environmental inspections. One operator can control the spray from a remote or control panel.

Find the Right Model for Your Project

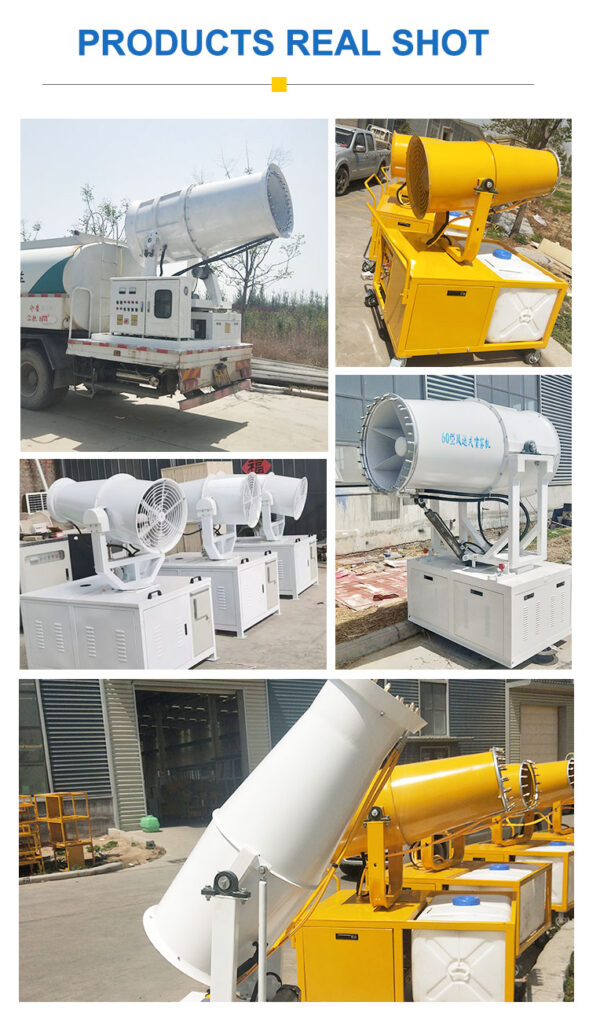

360 Rotation Dust Suppression Cannon Factory

What Do Customers Say About Our Fog Cannons?

USA – Quarry Operations (YG-80). “We installed the YG-80 near our primary crusher. The 80m spray range covers our entire discharge point. Dust complaints from the neighboring properties stopped immediately. It runs 10 hours a day, 6 days a week. The 37kW blower is incredibly powerful. We passed our EPA inspection with zero issues.” — Quarry Manager, Texas
Australia – Demolition Site (YG-50). “We mounted the YG-50 on a trailer to follow our demolition crew. The ±160° rotation lets us cover the rubble pile from one spot. It uses way less water than our old hoses, and the ground doesn’t turn into a mud pit. The build quality is solid. It has handled rough site conditions for 8 months without a single breakdown.” — Site Supervisor, Queensland
Germany – Coal Handling Facility (YG-100). “Controlling coal dust in the wind is tough. The YG-100 with its 100m reach and 120 nozzles does the job perfectly. The atomized mist is very fine, so the coal doesn’t get overly wet. The remote control makes it easy for one operator to manage the whole yard. Highly recommended for heavy dust environments.” — Facility Engineer, North Rhine-Westphalia

Get Expert Advice & Pricing

Mobile vs Stationary Fog Cannon Machine: Which to Choose?

Choose mobile if your dust sources move. Choose stationary if the dust source is fixed. Here is how to decide.

Stationary Units. Best for fixed crushers, transfer stations, or coal yards. They mount on concrete pads or steel frames. You connect them to a permanent water line and power source.
Mobile Units. Mounted on trailers with wheels. Best for demolition sites, road construction, or temporary stockpiles. They require a generator and a water tank if site utilities are unavailable.

If you need to cover multiple spots, a stationary unit with 360° rotation might still work. If you move between sites every week, choose a trailer-mounted version. We offer both configurations for all models.

Why Choose YG Machinery for Your Equipment?

YG Machinery has built industrial equipment for over a decade. We manufacture every unit in our Zhengzhou factory. We machine the steel frames, wire the control panels, and test the pumps. Every unit runs a full spray test before shipping.

We stock spare parts in Houston and Rotterdam. Common items like nozzles and seals ship within 2-4 days. We also manufacture a wide range of site support equipment, including floor shot blasters, dry ice cleaning machines, sandblasting machines, and dredging robots. Ask for a bundle quote for your construction or industrial site.
