A Philippine construction contractor contacted YG Machinery after searching for a fog cannon machine for sale for a large commercial development project near Manila. Earthwork, road preparation, and aggregate handling created continuous dust throughout the day. Manual watering could not provide stable dust suppression and consumed excessive water.
The customer wanted an automated solution that could operate for long hours and adapt to changing work areas. After several online meetings and site evaluations, YG Machinery recommended the YG-80 model. The machine was delivered successfully and quickly became part of the contractor’s daily environmental management program.
Start Your Project with the Right Equipment
Why The Customer Needed A Construction Dust Control Machine
The customer specializes in commercial buildings, road construction, and municipal infrastructure projects across Luzon. Their latest project involved large-scale excavation, backfilling, and concrete foundation work. Heavy trucks, excavators, and wheel loaders operated continuously, generating large amounts of airborne dust.
During the dry season, strong winds carried fine particles beyond the construction site. Nearby roads and residential areas were affected. The contractor previously relied on water trucks, but the results were inconsistent. Water evaporated quickly, frequent refilling interrupted work, and dust returned shortly after spraying.
Project managers wanted equipment that could provide continuous atomized spraying while reducing water consumption and labor costs. They also needed a solution that could be moved easily as the construction area expanded.
How YG Recommended The Right Mobile Fog Cannon
Instead of recommending equipment immediately, YG engineers requested detailed information about the project. The customer provided site photographs, drone videos, daily operating schedules, and water supply conditions. Both teams then held a video meeting to evaluate the main dust sources and determine the required spray coverage.
The customer initially considered the YG-50 model because of its lower investment cost. After reviewing the site dimensions, however, our engineers recommended the YG-80 model. Its longer spray range allowed one machine to cover a much larger working area while reducing repositioning time. The higher airflow also maintained stable atomization under moderate wind conditions. After reviewing demonstration videos and technical data, the customer approved the proposed configuration.
Why The Customer Chose Our Mist Cannon Machine Factory
After confirming the required spray coverage, the customer compared several suppliers from China and Southeast Asia. The purchasing team focused on equipment performance rather than price alone. They wanted a machine that could operate continuously under tropical weather while requiring minimal daily maintenance.
Several technical details influenced the final decision. The YG-80 model offered an 80-meter spray range, a 37 kW blower motor, and a total motor power of 45.25 kW. Its oscillating spray system covered a large working area without frequent repositioning. The contractor also appreciated the heavy-duty steel structure, corrosion-resistant components, and simple electrical control system. These features matched the demanding conditions of long-term construction projects in the Philippines.
Boost Productivity—Get a Free Quote
YG Machinery Fog Cannon Machine Technical Parameters
Before production started, YG Machinery provided a complete specification sheet covering the full product range. This allowed the customer to compare spray distance, motor power, water flow, and nozzle configuration before making the final decision. After reviewing the data, the engineering team selected the YG-80 mist cannon machine because it provided the best balance between spray coverage, operating cost, and mobility.
| Equipment Parameter | YG-20 | YG-30 | YG-40 | YG-50 | YG-60 | YG-80 | YG-100 | YG-120 |
|---|---|---|---|---|---|---|---|---|
| Spray Range | 20 m | 30 m | 40 m | 50 m | 60 m | 80 m | 100 m | 120 m |
| Total Motor Power | 8.5 kW | 9.5 kW | 14.5 kW | 14.5 kW | 24.75 kW | 45.25 kW | 75 kW | 91 kW |
| Blower Motor Power | 3 kW | 4 kW | 11 kW | 11 kW | 18.5 kW | 37 kW | 55 kW | 75 kW |
| Spray Flow Rate | 1,000 L/h | 1,500 L/h | 3,000 L/h | 8 m³/h | 8 m³/h | 12 m³/h | 12 m³/h | 15 m³/h |

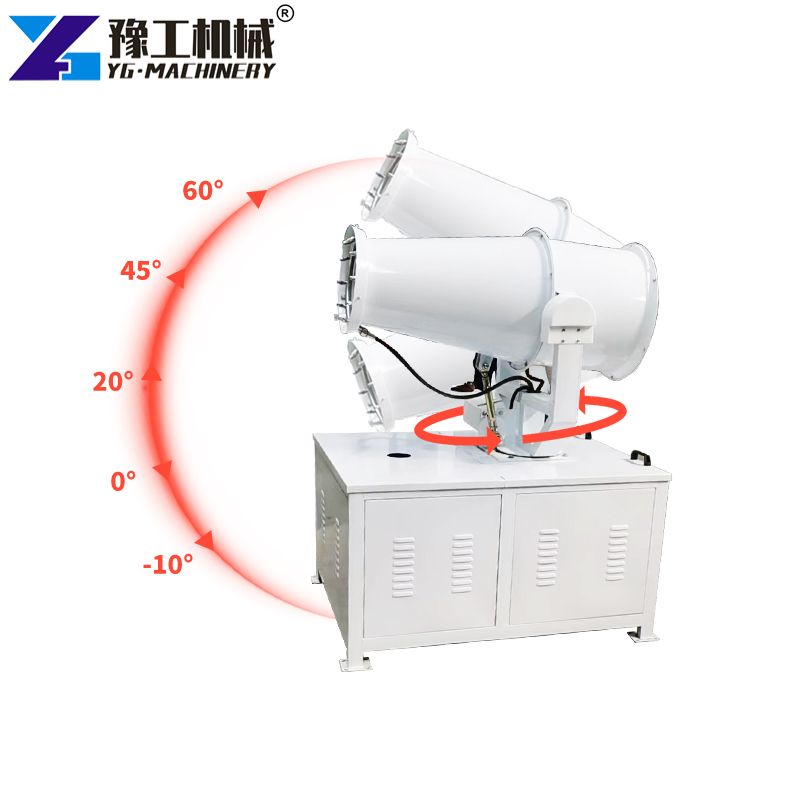

| Horizontal Rotation | 360° | 360° | 360° | ±160° | ±320° | ±320° | 160° | 0–320° |
| Pitch Adjustment | -10° to 55° | -10° to 55° | -10° to 55° | -5° to 35° | -5° to 35° | -5° to 35° | -10° to 45° | 0° to 60° |
| Nozzle Quantity | 8 | 10 | 16 | 40 | 58 | 80 | 120 | 120 |
| Water Tank Capacity | — | 460 L | 480 L | 600 L | 600 L | 600 L | — | — |
The YG-20 and YG-30 models are suitable for small factories, storage yards, and municipal cleaning. The YG-40 and YG-50 are commonly used on medium-sized construction projects and recycling facilities. For large infrastructure sites, ports, quarries, and demolition projects, the YG-80 provides wider coverage with fewer machine movements. Larger YG-100 and YG-120 models are designed for mines, coal yards, and large industrial parks requiring long-distance dust suppression.
Compare Models and Get a Quote
Manufacturing And Factory Testing
Production began after the customer confirmed the final configuration and delivery schedule. Every major component was inspected before assembly to ensure reliable performance. Engineers checked the centrifugal blower, water pump, spray ring, rotation mechanism, electrical cabinet, and steel frame before installation.

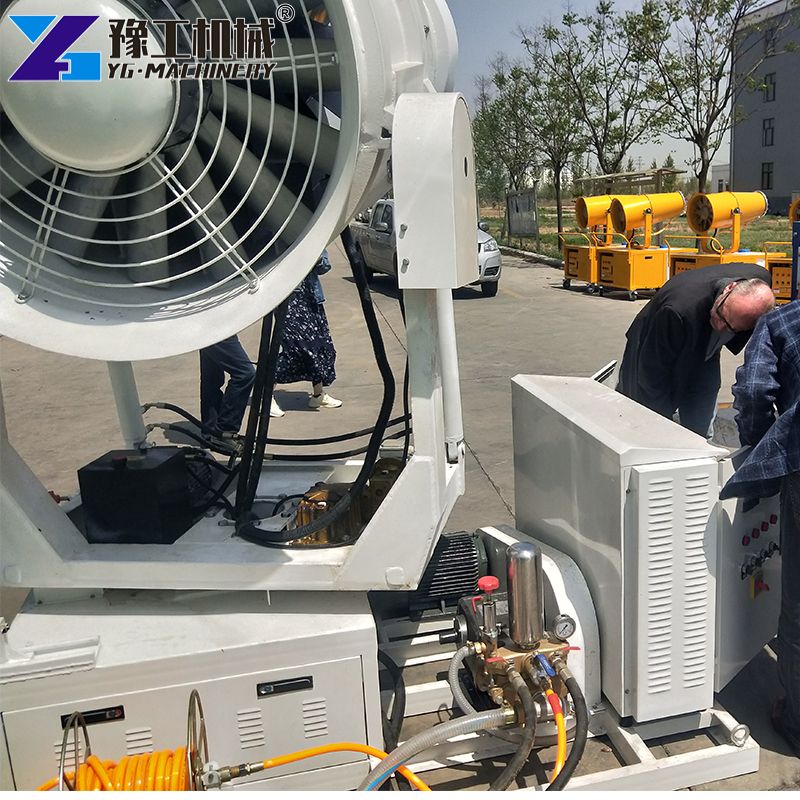

After assembly, the machine completed several factory tests under simulated working conditions. These inspections included spray distance verification, oscillation testing, motor load monitoring, electrical safety inspection, and continuous operation trials. Engineers also measured nozzle atomization quality to ensure fine mist generation. The completed machine successfully passed every inspection before receiving export approval.
Container Loading And Shipment To The Philippines
Because the equipment would travel by sea, YG Machinery prepared the machine carefully before loading. Exposed metal surfaces received anti-corrosion treatment, while electrical components were protected against moisture during transportation. The spray ring and control cabinet were secured using reinforced packaging to prevent movement inside the container.
The logistics team coordinated export documentation, customs procedures, and shipping schedules with the customer. During transportation, regular updates, loading photographs, and vessel tracking information were shared. The shipment arrived at Manila Port on schedule before being transported directly to the construction site for commissioning.
Installation And Operator Training
The machine arrived at the construction site one week after customs clearance. Site technicians prepared the installation area before unloading. A stable water supply and three-phase power connection were already available. The machine was positioned near the excavation zone to maximize spray coverage while allowing convenient relocation as work progressed.
YG Machinery provided remote technical guidance during commissioning. Operators learned how to adjust the spray angle, control oscillation, regulate water flow, and perform routine inspections. Daily maintenance procedures were also explained, including nozzle cleaning, lubrication, and electrical safety checks. Because the operating interface was straightforward, the site team completed training within one working day and began normal operation immediately afterward.
Find the Right Model for Your Project
First Construction Dust Control Project
The first working area covered excavation, truck loading, and aggregate stockpiles. Dust concentrations increased rapidly whenever dump trucks transported dry soil across temporary haul roads. Strong afternoon winds further reduced visibility around the project entrance.
Once the YG-80 began operating, a continuous mist curtain formed above the active construction zone. Fine water droplets captured suspended particles before they spread across neighboring areas. The oscillating spray system covered multiple working positions without constant manual adjustment. Supervisors quickly noticed cleaner access roads and improved visibility around heavy equipment.
Workers also appreciated the improved working environment. Operators inside excavators reported better visibility during loading operations, while truck drivers experienced less airborne dust when entering and leaving the site. The improvement reduced interruptions caused by poor visibility during peak construction hours.
Daily Performance Of The Mobile Fog Cannon
After several months of operation, the contractor compared site records with previous projects that relied only on water trucks. Daily environmental management became more consistent because the machine maintained continuous atomized spraying throughout normal working hours.
Project managers reported several measurable improvements:
- Larger dust suppression coverage
- Lower daily water consumption
- Fewer manual watering operations
- Improved visibility around equipment
- Cleaner surrounding roads
- Better compliance with site environmental requirements
The maintenance department also reported stable equipment performance throughout continuous operation. The blower motor maintained steady airflow, while the nozzle system produced uniform mist without noticeable blockage. Routine maintenance required only simple inspections and periodic nozzle cleaning, helping reduce overall operating costs.
Customer Feedback After Six Months
Six months after commissioning, YG Machinery scheduled a follow-up video meeting with the customer’s project management team to review the equipment’s operating performance.
According to the project manager, the fog cannon had become part of the site’s daily environmental management routine. Operators started the machine each morning before excavation began and adjusted the spray direction as work areas changed throughout the day. This workflow proved much more efficient than relying solely on water trucks.
The site supervisor reported that visibility around excavation zones improved noticeably, especially during truck loading and aggregate handling. Dust no longer spread as quickly across internal roads, helping maintain cleaner working conditions for equipment operators and nearby workers.
The maintenance engineer also shared positive feedback. Routine servicing mainly involved cleaning the nozzles, checking the water filter, and inspecting electrical connections. No unexpected mechanical failures occurred during the first six months of operation, and the blower system maintained stable performance despite continuous daily use in the Philippine climate.
Based on these operating results, the customer confirmed plans to purchase additional dust suppression equipment for future infrastructure projects as the company’s construction portfolio continues to expand.
Why More Contractors Choose Fog Cannon Machines
Modern construction projects increasingly require effective dust suppression to improve workplace safety and reduce environmental impact. Compared with traditional watering methods, fog cannon machines provide wider coverage, finer atomization, and lower water consumption. They also reduce labor requirements while supporting continuous operation throughout the working day.
Today, YG Machinery’s fog cannon machines are widely used for:
- Building construction
- Highway projects
- Mining operations
- Quarry sites
- Demolition projects
- Coal storage yards
- Port terminals
- Recycling facilities
- Waste transfer stations
- Material stockyards
Different spray ranges allow contractors to select equipment according to project size and dust intensity, helping maximize both operating efficiency and environmental performance.
Request A Quote For Your Fog Cannon Machine
Every construction site has different dust control requirements. Factors such as working area, climate, material type, and water supply all influence equipment selection.
YG Machinery supplies fog cannon machines with spray distances from 20 meters to 120 meters, suitable for construction sites, mines, ports, demolition projects, and industrial facilities. Our engineering team can recommend the most suitable model according to your project conditions and budget.
Contact YG Machinery today to receive detailed technical specifications, customized recommendations, and a competitive quotation for your next dust suppression project.
FAQ About YG Fog Cannon Machine
The required spray range depends on the size of your work area and the primary dust source. Small sites may only require a 20–40 m model, while large infrastructure projects often use 60–120 m machines.
Yes. Fine atomized droplets capture airborne dust more efficiently than traditional watering methods, allowing wider coverage while using less water.
Yes. The machine is designed for continuous outdoor operation. Regular maintenance and proper water filtration help ensure reliable performance in high-temperature environments.
They are widely used in construction, mining, quarrying, demolition, ports, recycling plants, coal yards, waste treatment facilities, and material stockyards.
Daily inspections should include nozzle cleaning, water filter checks, and electrical connection inspection. Periodic lubrication and blower maintenance help ensure long service life.
Yes. We can provide electrical configurations suitable for different countries and project requirements.
