A fog cannon machine generates micro-fine water mist particles (30–150 μm) that bind with airborne dust particles, pulling them to the ground through gravity and eliminating environmental pollution on construction, mining, and demolition job sites. Powered by 380V three-phase electric drive systems and high-efficiency blower motors (up to 75kW), these spray units project mist streams across throwing distances ranging from 20 meters up to an impressive 120 meters. Industrial site managers rely on automated misting cannons to comply with strict regional air quality regulations, protect worker health, and suppress dust across vast open-pit mines and high-rise demolition zones.
YG Machinery manufactures these heavy-duty spray units with durable Q235 carbon steel cylinders, automated rotation mechanisms, and high-pressure brass nozzles (up to 120 units). Deploying automated misting machinery maintains total compliance with municipal environmental standards while keeping operational overhead down to an absolute minimum.
Start Your Project with the Right Equipment

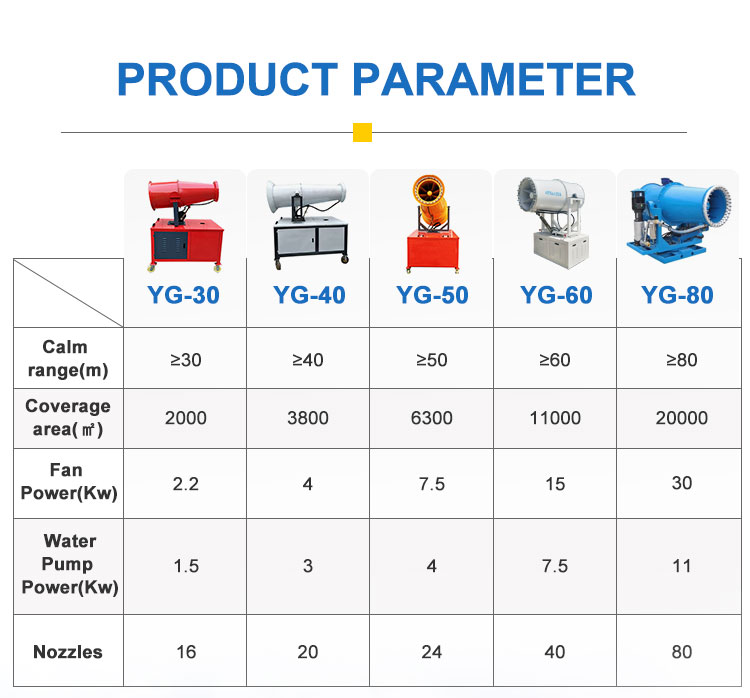

YG Fog Cannon Machine Technical Specifications & Parameter Comparison
Matching your site footprint to the correct machine ensures maximum mist coverage and optimal power efficiency. Sourcing your environmental equipment directly from an established manufacturer like YG Machinery guarantees rigorous factory pressure testing, engineered component reliability, and immediate access to factory spare parts.
| Equipment Parameter | YG-20 | YG-30 | YG-40 | YG-50 | YG-60 | YG-80 | YG-100 | YG-120 |
| Spray Range | 20 m | 30 m | 40 m | 50 m | 60 m | 80 m | 100 m | 120 m |
| Engine & Power Supply | Electric (380V / 50Hz / 3 Phase) | Electric (380V / 50Hz / 3 Phase) | Electric (380V / 50Hz / 3 Phase) | Electric (380V / 50Hz) | Electric (380V / 50Hz) | Electric (380V / 50Hz) | Electric (380V / 50Hz) | Electric (380V / 50Hz) |
| Total Power | 8.5 kW | 9.5 kW | 14.5 kW | 14.5 kW | 24.75 kW | 45.25 kW | 75 kW | 91 kW |
| Blower Motor Power | 3 kW | 4 kW | 11 kW | 11 kW | 18.5 kW | 37 kW | 55 kW | 75 kW |
| Spray Flow | 1,000 L/h | 1,500 L/h | 3,000 L/h | 8 m³/h | 8 m³/h | 12 m³/h | 12 m³/h | 15 m³/h |
| Water Pump Stroke | — | — | — | 140 m | 140 m | 160 m | 180 m | 185 m |
| Atomized Particle Size | — | — | — | 30–150 μm | 30–150 μm | 30–150 μm | 30–150 μm | 30–150 μm |
| Horizontal Rotation | 360° | 360° | 360° | ±160° | ±320° | ±320° | 160° | 0–320° |
| Vertical Pitch Angle | -10° to 55° | -10° to 55° | -10° to 55° | -5° to 35° | -5° to 35° | -5° to 35° | -10° to 45° | 0° to 60° |
| Number of Nozzles | 8 | 10 | 16 | 40 | 58 | 80 | 120 | 120 |
| Water Tank Capacity | — | 460 L | 480 L | — | — | — | — | — |
| Cylinder Material | Q235 Steel | Q235 Steel | Q235 Steel | — | — | — | — | — |
| Recycled Water Pipe | 1,400 mm | 1,400 mm | 1,400 mm | — | — | — | — | — |
| Dimensions (LWH) | 1170×940×1700mm | 1170×940×1800mm | 1650×1200×2200mm | — | — | — | — | — |
| Machine Weight | 200 kg | 250 kg | 300 kg | — | — | — | — | — |
High-capacity blower motors up to 75 kW propel atomized water mist across long distances, reaching 120 meters, ensuring thorough site suppression even across massive open mining sites and high-rise demolition projects.
Compare Models and Get a Quote
How Does a Fog Cannon Machine Trap PM2.5 and PM10 Airborne Particles?
A fog cannon machine traps PM2.5 and PM10 airborne particles by atomizing water droplets down to 30–150 μm, matching floating dust grain sizes so mist particles collide with, absorb, and weigh down airborne dust instantly. Traditional water hoses release large water drops that create an air barrier around tiny dust particles, causing dust to float away rather than settle.

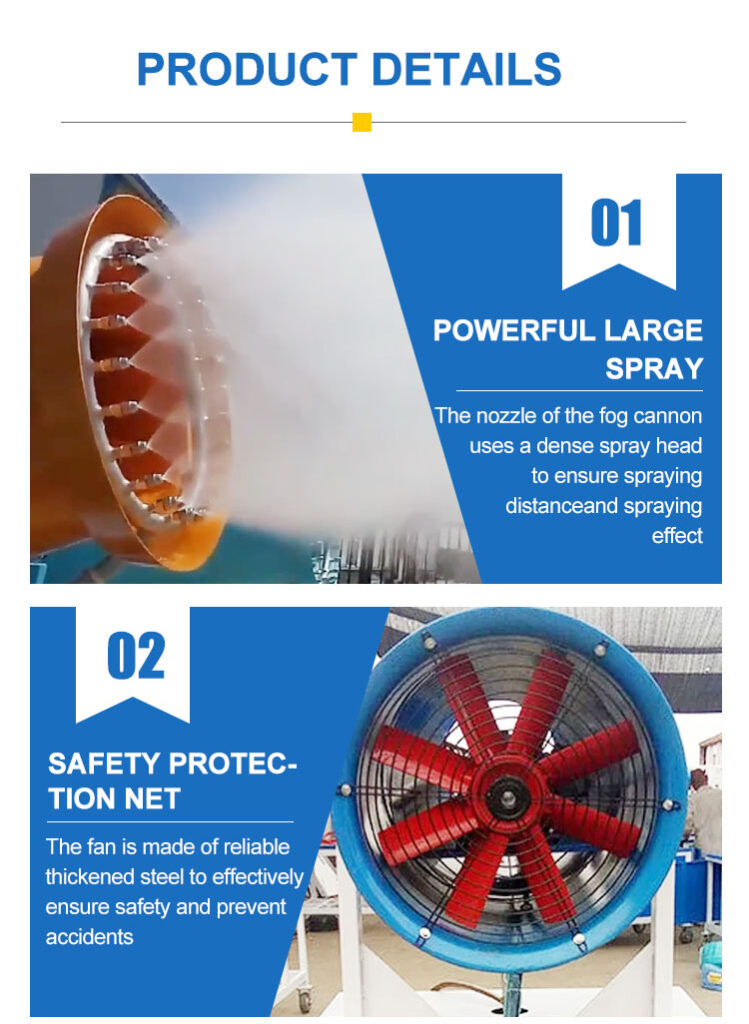

- Micro-Droplet Atomization: High-pressure stainless steel and brass nozzles create dense mist clouds (30–150 μm) that absorb airborne PM2.5 and PM10 dust particles.

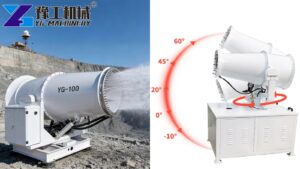

- Wide-Angle Automated Coverage: Drive motors power automated horizontal rotation and vertical pitch angles up to 60° to cover expansive industrial sites.
- Massive Water Conservation: Controlled high-pressure mist nozzles consume water far more efficiently than open discharge hoses while delivering superior dust suppression.
- Continuous Heavy-Duty Operation: Durable Q235 carbon steel cylinder housings withstand harsh outdoor quarry conditions and heavy demolition debris impacts.
Suppressing dust at its source prevents silica dust accumulation on surrounding equipment, protecting heavy machinery air filters and extending engine service life. Site operators set the vertical pitch, initiate automatic rotation, and manage site air quality directly from a centralized control platform.
Why Invest in a Mobile Fog Cannon for Variable Jobsites?
Investing in a mobile fog cannon gives site managers total operational flexibility to relocate dust suppression equipment rapidly as excavation and demolition activity moves across large work zones.
- Rapid Site Relocation: Compact machine weights starting from 200kg allow easy trailer transport on flatbeds or standard utility vehicles.

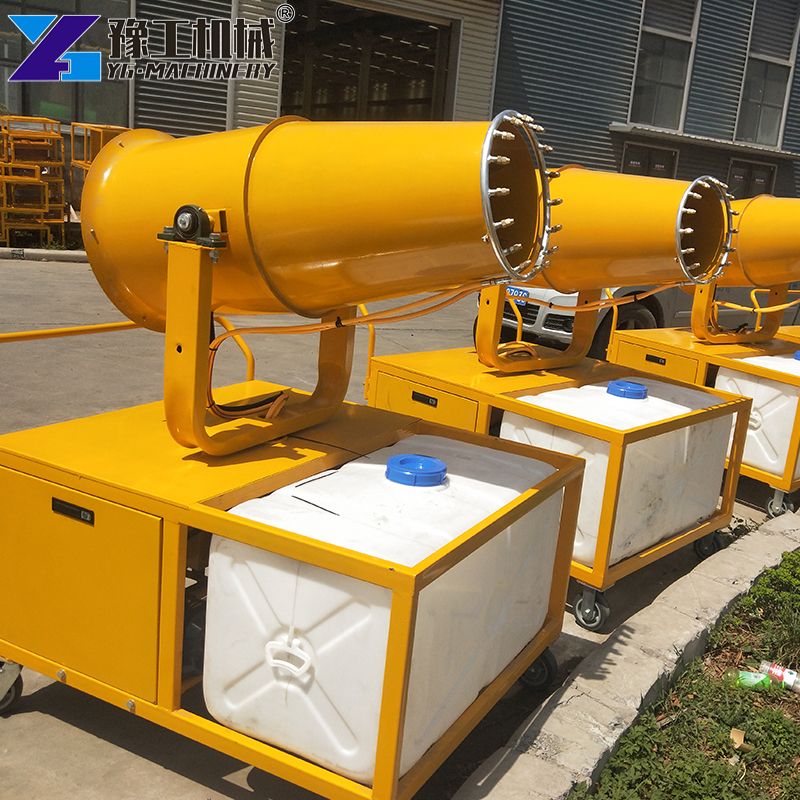

- Integrated Water Tanks: Onboard water buckets (up to 480L on portable units) allow continuous operation in remote site sections without direct water utility hookups.
- Dual Power Compatibility: Connects directly to local 380V site power grids or mobile diesel generator sets for complete off-grid independence.
- Reduced Regulatory Fines: Eliminates environmental shutdown notices by deploying immediate dust control directly adjacent to heavy crushing operations.
Deploying towable misting units protects surrounding residential neighborhoods from drifting dust clouds, maintaining positive community relations and securing project contract continuity.
Find the Right Model for Your Project
How Does an Industrial Dust Suppression Cannon Cut Operational Costs?
A heavy-duty industrial dust suppression cannon cuts operational costs by automating site environmental management, eliminating manual hose crews, and drastically cutting daily site water consumption. Manual water spraying requires multiple workers and leaves pooling water that creates mud hazards across transit roads.
Deploying an automated misting cannon provides clear operational benefits:
- Controlled Water Consumption: High-efficiency nozzle arrays (8 to 120 nozzles) deliver atomized water at controlled flow rates, preventing site flooding and reducing water delivery trucking costs.
- Zero Labor Overhead: Automated rotation mechanisms sweep the misting arc continuously without requiring dedicated manual operators.
- Protected Site Equipment: Suppressing abrasive concrete and mineral dust reduces wear on radiator fins, hydraulic seals, and engine filters across all site machinery.
- All-Weather Performance: Heavy Q235 carbon steel cylinders and high-head pump strokes (up to 185m) ensure reliable operation across extreme industrial conditions.
Upgrading to automated misting equipment protects your capital investments while maintaining total compliance with modern environmental health and safety mandates.

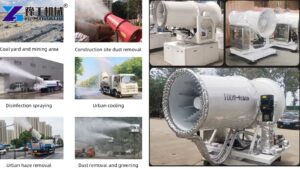

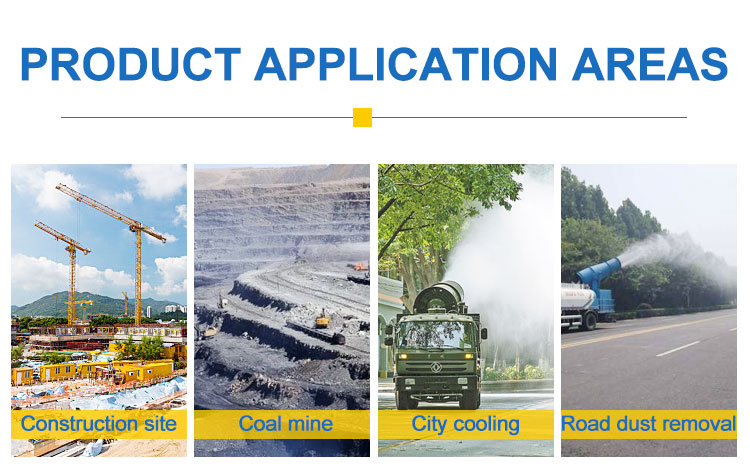

Wide Range of Industrial Applications
Our automatic water mist cannon systems are ideal for:
- Construction & Demolition Sites: Rapidly suppress heavy concrete dust during implosion and excavation.
- Mining & Quarries: Control fugitive coal and mineral dust during crushing and hauling operations.
- Ports & Material Yards: Prevent bulk cargo sand, gravel, and ore dust from spreading into surrounding areas.
- Environmental Cooling & Disinfection: Ideal for large outdoor open spaces, livestock farms, and public areas.
Mobile Fog Cannon Case Study: High-Rise Urban Demolition in Singapore
The Operational Challenge
A civil engineering demolition contractor in Singapore secured a high-profile contract to tear down a 12-story commercial structure situated within 50 meters of residential high-rises and public transport routes. Singapore’s National Environment Agency (NEA) enforced strict limits on airborne PM10 particulate levels and strictly prohibited mud runoff on public roadways. Manual fire hose spraying failed to suppress high-altitude dust clouds created during hydraulic impact crushing, threatening the project with immediate NEA stop-work orders and heavy daily non-compliance penalties.
The Equipment Solution
To satisfy strict local environmental mandates, the contractor procured two industrial-grade Model YG-60 misting cannons from YG Machinery, featuring 18.5kW blower motors, 60-meter throwing distances, and 58 high-pressure atomizing nozzles. Operating on 380V site electrical infrastructure with a 140m water pump stroke, the cannons were stationed along the site perimeter. Utilizing automated ±320° horizontal rotation and -5° to 35° vertical pitch adjustments, the units created a continuous 30–150 μm water mist curtain surrounding the elevated crushing zone.
Operational Results and Return on Investment (ROI)
Deploying automated misting cannons transformed environmental compliance across the Singapore jobsite:
- 100% Environmental Compliance: Maintained airborne PM10 dust levels well within Singapore’s NEA safety limits throughout the entire 25-day demolition sequence.
- 60% Water Consumption Reduction: High-pressure mist atomization cut daily site water usage by 60% compared to traditional unthrottled water hoses.
- Zero Regulatory Downtime: Completely avoided NEA stop-work orders and municipal delay fines, saving an estimated SGD $45,000 in potential operational downtime penalties.
- Rapid Investment Payback: The contractor fully amortized the machinery purchase price within 16 days of continuous site operation.
Why Choose Our Industrial Fog Cannon Machine?
Whether you operate in construction, mining, demolition, quarrying, or material handling, our industrial mist cannons are designed to deliver reliable performance in the toughest environments:
- High-Efficiency Dust Suppression: The heavy-duty misting fan projects atomized mist over long distances, forming a thick water canopy that neutralizes dust at the source.
- 360° Wide Area Coverage: Featuring a 360° horizontal rotation angle and an adjustable vertical pitch angle from -10° to 55°, ensuring complete dead-zone-free spraying coverage across large outdoor sites.
- Water-Saving & Eco-Friendly: Engineered for optimal water consumption, maximizing atomization while conserving water usage and preventing excess site runoff.
- Durable & Heavy-Duty Construction: Built with high-strength Q235 Carbon Steel cylinders to withstand rugged industrial environments and prolong machine lifespan.
- Versatile Power Options: Powered by standard industrial 380V / 50Hz 3-phase electricity, driving electric fan, steering, and high-pressure pump motors seamlessly.
FAQs About YG Fog Cannon Machines
A1: Throw distances range from 20 meters on compact models (YG-20) up to 120 meters on heavy industrial units (YG-120).
A2: Standard units operate on 380V/50Hz 3-phase industrial electric power or compatible mobile diesel generator sets.
A3: High-pressure nozzle arrays generate micro-fine water mist droplets between 30 and 150 μm, ideal for binding with floating silica and mineral dust particles.
A4: Nozzle counts scale with machine capacity, ranging from 8 nozzles on the YG-20 up to 120 high-pressure nozzles on the YG-100 and YG-120 models.
A5: Yes! High-power blower motors (up to 75 kW) generate high-velocity air streams to carry atomized water mist across distances up to 120 meters, even in outdoor wind conditions.
