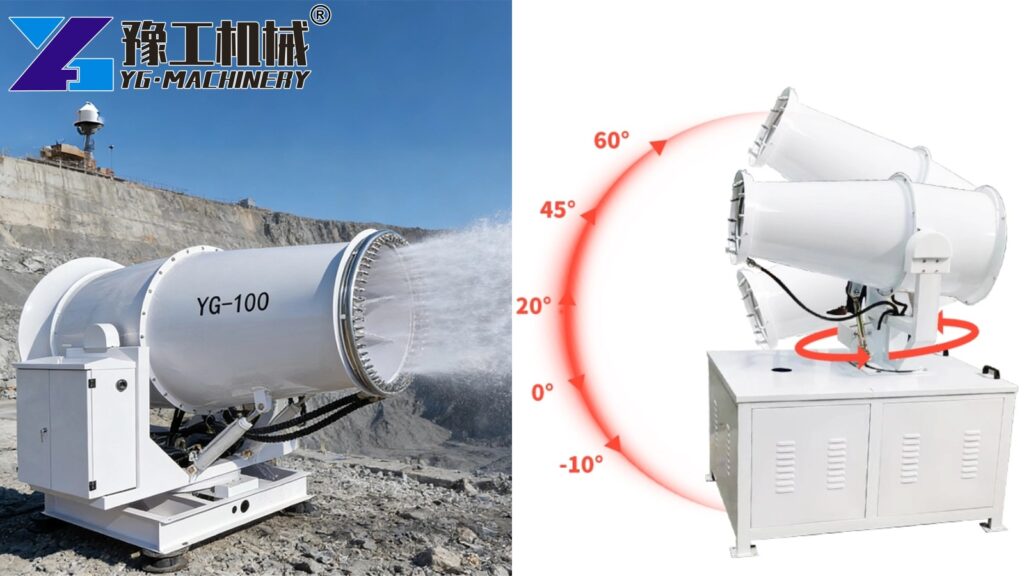

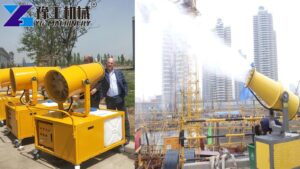

An industrial dust suppression cannon throws a fine water mist across a wide area, so dust drops before it spreads. YG Machinery offers eight models, with spray ranges from 20 m to 120 m. The compact YG-20, YG-30, and YG-40 rotate a full 360°. The large YG-50 to YG-120 spray 8 to 15 m³/h through up to 120 nozzles, with 30–150 µm droplets. Every model runs on 380V/50Hz electric power, so you do not need a separate engine. This guide explains how the cannon works, compares all eight models, and shows the path from site data to quote.
Start Your Project with the Right Equipment
Which Industrial Dust Suppression Cannon Fits Your Site? 8 Models From 20 m to 120 m
Match the spray range to the size of your dust zone, then check power and water supply. Start with the compact models:
| Parameter | YG-20 | YG-30 | YG-40 |
|---|---|---|---|
| Spray range | 20 m | 30 m | 40 m |
| Power supply | Electric, 380V / 50Hz / 3 phase | Electric, 380V / 50Hz / 3 phase | Electric, 380V / 50Hz / 3 phase |
| Total power | 8.5 kW | 9.5 kW | 14.5 kW |
| Blower motor power | 3 kW | 4 kW | 11 kW |
| Spray flow | 1,000 L/h | 1,500 L/h | 3,000 L/h |
| Horizontal rotation | 360° | 360° | 360° |
| Vertical pitch angle | -10° to 55° | -10° to 55° | -10° to 55° |
| Number of nozzles | 8 | 10 | 16 |
| Water tank capacity | — | 460 L | 480 L |
| Cylinder material | Q235 steel | Q235 steel | Q235 steel |
| Recycled water pipe | 1,400 mm | 1,400 mm | 1,400 mm |
| Dimensions (L×W×H) | 1170×940×1700 mm | 1170×940×1800 mm | 1650×1200×2200 mm |
| Machine weight | 200 kg | 250 kg | 300 kg |
The large models cover long range and heavy dust loads:
| Parameter | YG-50 | YG-60 | YG-80 | YG-100 | YG-120 |
|---|---|---|---|---|---|
| Spray range | 50 m | 60 m | 80 m | 100 m | 120 m |
| Power supply | Electric, 380V / 50Hz | Electric, 380V / 50Hz | Electric, 380V / 50Hz | Electric, 380V / 50Hz | Electric, 380V / 50Hz |
| Total power | 14.5 kW | 24.75 kW | 45.25 kW | 75 kW | 91 kW |
| Blower motor power | 11 kW | 18.5 kW | 37 kW | 55 kW | 75 kW |
| Spray flow | 8 m³/h | 8 m³/h | 12 m³/h | 12 m³/h | 15 m³/h |
| Water pump stroke | 140 m | 140 m | 160 m | 180 m | 185 m |
| Atomized particle size | 30–150 µm | 30–150 µm | 30–150 µm | 30–150 µm | 30–150 µm |
| Horizontal rotation | ±160° | ±320° | ±320° | 160° | 0–320° |
| Vertical pitch angle | -5° to 35° | -5° to 35° | -5° to 35° | -10° to 45° | 0° to 60° |
| Number of nozzles | 40 | 58 | 80 | 120 | 120 |
A simple rule of thumb: choose the YG-20 to YG-40 for yards, loading points, and small sites. Choose the YG-50 and YG-60 for mid-size sites. Choose the YG-80 to YG-120 for large stockpiles, quarries, and open pits. Always check your measured dust zone before you decide.
Compare Models and Get a Quote
How Does Mist Cannon Dust Control Work? 4 Steps
A high-speed blower pushes fine water droplets into the air, where they catch dust and pull it to the ground. The process runs in four steps:
- Pump. The water pump sends water to the nozzles.
- Atomize. The nozzles break the water into fine droplets. On the YG-50 to YG-120, droplet size is 30–150 µm.
- Throw. The blower drives the mist out to 20–120 m, depending on the model.
- Aim. Horizontal rotation and vertical pitch let you sweep the mist across the dust source.
Fine droplets work best because they collide with dust particles of similar size and carry them down. You control dust at the source and keep the air clearer for workers, neighbors, and equipment.

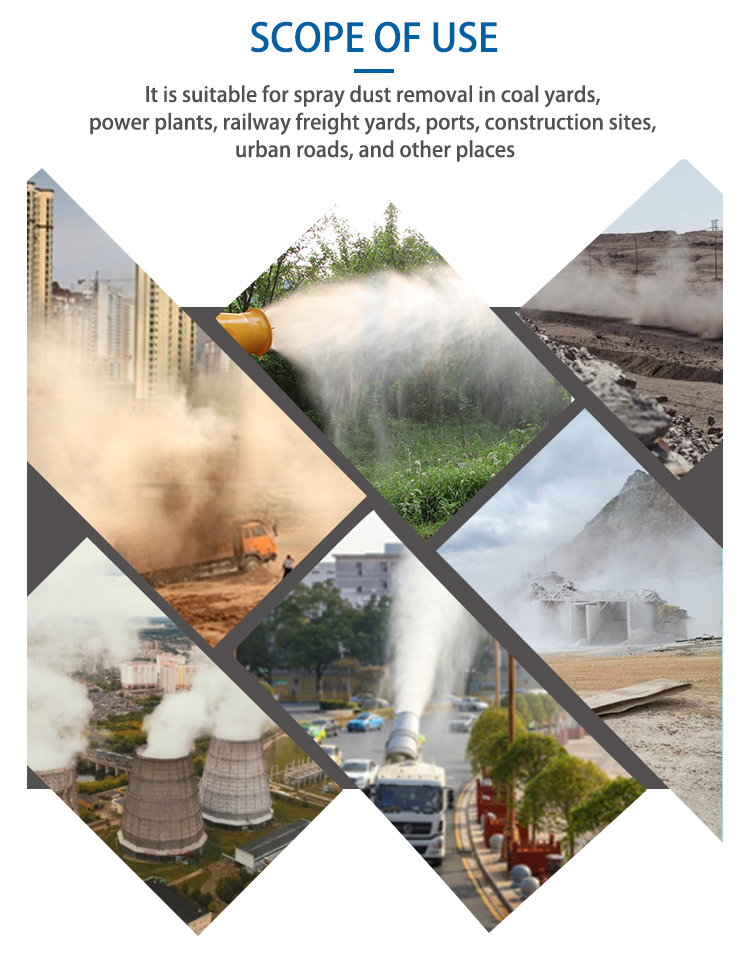

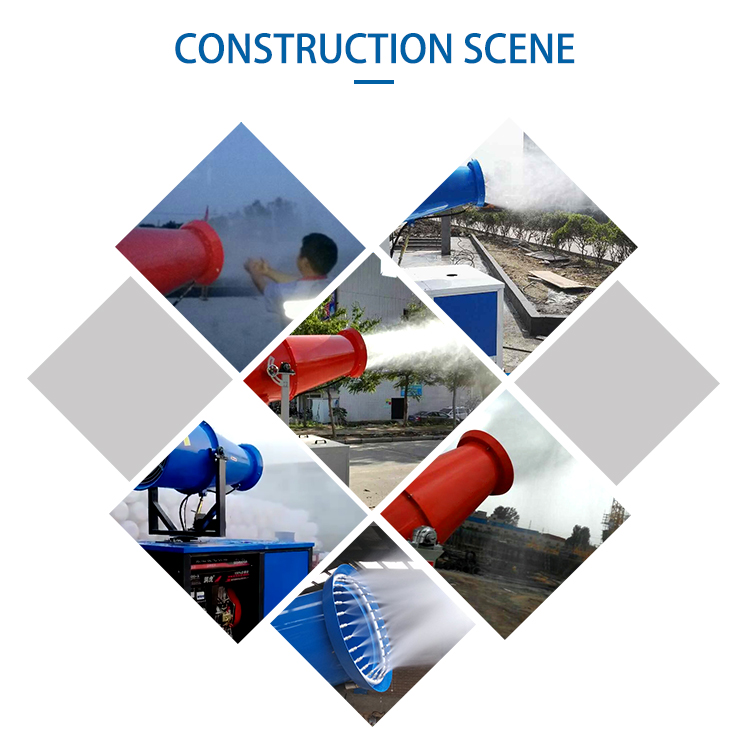

Where Do You Need a Construction Dust Control Machine? 7 Job Sites
A construction dust control machine pays off wherever dust leaves your boundary or hurts visibility. Seven common sites:
- Demolition and renovation: Mist the debris cloud as the structure comes down.
- Earthworks and excavation: Cover large open areas with one sweeping cannon.
- Road and bridge construction: Control dust from cutting, grinding, and haul roads.

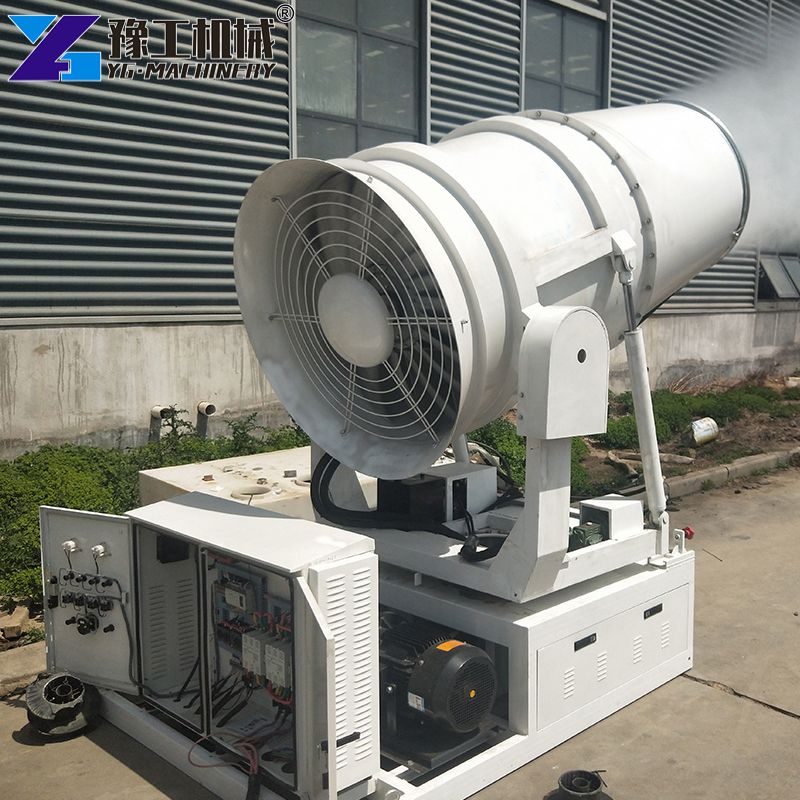

- Mines and quarries: Spray crushers, stockpiles, and loading points.
- Coal yards, ports, and bulk storage: Keep open piles damp during loading.
- Steel and cement plants: Reach tall equipment and wide yards.
- Landfills and waste sites: Reduce airborne particles around working faces.
Pair the cannon with a dust collector at enclosed sources, a wheel washing machine at the exit, and a water spraying truck for haul roads.
Boost Productivity—Get a Free Quote

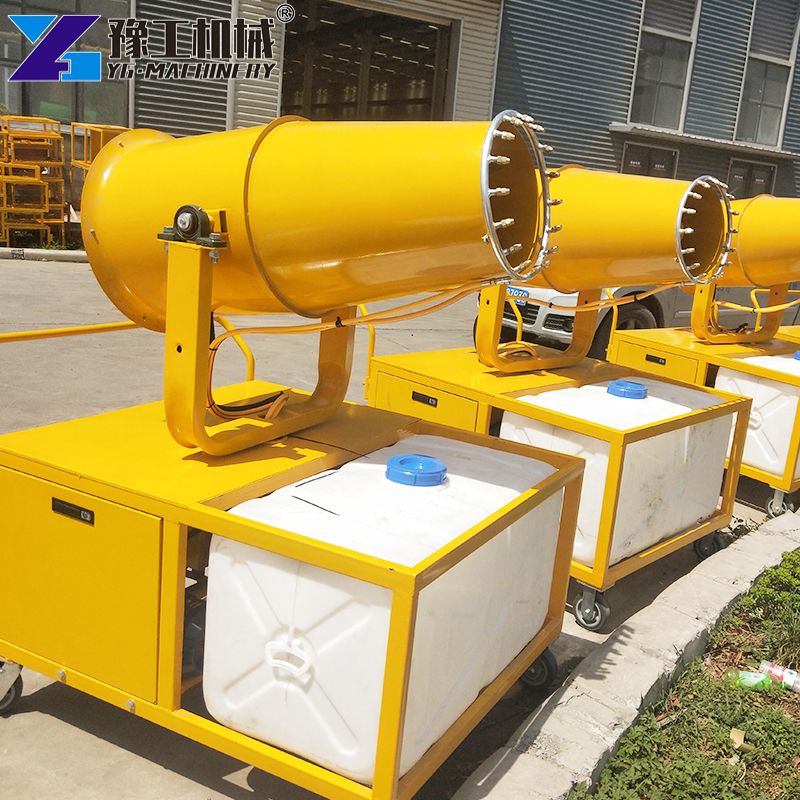

Fog Cannon Machine for Sale: 5 Checks Before You Order
Before you choose any fog cannon machine for sale, check five points:
- Spray range. Measure the distance from the cannon to the farthest dust source, then choose the next size up.
- Power supply. All models need 380V/50Hz. The YG-20 to YG-40 use a 3-phase supply. Confirm your site capacity against total power, from 8.5 kW to 91 kW.
- Water supply. Flow runs from 1,000 L/h to 15 m³/h. As a rough estimate, if the onboard tank is your only source, the YG-30 (460 L at 1,500 L/h) runs about 18 minutes at full flow. The YG-40 (480 L at 3,000 L/h) runs about 10 minutes. For continuous work, connect a water line.

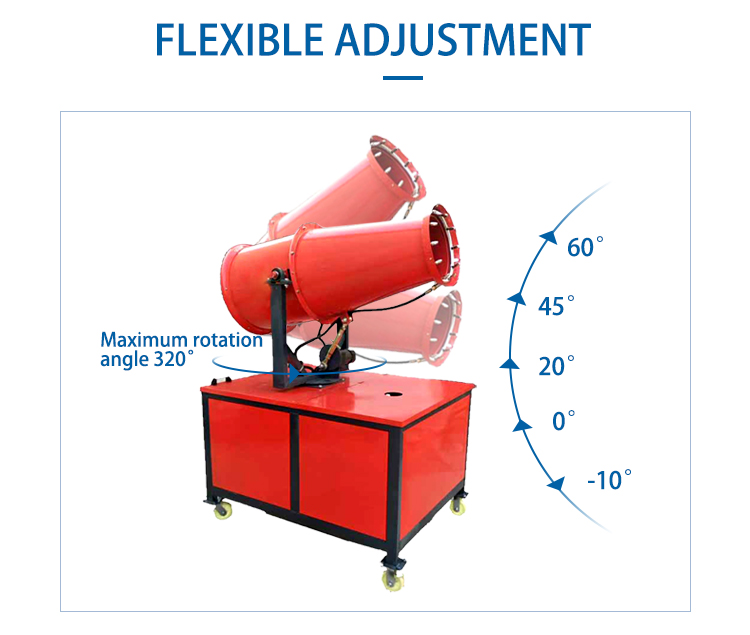

- Coverage angle. Compare horizontal rotation and pitch range with your dust source. The YG-120 tilts from 0° to 60°, which suits tall piles.
- Site access. The compact models weigh 200–300 kg, so plan your lifting and placement.

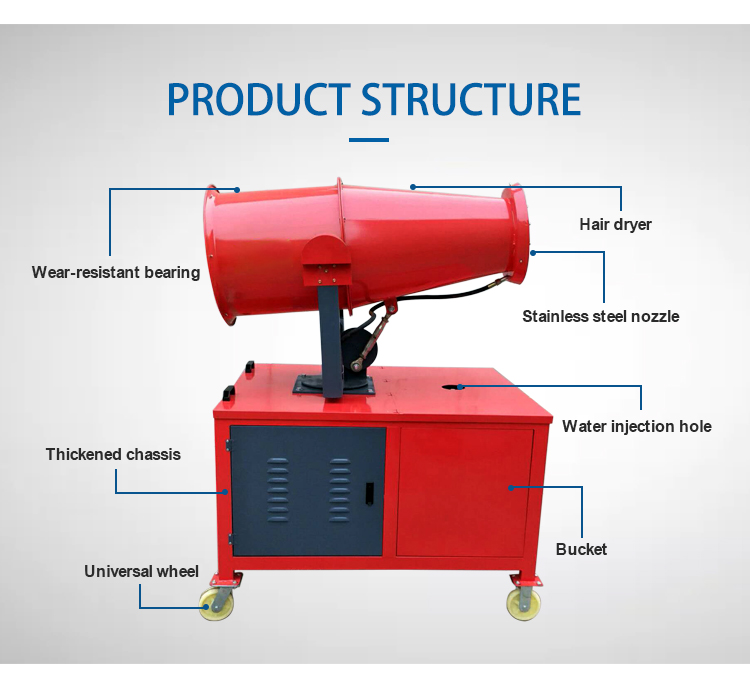

What Makes Industrial Dust Control Equipment Last? 6 Build Details
Strong structure, sound cooling, and wide coverage keep industrial dust control equipment working through a long season. Look for these details:
- Q235 steel cylinder: The compact YG-20, YG-30, and YG-40 use it for a sturdy body.
- High-power blowers: They range from 3 kW to 75 kW to match your range.
- Many nozzles: Counts rise from 8 to 120, so mist covers a wider arc.
- Wide rotation: The compact models turn 360°, and the large models offer ±320°.
- Water tank and recycled water pipe: The compact models include a 1,400 mm recycled water pipe, and the YG-30 and YG-40 add 460 L and 480 L tanks.
- Electric drive: No fuel engine means fewer moving parts to service.
YG Machinery builds these machines in China and exports them worldwide. Send us your dust zone, water source, and power supply, and our team will recommend a model.
6 Questions Buyers Ask Before Ordering a Dust Cannon
The range runs from 20 m on the YG-20 to 120 m on the YG-120. Measure the distance from the cannon to the farthest dust source, then choose the next size up for margin.
Every model is electric. The YG-20, YG-30, and YG-40 run on 380V/50Hz, 3-phase power. The YG-50 to YG-120 run on 380V/50Hz. Total power ranges from 8.5 kW to 91 kW, so confirm your site capacity before you order. No fuel engine is involved.
The YG-20 sprays 1,000 L/h, the YG-30 sprays 1,500 L/h, and the YG-40 sprays 3,000 L/h. The YG-50 and YG-60 spray 8 m³/h, the YG-80 and YG-100 spray 12 m³/h, and the YG-120 sprays 15 m³/h. The YG-30 and YG-40 carry 460 L and 480 L tanks. For continuous work, connect a water line.
Yes. The YG-20, YG-30, and YG-40 rotate 360° and tilt from -10° to 55°. The YG-60 and YG-80 rotate ±320°. The YG-120 rotates 0–320° and tilts from 0° to 60°, which suits tall stockpiles. Match the rotation and pitch range to your dust source before you choose.
The YG-50 to YG-120 atomize water into 30–150 µm droplets. Fine droplets catch dust particles and pull them to the ground. We have not listed a droplet size for the YG-20 to YG-40, so ask us if droplet size matters for your application.
Measure your dust zone, then note your power supply, water source, and destination country. Send those details to us on WhatsApp at +86 183 3715 2861 or by email at admin@ygequip.com. We reply within 4 hours with a model recommendation.
Ready to Order? 3 Steps From Site Data to Quote
Follow three steps to get the right cannon:
- Measure the dust zone. Note the length, the height of the source, and the farthest point to cover.
- Choose the model. Use the tables above to match range, power, and flow.
- Check your site. Confirm 380V/50Hz supply, water source, and placement space.
Then pick the next step that fits your stage:
- Still researching? Compare the models in both tables and note the range and power you need.
- Comparing suppliers? Send your site type, dust zone size, power supply, and destination country. We reply within 4 hours with a model recommendation.
- Ready to order? Request a free quote on WhatsApp at +86 183 3715 2861, or email admin@ygequip.com.
The right industrial dust suppression cannon cuts dust at the source and keeps your site compliant and productive. Send your inquiry today and get a clear plan.
