A mist cannon sprayer fog machine turns water into a fine cloud and throws it up to 120 m, so dust drops before it spreads. YG Machinery offers 8 models for quarries, coal yards, and construction sites. In YG’s tests, the machine reaches above 98% effective dust removal and uses 70–80% less water than sprinklers and water trucks. Tell us your dust zone size, power source, and destination country. We reply within 6 hours with a model recommendation and a quote.
Boost Productivity—Get a Free Quote
Why Does a Mist Cannon Sprayer Fog Machine Reach 98%+ Dust Removal? 6 Features
Fine droplets meet dust in the air, bond with it, and pull it to the ground. Six features make that work on a real site:
- Cloud-mist atomization. The machine atomizes liquid into 10–150 µm droplets. They combine fully with dust, which lifts the effective removal rate from 50–60% on traditional equipment to above 98%.
- Big water savings. Fine mist covers far more dust area per liter. You use 70–80% less water than with spray guns and water trucks.

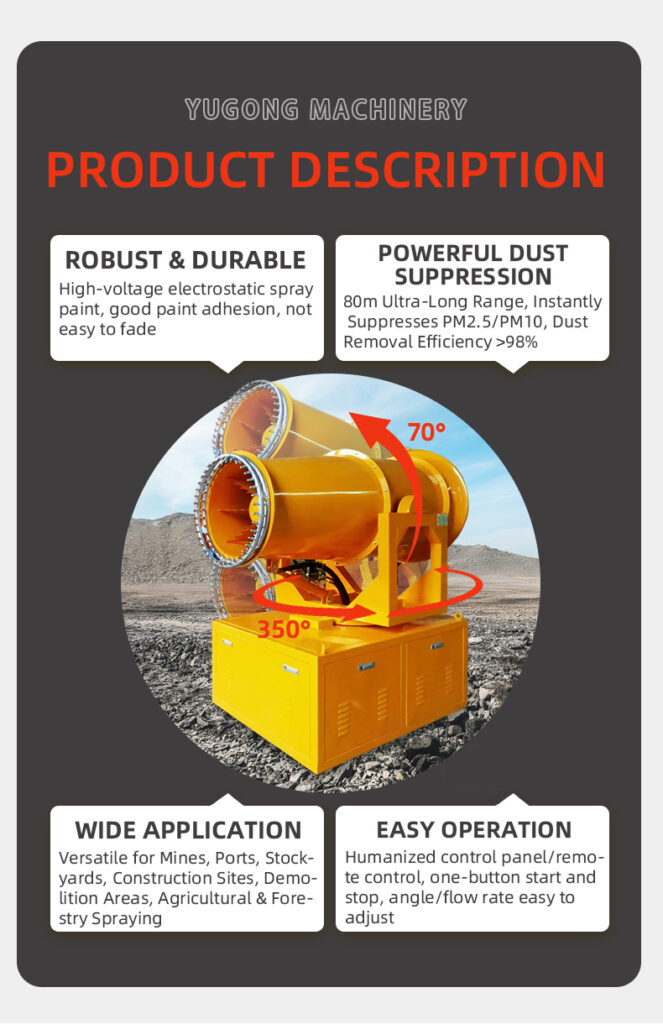

- Full-circle coverage. Horizontal rotation reaches 360° on the compact models, and the pitch angle adjusts up and down. A micro-motor drives the rotation, and a hydraulic system changes the pitch angle quickly.
- Long range, fast response. Range runs from 20 m to 120 m. The mist penetrates the dust cloud, clings to particles, and brings them down fast.
- Smart control. PLC programming gives you one-key start and stop and remote operation. Remote and electric control both work. The modular design makes maintenance simple.
- Proven reliability. The machine averages 8,000 hours of working time between failures.
Want to see how we tested the 98%? Request the test report and test conditions; we reply within 6 hours.

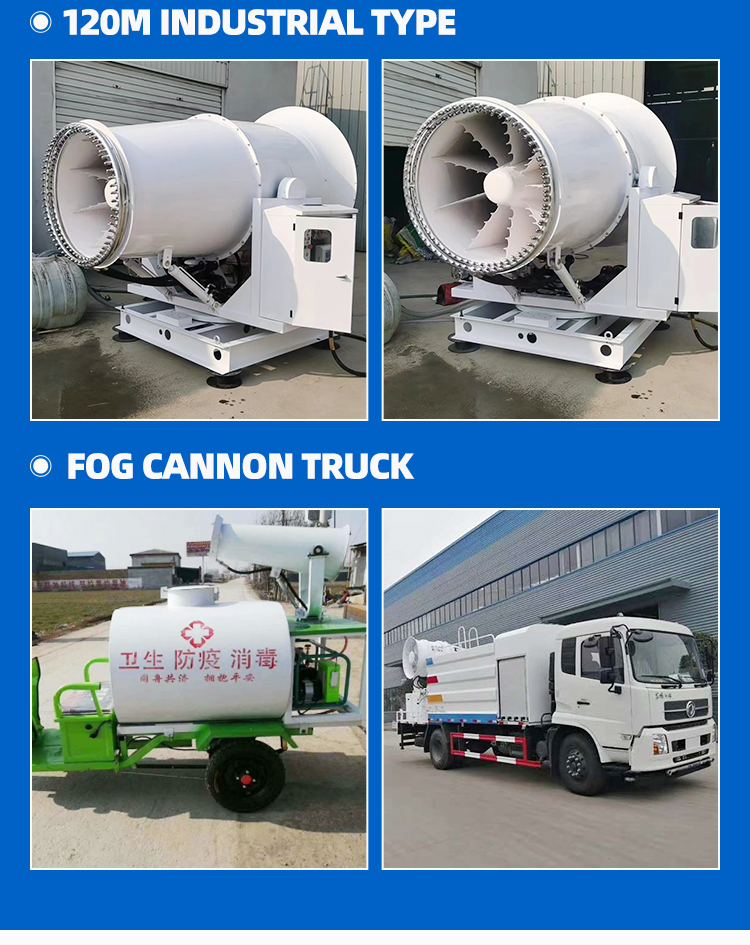

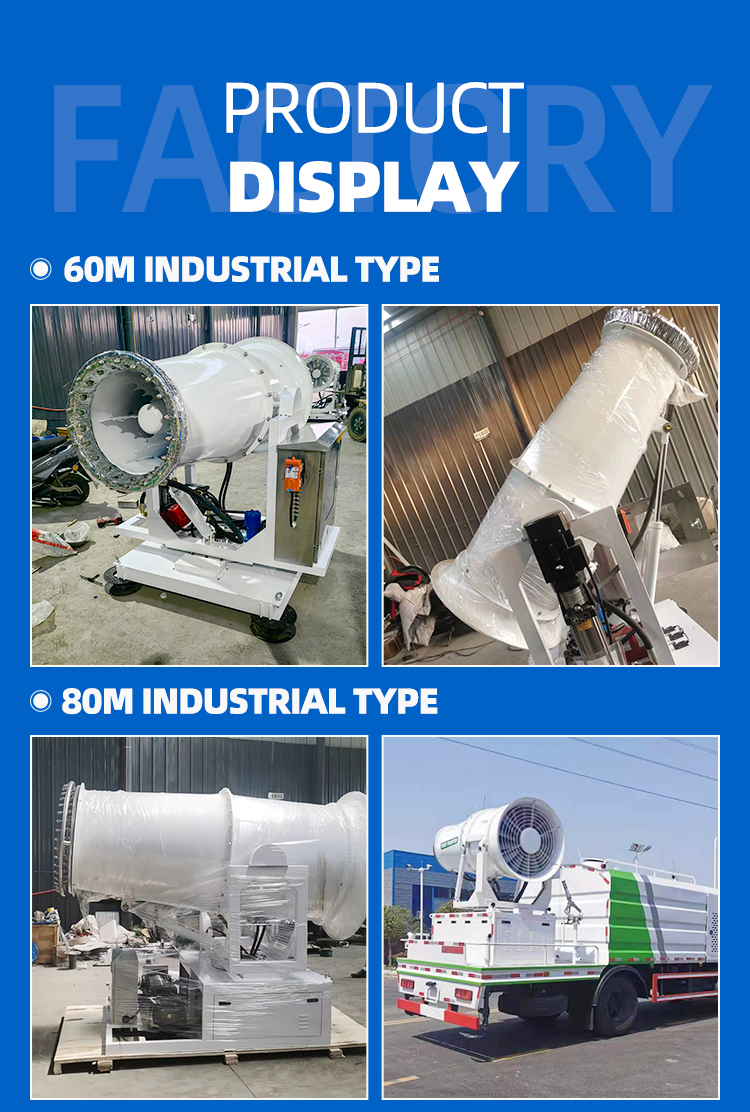

Mist Cannon Sprayer Fog Machine Specification: From 20 m to 120 m
Match the spray range to the size of your dust zone, then check power and water supply. Every fog cannon machine for sale in this range uses the same cloud-mist principle. The model sets range, flow, and coverage.
| Parameter | YG-20 | YG-30 | YG-40 | YG-50 | YG-60 | YG-80 | YG-100 | YG-120 |
|---|---|---|---|---|---|---|---|---|
| Spray range | 20 m | 30 m | 40 m | 50 m | 60 m | 80 m | 100 m | 120 m |
| Total motor power | 8.5 kW | 9.5 kW | 14.5 kW | 14.5 kW | 24.75 kW | 45.25 kW | 75 kW | 91 kW |
| Blower motor power | 3 kW | 4 kW | 11 kW | 11 kW | 18.5 kW | 37 kW | 55 kW | 75 kW |
| Spray flow rate | 1,000 L/h | 1,500 L/h | 3,000 L/h | 8 m³/h | 8 m³/h | 12 m³/h | 12 m³/h | 15 m³/h |
| Horizontal rotation | 360° | 360° | 360° | ±160° | ±320° | ±320° | 160° | 0–320° |
| Pitch angle adjustment | -10° to 55° | -10° to 55° | -10° to 55° | -5° to 35° | -5° to 35° | -5° to 35° | -10° to 45° | 0° to 60° |
| Nozzle quantity | 8 | 10 | 16 | 40 | 58 | 80 | 120 | 120 |
| Water tank capacity | — | 460 L | 480 L | 600 L | 600 L | 600 L | — | — |
Use this rule of thumb:
- YG-20 to YG-40: yards, loading points, and small sites.
- YG-50 and YG-60: mid-size sites and single crushers.
- YG-80 to YG-120: large stockpiles, open pits, and wide quarry faces.
Measure your dust zone first, then choose the next size up for margin.
Not sure which model fits? Send your dust zone size, and we recommend the right model within 6 hours.
Compare Models and Get a Quote

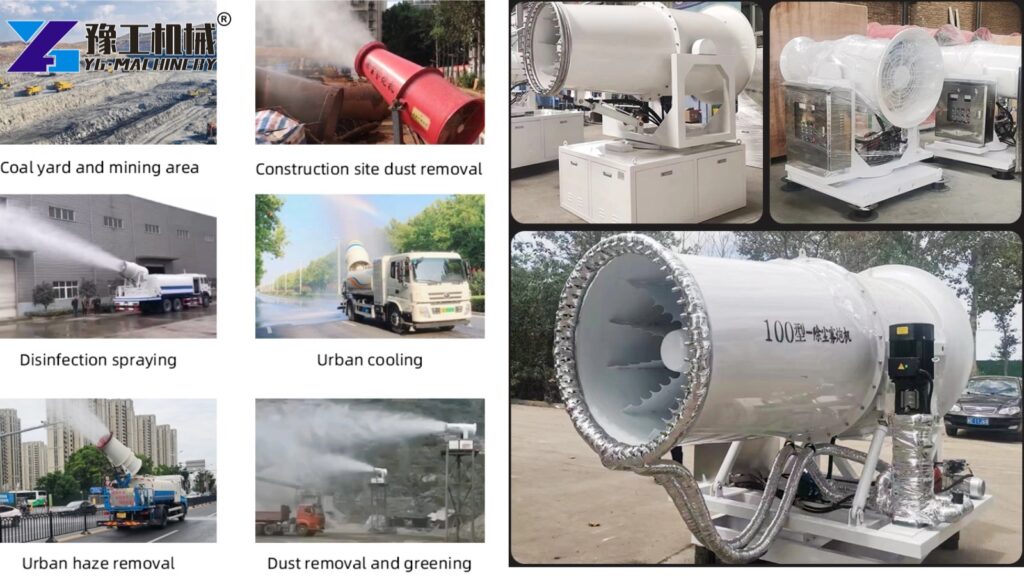

7 Job Sites Where a Mist Cannon Controls Dust Best
A mist cannon works best where dust rises from a fixed source and spreads across a wide area. The table below links each site to the models that usually fit, based on spray range, rotation, and pitch angle.
| Job site | Typical dust source | Models that usually fit | Why it fits |
|---|---|---|---|
| Quarries and open-pit mines | Crushers, blasting faces, stockpiles | YG-60 to YG-120 | Long range and wide rotation cover a large working face. |
| Coal yards, ports, and bulk terminals | Tall piles, loading and unloading points | YG-80 to YG-120 | The YG-100 tilts to 45° and the YG-120 to 60°, so the mist reaches the top of the pile. |
| Construction and demolition sites | Debris clouds, earthmoving, cutting | YG-20 to YG-50 | The compact machines tow and move as the working face changes. |
| Steel, cement, and power plants | Raw material yards, conveyor transfer points | YG-50 to YG-80 | Mid-range models cover wide yards with 40–80 nozzles. |
| Road, bridge, and tunnel projects | Excavation, grinding, haul-road dust | YG-30 to YG-60 | They rotate widely and spray 1,500 L/h to 8 m³/h. |
| Landfills and waste transfer stations | Working faces, unloading bays | YG-40 to YG-60 | They cover an open face without extra piping. |
| Sand, gravel, and material yards | Loading points, hoppers, open storage | YG-20 to YG-40 | The compact models rotate 360° and suit smaller dust zones. |
Choose by the measured size of your dust zone, not by the job site alone. Place the machine upwind of the source and within its rated range. For haul roads, pair it with a water spraying truck. For enclosed sources, add a dust collector. At wash-out points, a wheel washing machine keeps mud off public roads.
Tell us your job site type and dust source, and we match the range, rotation, and pitch angle to it.
Find the Right Model for Your Project
Fog Cannon vs Water Sprinkler: 5 Differences That Cut Water and Dust
A fog cannon removes more dust and uses far less water. A sprinkler only wets the surface it hits, so dust that is already airborne drifts away. Compare them side by side:
| Factor | Fog cannon | Traditional sprinkler, spray gun, or water truck |
|---|---|---|
| Droplet size | Fine mist, about 10–150 µm | Large drops |
| Effective dust removal | Above 98% (YG tests) | About 50–60% |
| Water use | 70–80% less | Baseline |
| Coverage | Up to 120 m, wide rotating arc | Limited to the nozzle or road width |
| Control | PLC, one-key start and stop, remote operation | Mostly manual or driver-operated |
Use both tools where they fit. Run a water spraying truck on haul roads, and place a fog cannon at fixed dust sources such as crushers, stockpiles, and loading points. For enclosed sources, add a dust collector.
Curious how much water your site could save? Send your current water use, and we compare it with the 70–80% figure from our tests.
Diesel Generator or Grid Power? 4 Ways to Run and Control the Cannon
Both work. The cannon runs on three-phase 380V mains or on a diesel generator set, so you can use it at sites with or without a stable grid. Four points shape your setup:
- Power source: Connect to 380V mains where available. At remote sites, size a diesel generator set to the total motor power, from 8.5 kW to 91 kW, with margin.
- Control: Start and stop with one key through the PLC, or operate remotely. Remote and electric control both work, and start-up is quick.
- Movement: The compact structure and tow-and-move design let you reposition the machine as the working face changes.
- Maintenance: The modular design lets you swap and service parts without taking the whole machine apart.
Send your power source (380V mains or generator), and we will confirm the total power you need.
Field Case Study: Open-Pit Coal Mining Dust Suppression in Indonesia
The Operational Challenge
A major open-pit coal mining contractor in Kalimantan, Indonesia faced severe operational and environmental hurdles due to massive coal dust clouds generated during high-capacity excavation, crushing, and haul road transport. Indonesia’s Ministry of Environment and Forestry (KLHK) enforces strict PM2.5 and PM10 air quality standards around mining concessions. Excessive coal dust not only severely degraded operator sightlines along haul roads but also caused rapid clogging of heavy equipment air filters, resulting in high machinery maintenance costs and risk of heavy municipal non-compliance penalties.
The Equipment Solution
To achieve reliable dust suppression across wide mining faces while keeping equipment procurement costs under control, the contractor ordered two heavy-duty Model YG-100 misting cannons directly from YG Machinery’s factory. Featuring 55kW high-thrust blower motors, a 100-meter throwing distance, 120 precision atomizing nozzles, and a high-head 180m water pump stroke, these factory-direct units saved the contractor over 28% compared to local machinery dealers. Mounted on mobile trailers and powered by site diesel generators, the cannons utilized automated 160° horizontal rotation and -10° to 45° vertical pitch controls to envelope active coal crushing and loading zones in a dense 30–150 μm micro-mist curtain.
Operational Results and Return on Investment (ROI)
Deploying factory-direct long-range misting cannons transformed dust management across the Kalimantan mine site:
- 98%+ Dust Capture Efficiency: Cloud-fog atomization technology reduced floating PM10 coal dust levels by over 98%, bringing air quality well within Indonesia’s KLHK safety limits.
- 75% Water Overhead Savings: Precise nozzle atomization cut daily site water usage by 75% compared to conventional unthrottled water trucks, eliminating muddy haul road hazards.
- Protected Mining Fleet: Suppressing abrasive coal dust extended engine air filter replacement intervals by 3x across haul trucks and excavators, saving over $28,000 in quarterly fleet maintenance.
- Rapid Capital Payback: Thanks to direct factory wholesale pricing and operational fuel/water savings, the contractor fully amortized the machinery investment within 18 days of continuous operation.
Running a quarry or stockpile site? Send photos and the dust zone size, and we’ll sketch a similar setup for you.
Fog Cannon Machine for Sale: 5 Checks Before You Order
Before you choose any fog cannon machine for sale, check five points:
- Spray range. Measure the distance to the farthest dust source, then choose the next size up.
- Power and water. Add up the total motor power for your generator or mains. Plan a water line for continuous work, because the onboard tank is a buffer, not the main supply.
- Coverage angles. Compare rotation and pitch with your dust source. The YG-120 tilts from 0° to 60°, which suits tall piles.
- Control options. Ask about PLC functions, remote operation, and electric control.
- After-sales support. Confirm who services the machine and how fast they reply.
YG Machinery is a Chinese machinery manufacturer and exporter, and we reply to every inquiry within 8 hours. Choose your next step:
- Still researching? Compare the models in the table and note the range and power you need.
- Comparing suppliers? Send your site type, dust zone size, power source, and destination country. We reply within 8 hours with a model recommendation.
- Ready to order? Message us on WhatsApp at +86 183 3715 2861 or email admin@ygequip.com for a free quote.
The right mist cannon sprayer fog machine cuts dust at the source, saves water, and keeps your site running. Send your inquiry today and get a clear plan.
