A mist cannon machine utilizes proprietary cloud-fog atomization technology to convert liquid solutions into micro-fine mist droplets (10–150 microns), capturing airborne dust particles instantly and achieving over 98% dust suppression efficiency across construction, mining, and quarrying sites. Driven by 380V three-phase electric power or mobile diesel generators, these heavy-duty units project high-velocity mist streams across throwing distances ranging from 20 meters up to 120 meters.
Compared to traditional spraying methods that achieve only 50% to 60% dust capture, these high-thrust misting cannons expand solution volume by over 10,000 times, expanding coverage by 30 times while consuming less than 5% of the water required by open hoses. YG Machinery engineers these advanced misting rigs with 360-degree automatic horizontal rotation, smart PLC remote controls, and modular maintenance structures, delivering an average fault-free lifespan exceeding 8,000 operating hours to satisfy strict PM2.5 and PM10 air quality standards. As an original source equipment manufacturer, buying directly from our factory eliminates distributor markups to secure the most competitive direct factory price.
Start Your Project with the Right Equipment
How Does a Mist Cannon Machine Achieve 98% Dust Capture While Saving 80% Water?
A mist cannon machine achieves 98% dust capture and 80% water savings by atomizing water into tiny 10–150 micron fog particles that match the exact diameter of floating silica and coal dust grains, allowing the mist to coat, absorb, and pull down dust instantly without creating surface mud.
- 98%+ Dust Suppression Rate: Replaces ineffective 50%–60% traditional hose suppression with complete 10–150 micron particle envelopment.
- 20x Water Conservation: Expands effective water surface volume by 10,000 times, using less than 5% of the water volume consumed by traditional water trucks or open sprinklers.

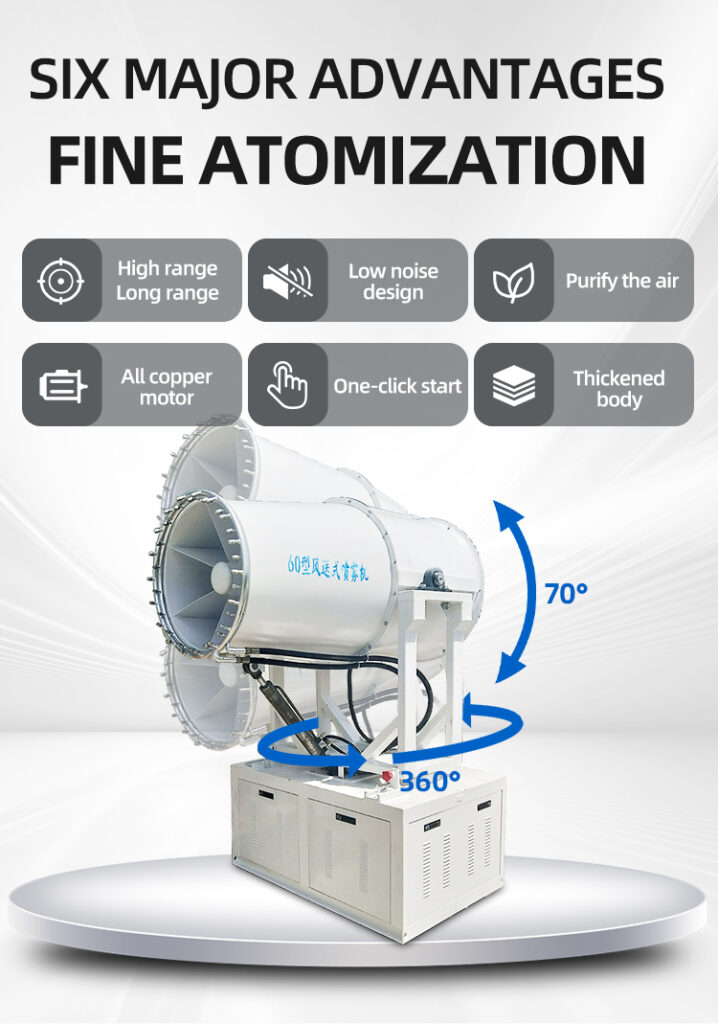

- 360-Degree Total Coverage: Features automatic 360° horizontal rotation and pitch angles from -10° to 55° (or -5° to 35° on heavy units), eliminating coverage blind spots.
- 8,000-Hour Fault-Free Reliability: Engineered with Q235 carbon steel cylinders and high-grade pumps, guaranteeing long-term durability in extreme site conditions.
Preventing silica dust accumulation protects operator health and prevents fine particulate buildup in heavy machinery air filters, significantly extending equipment service life.
Technical Parameter Overview Across YG Standard Models
Selecting the right misting cannon requires matching your site’s physical footprint, required throw distance, water flow, and total motor power. Sourcing equipment directly from YG Machinery guarantees full factory testing, direct pricing advantages, and rapid global spare parts dispatch
| Equipment Parameter | YG-20 | YG-30 | YG-40 | YG-50 | YG-60 | YG-80 | YG-100 | YG-120 |
| Spray Range | 20 m | 30 m | 40 m | 50 m | 60 m | 80 m | 100 m | 120 m |
| Total Motor Power | 8.5 kW | 9.5 kW | 14.5 kW | 14.5 kW | 24.75 kW | 45.25 kW | 75 kW | 91 kW |
| Blower Motor Power | 3 kW | 4 kW | 11 kW | 11 kW | 18.5 kW | 37 kW | 55 kW | 75 kW |
| Spray Flow Rate | 1,000 L/h | 1,500 L/h | 3,000 L/h | 8 m³/h | 8 m³/h | 12 m³/h | 12 m³/h | 15 m³/h |
| Horizontal Rotation | 360° | 360° | 360° | ±160° | ±320° | ±320° | 160° | 0–320° |
| Pitch Angle Adjustment | -10° to 55° | -10° to 55° | -10° to 55° | -5° to 35° | -5° to 35° | -5° to 35° | -10° to 45° | 0° to 60° |
| Nozzle Quantity | 8 | 10 | 16 | 40 | 58 | 80 | 120 | 120 |
| Water Tank Capacity | — | 460 L | 480 L | 600 L | 600 L | 600 L | — | — |
High-capacity 75 kW blower motors propel atomized mist curtains across expansive open-pit mining sites and elevated high-rise demolition zones without pressure drops.
Compare Models and Get a Quote

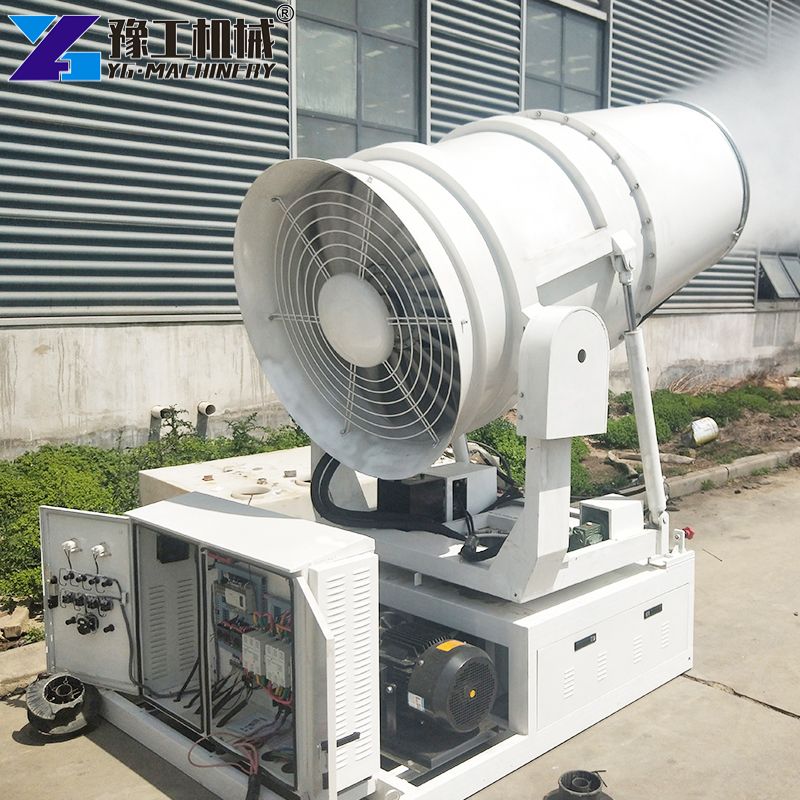

Why Is Automated Mining Dust Suppression Critical for Open-Pit Sites?
Automated mining dust suppression is critical for open-pit sites because massive blasting, heavy hauling, and primary rock crushing generate dense PM2.5 and PM10 clouds that block operator sightlines, accelerate engine wear, and trigger strict environmental fines.
- High Penetration Power: High-velocity fan blades force micro-mist droplets deep into dense dust clouds, knocking down heavy mineral particles instantly.
- PLC Smart Automation: Features one-touch start/stop, wireless remote control, and pre-programmed rotation patterns, allowing operators to adjust spray angles safely from cab interiors.
- Dual Power Versatility: Connects directly to 380V three-phase grid power or pairs with mobile diesel generator sets for complete off-grid flexibility.
- Flexible Trailer Mounting: Compact chassis designs allow quick hitching behind utility trucks, enabling rapid movement as mining faces advance.
Deploying automated mist cannons keeps open-pit haul roads and crushing stations safe, clear, and fully compliant with environmental health standards.
Find the Right Model for Your Project

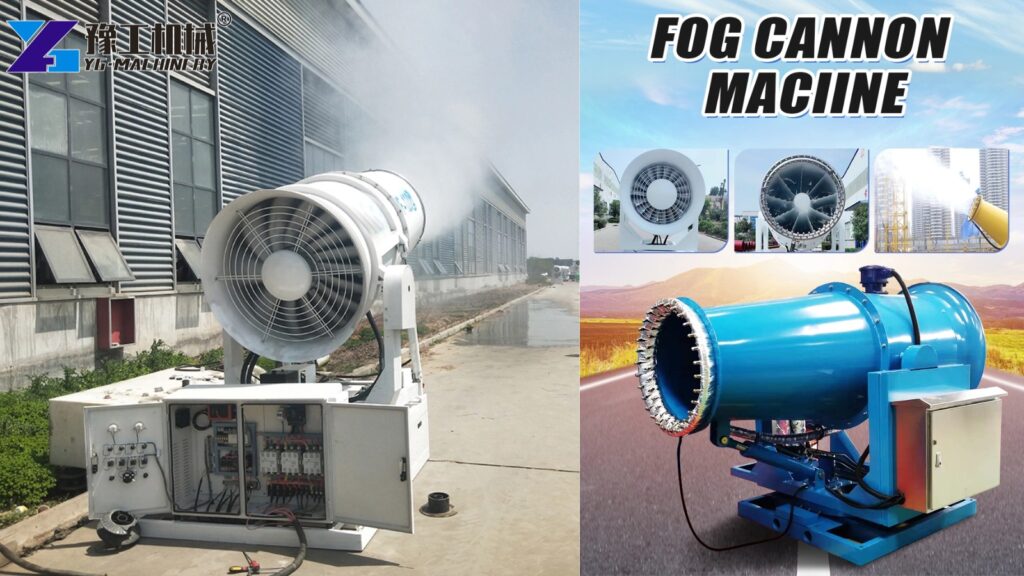

How Does a Dust Suppression Fog Cannon Outperform Traditional Water Sprinklers?
A dedicated Dust Suppression Fog Cannon outperforms traditional water sprinklers by creating fine, moist mist clouds that bind with dust in mid-air, avoiding the heavy pooling water and mud hazards that sprinklers leave across transit roadways.
- 70%–80% Lower Water Costs: Consumes a fraction of the water volume used by water trucks or spray bars, reducing site water hauling expenses significantly.
- Zero Mud Pooling: Ultra-fine droplet evaporation prevents muddy road conditions, protecting haul truck tires and preventing vehicle slippage.
- Micro-Motor Angle Controls: Precision electric micro-motors adjust horizontal rotation speeds, while hydraulic cylinders control vertical pitch angles rapidly.
- Modular Maintenance Design: Plug-and-play components and accessible line filters minimize service downtime, ensuring smooth site operations.
Upgrading to atomized fog suppression keeps your site clean, dry, and compliant while slashing daily utility expenses.
What Makes a Construction Dust Control Machine Essential for Urban Demolition?
A construction dust control machine is essential for urban demolition because high-rise concrete crushing and percussive breaking release heavy silica dust clouds directly adjacent to residential buildings and public roadways. Municipal environmental agencies enforce strict air quality standards, issuing immediate stop-work orders when dust drifts off-site.
Deploying long-range misting cannons delivers vital operational advantages:
- Targeted High-Altitude Reach: Reaches vertical heights up to 60° and horizontal distances up to 120 meters, enveloping elevated structure drops in thick mist curtains.
- Smart Remote Operation: Technicians adjust misting angles remotely from safe distances, keeping workers clear of falling concrete debris.
- All-Weather Durability: High-grade Q235 carbon steel construction withstands harsh impacts from debris and harsh weather conditions.
- Direct Factory Cost Savings: Purchasing directly from YG Machinery eliminates distributor commissions, allowing contractors to outfit entire sites with high-capacity equipment at wholesale rates.
Integrating automated mist cannons into your urban demolition workflow protects neighboring communities and ensures uninterrupted project progress.
Field Case Study: Open-Pit Mining & Demolition Project in Australia
The Operational Challenge
A mining and civil demolition contractor in Western Australia faced strict environmental penalties due to severe silica dust drifting across a 100-meter-wide open work site. Local environmental authorities enforced zero-emissions dust limits. Traditional water trucks consumed over 25,000 liters of water daily, creating dangerous mud hazards along haul roads without stopping airborne dust drift.
The Equipment Solution
To solve this environmental challenge, the contractor acquired two heavy-duty YG-100 model misting units from YG Machinery. Featuring 55 kW blower motors, 100-meter throw ranges, and 120 atomizing nozzles, the units operated on 380V site power with 600L water tanks. Stationed at primary crushing zones, their automated 160° rotation created a continuous 10–150 micron mist curtain across the site.
Operational Results and Return on Investment (ROI)
Deploying automated misting cannons transformed environmental compliance across the jobsite:
- 98% Dust Reduction: Maintained airborne silica and PM10 particulate levels well below municipal limits throughout the 30-day operation.
- 78% Water Savings: Cut daily site water consumption from 25,000 liters down to less than 5,500 liters, eliminating road mud hazards entirely.
- Zero Regulatory Downtime: Completely avoided stop-work penalties and environmental fines, saving an estimated $52,000 in potential project delay costs.
- Rapid Capital Payback: The contractor fully amortized the machinery purchase cost within 19 days of continuous site operation.
Complete Environmental & Surface Treatment Equipment Integration
For comprehensive industrial plant maintenance, surface restoration, and municipal environmental remediation, pair your mist cannon machine with our complete lineup of specialized surface preparation and cleaning equipment.
Sourcing a complete machinery fleet directly from YG Machinery ensures seamless operational synergy, uniform quality standards, and bundled direct factory pricing to build a complete Environmental & Surface Treatment Equipment hub:
- Concrete & Steel Surface Preparation: Prepare industrial concrete floors and remove tough coatings before repainting using a heavy-duty shot blasting machine.
- Precision Non-Abrasive Cleaning: Clean delicate industrial molds, electrical cabinets, and processing machinery safely without water or chemical residue using a high-efficiency dry ice blasting machine.
- Heavy Rust & Scale Removal: Strip thick corrosion, paint layers, and mill scale from steel bridges, tanks, and ship hulls effortlessly with an industrial sandblasting machine.
- Automated Municipal & Industrial Dredging: Clear thick toxic sludge, hazardous sediment, and heavy slurry from industrial sumps and municipal drainage lines remotely using an automated sludge dredging robot while mist cannons suppress ambient odors and airborne dust.
Integrating dust suppression fog cannons with specialized surface cleaning and dredging machinery ensures a safe, eco-friendly, and highly compliant jobsite.
Accelerate Your Environmental Compliance Today
Upgrading your jobsite with a high-performance mist cannon machine from YG Machinery is simple and direct:
- Direct Factory Quotation (Ready to Buy): Send us your target spray distance (20m–120m) and destination port to receive an itemized quote within 6hours.
- Technical Equipment Matching (Evaluation Stage): Share your site dimensions and power setup to select between compact 8.5 kW models and industrial 91 kW long-range sprayers.
- Technical Datasheet Download (Research Stage): Access our detailed engineering blueprints, PLC wiring schematics, and nozzle maintenance guides.
Contact our engineering sales team today via email or inquiry form to secure direct factory rates!
Essential FAQs About YG Mist Cannon Machines
A1: Using cloud-fog atomization technology (10–150 microns), YG mist cannons achieve a dust suppression rate exceeding 98%, compared to 50%–60% for traditional sprayers.
A2: By expanding solution volume over 10,000 times, mist cannons expand coverage by 30 times and reduce total water consumption by 70% to 80%.
A3: Units run on standard 380V/50Hz 3-phase industrial electric power or pair directly with mobile diesel generator sets for off-grid sites.
A4: The PLC system supports one-touch start/stop, pre-programmed rotation sweeping, and wireless remote control, allowing safe operation from up to 100 meters away.
A5: Engineered with durable Q235 carbon steel bodies and industrial pumps, YG mist cannons deliver an average fault-free lifespan of over 8,000 operating hours.
